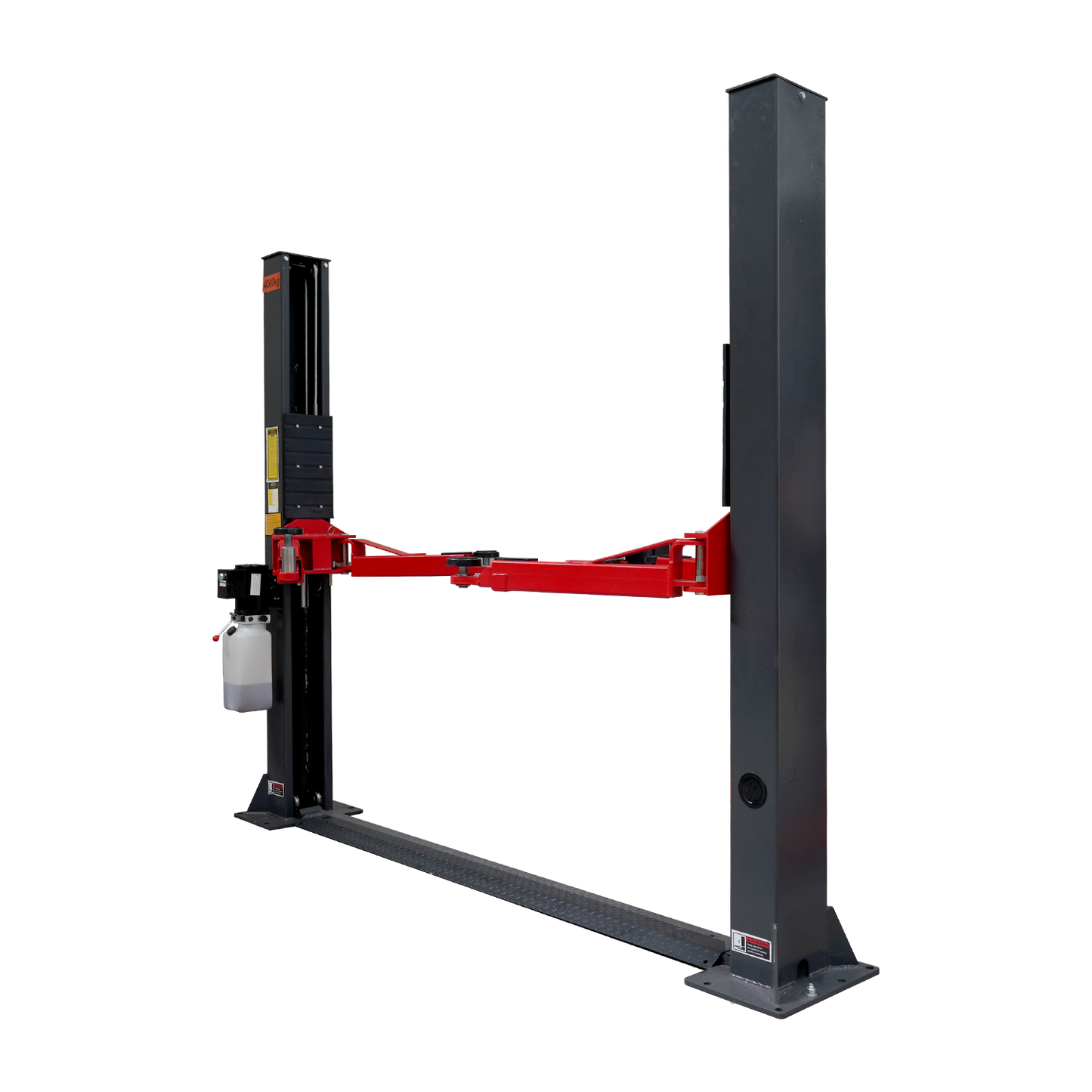

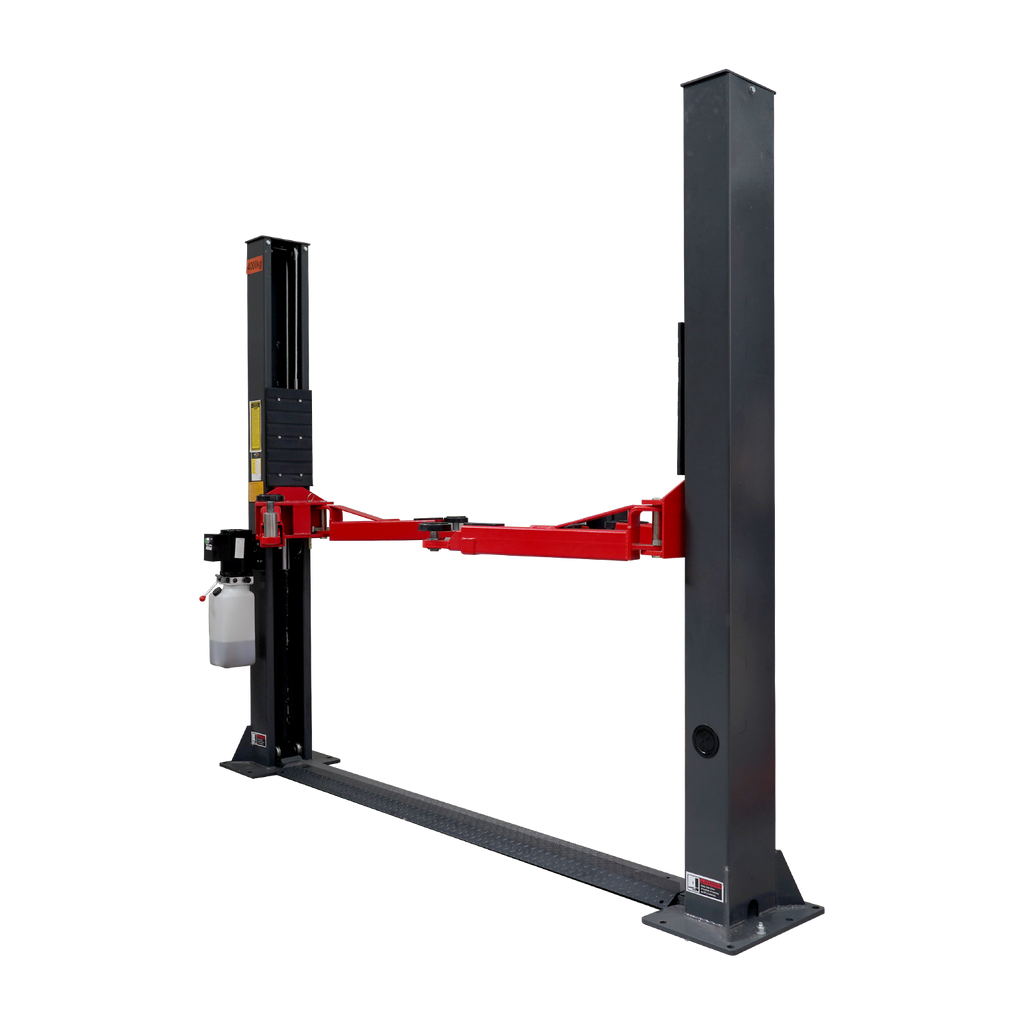

A 2 post car hoist with red arms and dark grey posts. 2 Post Baseplate Hoist - 4 Ton | TLD4.0BP

A classic white car parked between the posts of a Tufflift 2 post car hoist - 2 Post Baseplate Hoist - 4 Ton | TLD4.0BP

A single post of a 2 post car hoist featuring a red arm with pads and adapters. 2 Post Baseplate Hoist - 4 Ton | TLD4.0BP

Close up of red car hoist arm with screw pads - 2 Post Baseplate Hoist - 4 Ton TLD4.0BP

Tufflift

2 Post Car Hoist | 4 Ton Base Plate

Name: 2 Post Car Hoist | 4 Ton Base Plate
Brand: Tufflift
SKU: TLD4.0BP
Price: 3090.00 AUD
Availability: InStock

2 Post Car Hoist | 4 Ton Base Plate

SKU:TLD4.0BP

$3,090.00 AUD inc. GST

~~$0.00 AUD~~ $3,090.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Included with your Tufflift: RRP $474.20 AUD

The Tufflift 4 Ton Base Plate - TLD4.0BP is a 2 post car hoist with a 4000KG capacity and 1.85m lifting height. Featuring twin lock release, durable powder coating, and automatic safety locks, it’s available in 240V or 3-phase. Includes hydraulic oil, screw pads, and anchor bolts. Engineer-certified and Worksafe registered.

Features

4000KG Safe Working Limit
Lifting height of 1.85m (plus adapters)
Overall height of 2.8m tall
Base Plate design
Twin lock release
Available in 240V or 3 Phase power
Durable Powder Coating
Door protection pads

Includes

Hydraulic oil
Screw pads
Anchor bolts
Engineer Certified
Design Registered with Worksafe - click here

Safety

Anti-surge valve
Automatic mechanical carriage locks
Automatic mechanical arm locks

Specifications

Capacity: 4000KG

Minimum Concrete Requirement: 115mm

Recommended Ceiling Height: 3.25m

Lock Release: Twin

Power: 240v 2.2kw 14.5 amps | 3 Phase 2.2kw 7 amps

Electrical: 15amps / 7amps

Lifting Height: 1870mm

Lifting Height with Adapters: 2030mm

Minimum Pad Height: 100mm

Overall Hoist Height: 2776mm

Overall Hoist Width: 3369mm

Width Between Columns: 2775mm

Drive Through Clearance: 2586mm

Lifting Time: 60 sec

Arm Design: Symmetric

Freight Dimensions: L 2850mm W 500mm H 730mm W 580KG

Warranty

We offer a comprehensive warranty on the TLD4.0BP, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post base plate hoist remains reliable and fully supported, giving you peace of mind throughout its use.
