2 Post Hoist Clear Floor - 5.5 Ton | TLV5.5OH

Close-up of the adjustable arm pads and lifting adapters on a 2 post car hoist, highlighting the durable construction and precise adjustment capabilities - 2 Post Hoist Clear Floor - 5.5 Ton | TLV5.5OH

Close-up of an adjustable arm and adapter on a 2 post car hoist, showcasing the durable rubber pad and solid metal construction for secure vehicle lifting. - 2 Post Hoist Clear Floor - 5.5 Ton | TLV5.5OH

Close-up of an adjustable arm pad and adapter on a 2 post car hoist, highlighting the sturdy rubber pad and robust metal construction for reliable vehicle lifting. - 2 Post Hoist Clear Floor - 5.5 Ton | TLV5.5OH

Tufflift

2 Post Car Hoist | 5.5 Ton Clear Floor

Name: 2 Post Car Hoist | 5.5 Ton Clear Floor
Brand: Tufflift
SKU: TLV5.5OH
Price: 8590.00 AUD
Availability: InStock

SKU:TLV5.5OH

$8,590.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Included with your Tufflift: RRP $1,436.00 AUD

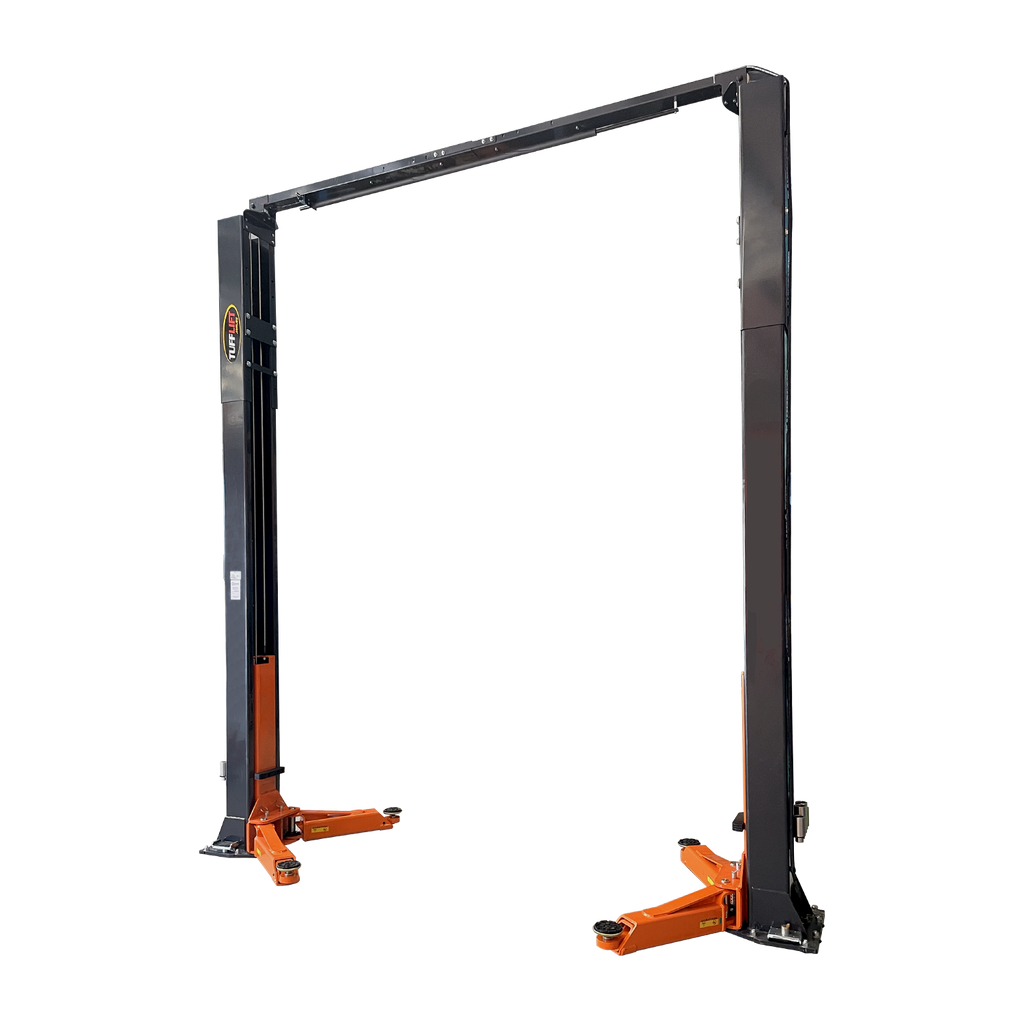

Introducing the Tufflift TLV5.5OH, a robust clear floor car hoist with a 5500KG capacity and 1.85m lifting height (plus adapter and screw pad adjustments). Featuring a single lock release, durable powder coating, and overhead cable equalization, it provides smooth, balanced lifting.

Features

5500KG Safe Working Limit
Lifting height of 1.85m (plus adapters and screw pad adjustment)
Clear floor design
Single lock release
Available in 240V or 3 Phase power
Durable Powder Coating
Overhead Cable equalization
Spring operated arm restraints.
Hydraulic cylinders in each column with full stroke and cylinder rod concealed inside carriage
3 stage arm design

Includes

Hydraulic oil
Pad adapter set
Anchor bolts
ALI USA Certified
Design Registered with Worksafe - click here

Options

Height extension kit
Width extension kit

Safety

Anti-surge valve
Automatic mechanical carriage locks
Automatic mechanical arm locks
Rubber protected height limit switch bar

Specifications

Capacity: 5500 kg

Minimum Concrete Requirement: 110mm

Recommended Ceiling Height: 4.4m

Lock Release: Single

Power: 240v 3kw 17 amps | 3 Phase 3kw 8.5 amps

Lifting Height: 1848mm

Lifting Height with Adapters: 1975mm

Minimum Pad Height: 121mm

Overall Hoist Height: 4216mm (+ op ext)

Overall Hoist Width: 3556mm (+ op ext)

Lifting Time: 60sec

Arm Design: 3 Stage Symmetric

Front Reach (Min/Max): 891mm/1372mm

Rear Reach (Min/Max:) 891/1372 mm

Height with extension kit: 4521mm

Width with extension kit: 3708mm

Freight Dimensions:
L 3500mm W 540mm H 1100mm W 950KG

Warranty

We offer a comprehensive warranty on the TLV5.5OH, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post clear floor hoist remains reliable and fully supported, giving you peace of mind throughout its use.
