2 Post Car Hoist | 2.7 Ton Full Platform Compact Parking Hoist
2 Post Car Hoist | 2.7 Ton Full Platform Compact Parking Hoist
SKU:TL2.7HP-A
Couldn't load pickup availability

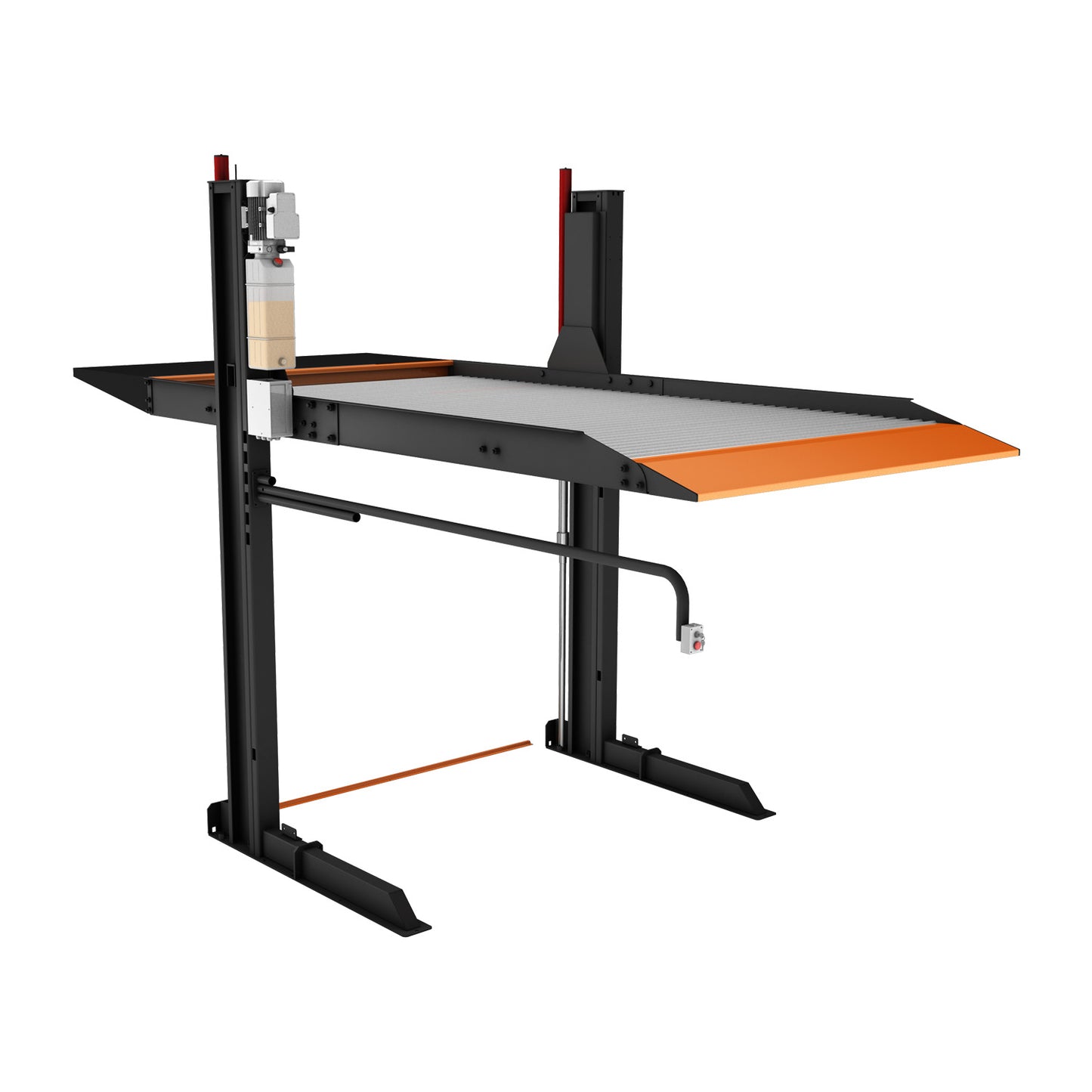

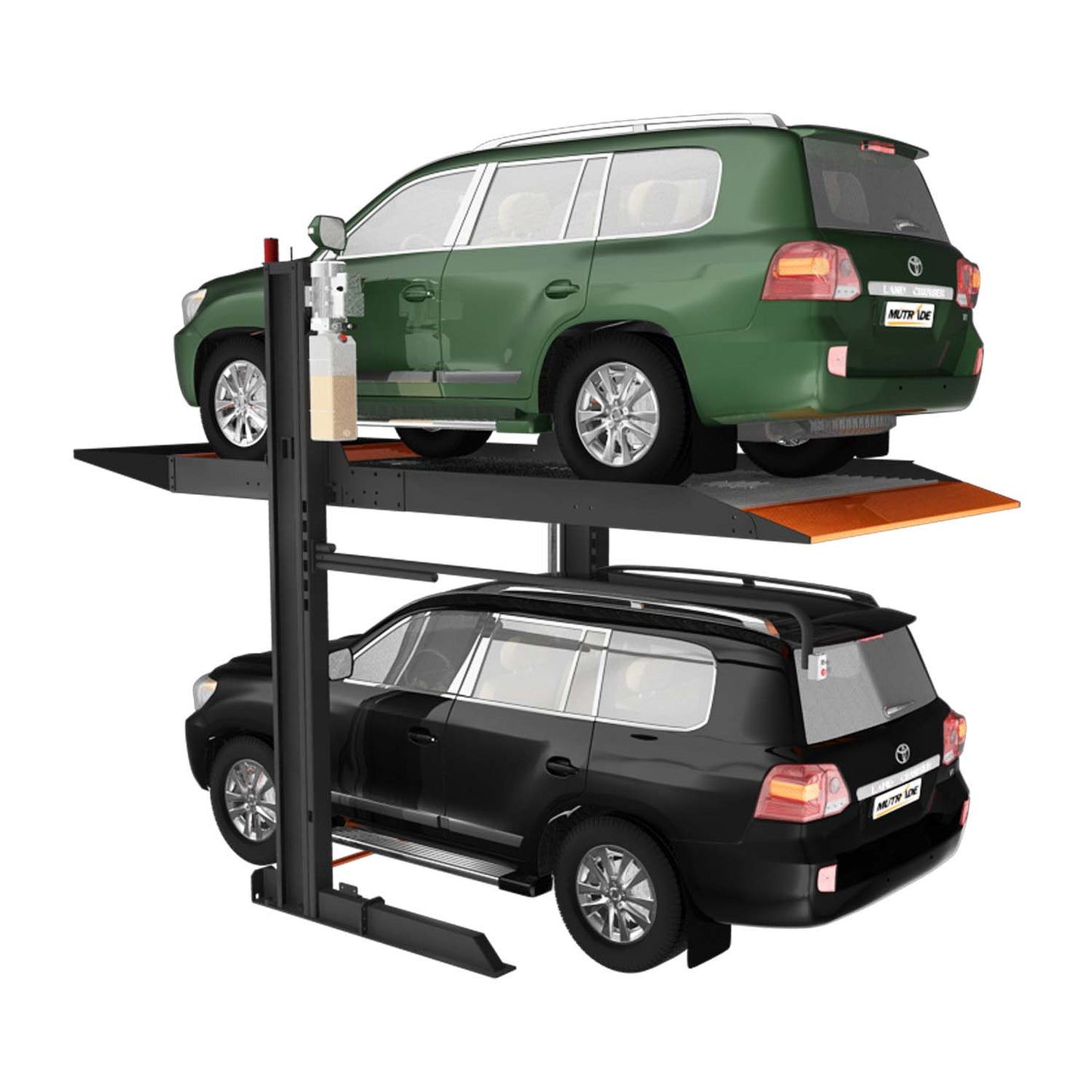

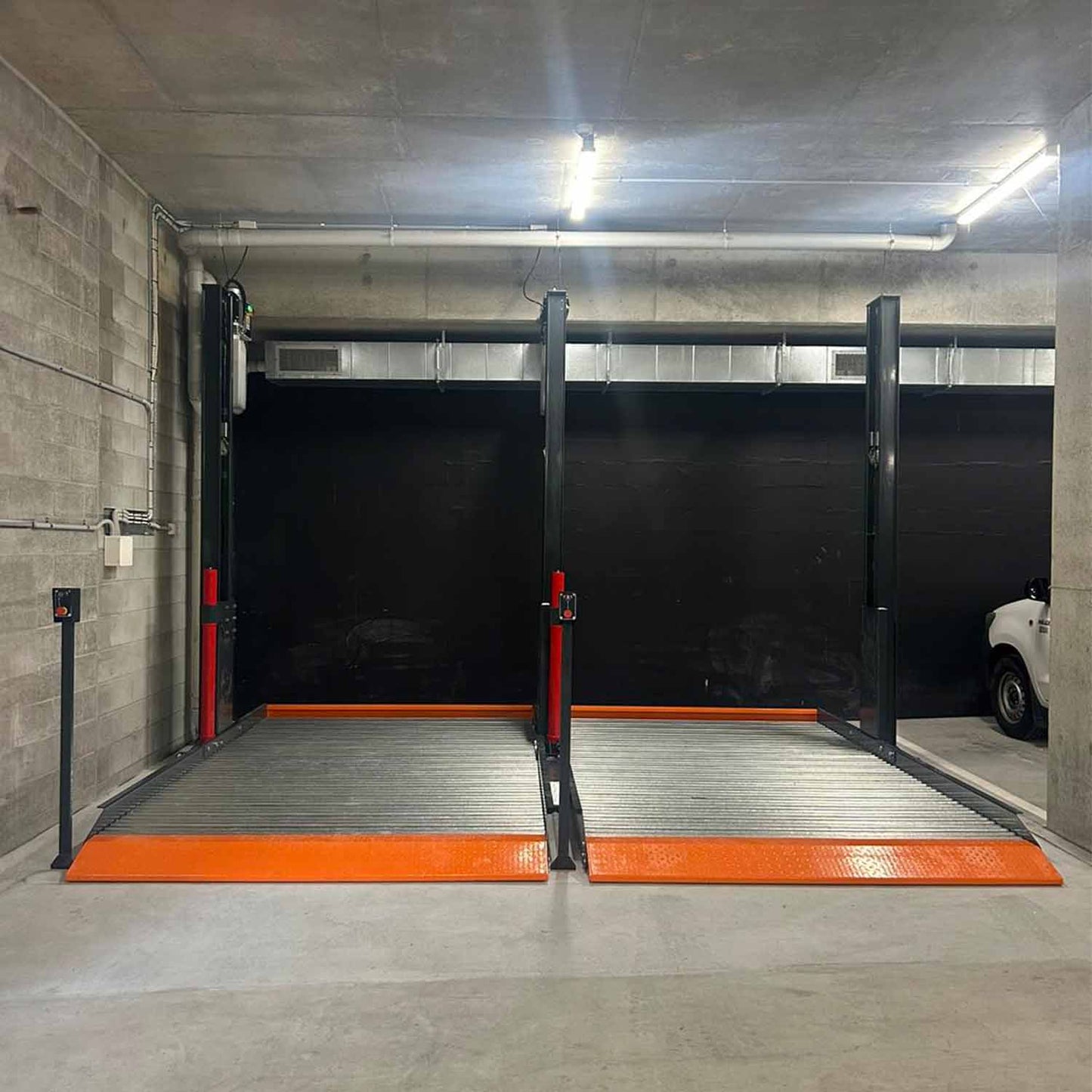

This commercial-grade 2 post car hoist features a durable, galvanised corrugated platform and dual hydraulic cylinders for balanced lifting. Designed for safety and efficiency, it offers a control arm for adjustments outside the platform and includes dynamic locks, anti-slip decking, and Worksafe certification.
- Commercial grade design with powder coated finish

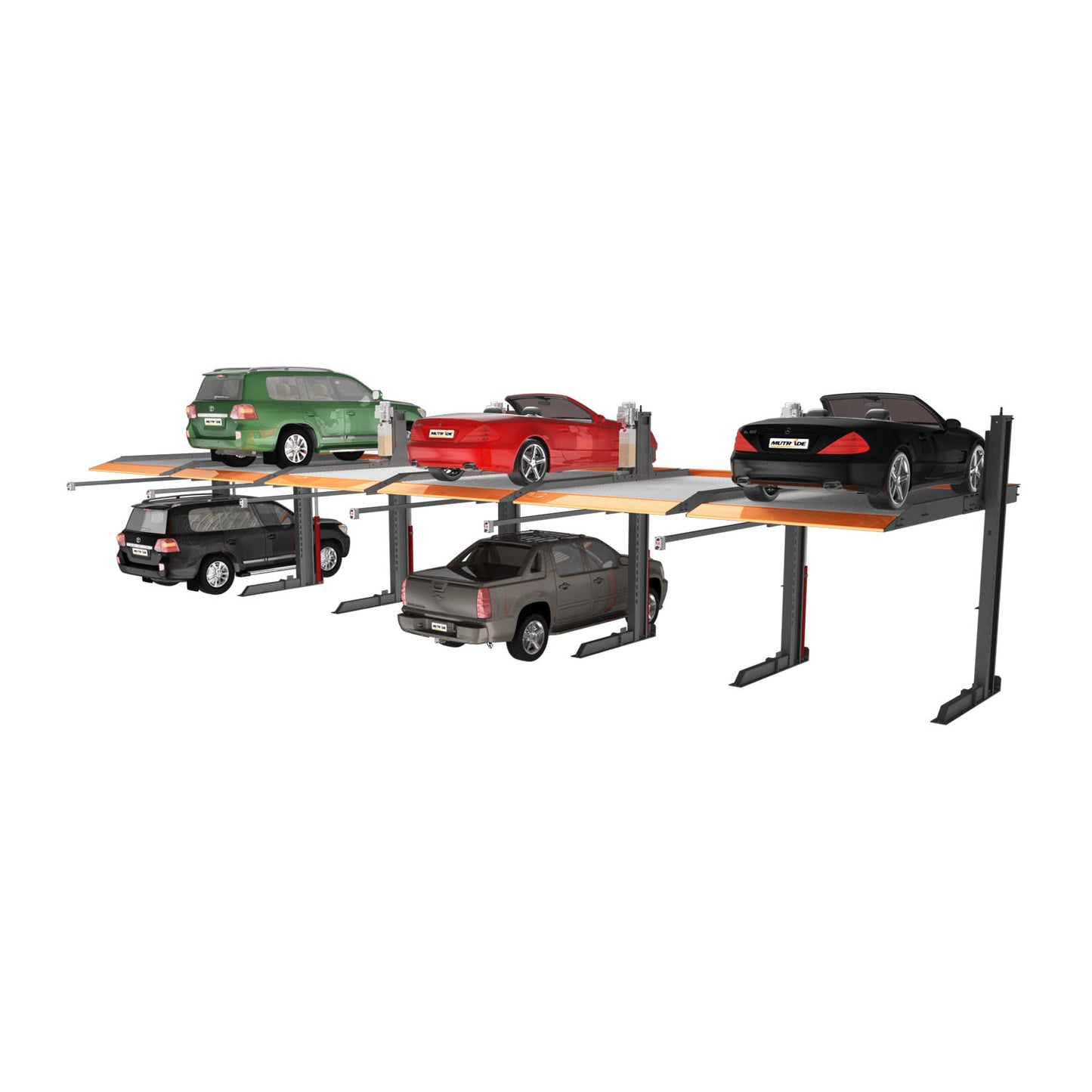

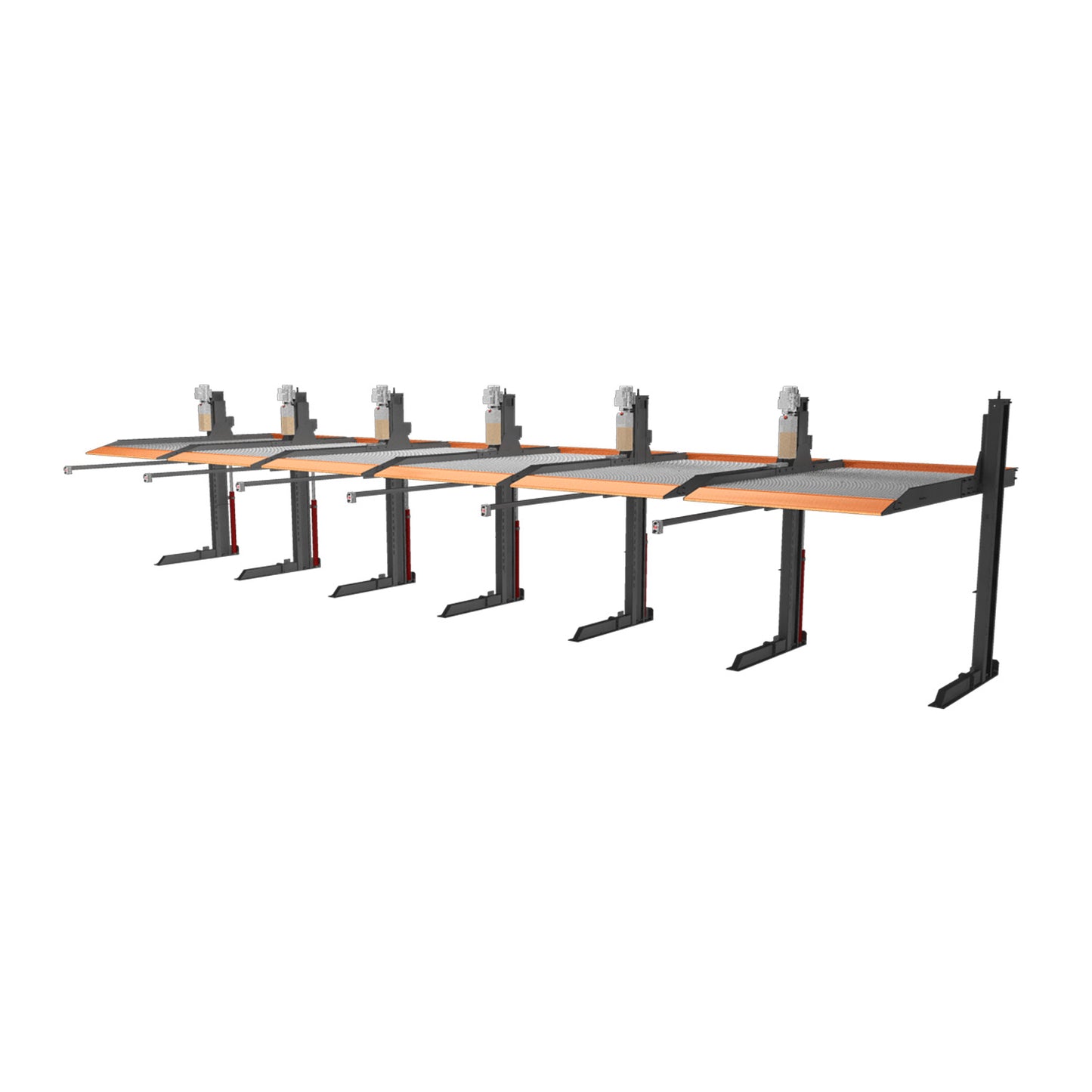

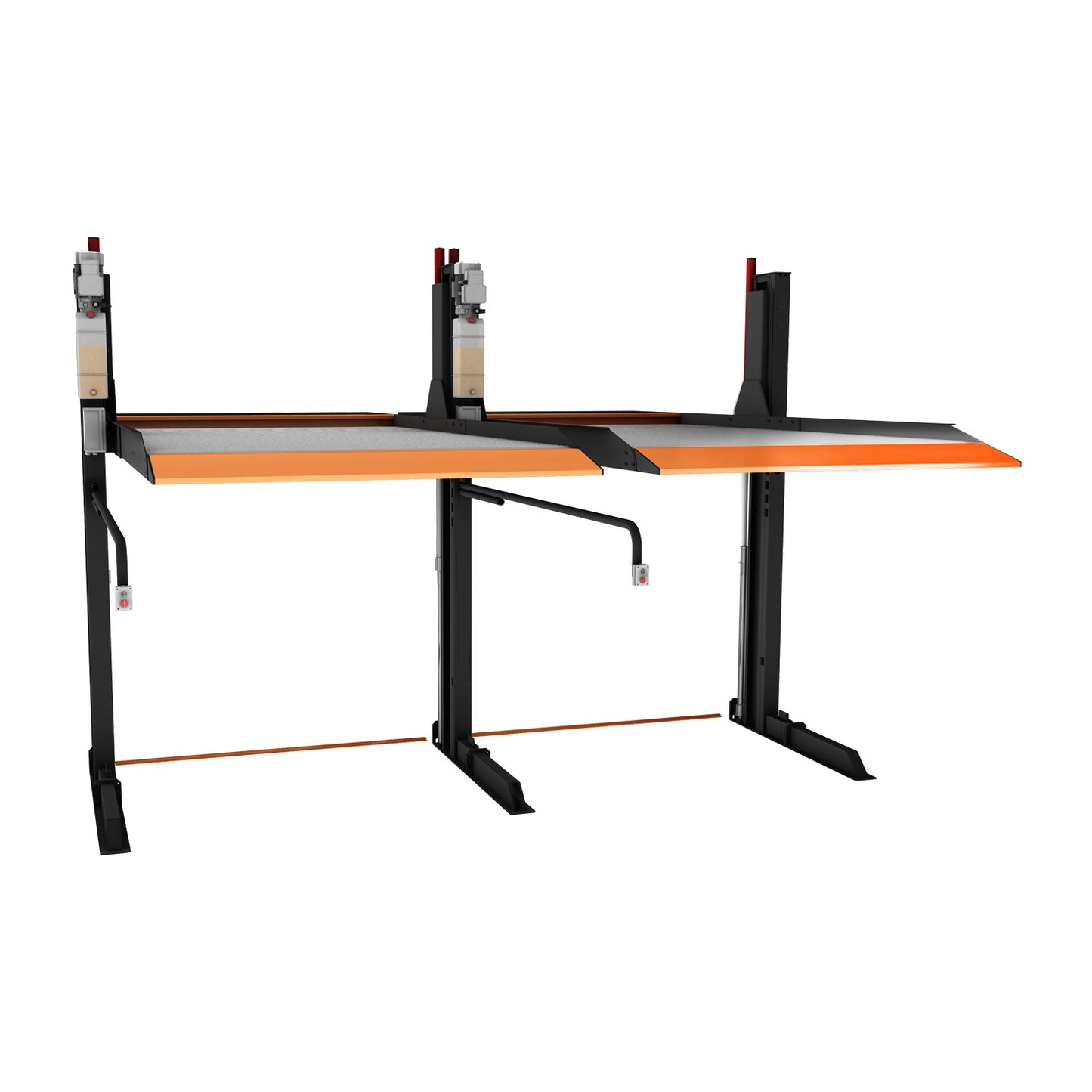

- Sharing post feature available
- Galvanized and corrugated platform
- Dual hydraulic lifting cylinders with direct drive
- Individual hydraulic power unit and control panel
- Specially designed control arm for operator to control the lift without being under the platform
- Synchronization chain assuring the lifting platform is balanced
- With 6 locking tabs, platforms can be stopped at different heights to fit for various vehicles and ceiling heights
Includes
- Engineer Certified
- Design Registered with Worksafe - click here
Safety
- Electric key switch and emergency stop button for security and safety
- Automatic shut-off if operator releases the key switch
- Dynamic mechanical locks and anti-falling device hold the platform in place
- Anti-slip corrugated deck, to protect both vehicle and driver from possible slip and damage
Capacity: 2.7 Ton
Minimum Concrete Requirement: 150mm
Recommended Ceiling Height: 3.8-4m
Lock Release: Electronic Release
Power: 240v 2.2kw 16.4 amps | 3 Phase 2.2kw 5 amps
Lifting Height: 2100mm
Overall Height: 3362mm
Overall Width: 2511mm
Drive Through Clearance: 2100mm
Lifting Time: 50 Seconds
Lowering Time: 35 Seconds
Freight Dimensions:
L 3800mm W 720mm H 860mm W 700KG
We offer a comprehensive warranty on the TL2.7HP, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.
This warranty includes both parts and labour, ensuring that your 2 post parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.











SPECIFICATIONS

-
150mm
Minimum Concrete Requirement
-
3.8 - 4m
Recommended Ceiling Height
-
240v / 2.2kw 16.4 amps
3 Phase / 2.2kw 5 ampsPower Requirements
-
380 x 72 x 82cm 700kg
Freight Dimensions
