Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

2 Post Car Hoist - 4 Ton Base Plate - Turflift

Name: 2 Post Car Hoist - 4 Ton Base Plate - Turflift
Brand: Tufflift
SKU: TLG4.0BP
Price: 9900.00 AUD
Availability: InStock

2 Post Car Hoist - 4 Ton Base Plate - Turflift

SKU:TLG4.0BP

$9,900.00 AUD

Sale

Choose a Power Supply

Included with your Tufflift: RRP $99.00 AUD

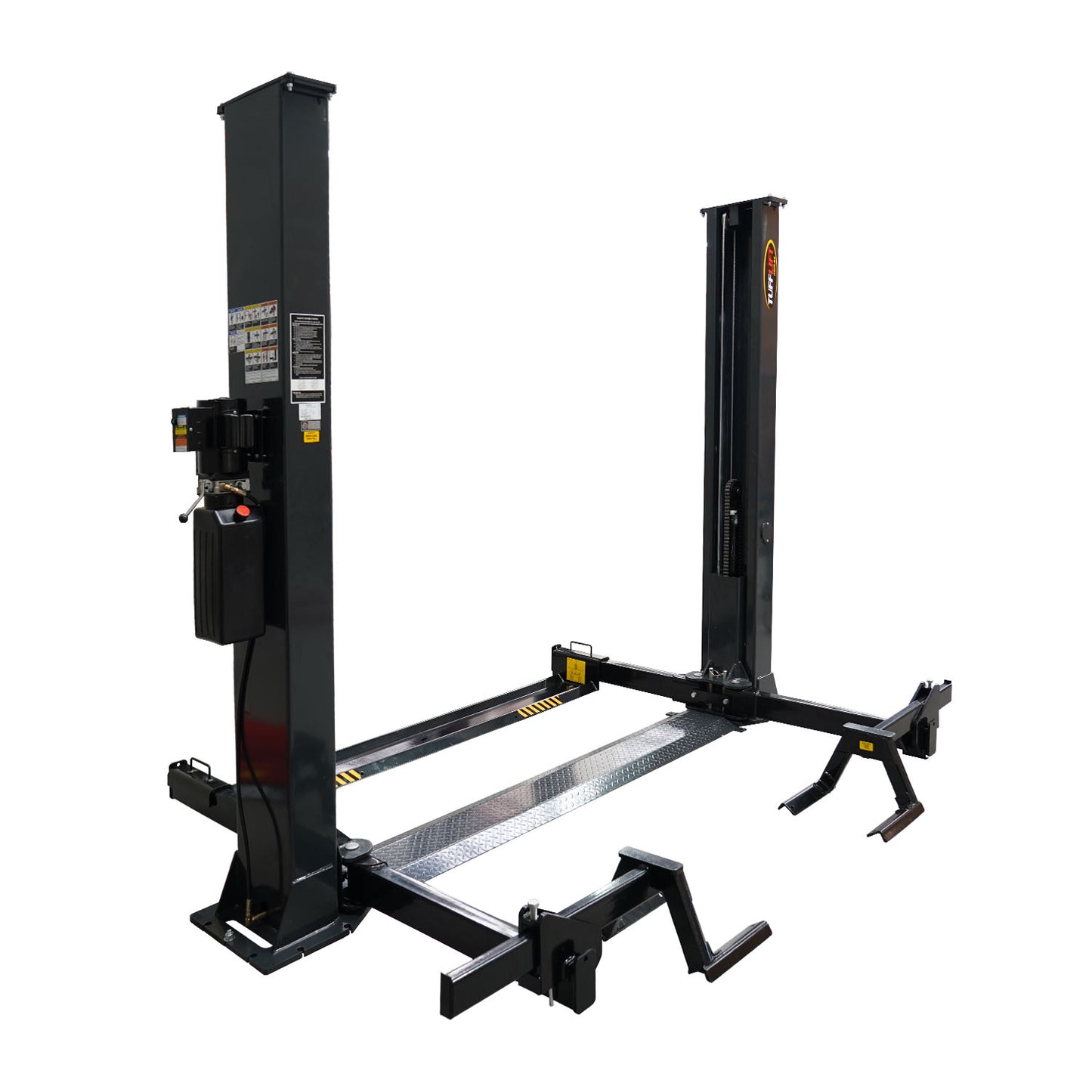

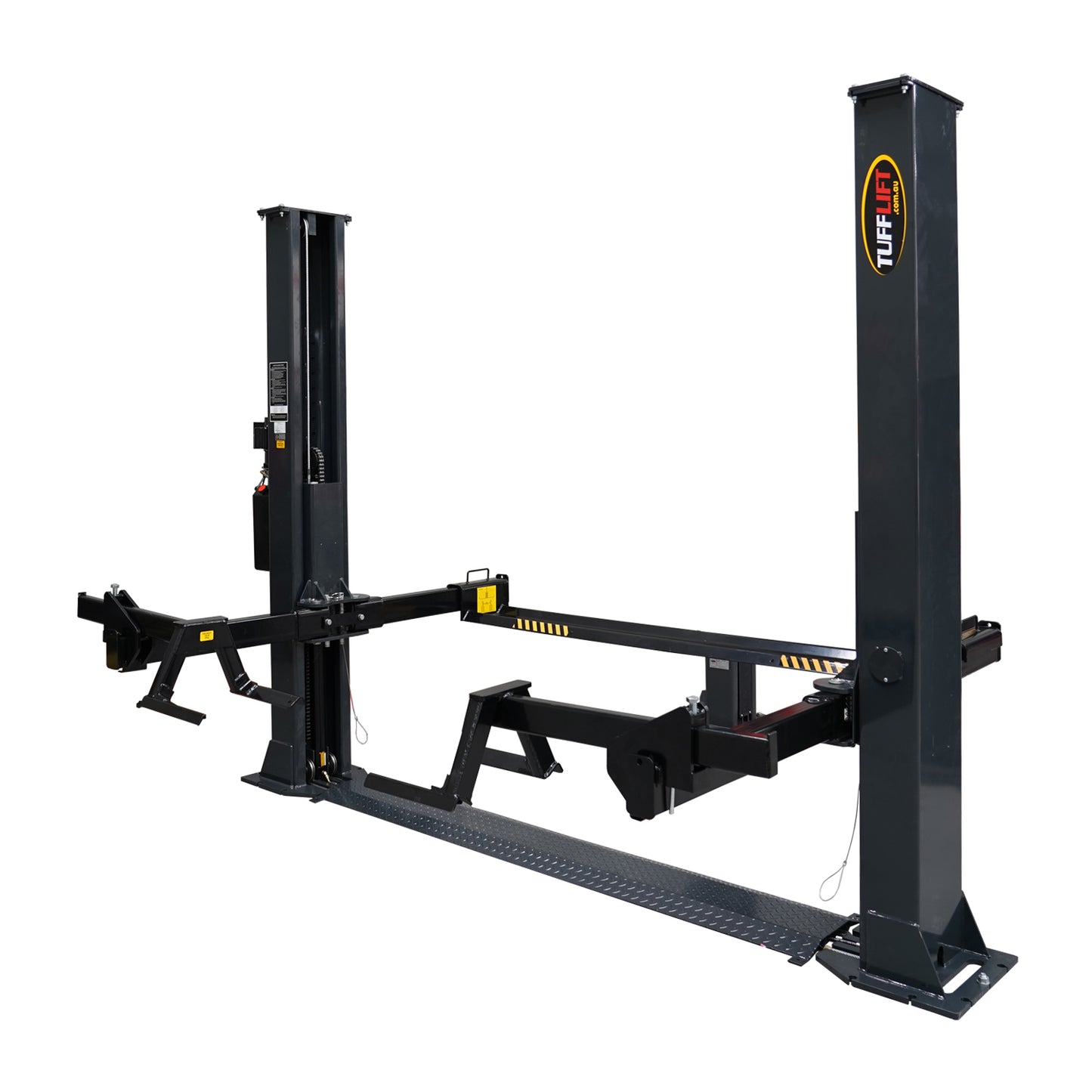

Introducing the Tufflift TLG4.0BP, a versatile 4 Ton base plate hoist designed for low-ceiling spaces with symmetric arms and dual lock release. Ideal for lifting by tyres or frame, it provides full access to gearboxes, blades, reels, and other components, making it perfect for walk mowers, triplexes, fairway mowers, large cut mowers, golf carts, and vehicles. Finished in durable charcoal powder coat, the TLG4.0BP comes with a standard motor vehicle arm kit and is available in 240V or 415V. This hoist is Worksafe registered for professional safety.

Features

Symmetric Arms
Designed for low ceiling clearance
The TLG4.0BP is an all rounder hoist designed to lift by tyres or frame, providing access to gear box, blades, reels and other components

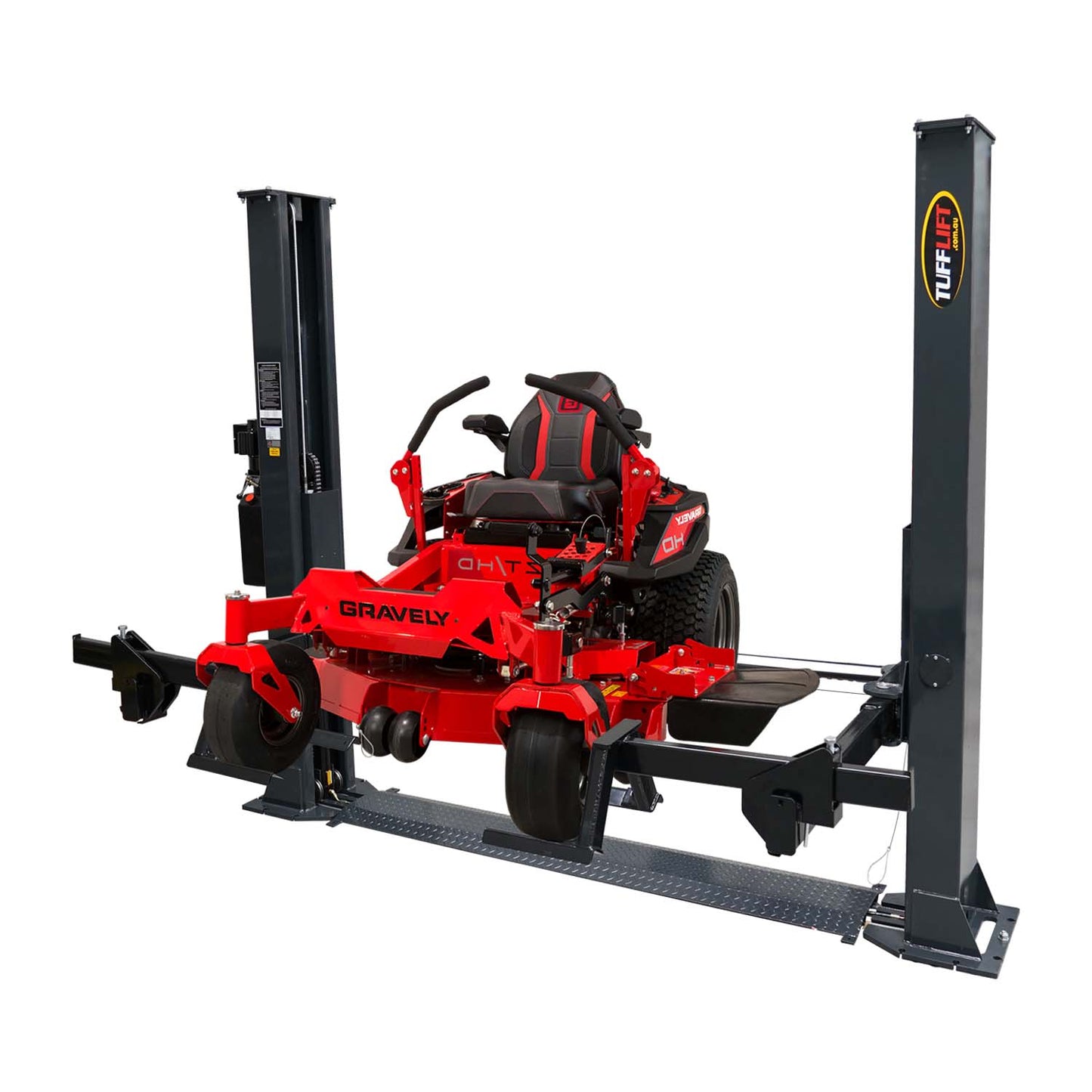

Suitable for walk mowers, triplexes, fairway mowers, large cut mowers, golf carts and vehicles
Durable charcoal powder coat finish
Standard motor vehicle arm kit included
Available in 240v or 415v
Dual lock release
Drop in pads

Includes:

4WD adapters
Turf Kit
Hydraulic oil
12 Piece adapters set
Anchor Bolts
Design Registered with Worksafe

Safety:

Mechanical carriage locks
Arm Locks
Anti burst valve

Specifications

Motor Vehicle Capacity: 4 Ton

TurfLift Capacity: 3 Ton

Minimum Concrete Requirement: 110mm

Recommended Ceiling Height: 3.5-4m

Lock Release: Manual

Power: 240v 2.2kw 15amps | 3 phase 2.2kw 7amps

Lifting Height: 1850mm

Lifting Height with Adapters: 2057mm

Minimum Pad Height: 120mm

Overall Hoist Height: 2825mm

Overall Hoist Width: 3518mm

Drive Through Clearance: 2470mm

Width Between Columns: 2820mm

Lifting Time: 55 Seconds

Arm Design: Symmetrical

Freight Dimensions:
1. L 2940mm W 750mm H 560mm W 615KG
2. L 2720mm W 530mm H 510mm W 475KG

Warranty

We offer a comprehensive warranty on the TLG4.0BP, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post base plate hoist remains reliable and fully supported, giving you peace of mind throughout its use.
