2 Post Car Hoist | Electric Lock Release - 4.2 Ton Base Plate

Tufflift

2 Post Car Hoist | Electric Lock Release - 4.2 Ton Base Plate

Name: 2 Post Car Hoist | Electric Lock Release - 4.2 Ton Base Plate
Brand: Tufflift
SKU: EE-62BE
Price: 5390.00 AUD
Availability: InStock

2 Post Car Hoist | Electric Lock Release - 4.2 Ton Base Plate

SKU:EE-62BE

$5,390.00 AUD inc. GST

~~$0.00 AUD~~ $5,390.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Quantity

Included with your Tufflift: RRP $629.30 AUD

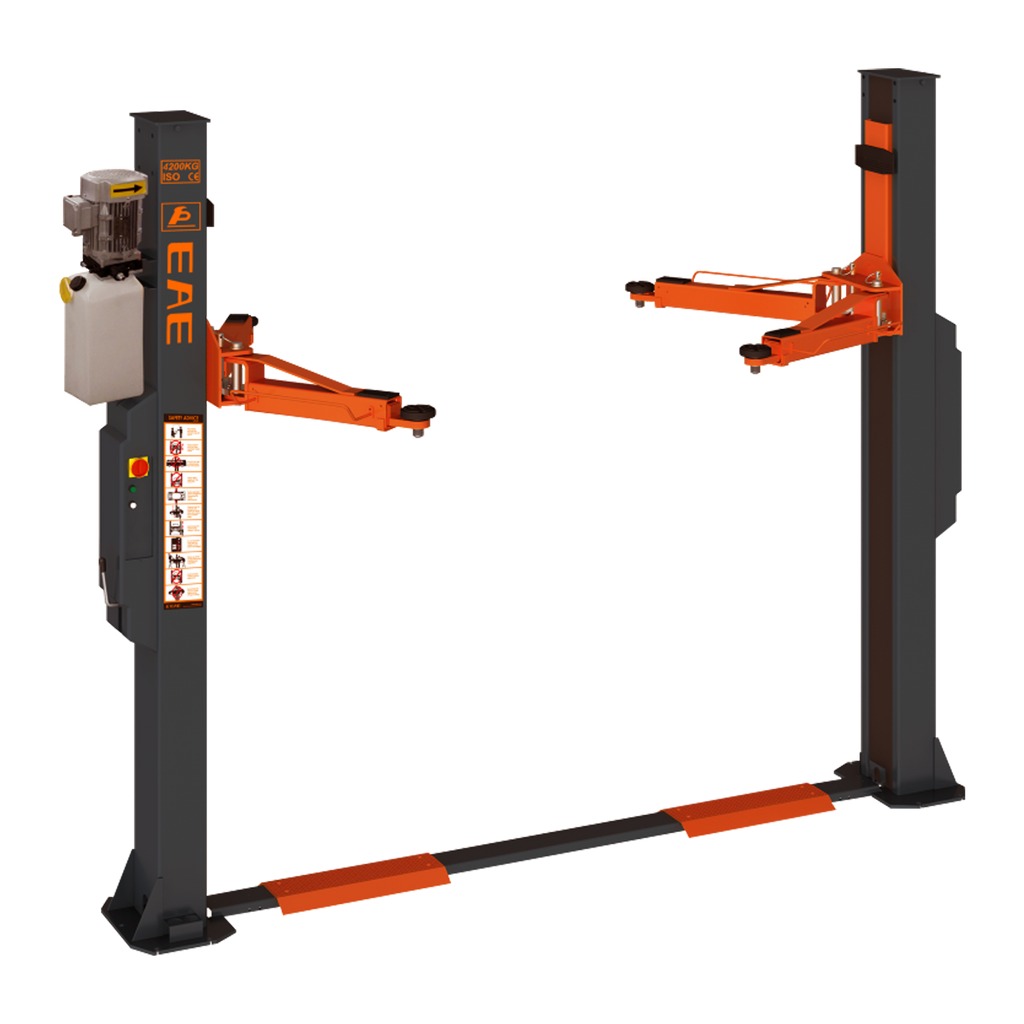

Introducing the Tufflift EE-62BE, a 4.2 Ton base plate car hoist with a 4200KG capacity and 1.9m lifting height. Standing at 2.825m, it features fully electronic controls, an aluminum power unit, and a one-piece column with an internal curtain for added protection. Designed for durability with powder coating and door protection pads, it’s available in 240V or 3-phase power. The EE-62BE is engineer certified and Worksafe registered, ensuring safe and efficient lifting for professional needs.

Features

4200KG Safe Working Limit
Lifting height of 1.9m
Overall height of 2.825m tall
Base Plate design
Fully electronic controls
Aluminium power unit
Available in 240V or 3 phase power
One-piece column
Curtain inside column
Combination screw pads plus 4WD adapter
Durable powder coating
Door protection pads

Includes

Hydraulic oil
Combination screw pads plus 4WD adapter
Engineer Certified
Design Registered with Worksafe - click here

Options

Low Profile Arm
Tyre Holder Adapter
Zappi 7kw Untethered EV Charge Station

Safety

24V controls with isolation switch
Pre-set hydraulic pressure and ram limit switch
Arm locks
Anti-surge valve
Carriages mechanically locked

Specifications

Capacity: 4200 Kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 3.25m

Lock Release: Electric

Power: 240v: 2.2kw 16 amps | 3 Phase: 3.5kw 9 amps

Lifting Height: 1900 mm

Lifting Height with Adapters: 2060mm

Minimum Pad Height: 100mm

Overall Hoist Height: 2825 mm

Overall Hoist Width: 3580 mm

Width Between Columns: 2840 mm

Lifting Time: 240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 2900mm W 570mm H 750mm W 736KG

Warranty

We offer a comprehensive warranty on the EE-62BE.42T, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post base plate hoist remains reliable and fully supported, giving you peace of mind throughout its use.
