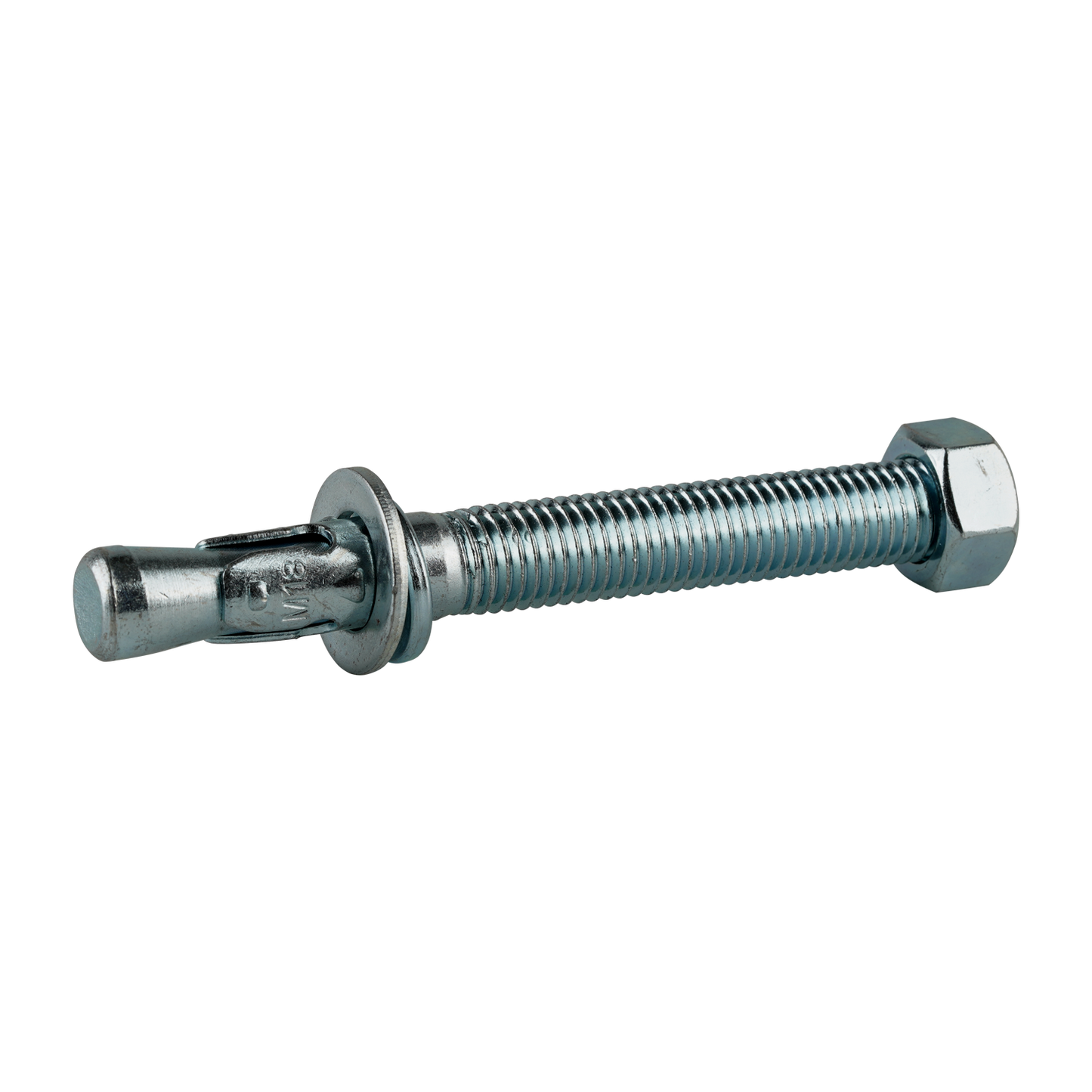

• This image shows an EAE wedge anchor bolt, size M18x160mm, made of metal with a threaded shaft and an expanding wedge mechanism at one end. The bolt is paired with a hex nut and washer, and is designed for securing heavy-duty objects into concrete or solid surfaces. The spanner size is M27, indicating the size of the wrench needed for installation.

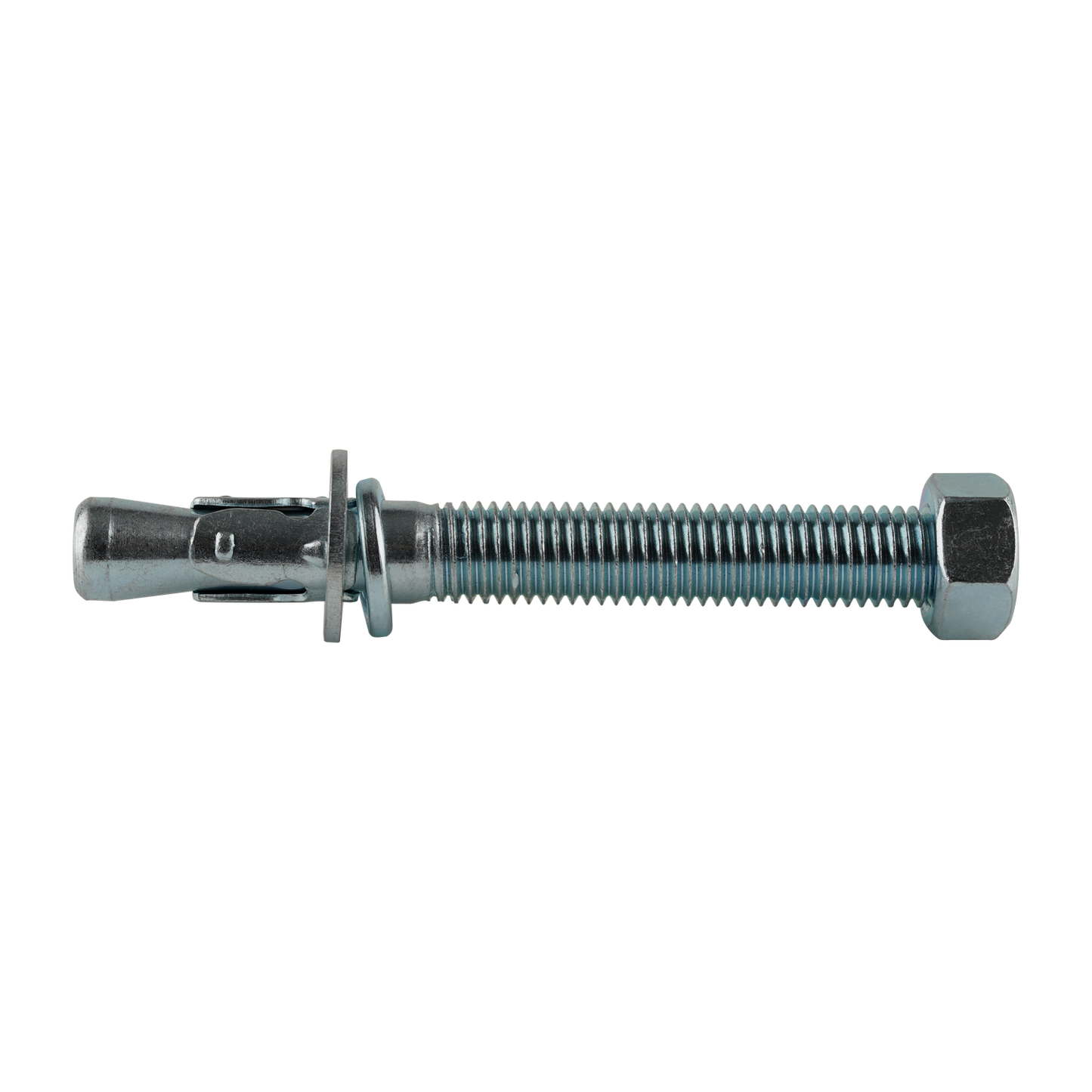

  • This is an image of a wedge anchor bolt. The bolt consists of a threaded metal shaft, a hexagonal nut, and a washer. The expanding wedge mechanism is visible near the tip of the bolt, designed to secure the bolt firmly into concrete or another material when tightened. The metallic finish suggests it may be galvanized or made of stainless steel for durability and resistance to corrosion.

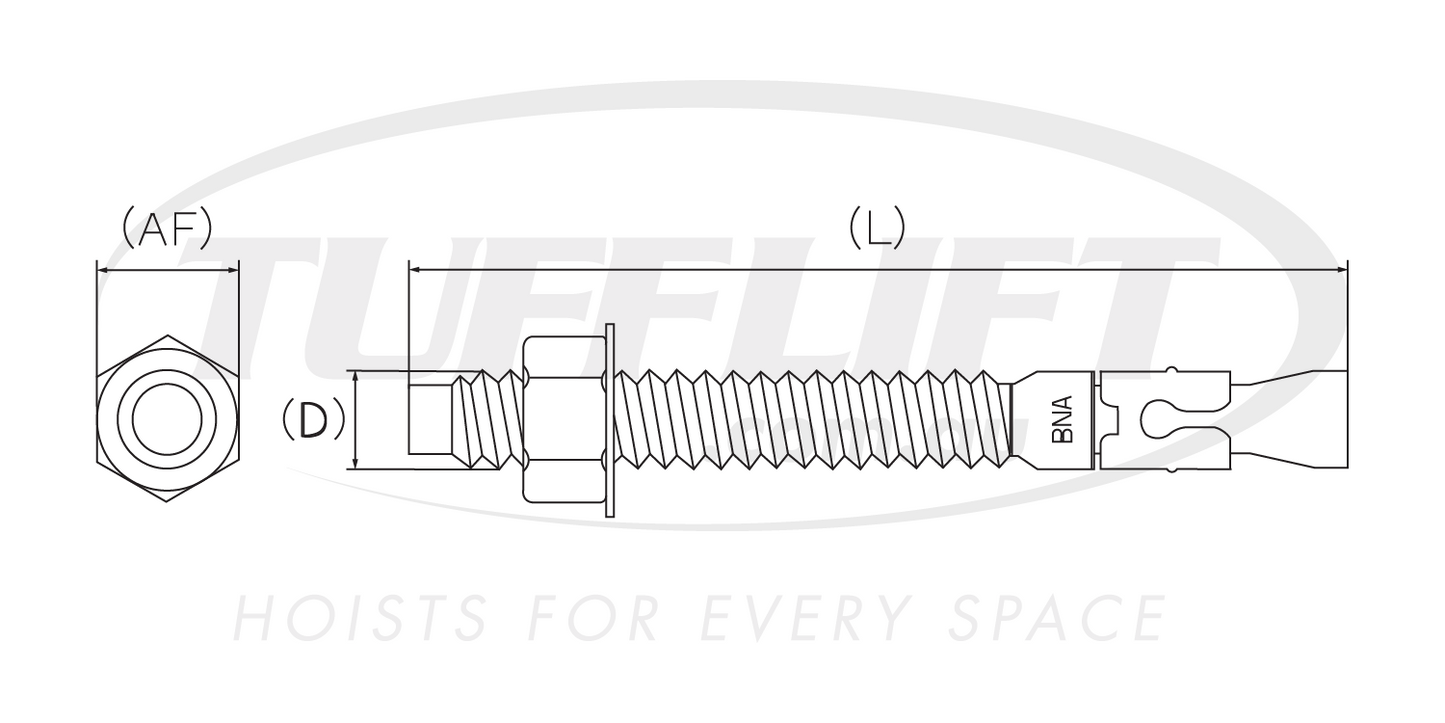

  • This image shows a technical drawing of a wedge anchor bolt. The drawing provides dimensional labels such as (AF) for across flats (likely the spanner or wrench size), (D) for the bolt diameter, and (L) for the total length of the bolt. The detailed diagram illustrates the threaded shaft, expanding wedge mechanism labeled "BNA," and a hexagonal nut. It appears to represent precise measurements and components necessary for proper installation of the wedge anchor bolt in various applications like hoists. The
1 3

Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

EAE Wedge Anchor Bolt - M18 x 160mm

EAE Wedge Anchor Bolt - M18 x 160mm

201201007

$4.95 AUD inc. GST
$4.95 AUD inc. GST
Sale
Taxes included. Shipping calculated at checkout.

This M18x160mm wedge anchor bolt is designed for secure installation of EAE car hoists. With an M27 spanner size, it is compatible with a variety of models and custom applications.

This high-quality wedge anchor bolt ensures strong, reliable fastening for your hoist setup.

Specifications:

  • Bolt Size: M18x160mm
  • Drill Bit: 18mm
  • Spanner/Socket Size: 27mm

Suitable for the following models:

EE-F9 EE-F10
EE-C9 EE-C10
EE-62B EE-62C
PK3.70H TLD4.0BP
TL4.0BPDI TL4.0OH
TLR3.6BP TL6.0PH / TL6.0PH-WA
TL4.5OHDI
