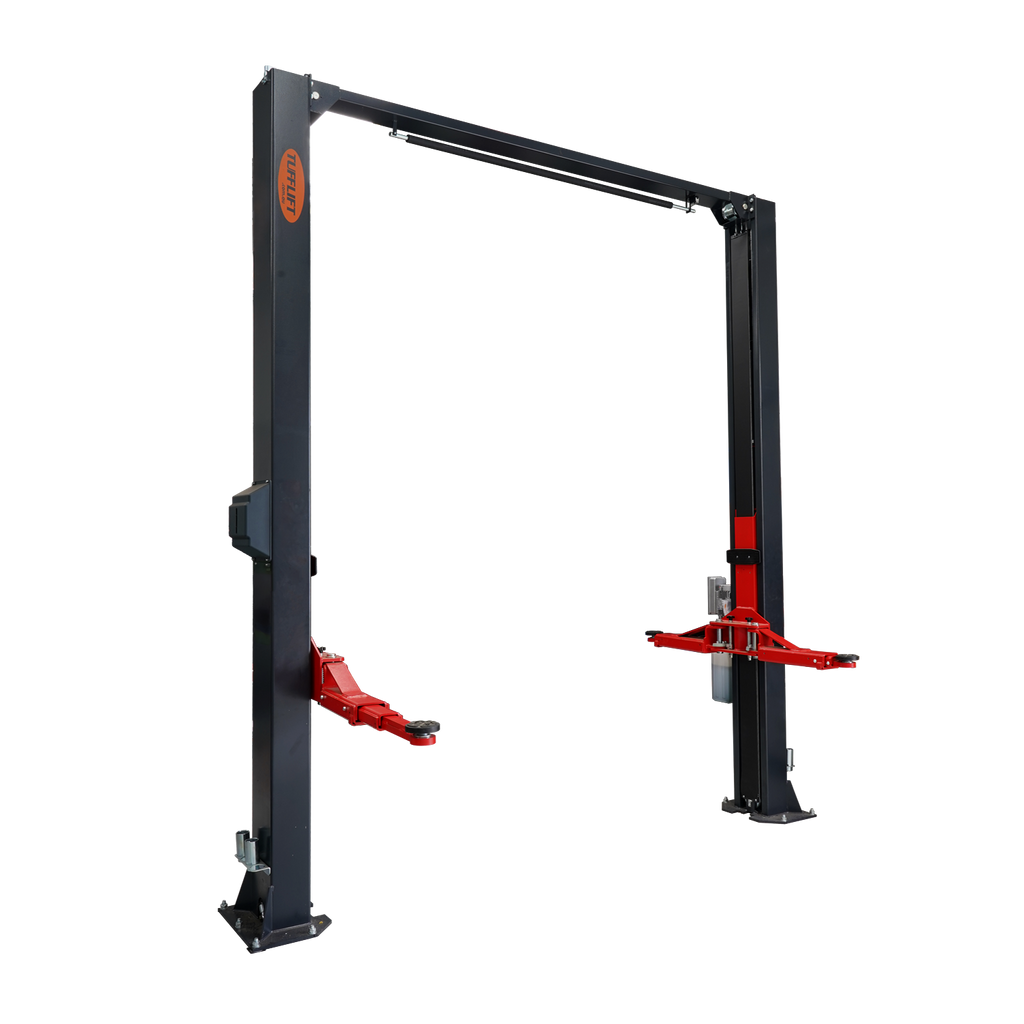

Tufflift EAE EE-C9LPA 2 post hoist in a workshop setting with the arms raised slightly off the ground

Tufflift

2 Post Car Hoist | Low Profile 3 Stage Arms 85mm - 4 Ton Clear Floor

Name: 2 Post Car Hoist | Low Profile 3 Stage Arms 85mm - 4 Ton Clear Floor
Brand: Tufflift
SKU: EE-C9LPA
Price: 4180.00 AUD
Availability: InStock

2 Post Car Hoist | Low Profile 3 Stage Arms 85mm - 4 Ton Clear Floor

SKU:EE-C9LPA

$4,180.00 AUD inc. GST

~~$0.00 AUD~~ $4,180.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Pickup available at NSW

Usually ready in 2-4 days

Included with your Tufflift: RRP $464.30 AUD

The Tufflift EE-C9LPA is a 4 Ton clear floor car hoist with a 4000KG capacity, 3 stage low profile arms, and a 1.90m lifting height. It features a single lock release, durable powder coating, and is available in 240V or 3-phase power.

Features

4000KG Safe Working Limit
3 stage arm design
Lifting height of 1.90m (plus adapters and screw pad adjustment)
Clear floor design
Single lock release
Available in 240V or 3 Phase power
Durable Powder Coating
Door protection pads

Includes

Hydraulic oil
Combination screw pads
4 x 4WD adapters
Anchor bolts
Engineer Certified
Design Registered with Worksafe - click here

Options:

EAE Tyre Holder Adapter
Zappi 7kw Untethered EV Charge Station

Safety

Anti-surge valve
Automatic mechanical carriage locks
Automatic mechanical arm locks
Standard column curtain

Specifications

Capacity: 4000 kg

Minimum Concrete Requirement: 115mm

Recommended Ceiling Height: 4.2m

Lock Release: Single

Power: 240v: 2.2kw 16amps | 3 phase: 3.5kw 9amps

Lifting Height: 1900mm

Lifting Height with Adapters: 2060mm

Minimum Pad Height: 85mm

Overall Hoist Height: 3900mm

Overall Hoist Width 3420mm

Drive Through Clearance: 2558mm

Width Between Columns: 2830mm

Lifting Time:240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: 3 Stage Low Profile Asymmetric

Freight Dimensions:
L 3910mm W 570mm H 1020mm W 686KG

Warranty

We offer a comprehensive warranty on the EE-C9LPA, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post clear floor hoist remains reliable and fully supported, giving you peace of mind throughout its use.
