2 Post Car Hoist | Low Profile 3 Stage Arms 85mm - Electric Lock Release - 4.2 Ton Clear Floor

Name: 2 Post Car Hoist | Low Profile 3 Stage Arms 85mm - Electric Lock Release - 4.2 Ton Clear Floor
Brand: Tufflift
SKU: EE-62CE-LPA
Price: 5890.00 AUD
Availability: InStock

SKU:EE-62CE-LPA

$5,890.00 AUD inc. GST

~~$0.00 AUD~~ $5,890.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Quantity

Pickup currently unavailable at NSW

Included with your Tufflift: RRP $629.30 AUD

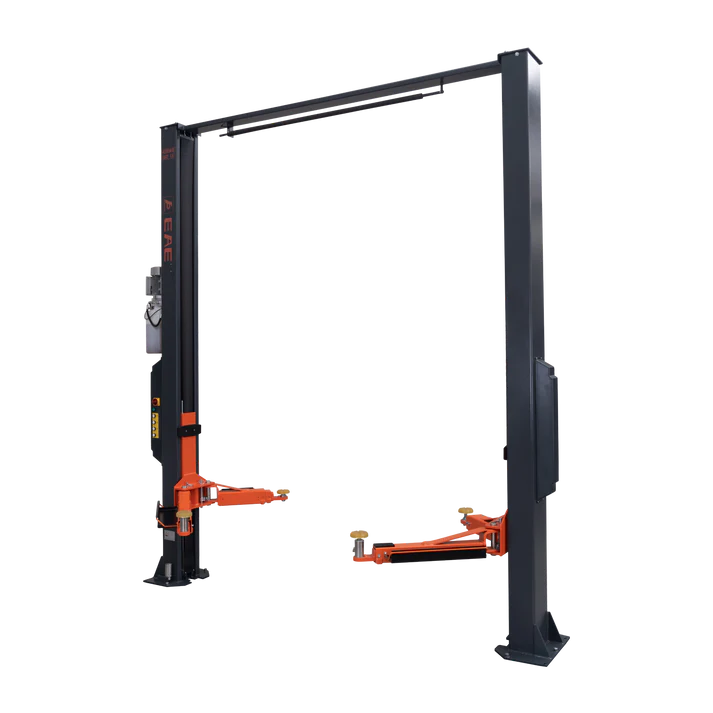

The Tufflift EE-62CE-LPA is a 4.2 Ton clear floor car hoist with a 4200KG capacity and low-profile arms at 85mm. With a 1.9m lifting height and full electronic controls, it delivers versatile and reliable performance, available in 240V or 3-phase power.

Features

4200KG Safe Working Limit
Low Profile Arms (85mm)
Lifting height of 1.9m
Overall height of 3.9m tall
Clear floor design
Full electronic controls
Aluminium power unit
Available in 240V or 3 phase power
One-piece column
Curtain inside column
Combination screw pads plus 4WD adapter
Durable powder coating
Door protection pads

Includes

Hydraulic oil
Combination screw pads plus 4WD adapter
Engineer Certified
Design Registered with Worksafe - click here

Options:

Low Profile Arm
Tyre Holder Adapter
Zappi 7kw Untethered EV Charge Station

Safety

24V controls with isolation switch
Pre-set hydraulic pressure and ram limit switch
Rubber protected height limit switch bar
Arm locks
Anti-surge valve
Ram protection cover
Carriages mechanically locked

Specifications

Capacity: 4200KG

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 4.2m

Lock Release: Electric

Power: 240v: 2.2kw 16amps | 3 Phase: 3.5kw 9amps

Lifting Height: 1900 mm

Lifting Height with Adapters: 2060mm

Minimum Pad Height: 85mm

Overall Hoist Height: 3900 mm

Overall Hoist Width: 3420mm

Drive Through Clearance: 2558mm

Width Between Columns (body): 2830mm

Lifting Time:240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 3930mm W 560mm H 1030mm W 780KG

Warranty

We offer a comprehensive warranty on the EE-62C.42.T.LPA, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post clear floor hoist remains reliable and fully supported, giving you peace of mind throughout its use.
