Tufflift

3D Wheel Aligner

Name: 3D Wheel Aligner
Brand: Tufflift
SKU: TL-9900
Price: 24860.00 AUD
Availability: InStock

3D Wheel Aligner

SKU:TL-9900

$24,860.00 AUD inc. GST

~~$0.00 AUD~~ $24,860.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

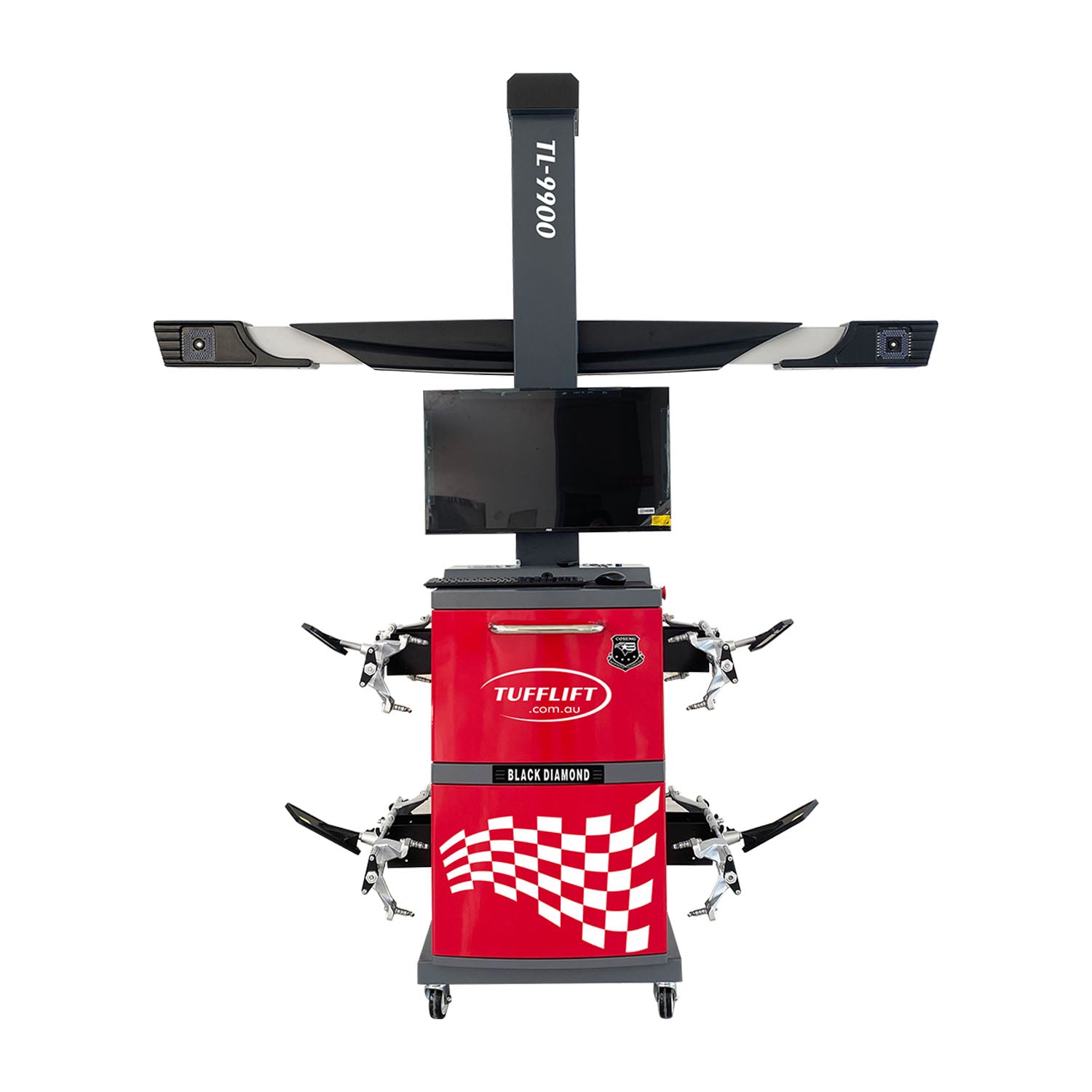

The TL-9900 features advanced 3D wheel alignment developed with Adapt Germany, powered by SureAlign™ 4.4. Compact and versatile, it supports various vehicle sizes with dynamic measurement, precision optics, and a self-balancing lift system. Ideal for space efficient, high-accuracy workshops.

Features

Germany co-developed SureAlign™ 4.4 wheel alignment software
Column-mounted with linear bearings and self-balancing lift
Precision optical glass lens for clear imaging
Suitable for multi-site operations
Dynamic spatial measurement system

Specifications

Item	Accuracy	Range
Total toe	+4°	+50°
Separate toe	±2°	+25°
Camber	+1°	+159°
Setback	+4°	+9°
Thrust angle	+2°	+99°
Caster	±4°	+22°
King pin	±4°	+22°
Wheel width	+1mm	1.2 – 2.1m
Wheel base	+1mm	1.8 – 4.5m
Wheel diameter	+1mm	250 – 800mm

Warranty

We offer a comprehensive warranty on the TL-9900, covering 12 months. This warranty includes both parts and labour, ensuring that your 3D Wheel Aligner remains reliable and fully supported, giving you peace of mind throughout its use.
