Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

4 Post Parking Hoist - 3.5 Ton Extra Wide

Name: 4 Post Parking Hoist - 3.5 Ton Extra Wide
Brand: Tufflift
SKU: TL3.5PH-W
Price: 7590.00 AUD
Availability: OutOfStock

4 Post Parking Hoist - 3.5 Ton Extra Wide

SKU:TL3.5PH-W

$7,590.00 AUD

Sale Sold out

Choose a Power Supply

Included with your Tufflift: RRP $132.00 AUD

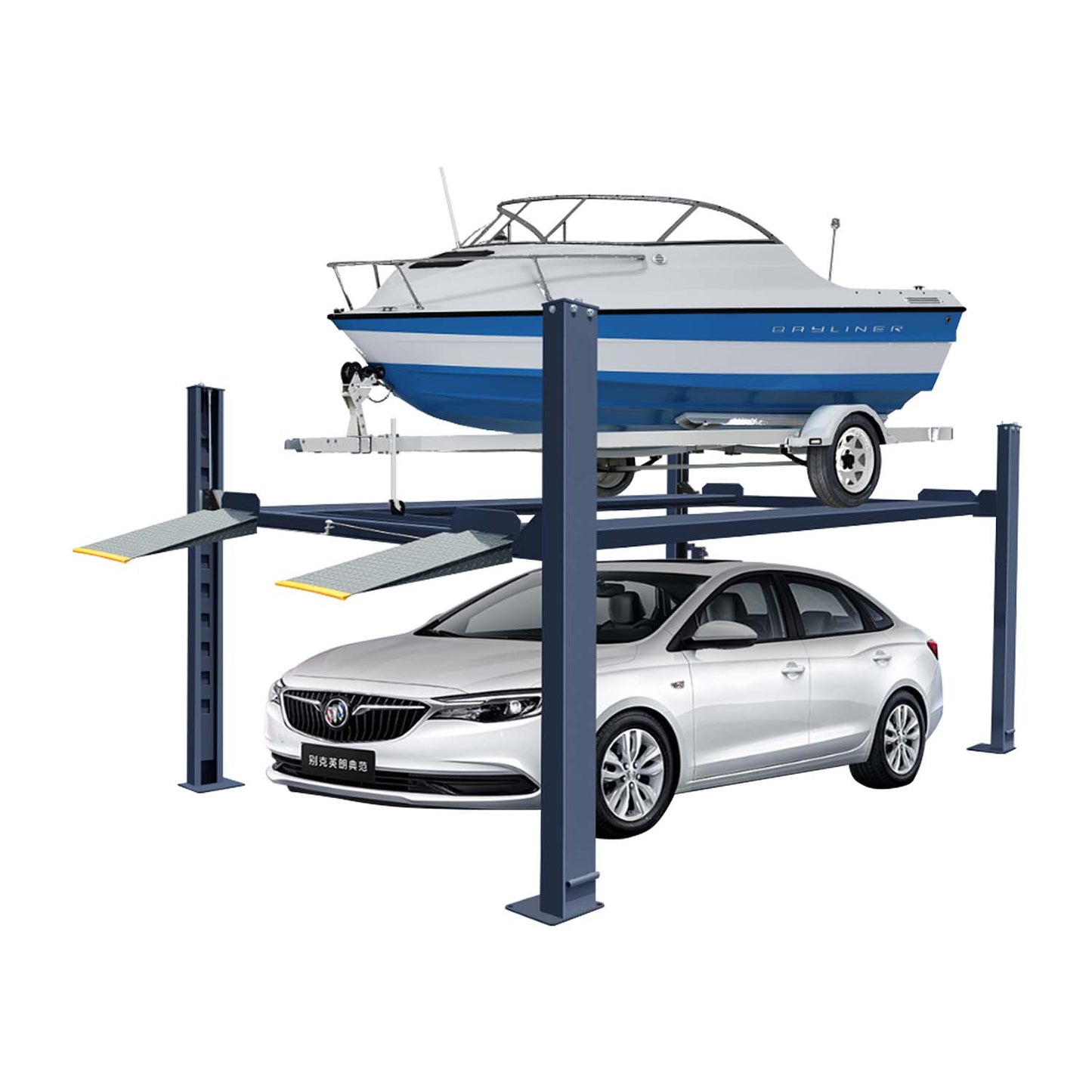

The TL3.5PH-W is a heavy-duty, extra-wide 4 post parking hoist with a 3.5-ton lifting capacity. Designed for wide vehicles such as trailers and boats, this hoist doubles your parking space while offering unmatched durability and convenience with its diamond-plated platforms and single-point lock release.

Features

3.5 Ton lifting capacity
Ideal for trailers, boats and wide vehicles
Double your parking space
Diamond plated platforms
Single point lock release
Durable charcoal hammertone powder coat finish

Includes:

Hydraulic oil

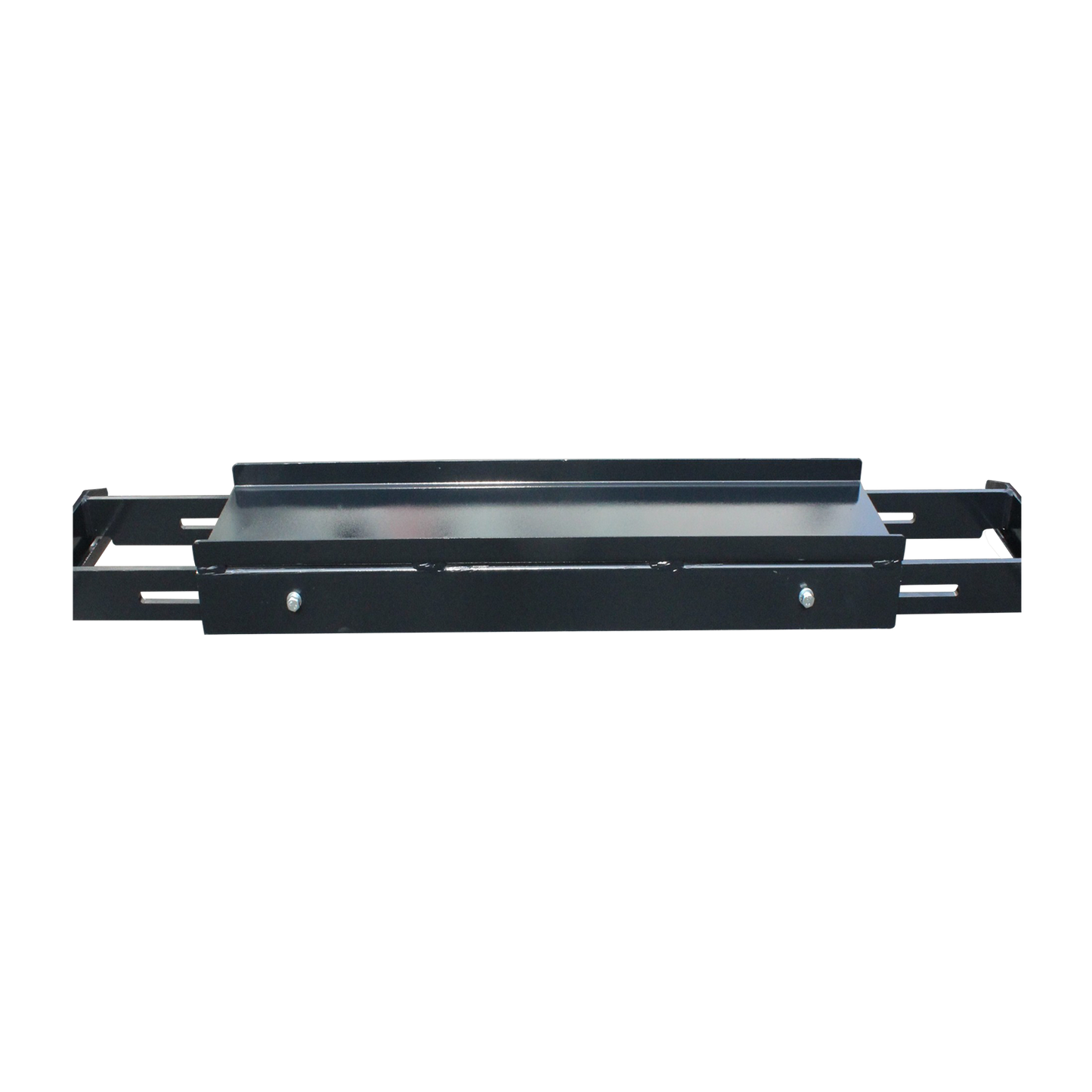

Jocky Wheel Holder

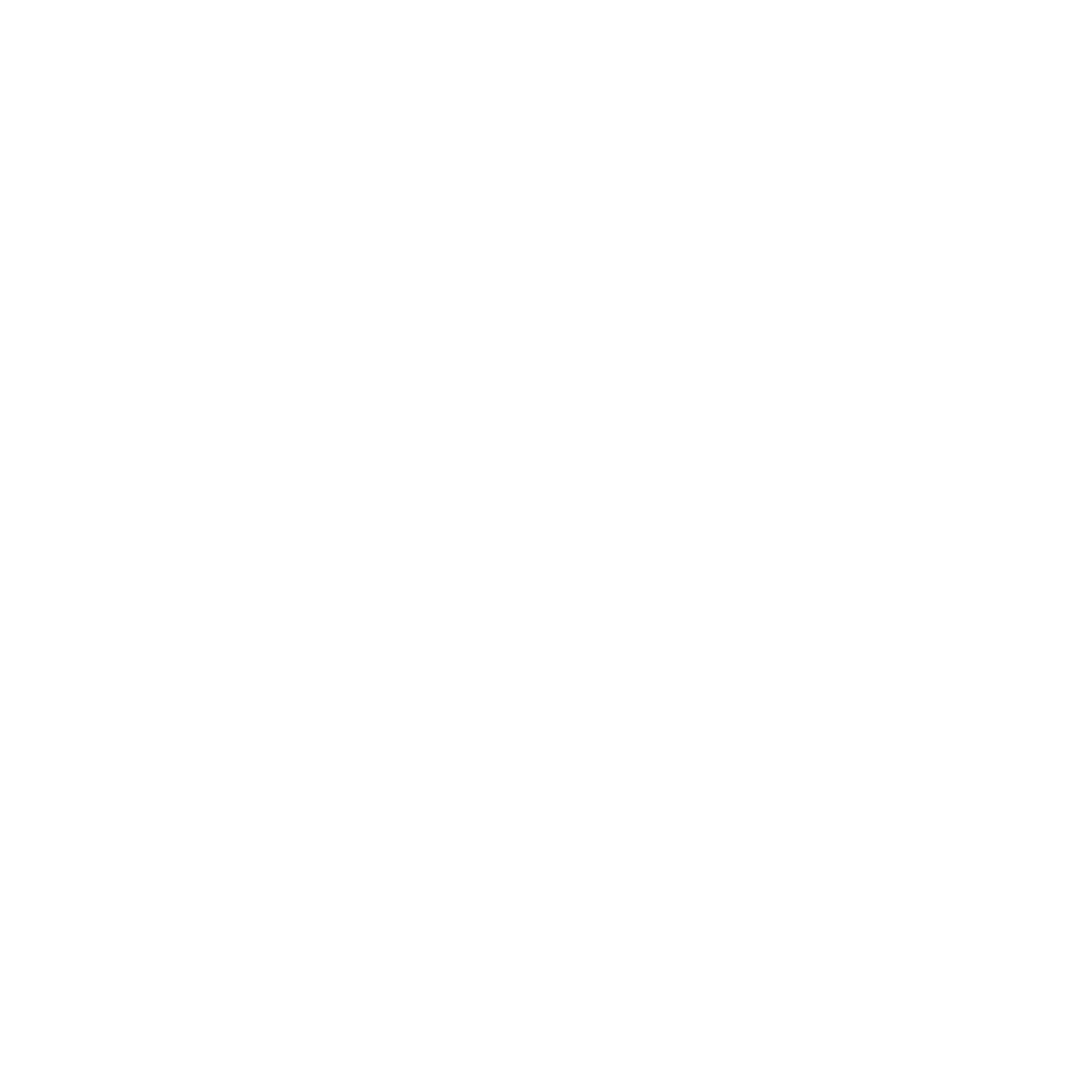

Specifications

Capacity: 3500kg

Lock Release: Mechanical

Power: 240v or 3 Phase

Column Height: 2537mm

Lifting Height: 2143mm

Clearance Under Runways: 2014mm

Overall Width (excl. motor): 3418mm

Overall Length (incl. ramps): 5920mm

Overall Length (excl. ramps): 5138mm

Platform Width: 483mm

Width Between Platforms: 1257-1765mm

Platform Length: 4838mm

Drive Through Clearance: 3168mm

Freight Dimensions:

L 4938mm W 570mm H 830mm W 1100KG

Warranty

We offer a comprehensive warranty on the TL3.5PH-W, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
