Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

4 Post Parking Hoist - 3.5 Ton High Position

Name: 4 Post Parking Hoist - 3.5 Ton High Position
Brand: Tufflift
SKU: TL3.5PH
Price: 10750.00 AUD
Availability: OutOfStock

4 Post Parking Hoist - 3.5 Ton High Position

SKU:TL3.5PH

$10,750.00 AUD

Sale Sold out

Choose a Power Supply

Included with your Tufflift: RRP $165.00 AUD

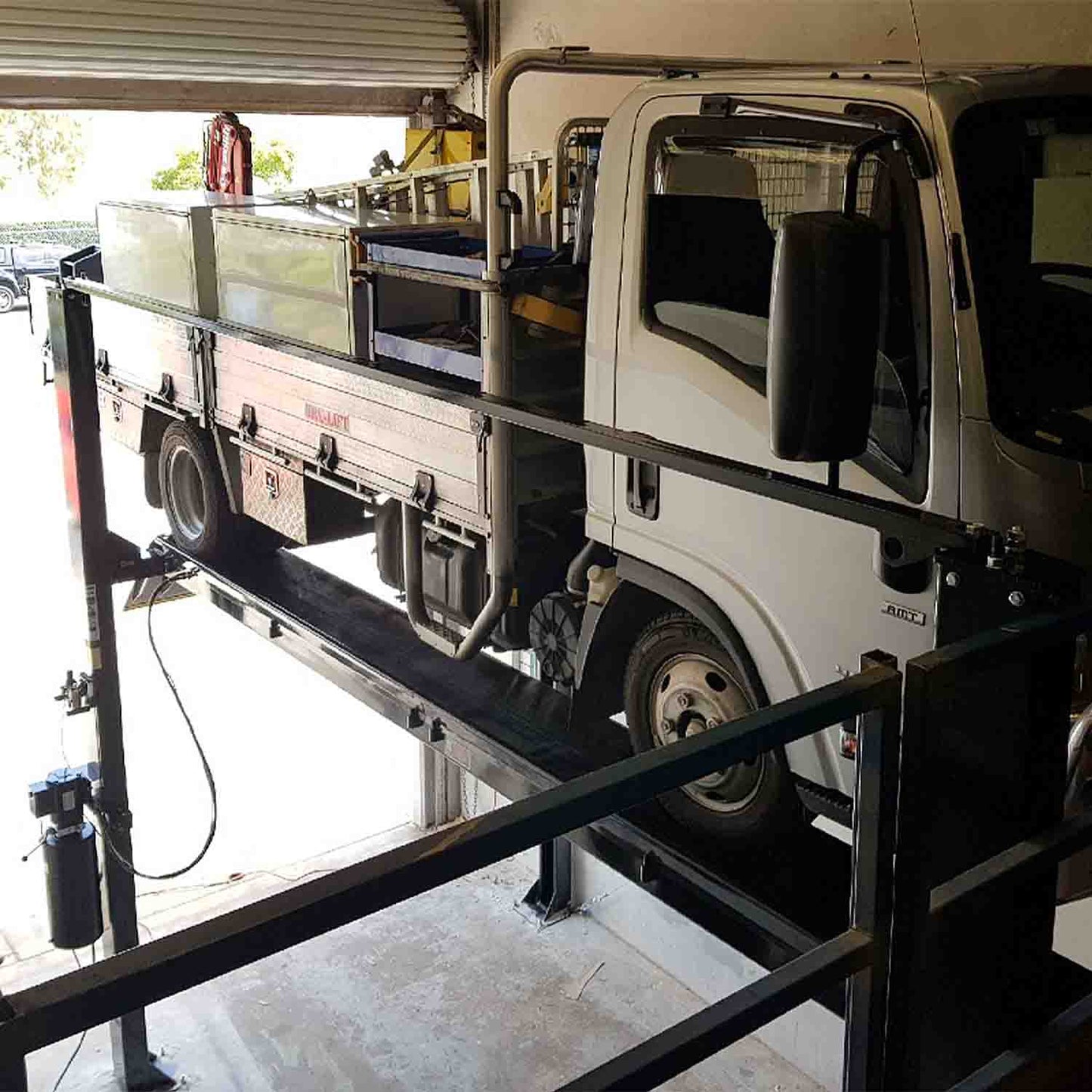

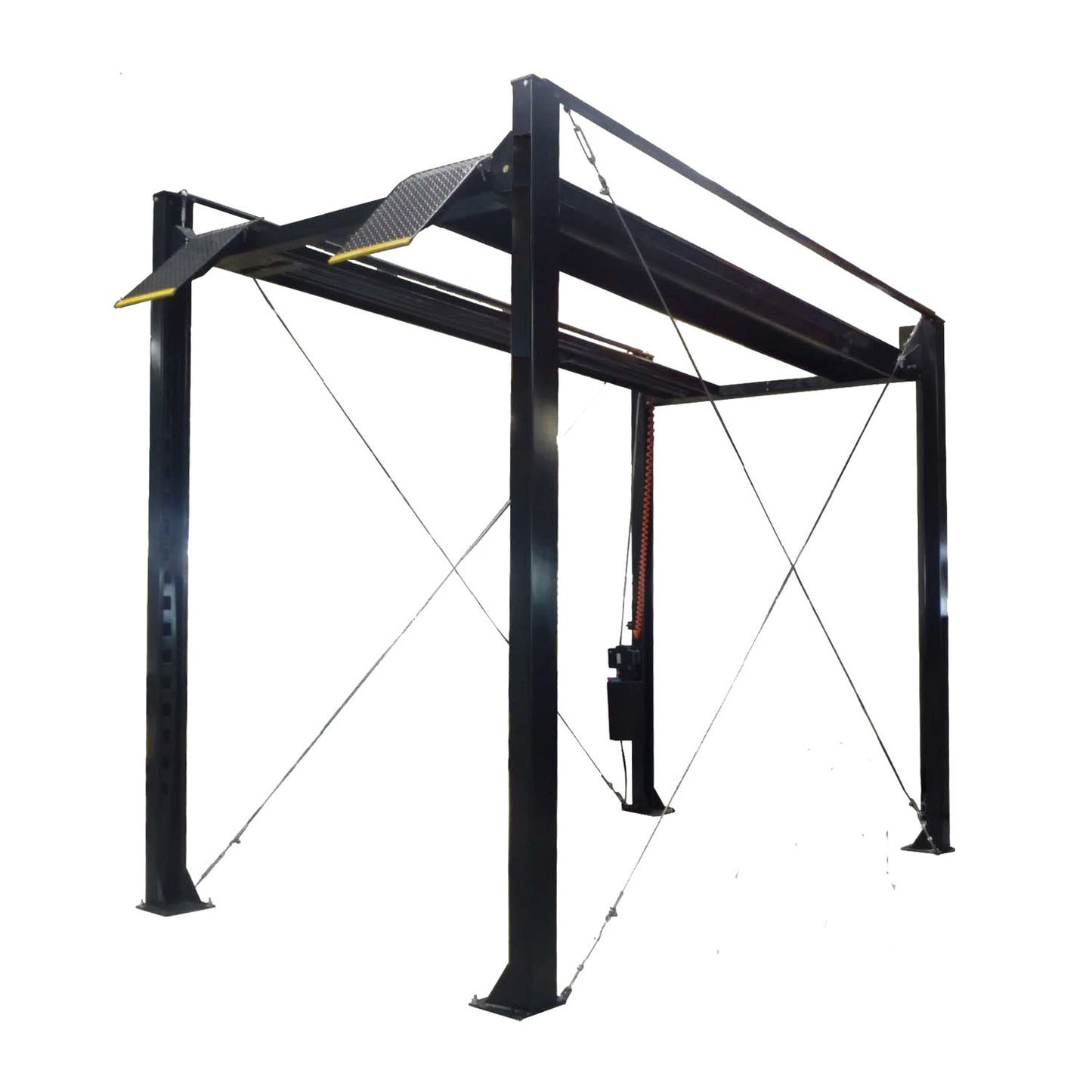

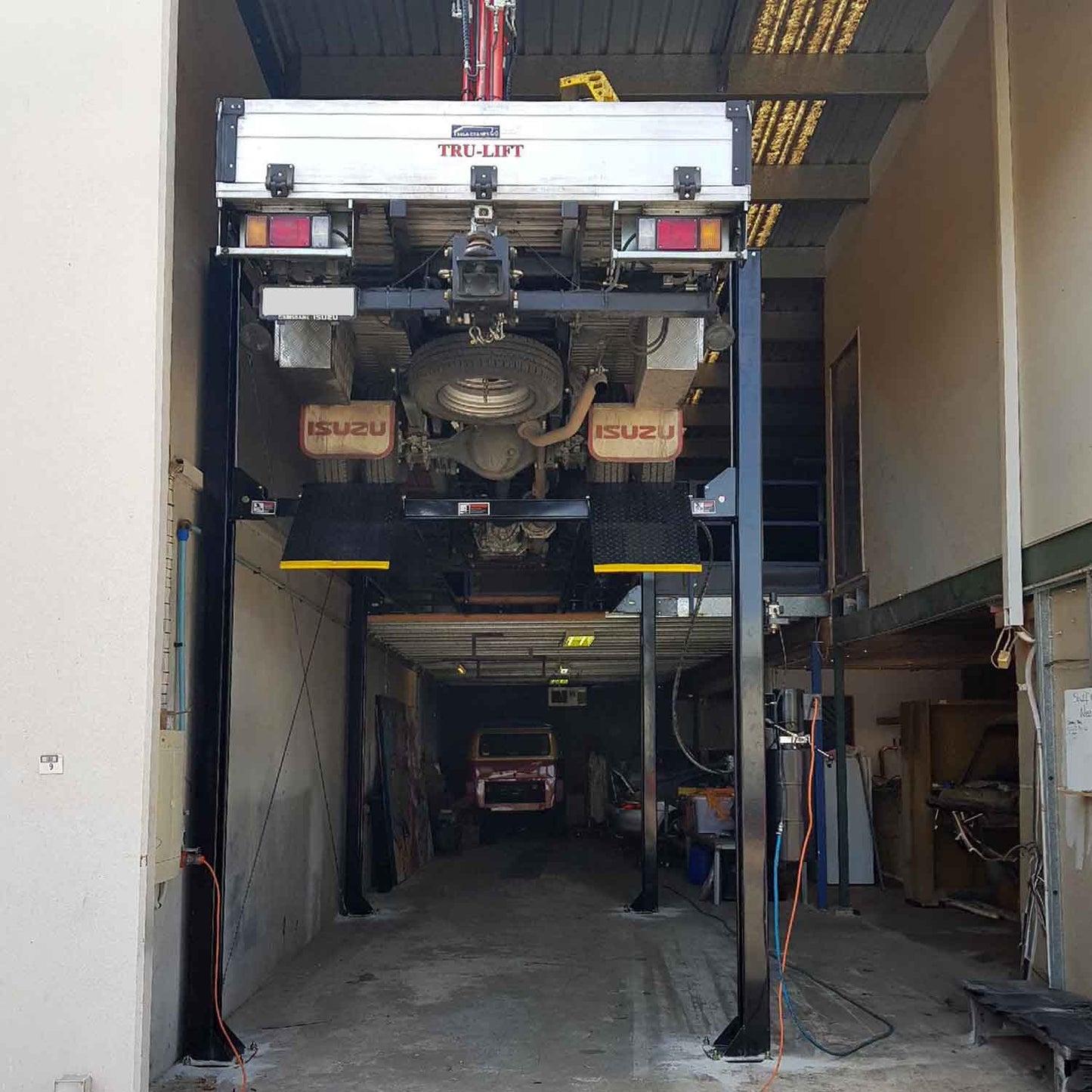

Optimise your parking and storage space with this High Position Parking Hoist, designed to elevate vehicles, making it perfect for storing taller vehicles or accessing mezzanine levels. With its sturdy construction and pneumatic lock release, this hoist offers reliable and secure parking solutions for both residential and commercial use.

Features

Double your parking space
Pneumatic lock release
Perfect for storing higher vehicles and accessing a mezzanine level

Includes:

Hydraulic oil
Engineer Certificate
Design Registered with Worksafe

Options:

Rolling Jack Air Pump - RJ45-AIR
Infill Kit - 950mm
Infill Kit - 1140mm

Safety:

Mechanically locks each interval
Anti-surge valve
Cable slack locks

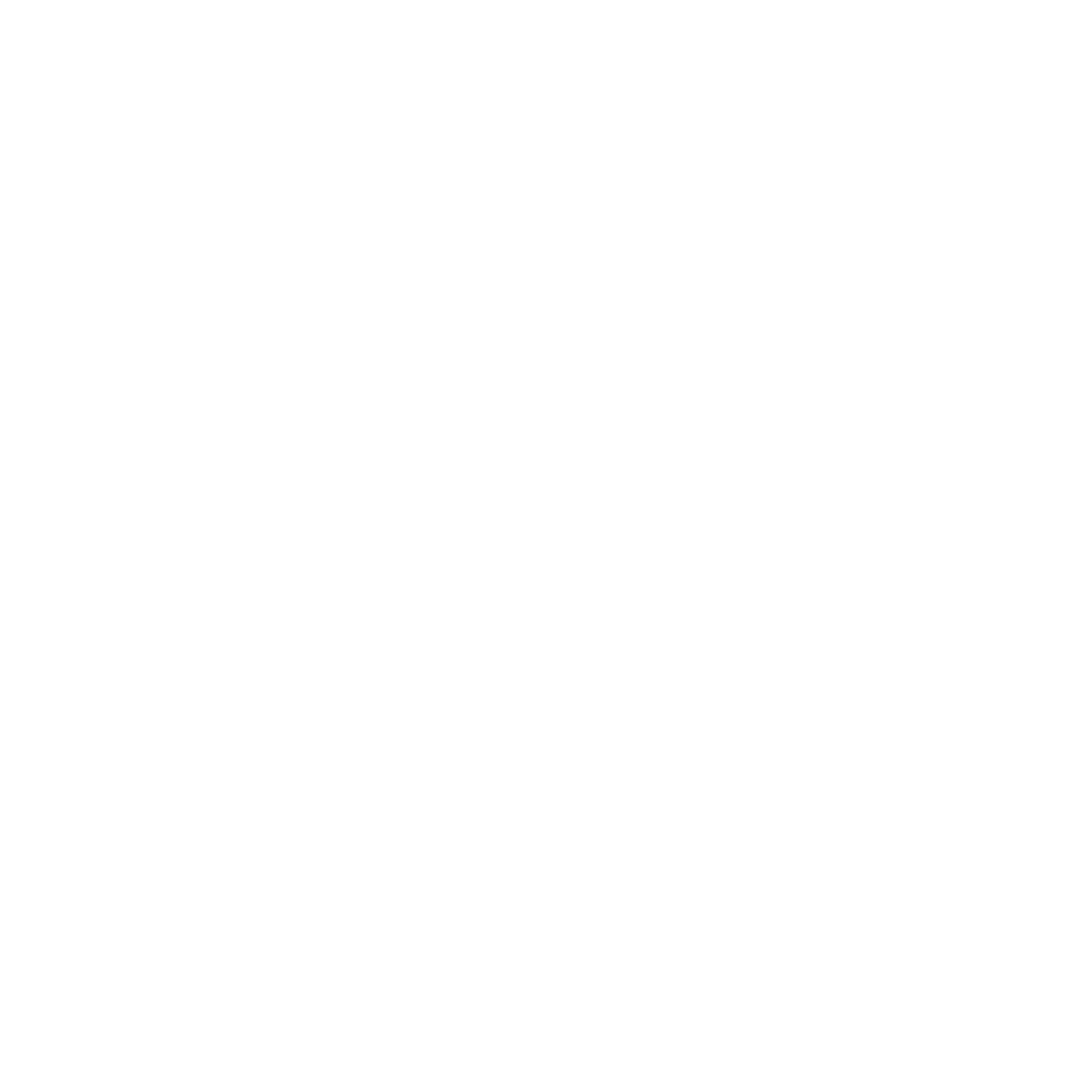

Specifications

Capacity: 3500kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 4.5 - 5m

Lock Release: Single point

Power: 240v or 3 Phase

Electrical: 15amps / 7amps

Column Height: 4076mm

Lifting Height: 3700mm

Clearance Under Runways: 3573mm

Overall Width (incl. motor): 3050mm

Overall Length (incl. ramps): 5778mm

Overall Length (excl. ramps): 5203mm

Platform Width: 483mm

Width Between Platforms: 950-1140mm

Platform Length: 5070mm

Drive Through Clearance: 2210mm

Freight Dimensions:

L 4250mm W 570mm H 1100mm W 1400KG

Warranty

We offer a comprehensive warranty on the TL3.5PH, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
