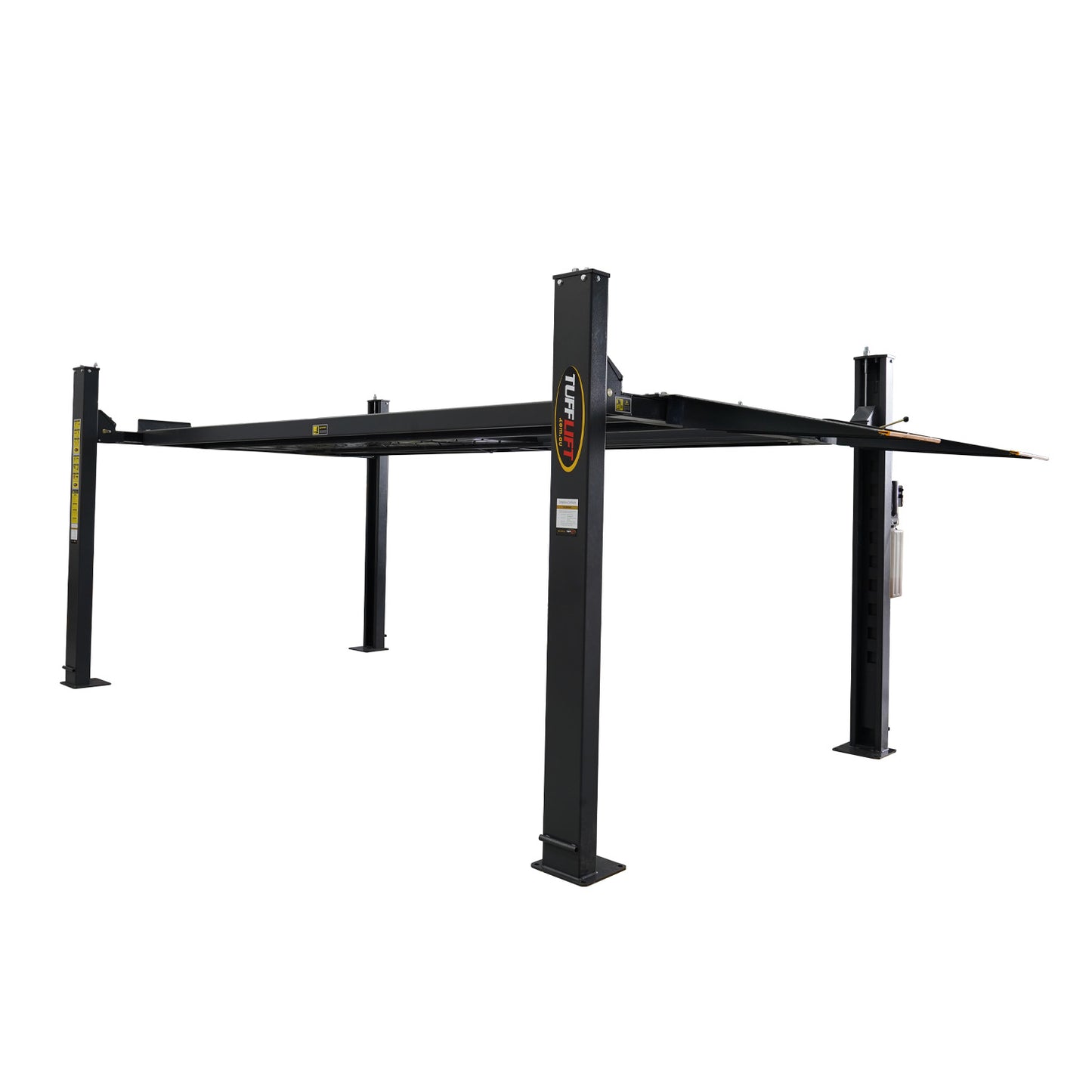

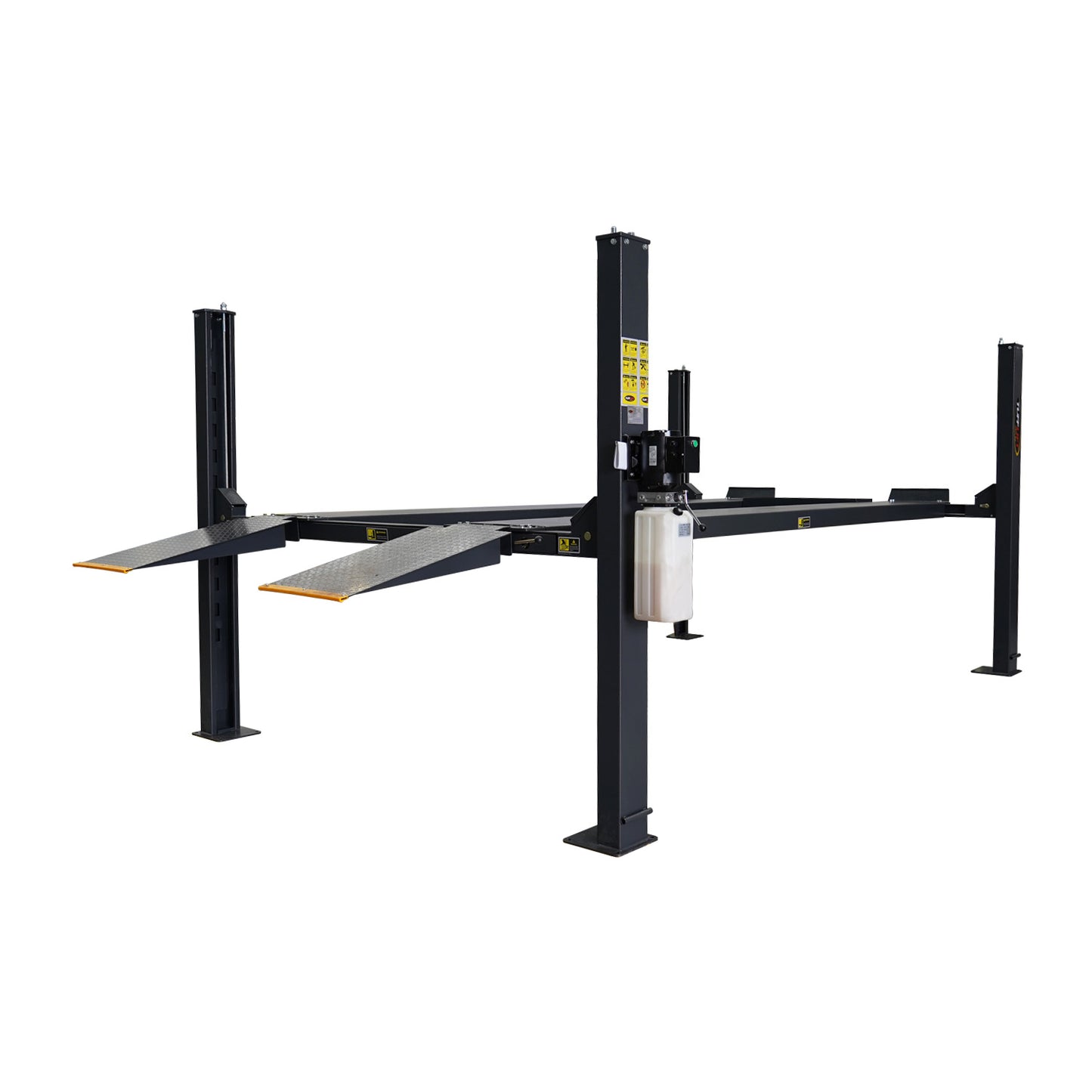

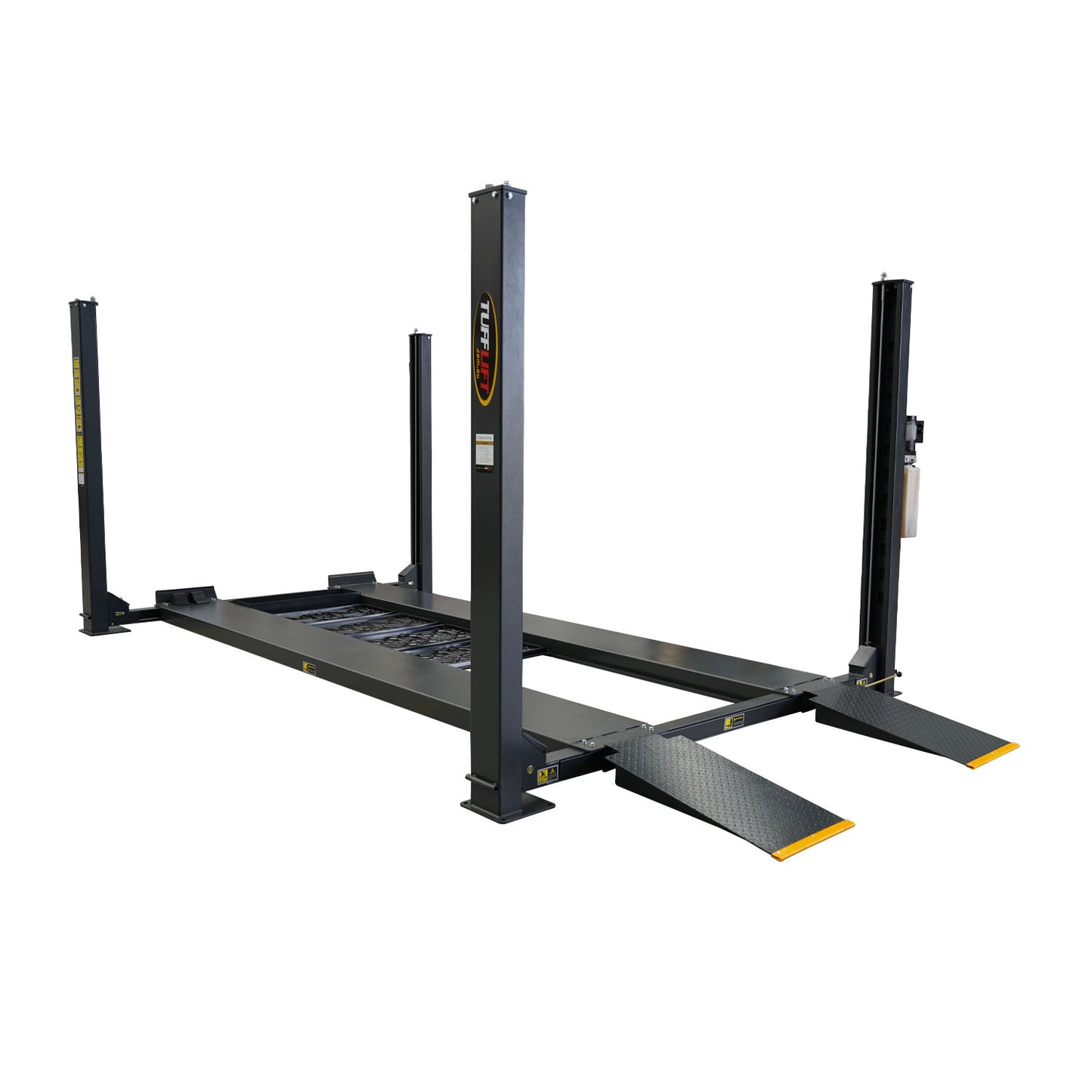

4 Post Parking Hoist - 4 Ton

Name: 4 Post Parking Hoist - 4 Ton
Brand: Tufflift
SKU: TL4.0PH
Price: 5390.00 AUD
Availability: InStock

SKU:TL4.0PH

$5,390.00 AUD

Sale

Included with your Tufflift: RRP $444.40 AUD

Increase your parking capacity and work efficiency with this 4 Post Parking Hoist. Perfect for storing or working on vehicles, it features a sturdy powder-coated finish and includes a caster kit for added mobility, making it an excellent choice for workshops and garages.

Features

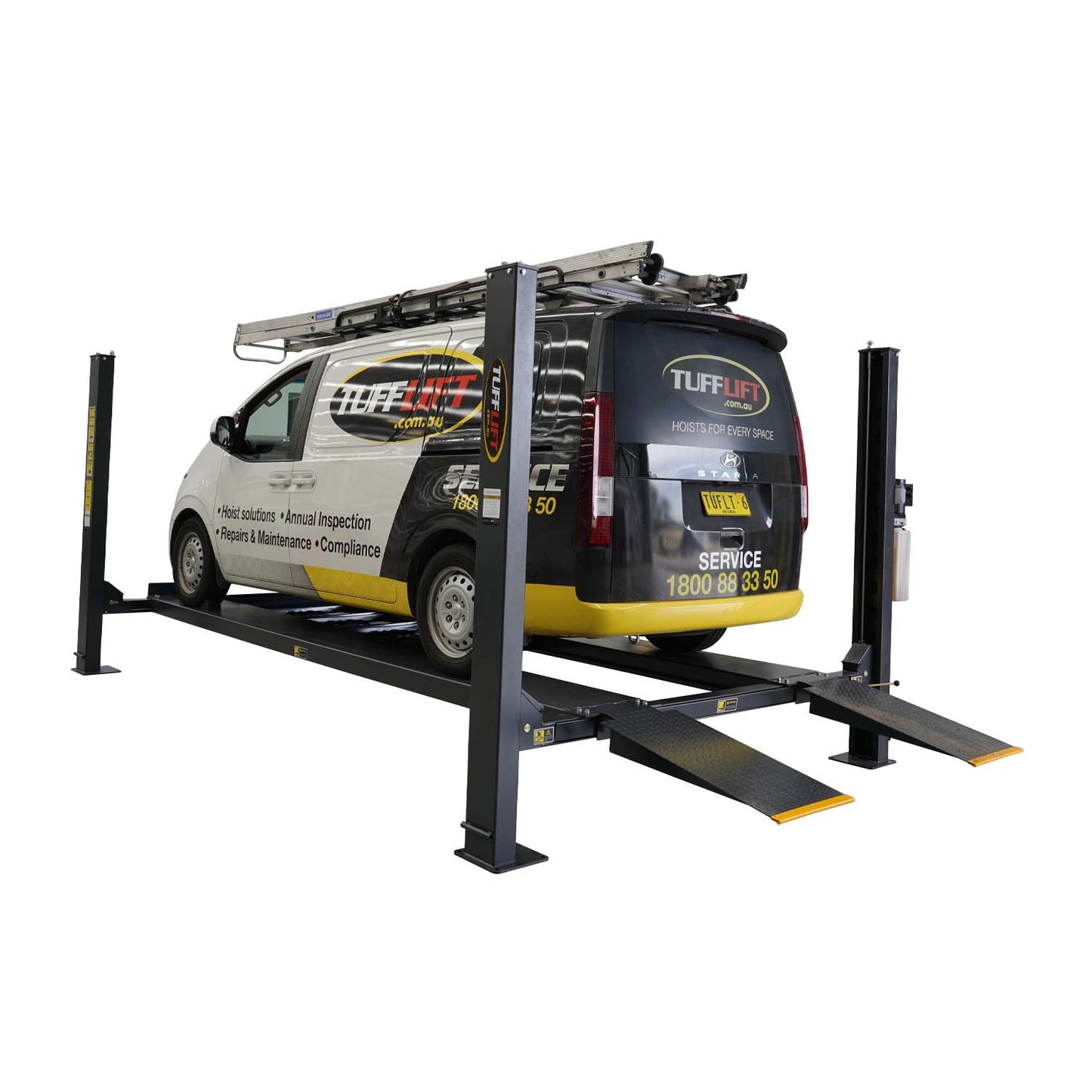

Double your parking space
Perfect for storing/working on most vehicles
Powder coated finish

Includes:

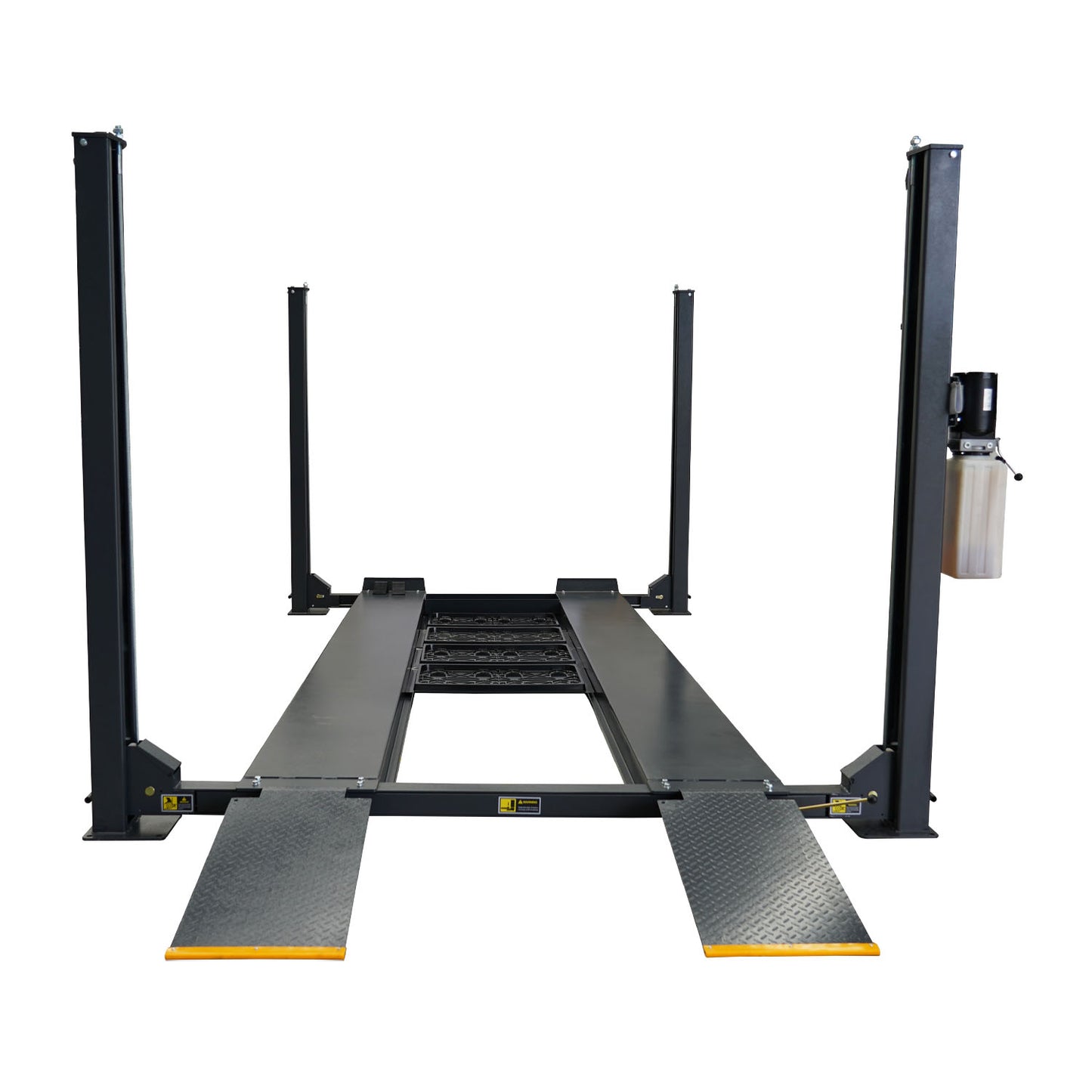

Steel approach ramps
Hydraulic oil

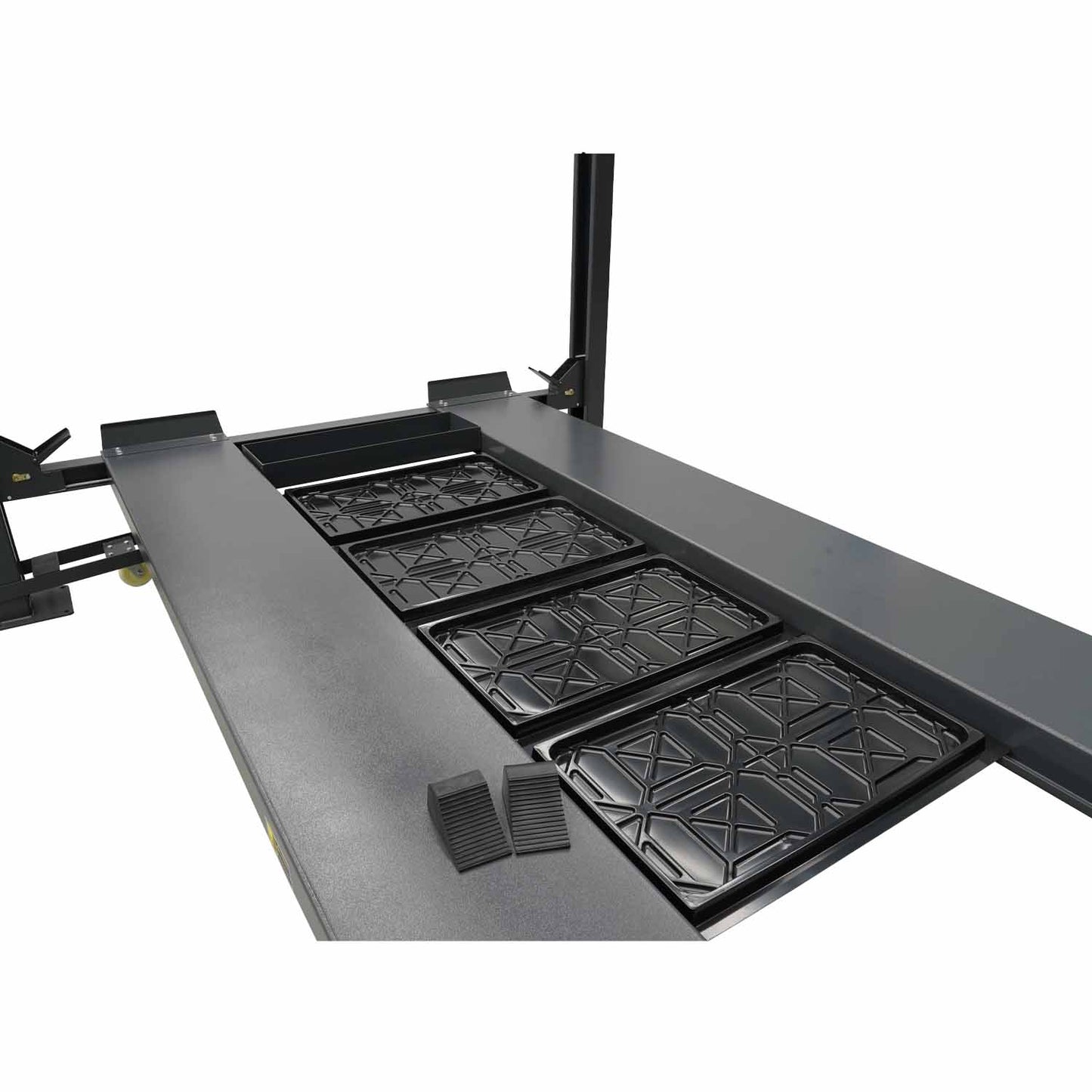

4 plastic drip trays
4 wheel stops
2 wheel chocks
Caster kit with polyurethane wheels
Steel tool tray
Engineer Certified
Design Registered with Worksafe

Options:

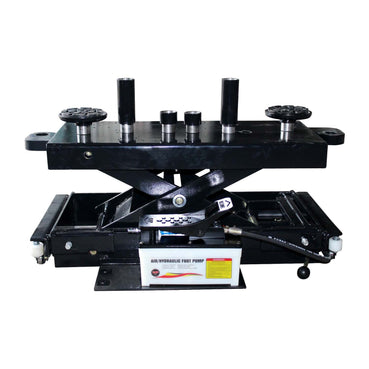

Rolling Jack – RJ45-AIR

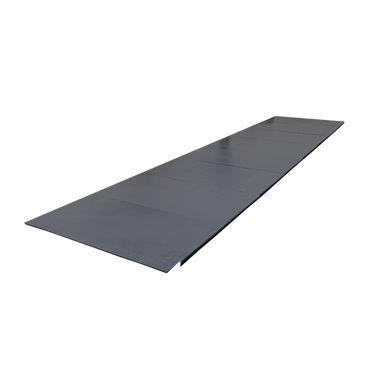

Infill Kit

Safety:

Mechanically locks each (170mm) interval
Anti-surge valve
Cable slack locks

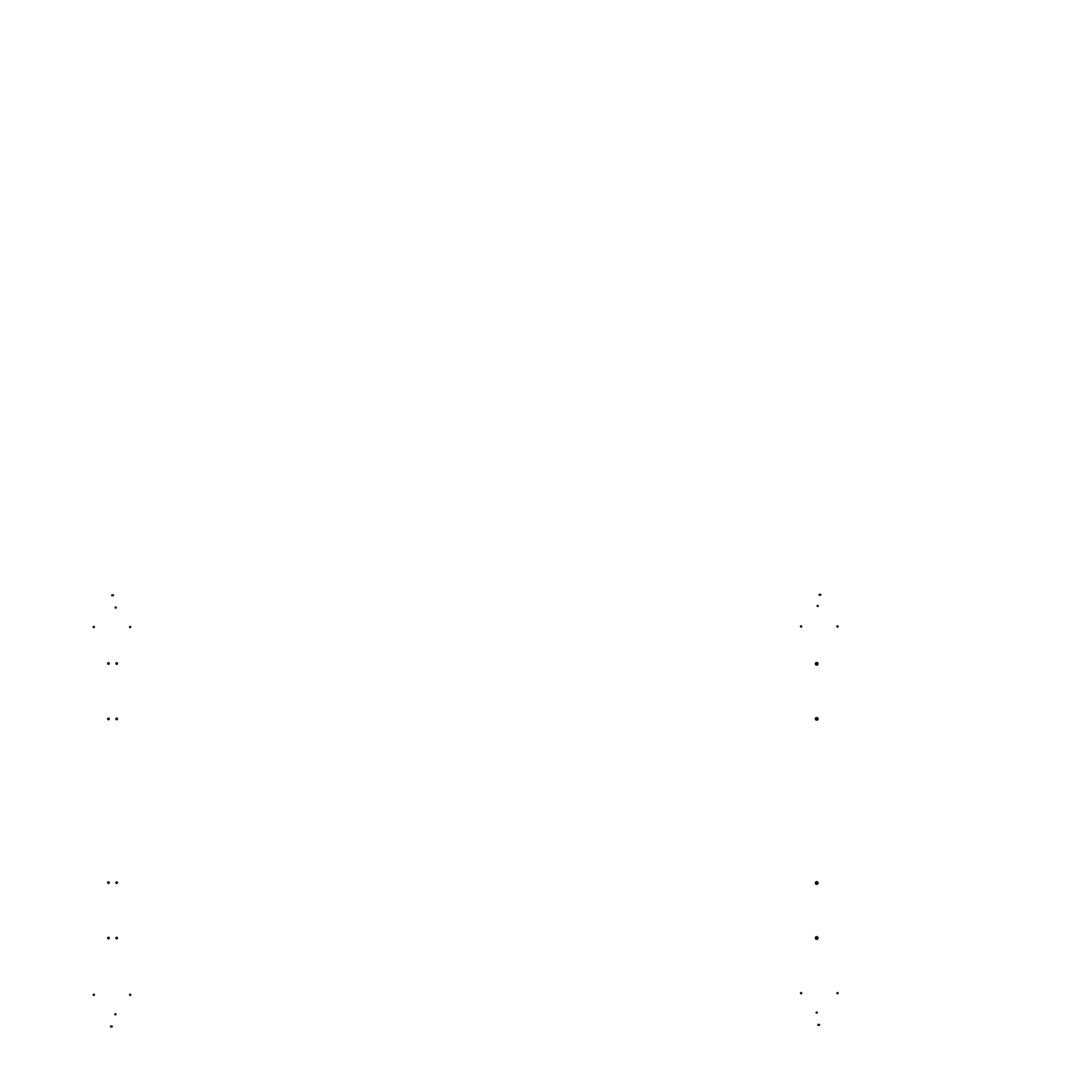

Specifications

Capacity: 4000kg

Minimum Concrete Requirements: 100mm

Recommended Ceiling Height: 3.7m

Lock Release: Single point

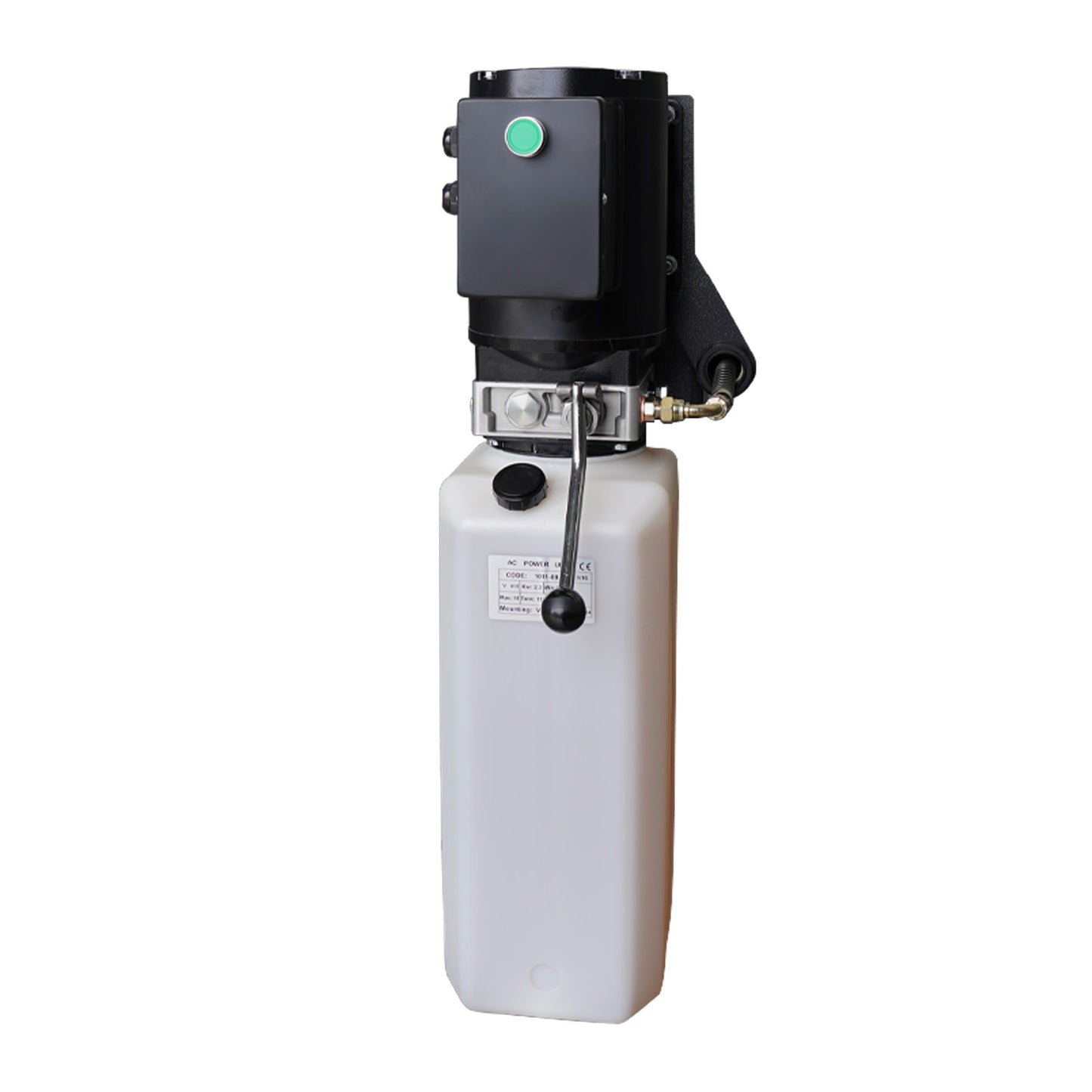

Power: 240v 2.2kw | 3 Phase 2.2kw

Electrical: 15amps / 7amps

Column Height: 2456mm

Lifting Height: 2180mm

Clearance Under Runways: 2050mm

Overall Width (excl. motor): 3074mm

Overall Width (incl. motor): 3341mm

Overall Length (incl. ramps): 5782mm

Overall Length (excl. ramps): 5185mm

Platform Width: 508mm

Width Between Platforms: 994mm

Platform Length: 5090mm

Drive Through Clearance: 2788mm

Freight Dimensions:

L 5160mm W 560mm H 740mm W 1085KG

Warranty

We offer a comprehensive warranty on the TL4.0PH, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
