4 Post Parking Hoist | 4 Ton Extra Long
4 Post Parking Hoist | 4 Ton Extra Long
SKU:TL4.0PH-7M
Couldn't load pickup availability

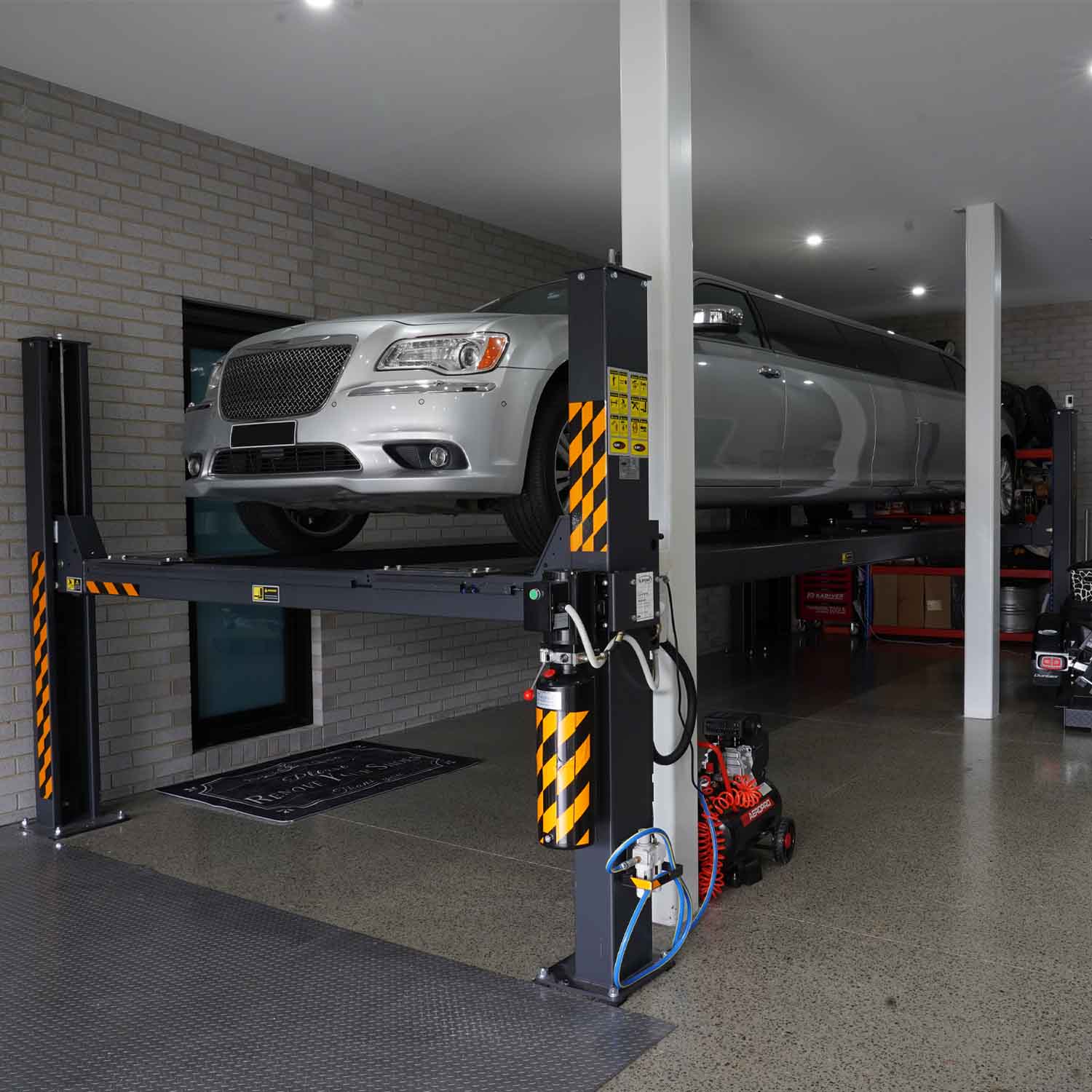

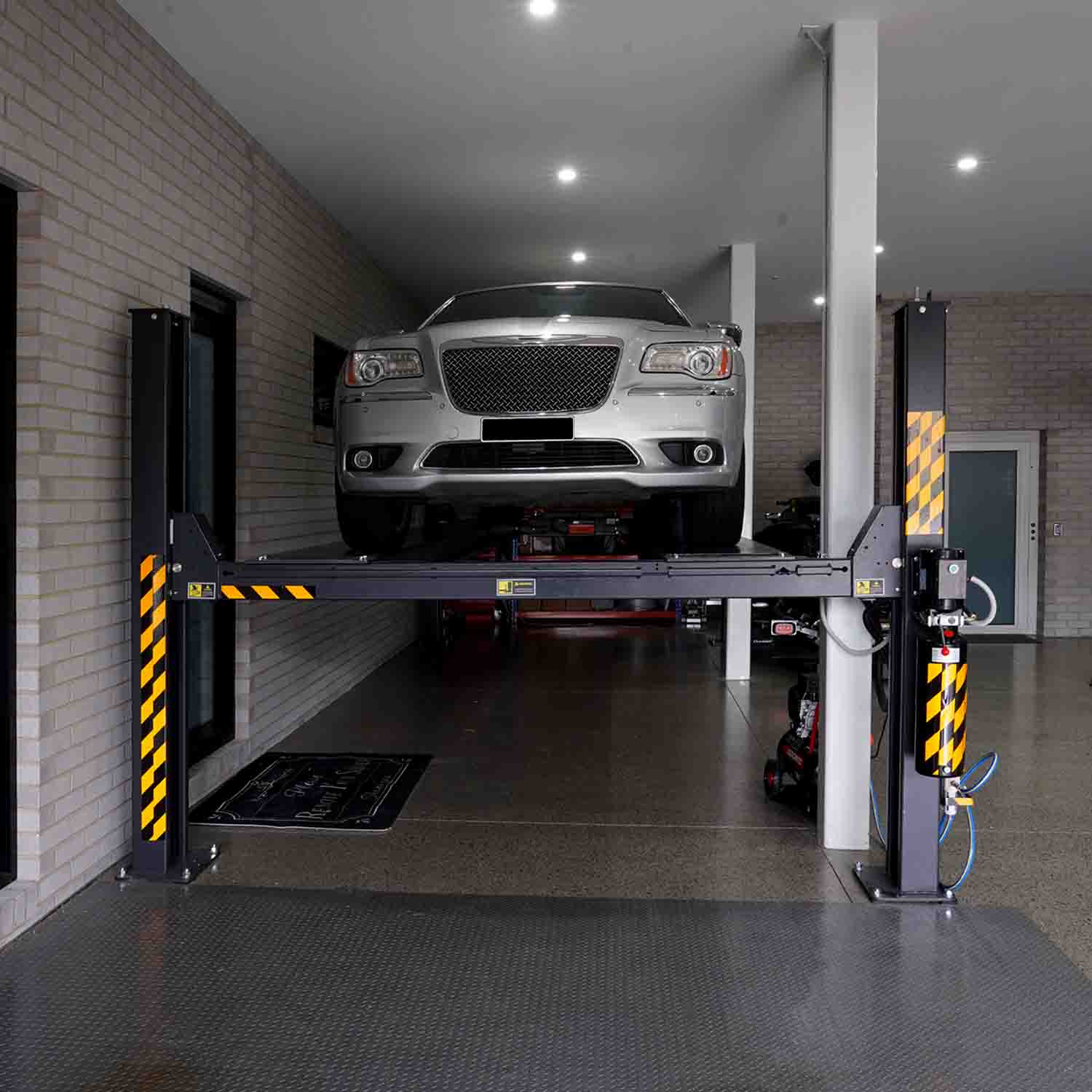

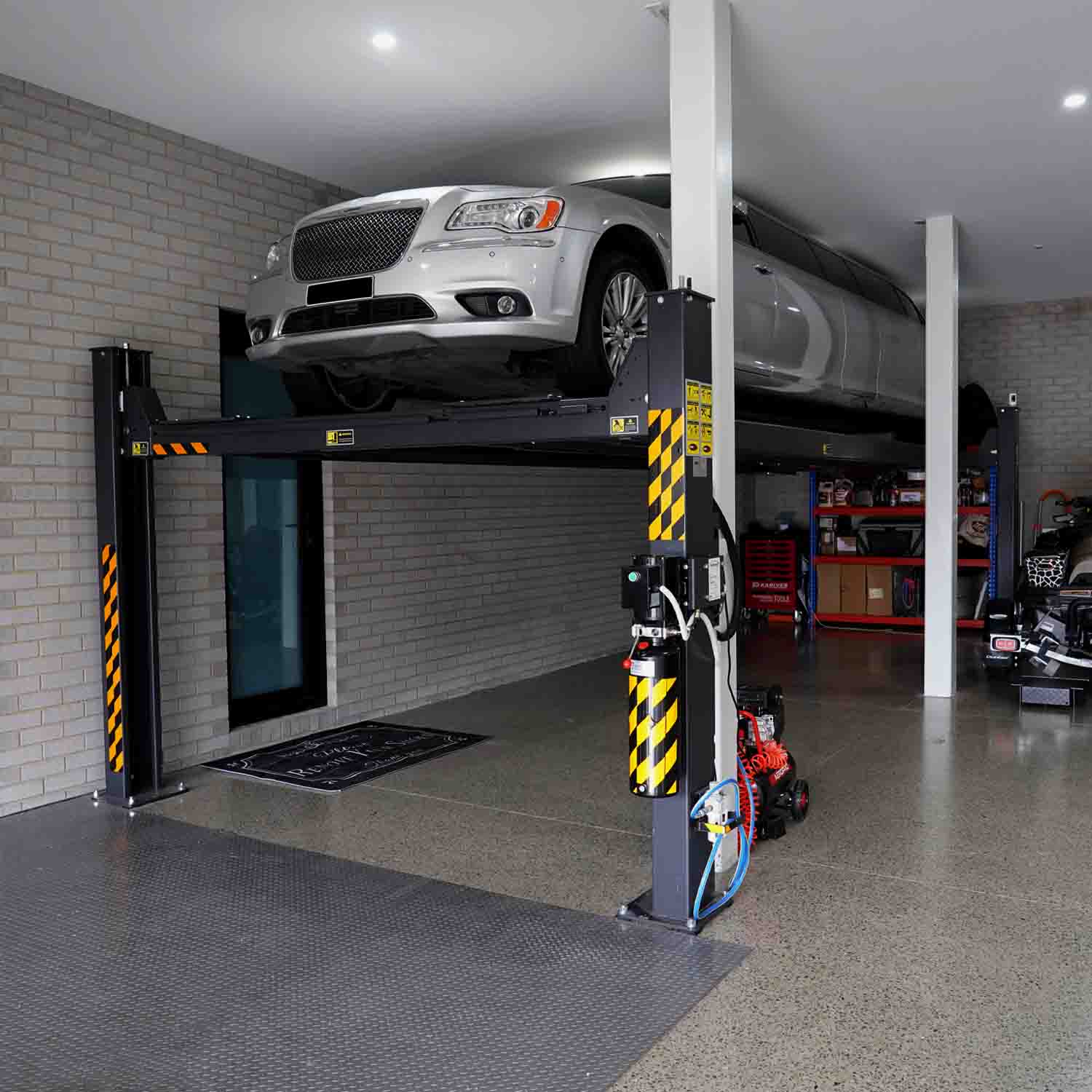

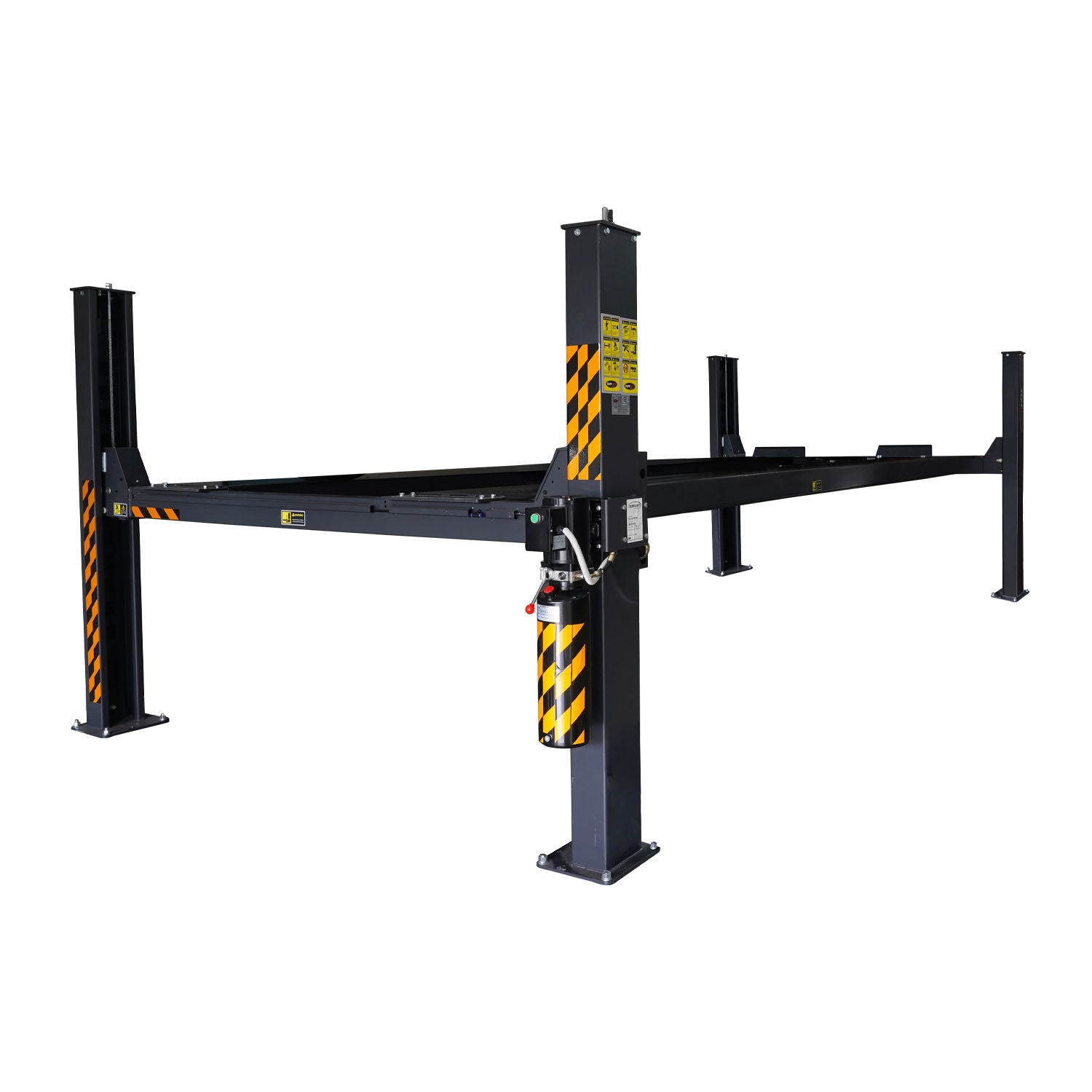

The TL4.0PH-7M is a custom-made 4 ton extra long 4 post parking hoist, specially designed for storing larger commercial vehicles. With a 4000kg lifting capacity and extended platforms, it provides an ideal solution for workshops or commercial storage needs. Built with safety in mind, this hoist features a single-point lock release and diamond-plated runways for a reliable and sturdy lifting experience.
- This is a custom made product and is manufactured to order
- 4000kg lifting capacity
- Single point lock release
- Storage solutions for commercial vehicles
- Longer platforms to suit larger commercial vehicles
- Diamond plated runways
Includes:
- Hydraulic oil
- Engineer Certified
- Design Registered with Worksafe
Options:
- Rolling Jack – RJ70
Safety:
- Mechanically locks each interval
- Anti-surge valve
- Cable slack locks
Warranty:
- 5 years (structure) + 1 year (electrical and hydraulics). Parts & labour

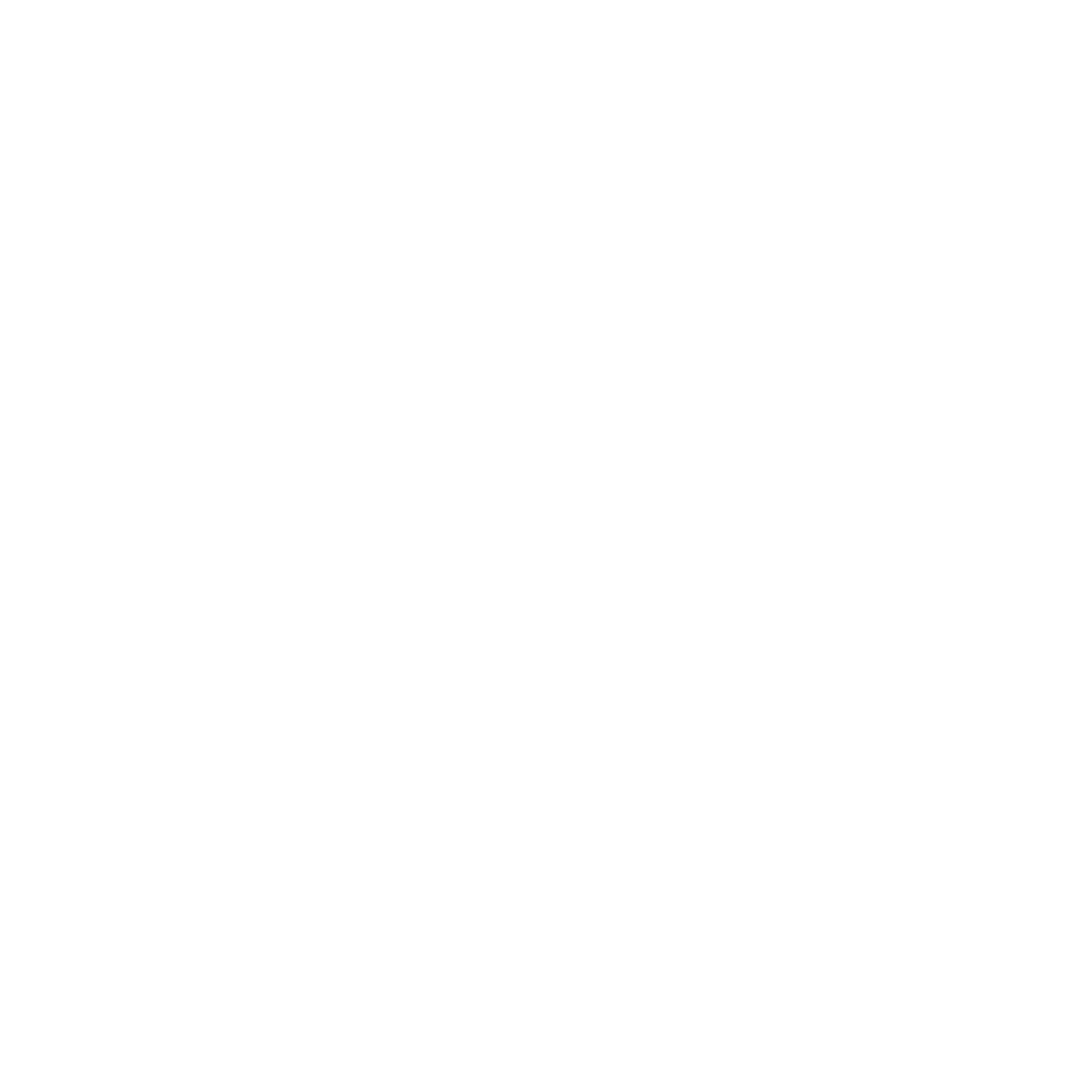

Capacity: 4000kg
Lock Release: Single point
Power: 240v or 3 Phase
Electrical: 15amps / 7amps
Column Height: 2254mm
Lifting Height: 1871mm
Clearance Under Runways: 1711mm
Overall Width: 3460mm
Overall Length (incl. ramps): 8220mm
Overall Length (excl. ramps): 7150mm
Platform Width: 508mm
Width Between Platforms: 1078mm
Platform Length: 7000mm
Drive Through Clearance: 2895mm
Freight Dimensions:
L 7100mm W 550mm H 900mm W 1600KG
We offer a comprehensive warranty on the TL4.0PH-7M, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.
This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.




SPECIFICATIONS

-
150mm
Minimum Concrete Requirement
-
3.7m
Recommended Ceiling Height
-
240v / 3kw 21.5 amps hard wiring required
Power Requirements
-
710 x 55 x 90cm 1600kg
Freight Dimensions
