Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

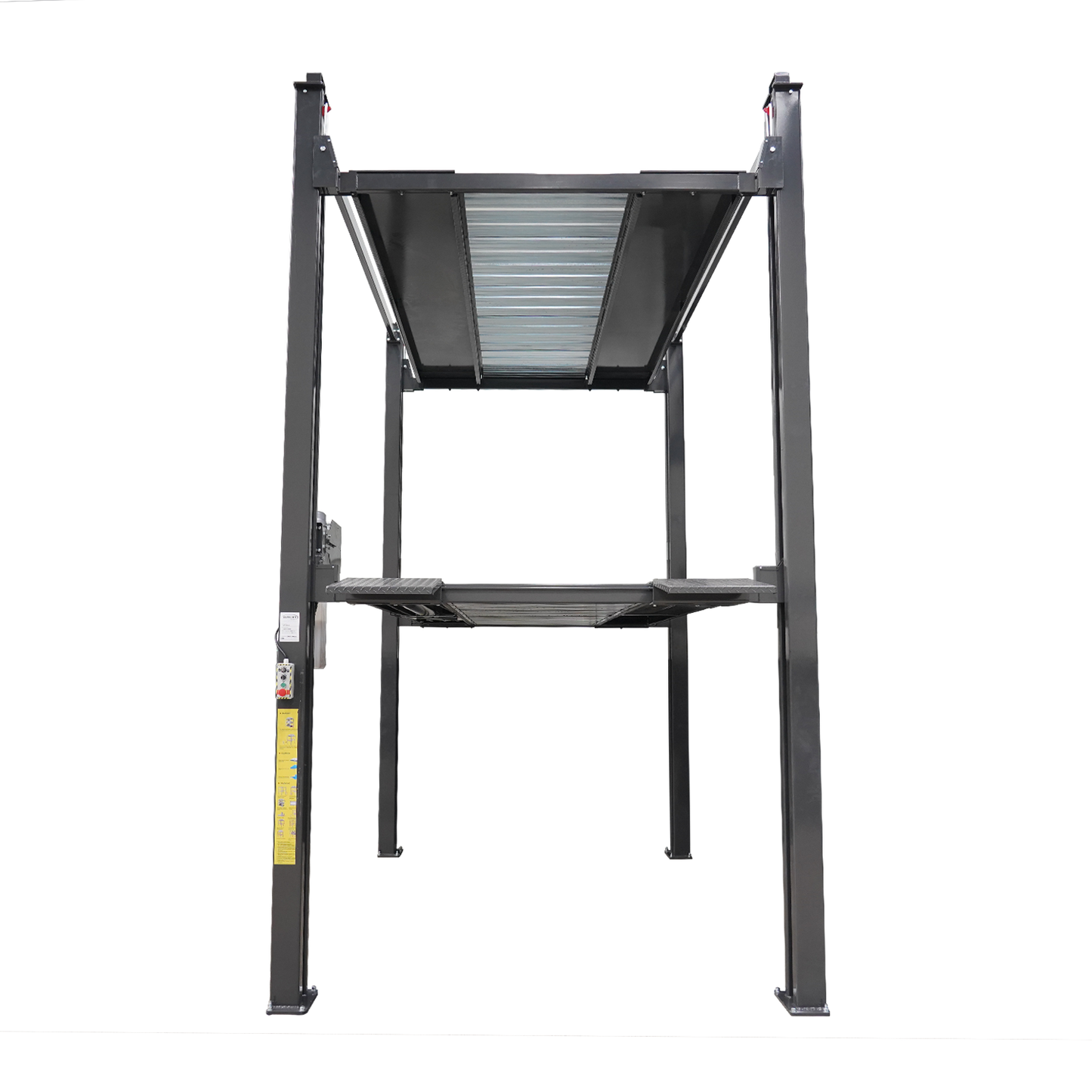

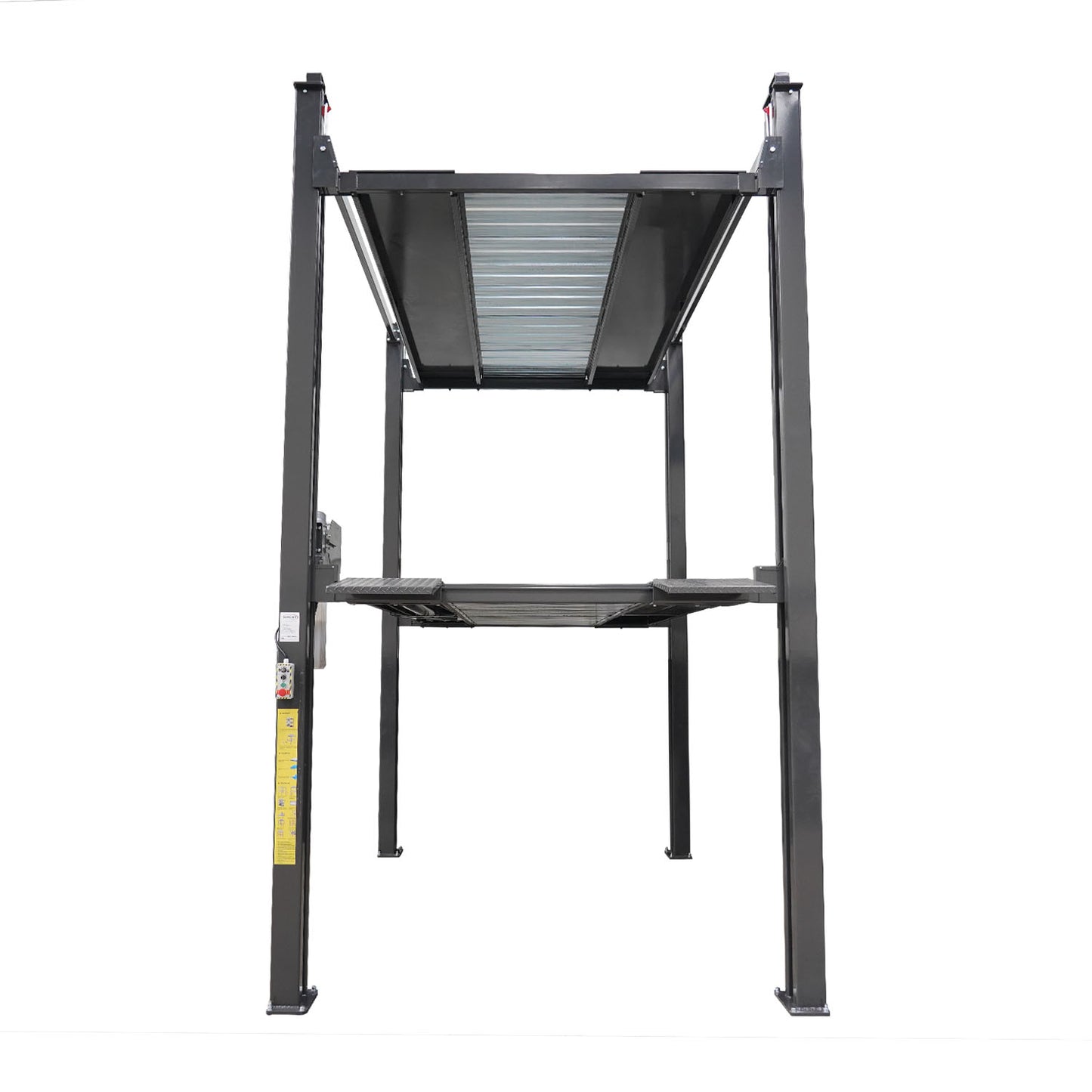

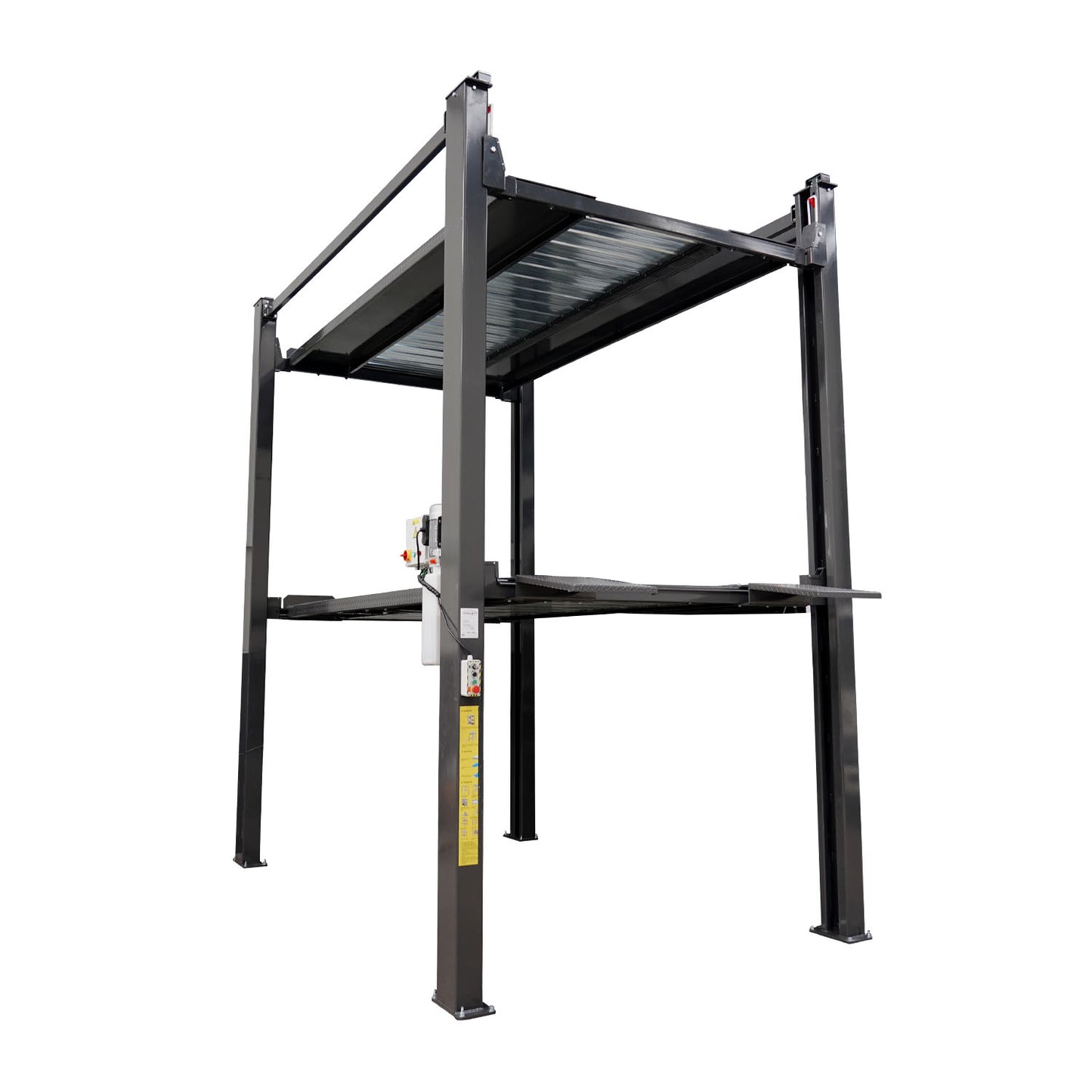

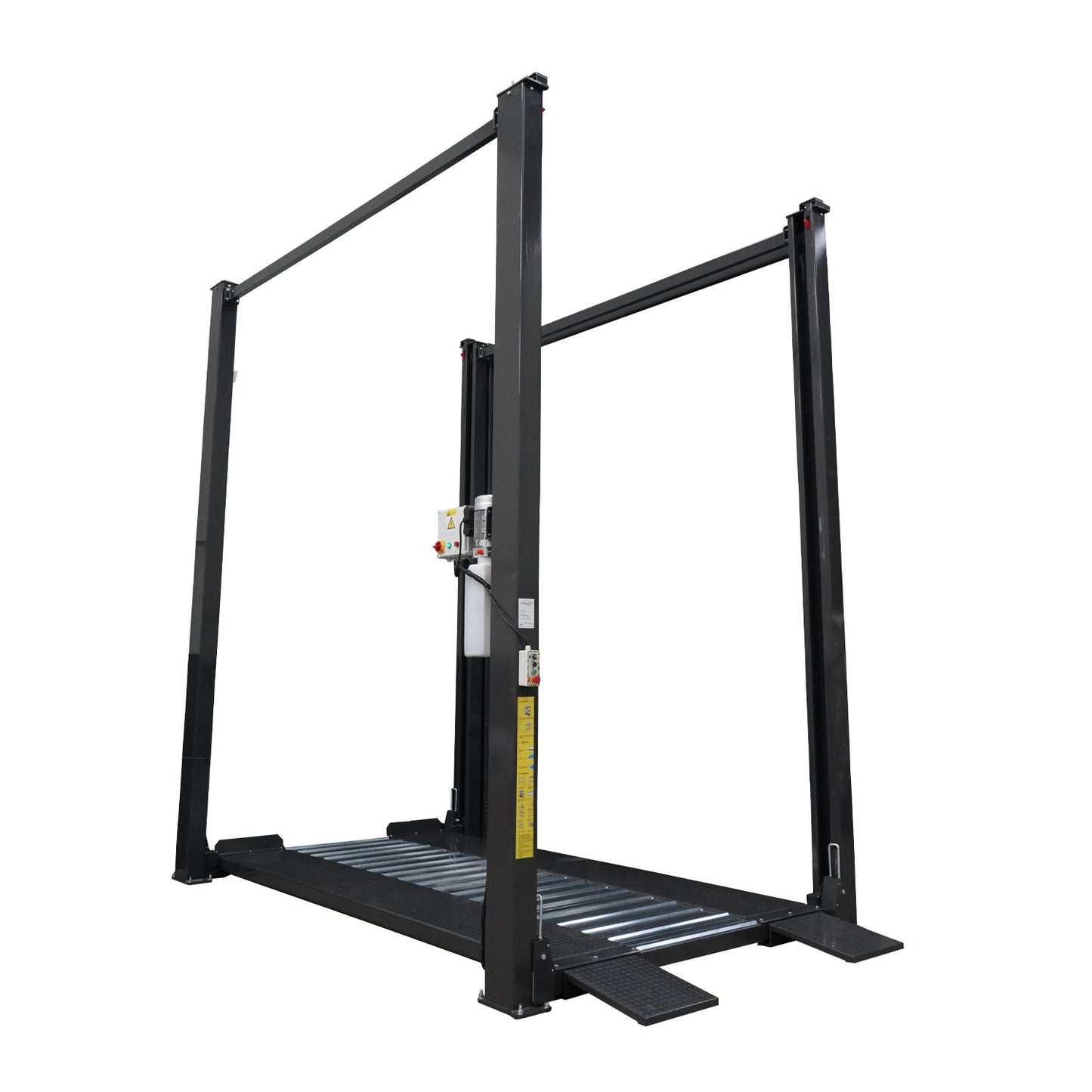

4 Post Parking Hoist - Triple Stacker (Short)

Name: 4 Post Parking Hoist - Triple Stacker (Short)
Brand: Tufflift
SKU: TLM-3TPH-S
Price: 14490.00 AUD
Availability: OutOfStock

4 Post Parking Hoist - Triple Stacker (Short)

SKU:TLM-3TPH-S

$14,490.00 AUD

Sale Sold out

Choose a Power Supply

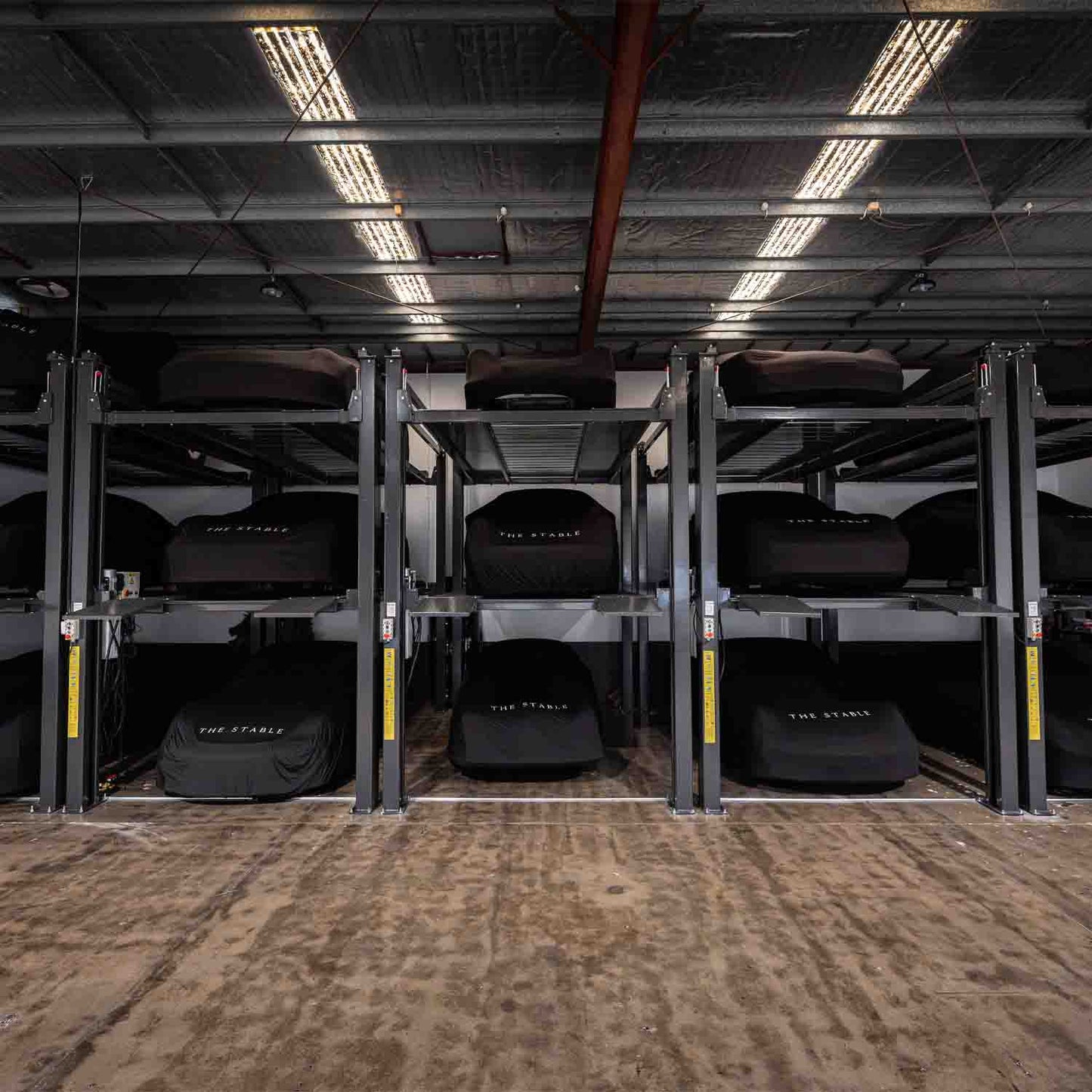

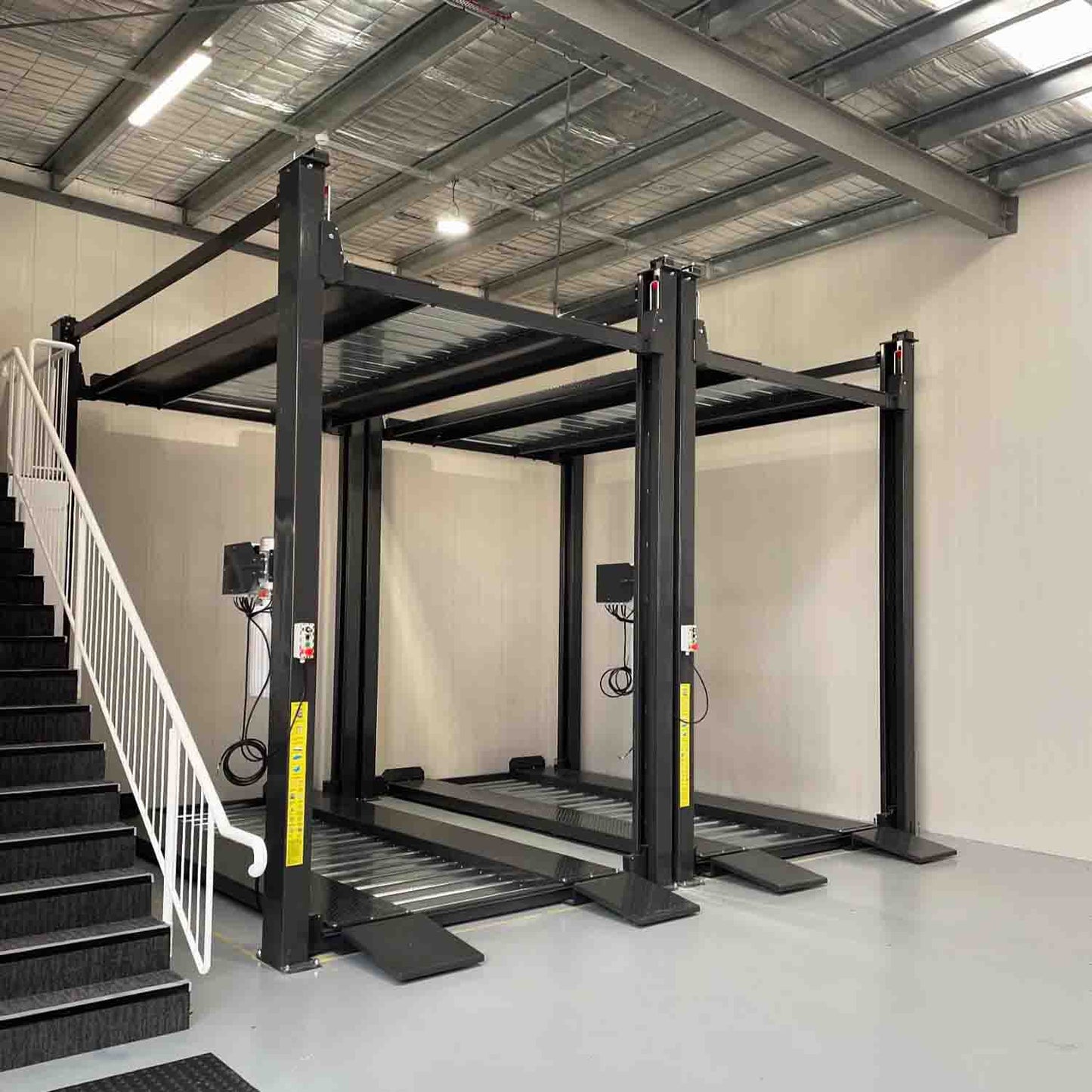

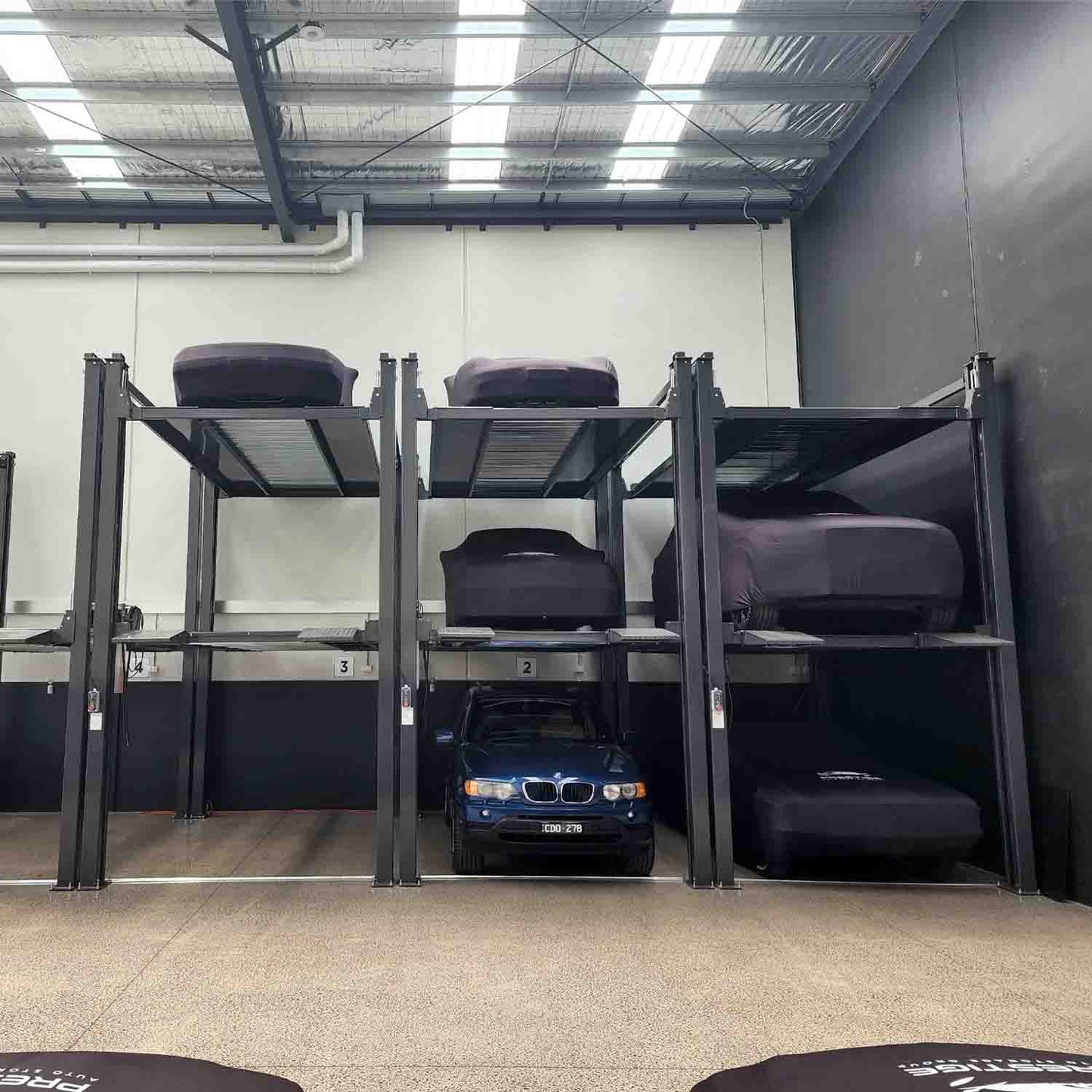

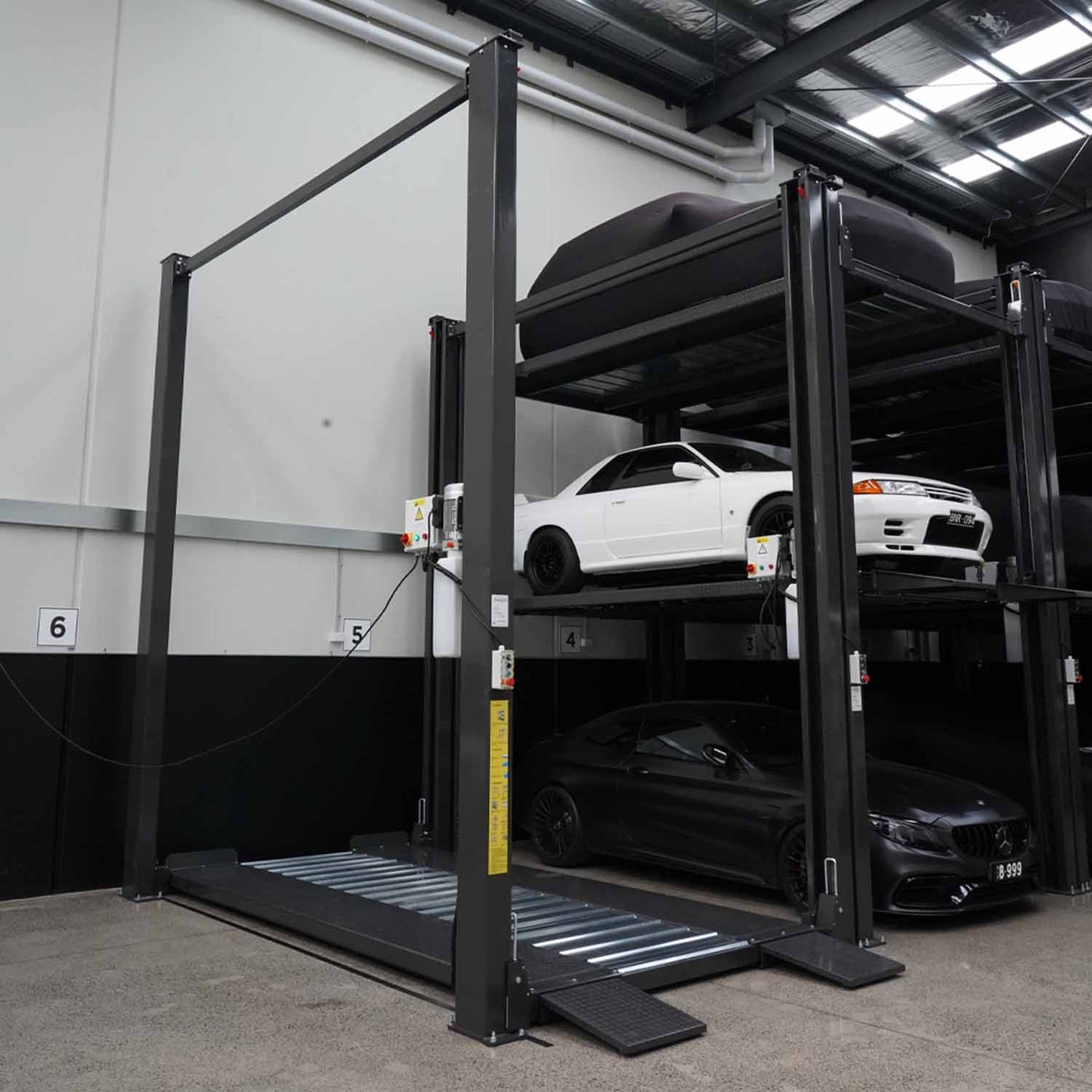

The 4 Post Parking Hoist Triple Stacker (Short) is designed to optimise vertical parking space, offering multiple stacking options for smaller garages and parking facilities. With electric controls and advanced safety features, this hoist provides a practical and reliable solution for securely storing vehicles.

Features

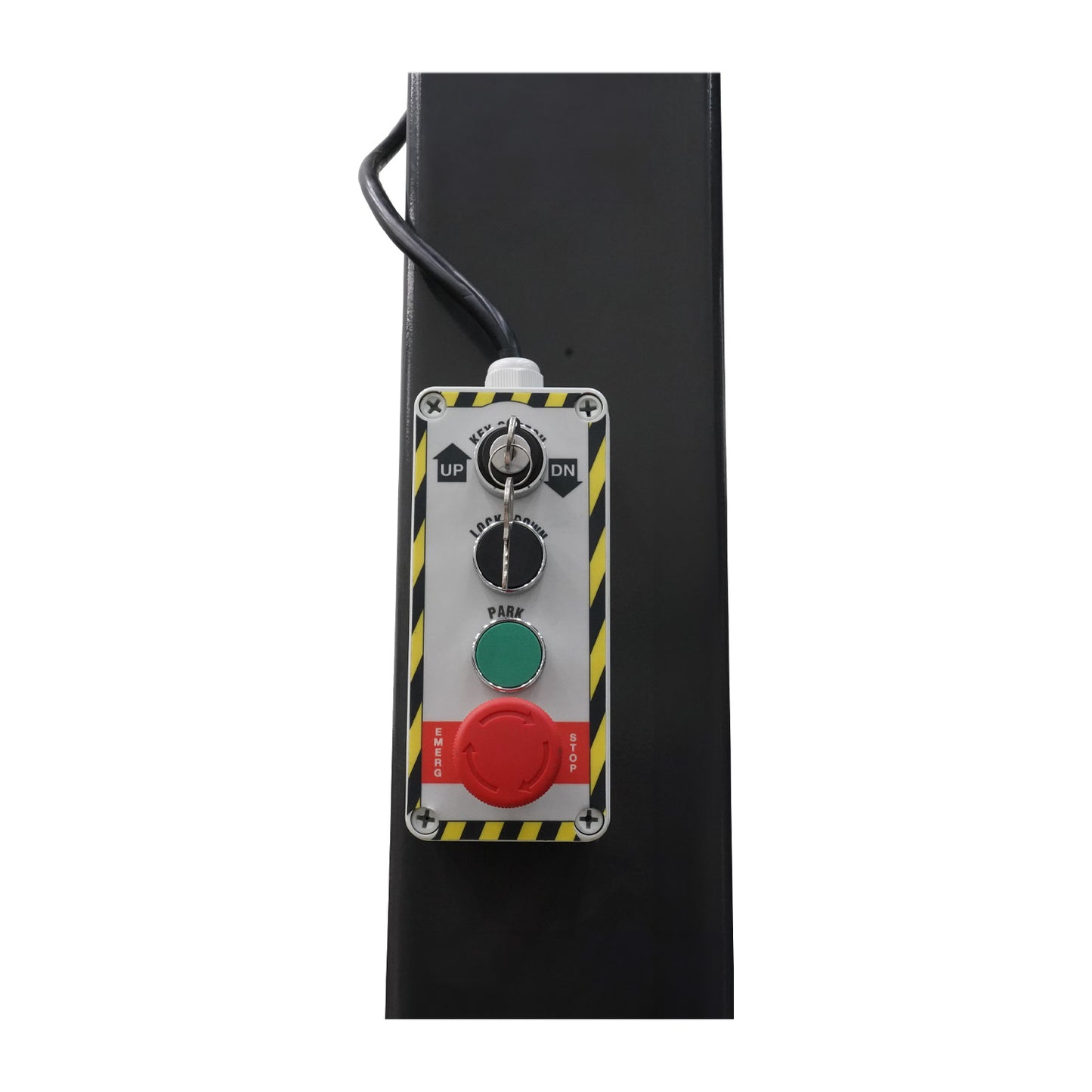

Electric park button
Electric lock release
Single electrical connection point

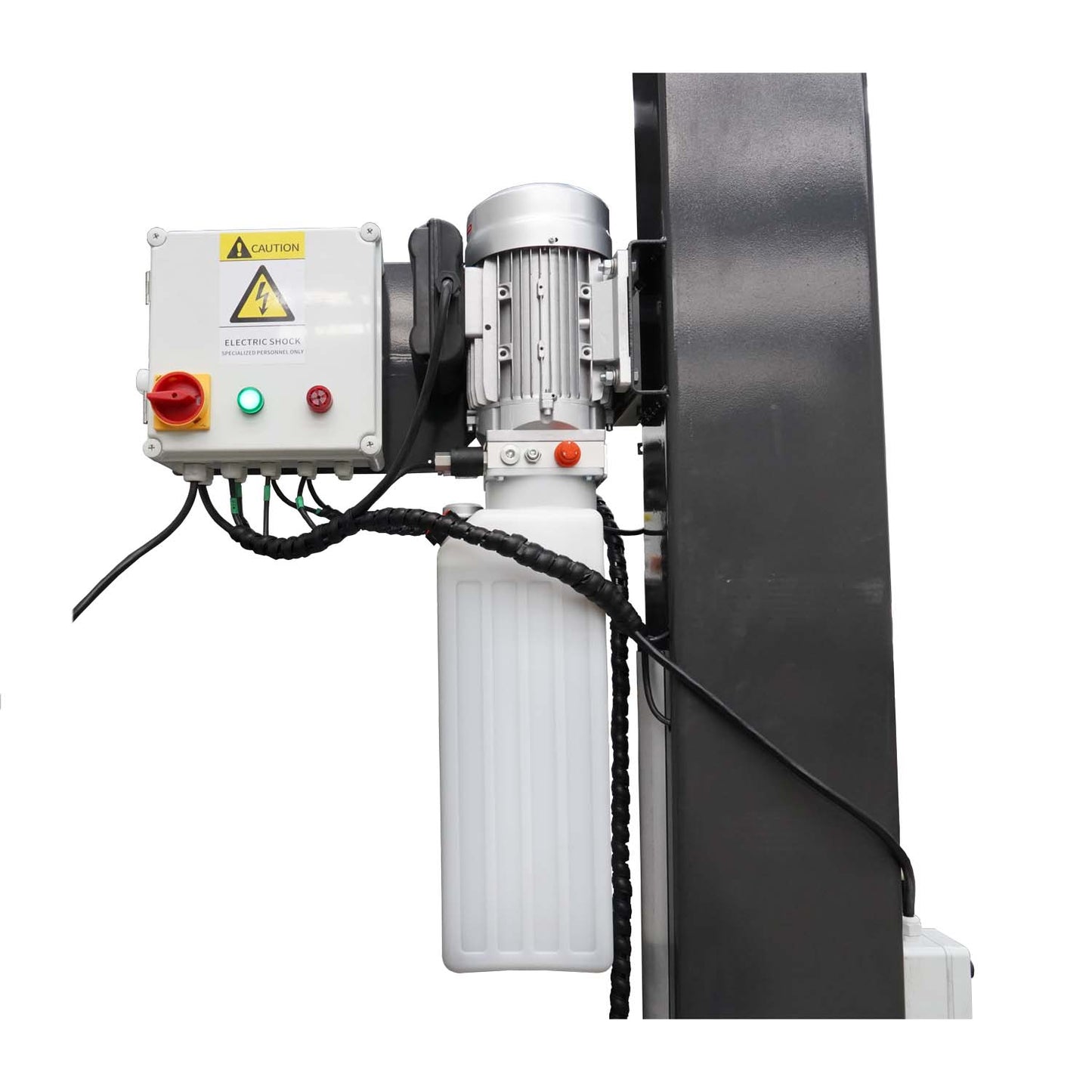

Factory wired control box
Extended lock ladders (more parking position options)

Includes

Full metal platform inserts for maximum vehicle protection
Hydraulic Oil
Platform end plates

Safety

Hydraulic system anti burst valve
Secondary isolation switch
Height limit switches

Specifications

Capacity 2nd floor: 2500kg

Capacity 3rd floor: 2000kg

Min Concrete Requirement: 150mm

Recommended Ceiling Height: >6.1m

Lock Release: Electric

Power: 240v | 3kw: 16.5amps

Column Height: 4965mm

Lifting Height: 4500mm

Clearance Under Runways: 2100mm (both)

Overall Width: 2800mm

Overall Length (incl. ramps): 5060mm

Overall Length (excl. ramps): 4550mm

Overall Platform Width: 2100

Platform Length: 4400mm

Drive Through Clearance: 2490mm

Freight Dimensions:

L 4950mm W 750mm H 1070mm W 2000KG

Warranty

We offer a comprehensive warranty on the TLM-3TPH-S, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your triple stacker remains reliable and fully supported, giving you peace of mind throughout its use.
