Tufflift

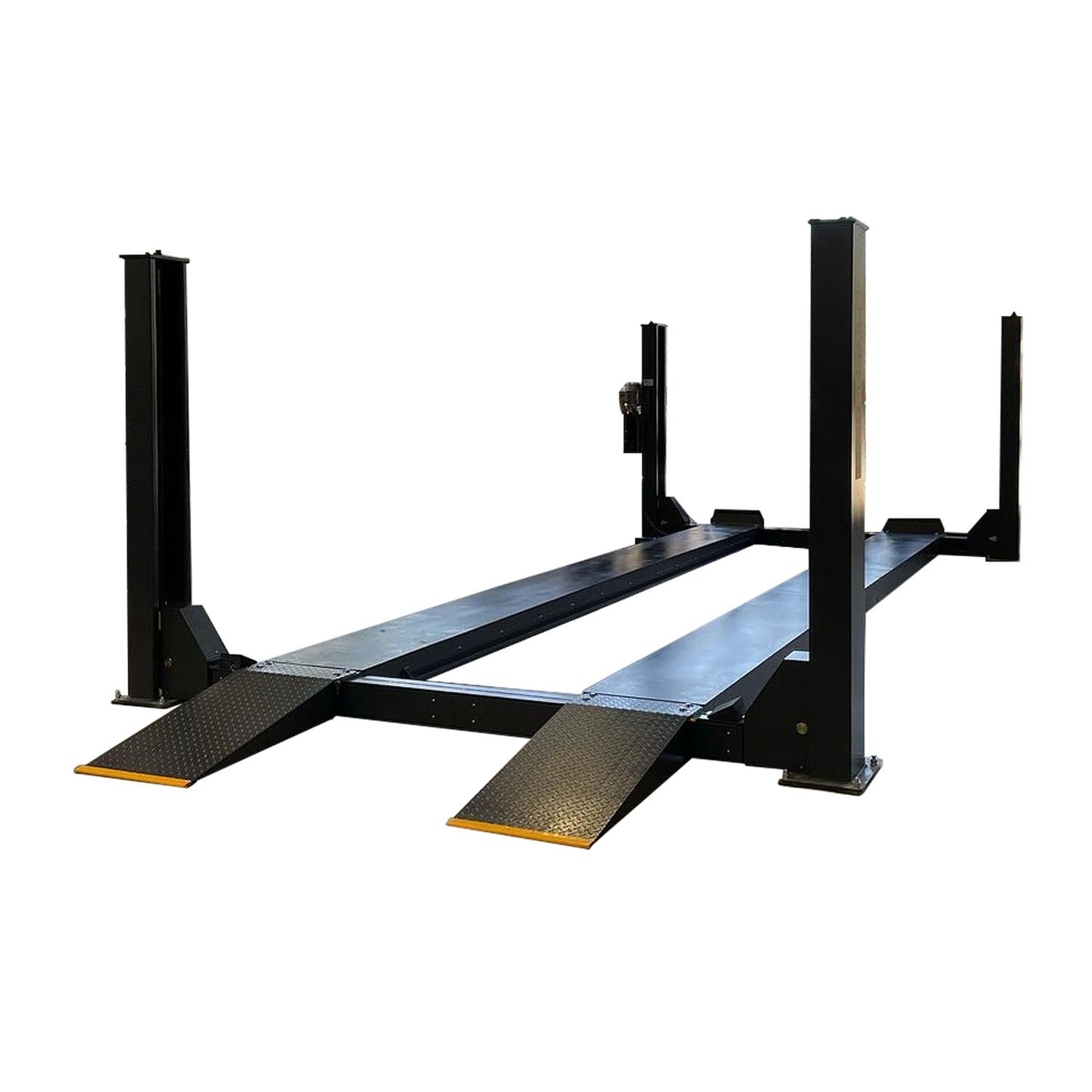

4 Post Truck Hoist – 12 Ton 7.5M Long

Name: 4 Post Truck Hoist – 12 Ton 7.5M Long
Brand: Tufflift
SKU: TL12.0TH-7.5
Price: 25990.00 AUD
Availability: InStock

4 Post Truck Hoist – 12 Ton 7.5M Long

SKU:TL12.0TH-7.5

$25,990.00 AUD

Sale

Choose a Power Supply

Included with your Tufflift: RRP $132.00 AUD

The 12 Ton 4-Post Truck Hoist is specially designed for heavy-duty use, offering a powerful lifting solution for commercial vehicles. With a 7.5-meter length and a customisable design, this hoist is perfect for workshops that need a reliable and adaptable lifting solution. Featuring a pneumatic single-point lock release and robust safety features, it provides a dependable option for storing and working on larger vehicles.

Features

This is a special order and can be customised
Pneumatic single point lock release
Perfect for storing and working on commercial vehicles

Includes:

Hydraulic oil
Engineer Certified
Design Registered with Worksafe

Safety:

Mechanically locks each interval
Anti-surge valve
Cable slack locks

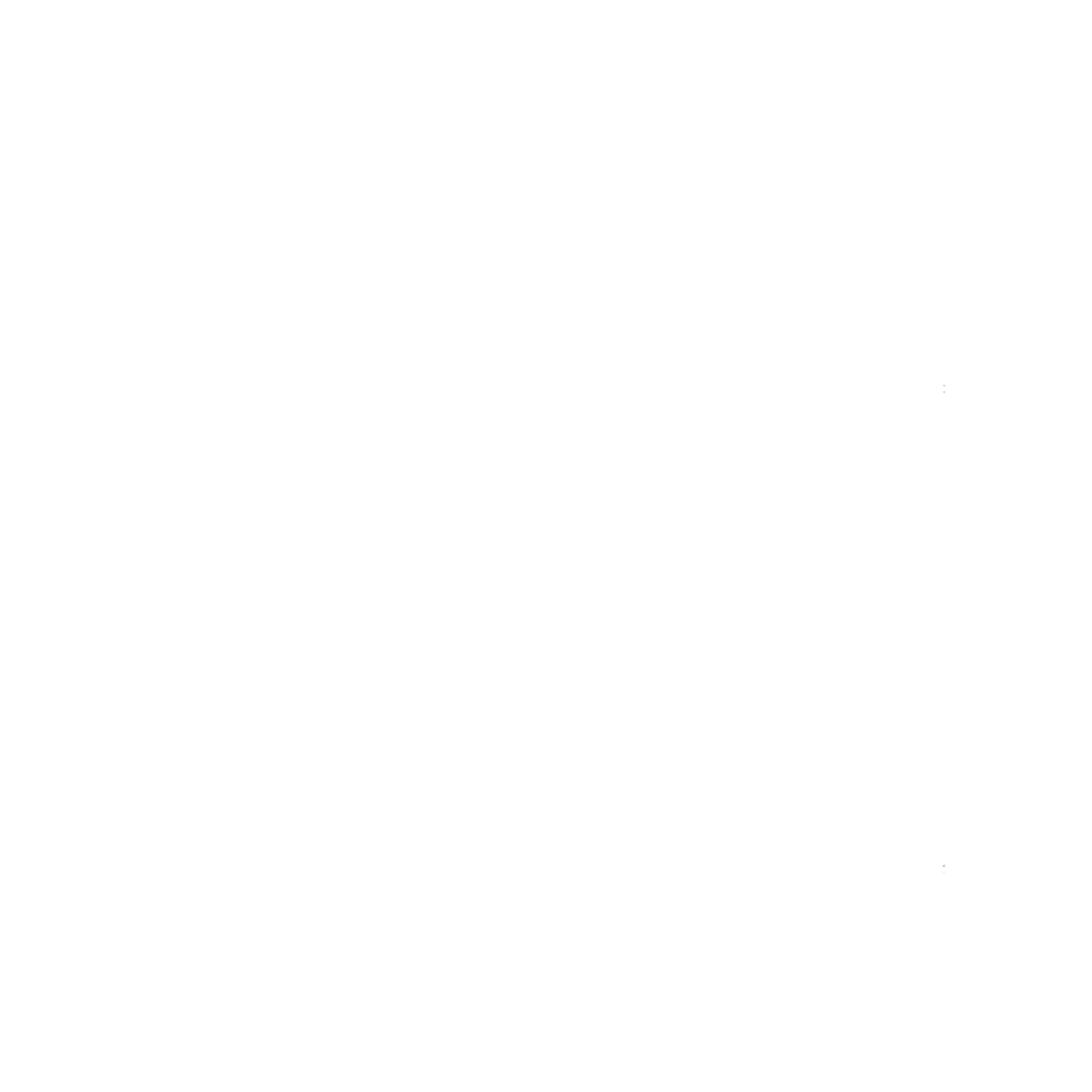

Specifications

Capacity: 12000kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 3.8 - 4m

Lock Release: Single point

Power Requirements: 3 Phase | 4kw 12amps

Column Height: 2360mm

Lifting Height: 1830mm

Clearance Under Runways: 1570mm

Overall Width (incl. motor): 3998mm

Overall Length (incl. ramps): 8753mm

Overall Length (excl. ramps): 7500mm

Platform Width: 2365mm

Width Between Platforms: 1126mm

Platform Length: 7500mm

Drive Through Clearance: 3538mm

Freight Dimensions:

L 7500mm W 800mm H 1100mm W 3000KG

Warranty

We offer a comprehensive warranty on the TL12.0TH-7.5m, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your truck hoist remains reliable and fully supported, giving you peace of mind throughout its use.
