Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

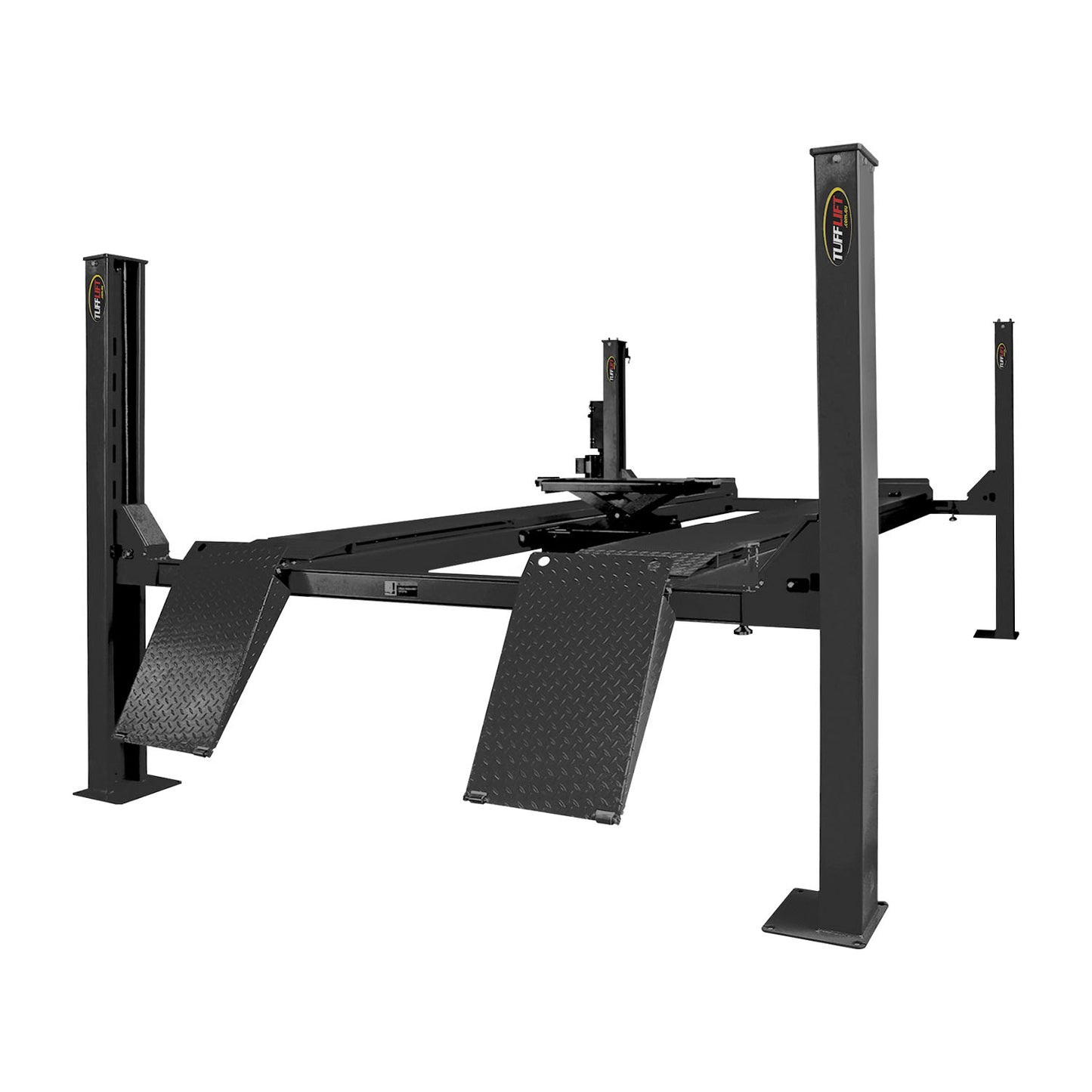

4 Post Wheel Alignment Hoist – 4 Ton (includes rolling jack)

Name: 4 Post Wheel Alignment Hoist – 4 Ton (includes rolling jack)
Brand: Tufflift
SKU: TLV4.0WHWA
Price: 9990.00 AUD
Availability: OutOfStock

4 Post Wheel Alignment Hoist – 4 Ton (includes rolling jack)

SKU:TLV4.0WHWA

$9,990.00 AUD

Sale Sold out

Choose a Power Supply

Included with your Tufflift: RRP $1,489.00 AUD

The 4 Ton 4 Post Wheel Alignment Hoist is a robust and reliable solution for vehicle alignment tasks in workshops. Featuring a durable powder-coated finish, this hoist comes equipped with a Rolling Jack Air Pump RJ45 – Air, making it a versatile tool for vehicle maintenance. Built with safety and performance in mind, this hoist ensures that your vehicle alignment processes are efficient and secure.

Features

Powder coated finish

Includes:

Hydraulic oil

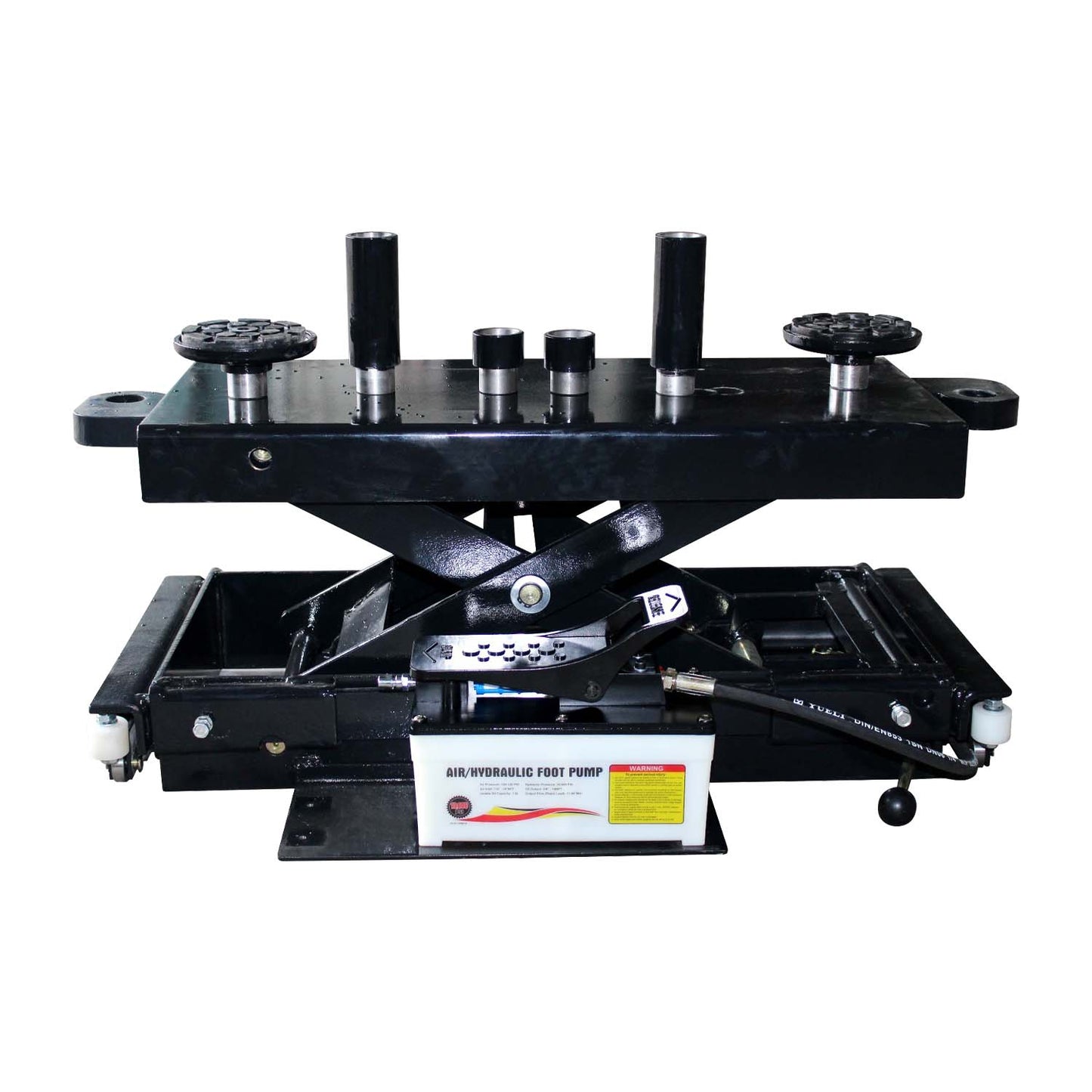

Rolling Jack Air Pump RJ45 – Air
ALI Certified
Design Registered with Worksafe

Options:

EAE Turntable Set

Safety:

Mechanically locks multiple intervals
Anti-surge valve
Cable slack locks

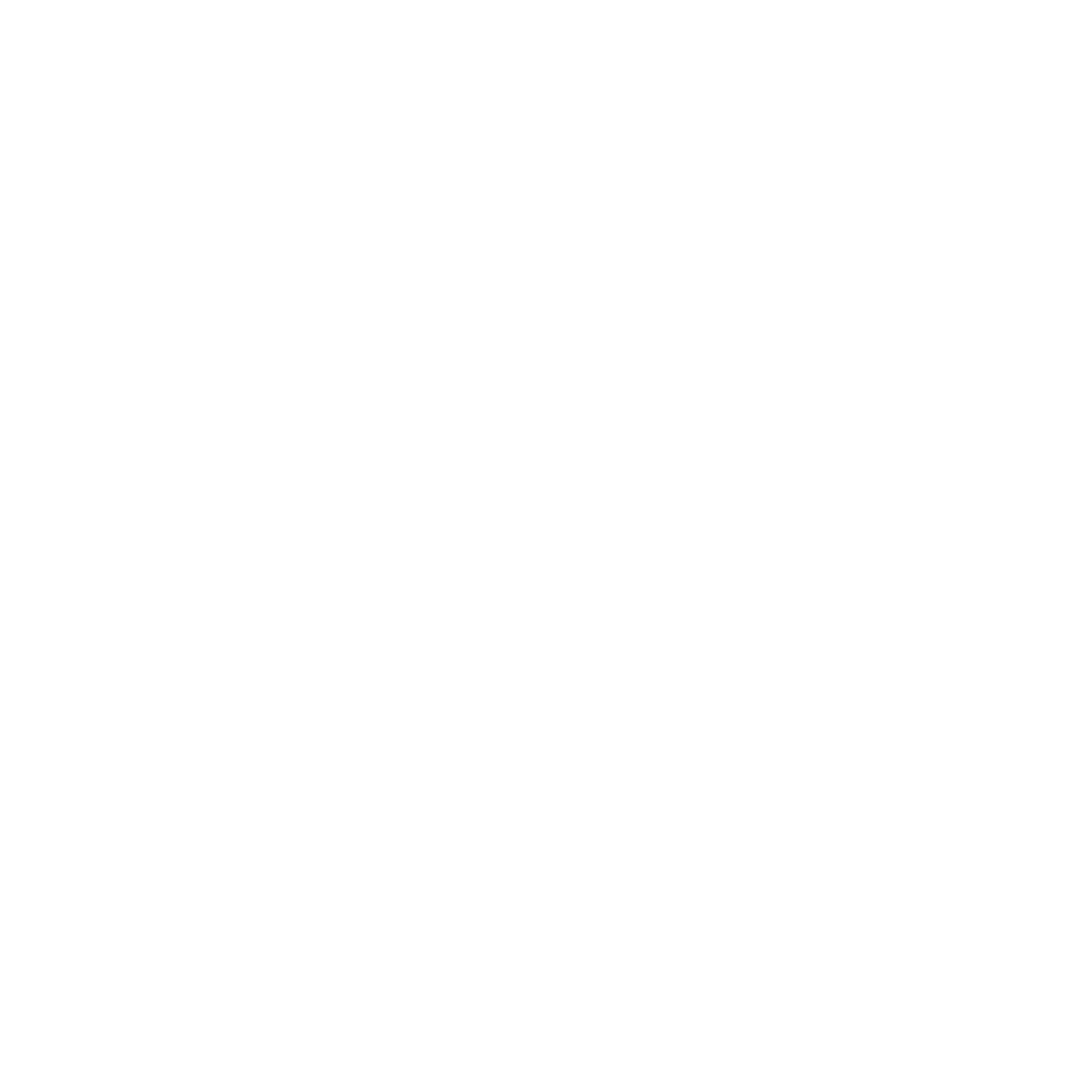

Specifications

Capacity: 4000kg

Minimum Concrete Requirement: 100mm

Recommended Ceiling Height: 3.6m

Lock Release: Single point

Power: 240v 2.2kw | 3 Phase 2.2kw

Electrical: 14.5amps | 7amps

Column Height: 2221mm

Lifting Height: 1962mm

Clearance Under Runways: 1835mm

Overall Width (excl. motor): 3023mm

Overall Width (incl. motor): 3277mm

Overall Length (incl. ramps): 5337mm

Overall Length (excl. ramps): 4731mm

Platform Width: 508mm

Width Between Platforms: 1000mm

Platform Length: 4299mm

Drive Through Clearance: 2413mm

Freight Dimensions:

1. L 4950mm W 600mm H 1100mm W 1085KG
2. L 2080mm W 1020mm H 220mm W 310KG
3. L 1010mm W 590mm H 300mm W 143KG

Warranty

We offer a comprehensive warranty on the TLV4.0WHWA, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your wheel alignment hoist remains reliable and fully supported, giving you peace of mind throughout its use.

Download Product Brochure

Explore Our Financing Options

Enquire About This Product

View full details

SPECIFICATIONS

100mm
Minimum Concrete Requirement
3.6m
Recommended Ceiling Height
240v / 2.2kw 14.5 amps
Power Requirements
495 x 60 x 110cm 1085kg
208 x 102 x 22cm 310kg
101 x 59 x 30 143kg
Freight Dimensions
