Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

4 Post Wheel Alignment Hoist | 6 Ton

Name: 4 Post Wheel Alignment Hoist | 6 Ton
Brand: Tufflift
SKU: TL6.0PH-WA
Price: 9990.00 AUD
Availability: InStock

4 Post Wheel Alignment Hoist | 6 Ton

SKU:TL6.0PH-WA

$9,990.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Included with your Tufflift: RRP $99.00 AUD

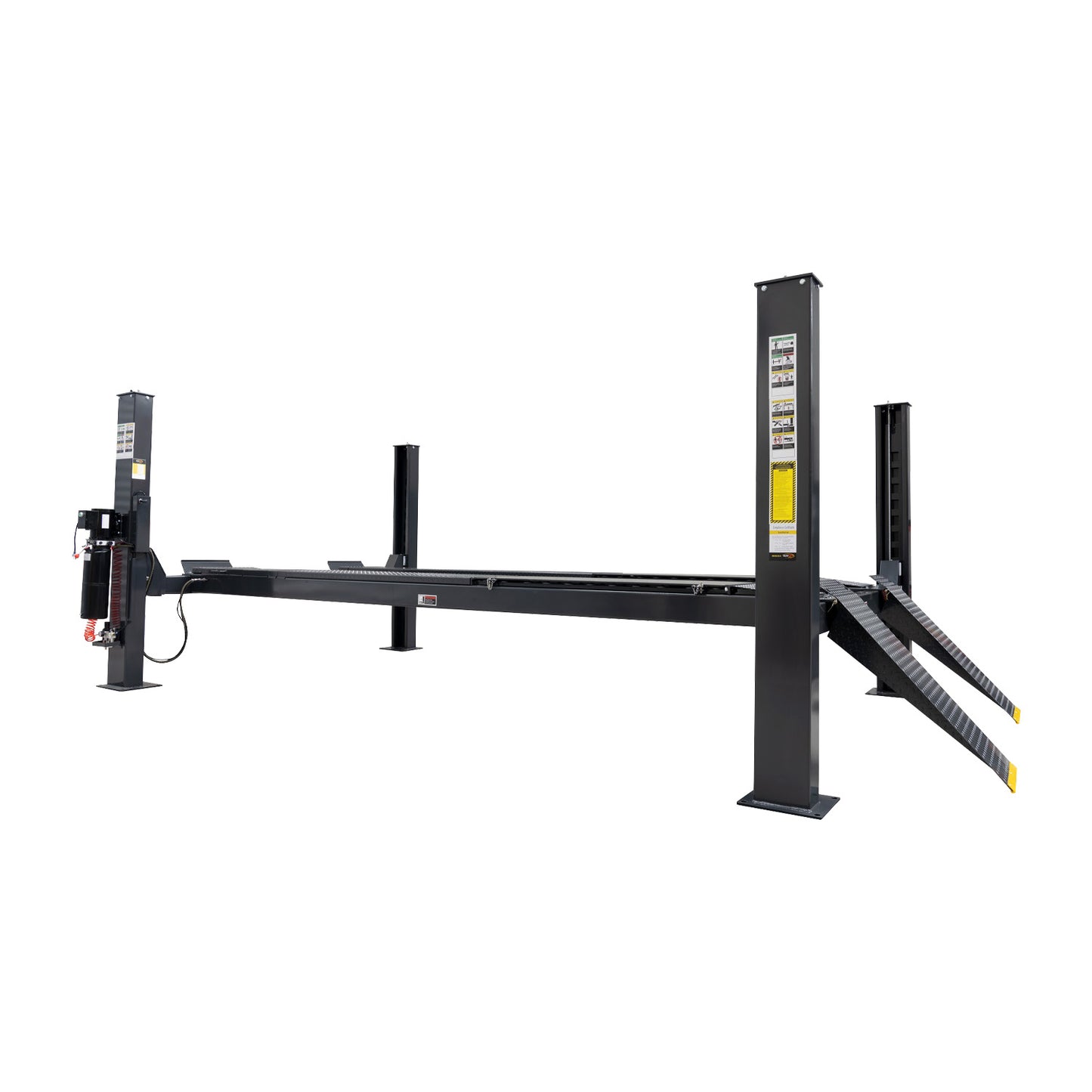

The TL6.0PH-WA is a heavy-duty 6 ton 4 post wheel alignment hoist, designed for precision work on larger vehicles. It features integrated rear slip plates and recessed areas in the runways for optional turntables, making it ideal for wheel alignment tasks in professional workshops.

Features

Perfect for working on larger vehicles
Powder coated finish

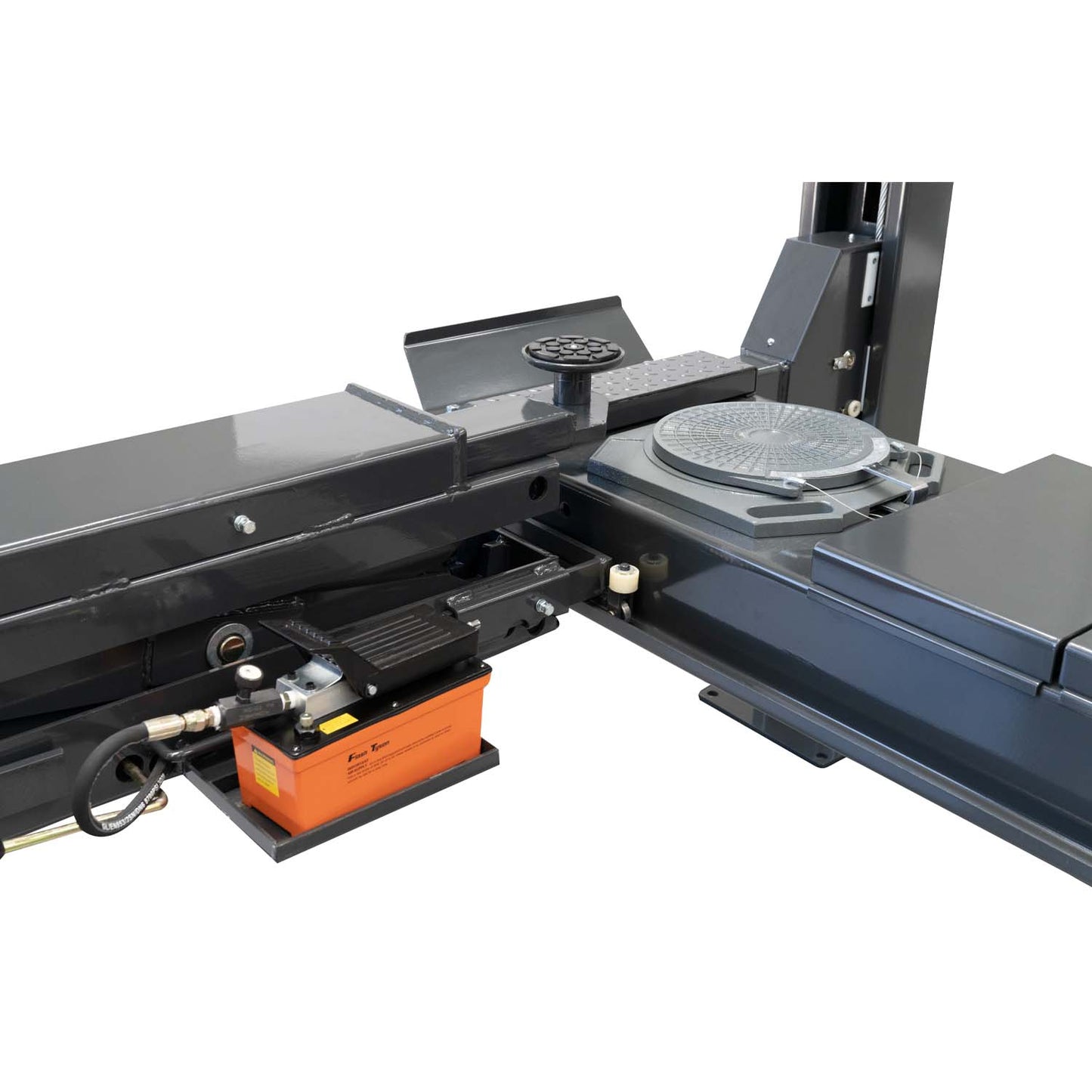

Integrated rear slip plates

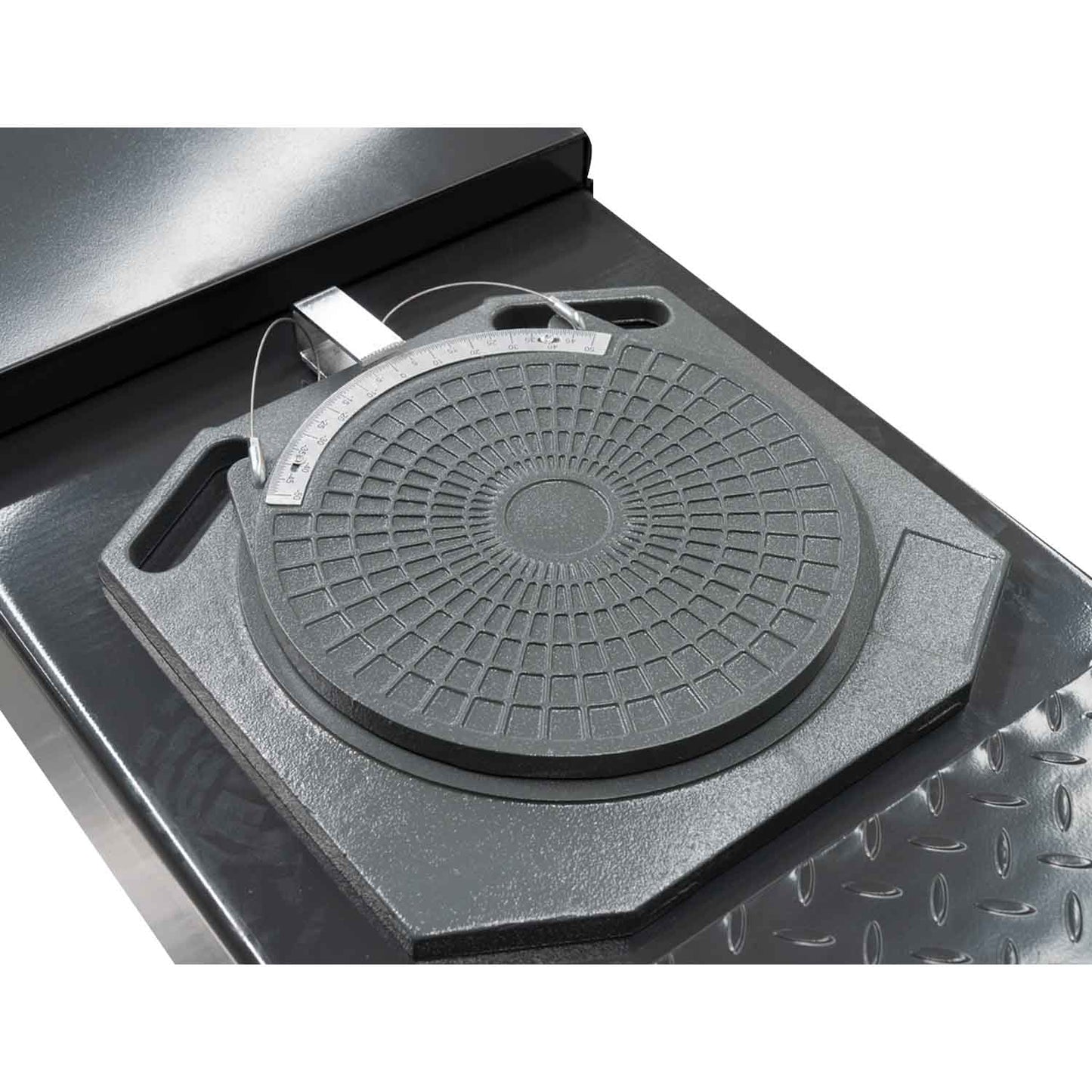

Recessed areas in runways for turntables (not included) for wheel alignment kit
** Rolling Jack & Turntable set are options only and are not included with this model**

Includes:

Hydraulic oil
Engineer Certified
Design Registered with Worksafe

Options:

Rolling Jack – RJ70
EAE Turntable Set

Safety:

Mechanically locks at each interval
Anti-surge valve
Cable slack locks in case of failure

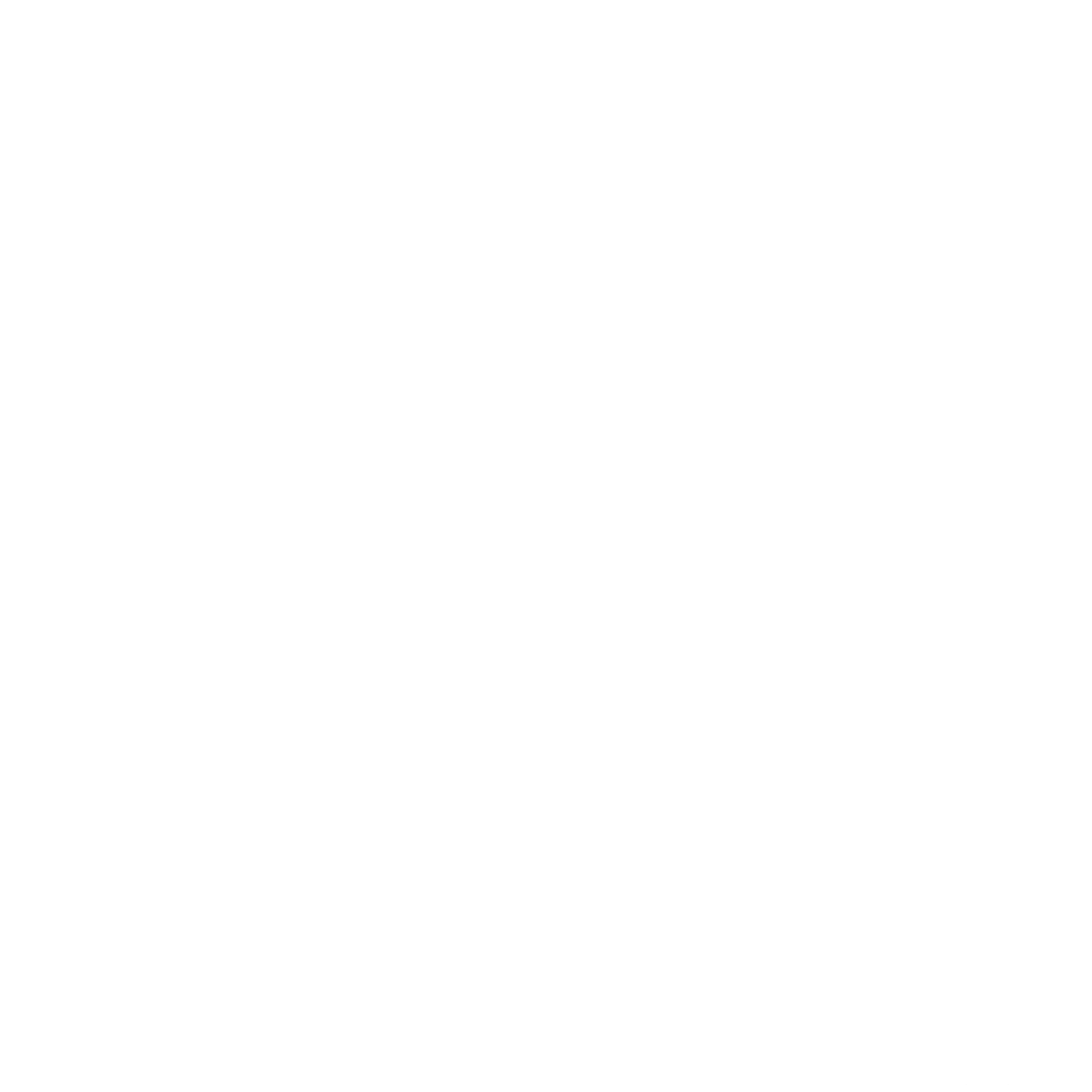

Specifications

Capacity: 6000kg

Minimum Concrete Requirements: 150mm

Recommended Ceiling Height: 3.7m

Lock Release: Single point

Power: 240v 3kw 21.5 amps | 3 Phase 3kw 7 amps

Column Height: 2254mm

Lifting Height: 1891mm

Clearance Under Runways: 1730mm

Overall Width (excl. motor): 3295mm

Overall Width (incl. motor): 3595mm

Overall Length (incl. ramps): 7000mm

Overall Length (excl. ramps): 5420mm

Platform Width: 508mm

Width Between Platforms: 1080mm - 1180mm

Platform Length: 4960mm

Drive Through Clearance: 2896mm

Freight Dimensions:

L 5400mm W 600mm H 1100mm W 1600KG

Warranty

We offer a comprehensive warranty on the TL6.0PH-WA, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your wheel alignment hoist remains reliable and fully supported, giving you peace of mind throughout its use.
