Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

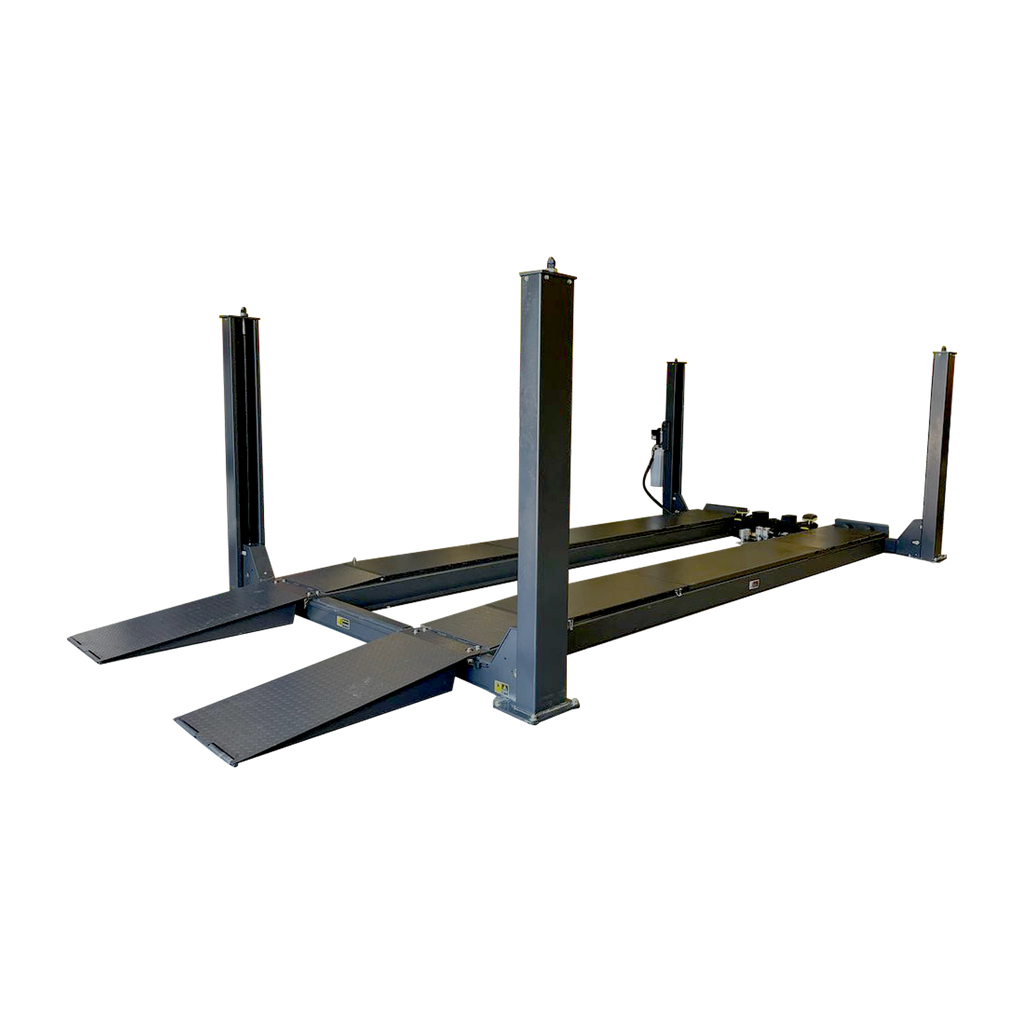

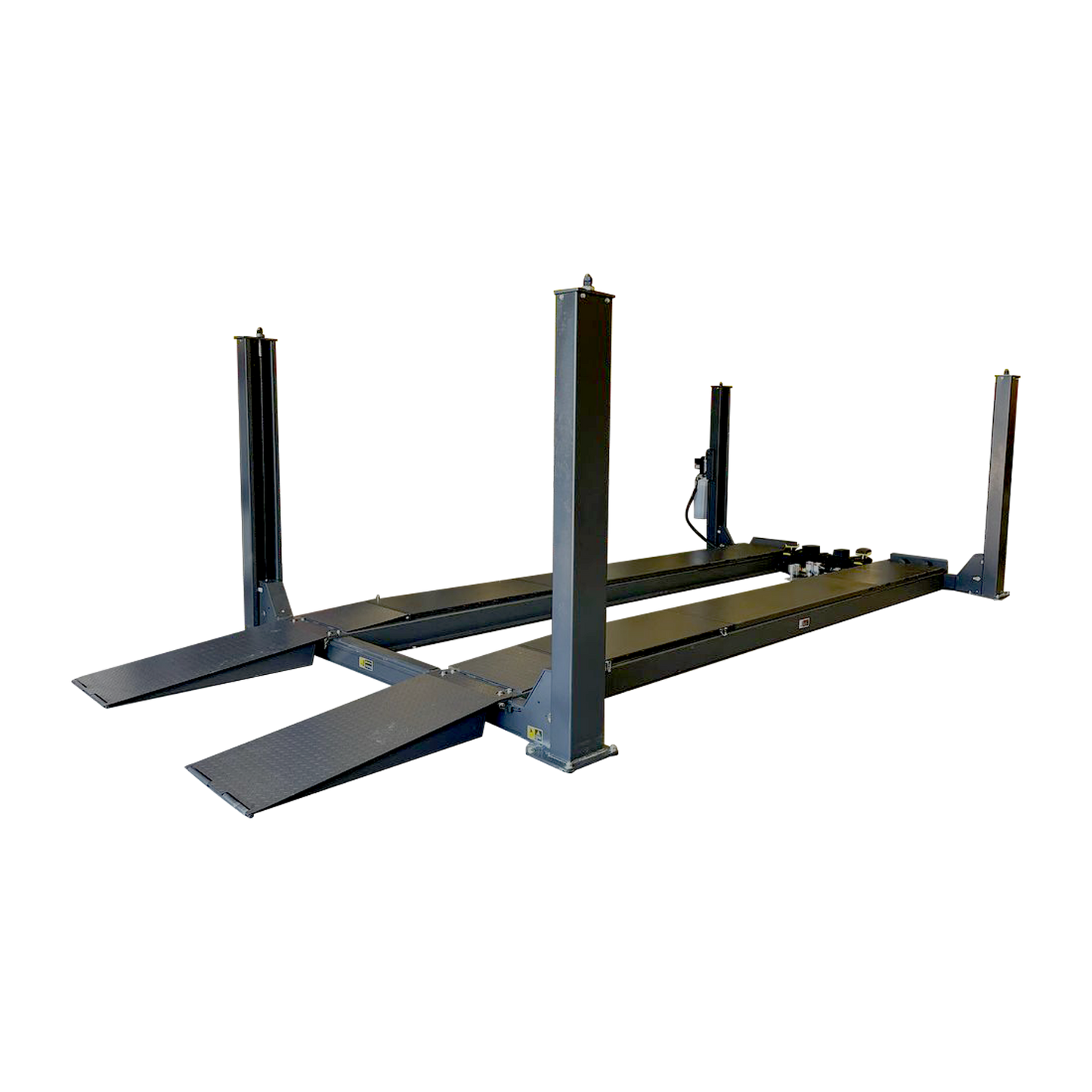

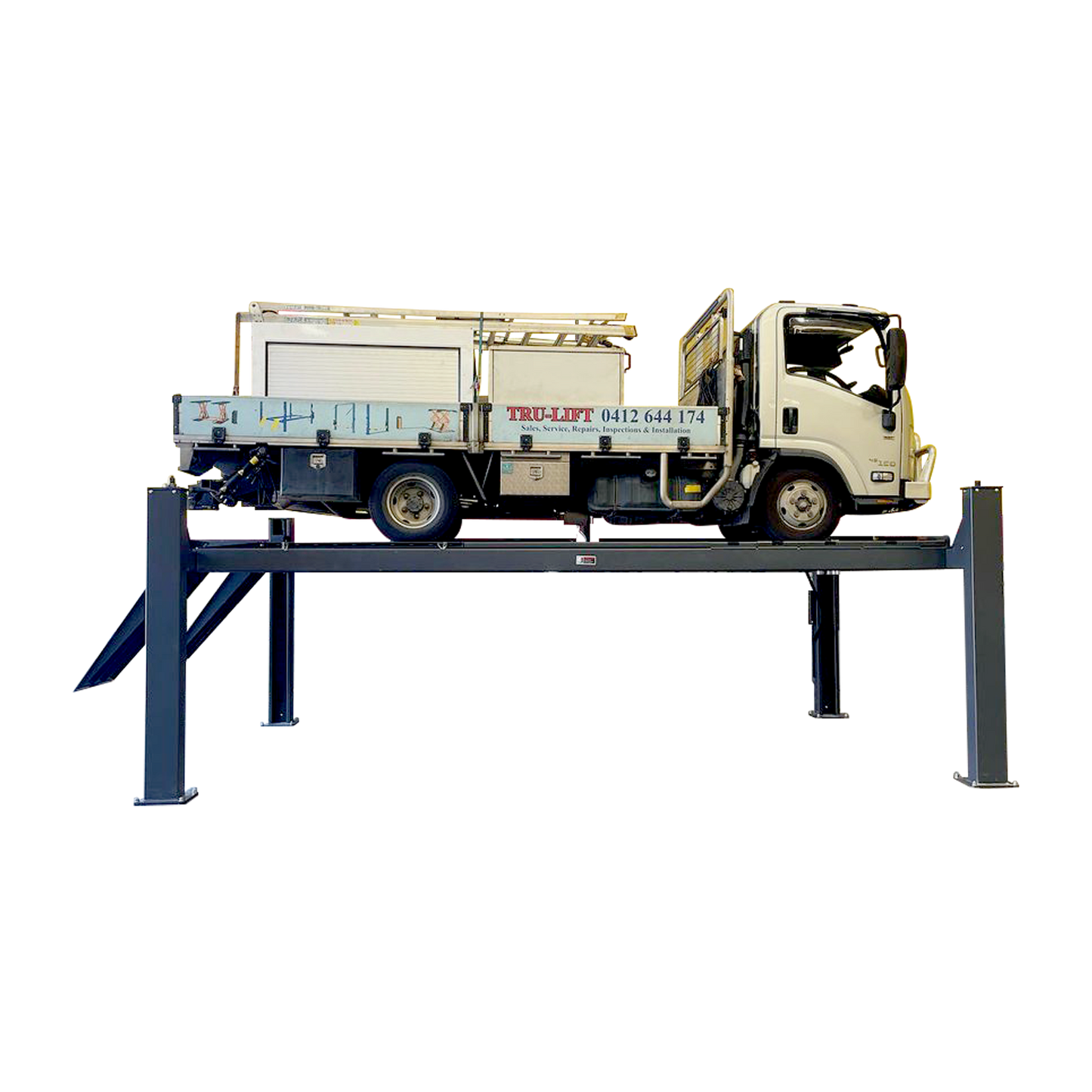

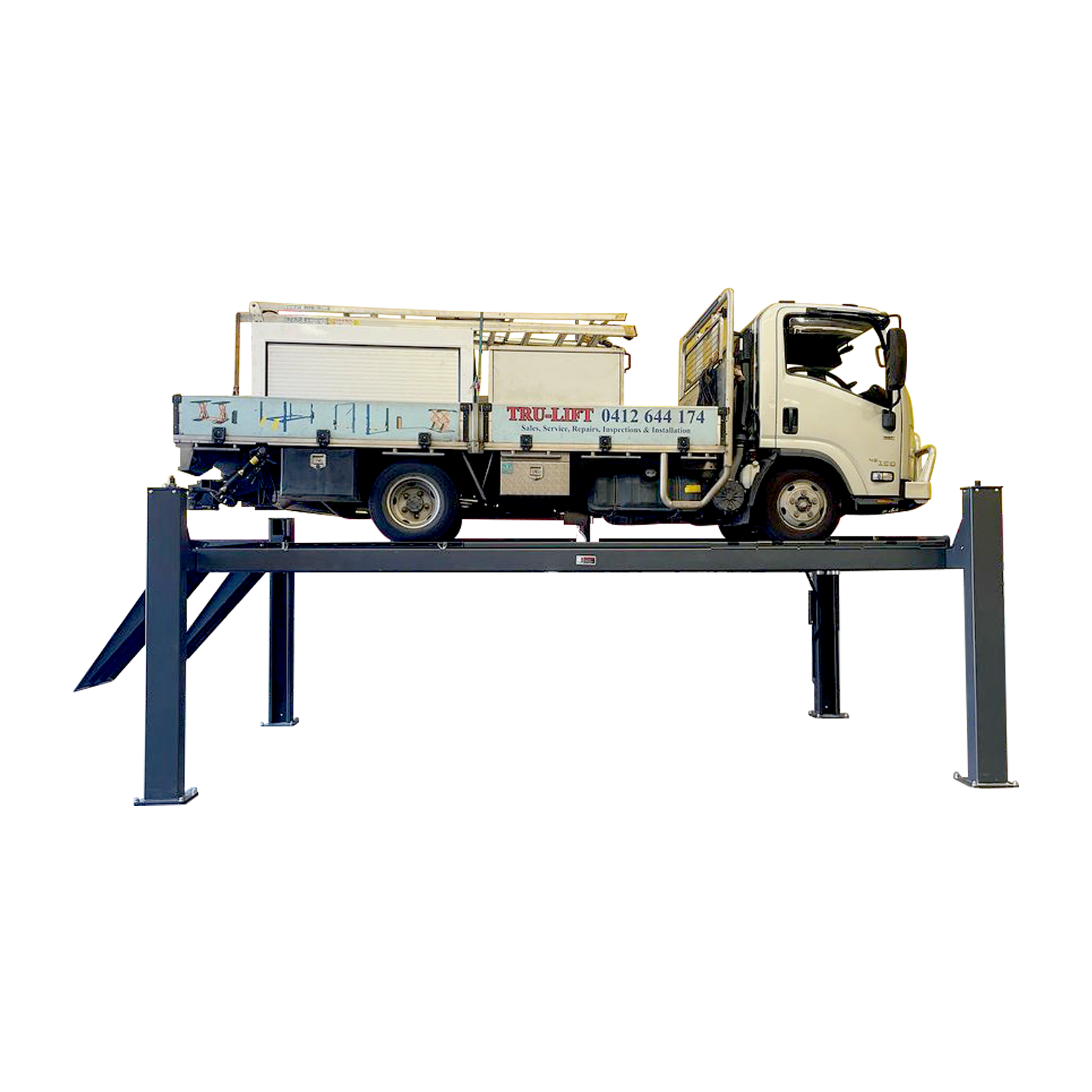

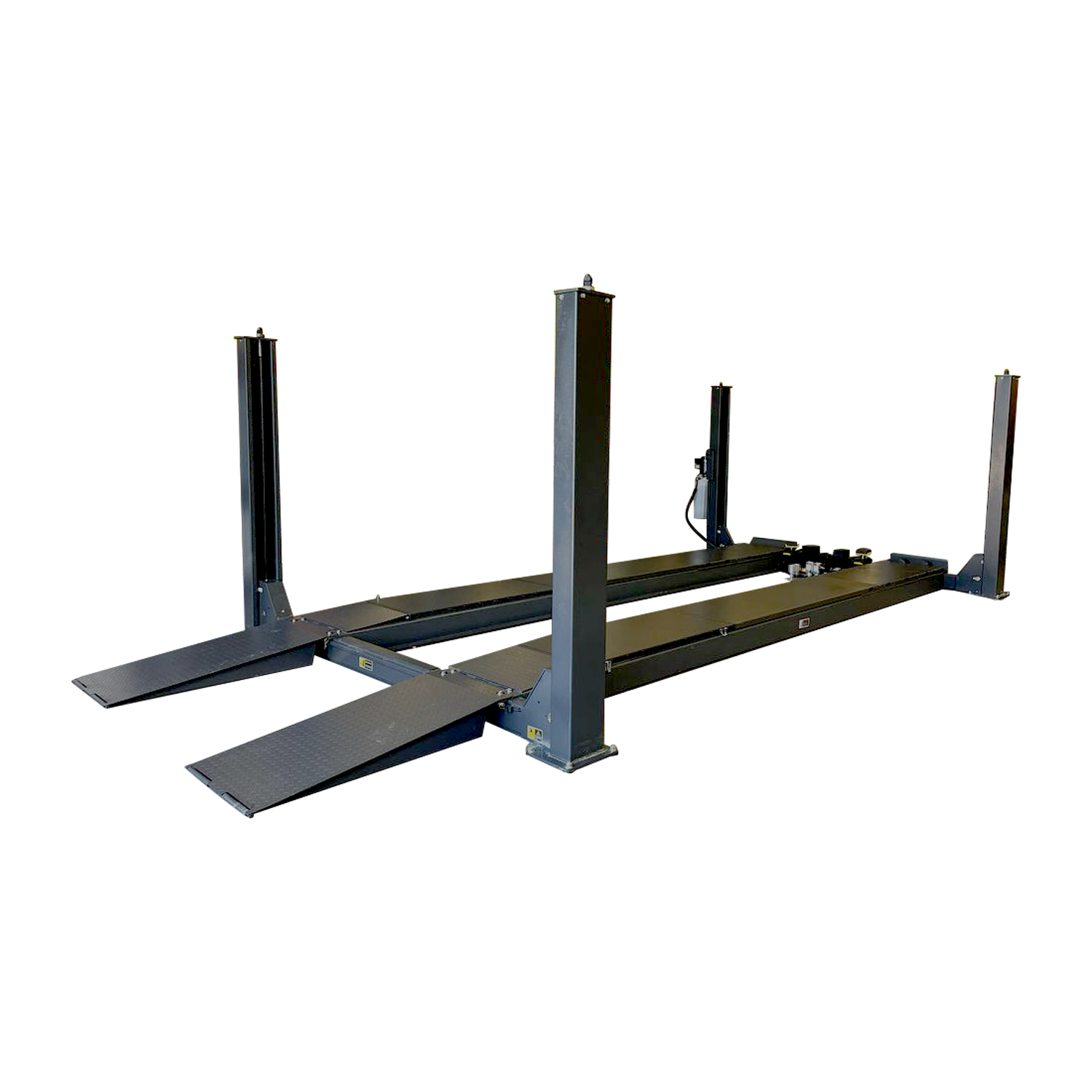

4 Post Wheel Alignment Hoist - 8 Ton

Name: 4 Post Wheel Alignment Hoist - 8 Ton
Brand: Tufflift
SKU: TLD8.0WH-WA
Price: 15900.00 AUD
Availability: InStock

SKU:TLD8.0WH-WA

$15,900.00 AUD

Sale

Choose a Power Supply

Included with your Tufflift: RRP $165.00 AUD

The TLD8.0WA is an 8 ton 4 post wheel alignment hoist designed to handle both small and larger vehicles with ease. Its wide platforms, integrated rear slip plates, and recessed areas for optional turntables make it perfect for precise wheel alignment tasks in professional workshops. Built with safety and durability in mind, this hoist offers exceptional performance for any vehicle alignment needs.

Features

Wider platforms perfect for catering to small and larger vehicles
Powder coated finish
Integrated rear slip plates
Recessed areas in runways for turntables (not included) for wheel alignment kit
** Rolling Jack & Turntable set are options only and are not included with this model**

Includes:

Hydraulic oil
Engineer Certified
Design Registered with Worksafe

Options

Rolling Jack – RJ90
EAE Turntable Set

Safety:

Mechanically locks at each interval
Anti-surge valve
Cable slack locks in case of failure

Warranty

5 years (structure) + 1 year (electrical and hydraulics). Parts & labour

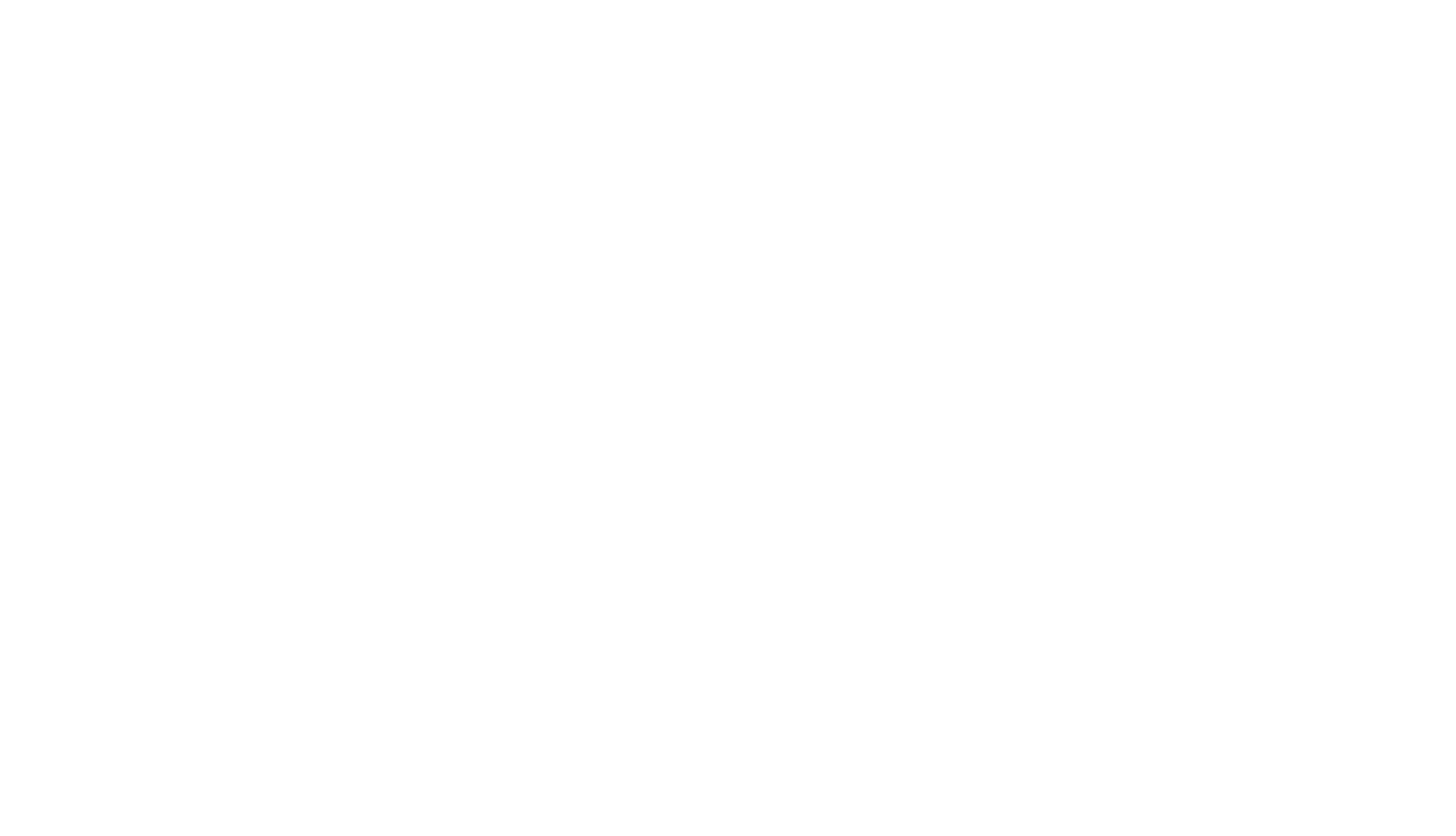

Specifications

Capacity: 8000kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 3.7m - 4m

Lock Release: Pneumatic

Power: 240v 3kw | 3 Phase 3kw

Column Height: 2258mm

Lifting Height: 1786mm

Clearance Under Runways: 1542mm

Overall Width (excl. motor): 3700mm

Overall Width (incl. motor): 3986mm

Overall Length (incl. ramps): 7712mm

Overall Length (excl. ramps): 6349mm

Platform Width: 675mm

Width Between Platforms: 1150mm

Platform Length: 5995

Drive Through Clearance: 3060mm

Freight Dimensions:

L 66420mm W 750mm H 920mm W 2920KG

Warranty

We offer a comprehensive warranty on the TLD8.0WA, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your wheel alignment hoist remains reliable and fully supported, giving you peace of mind throughout its use.
