Air Lock Actuator

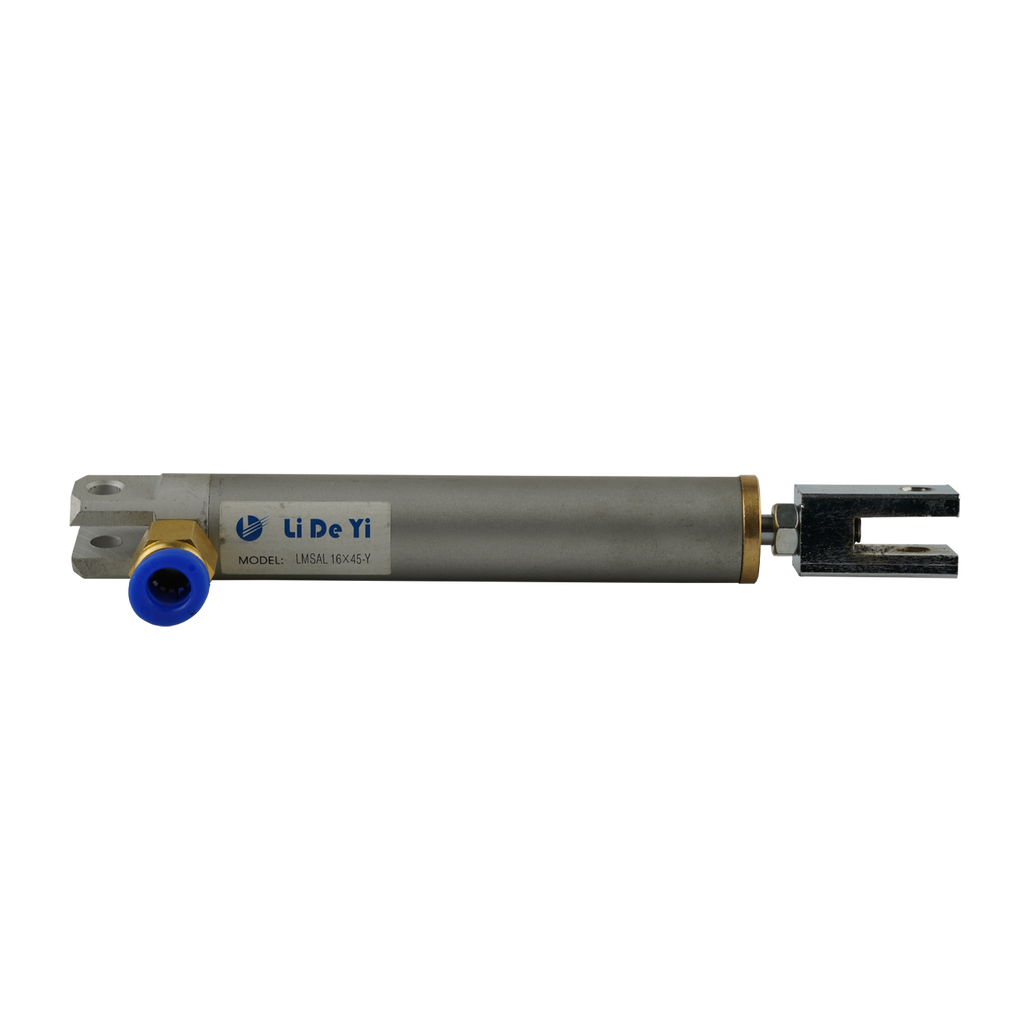

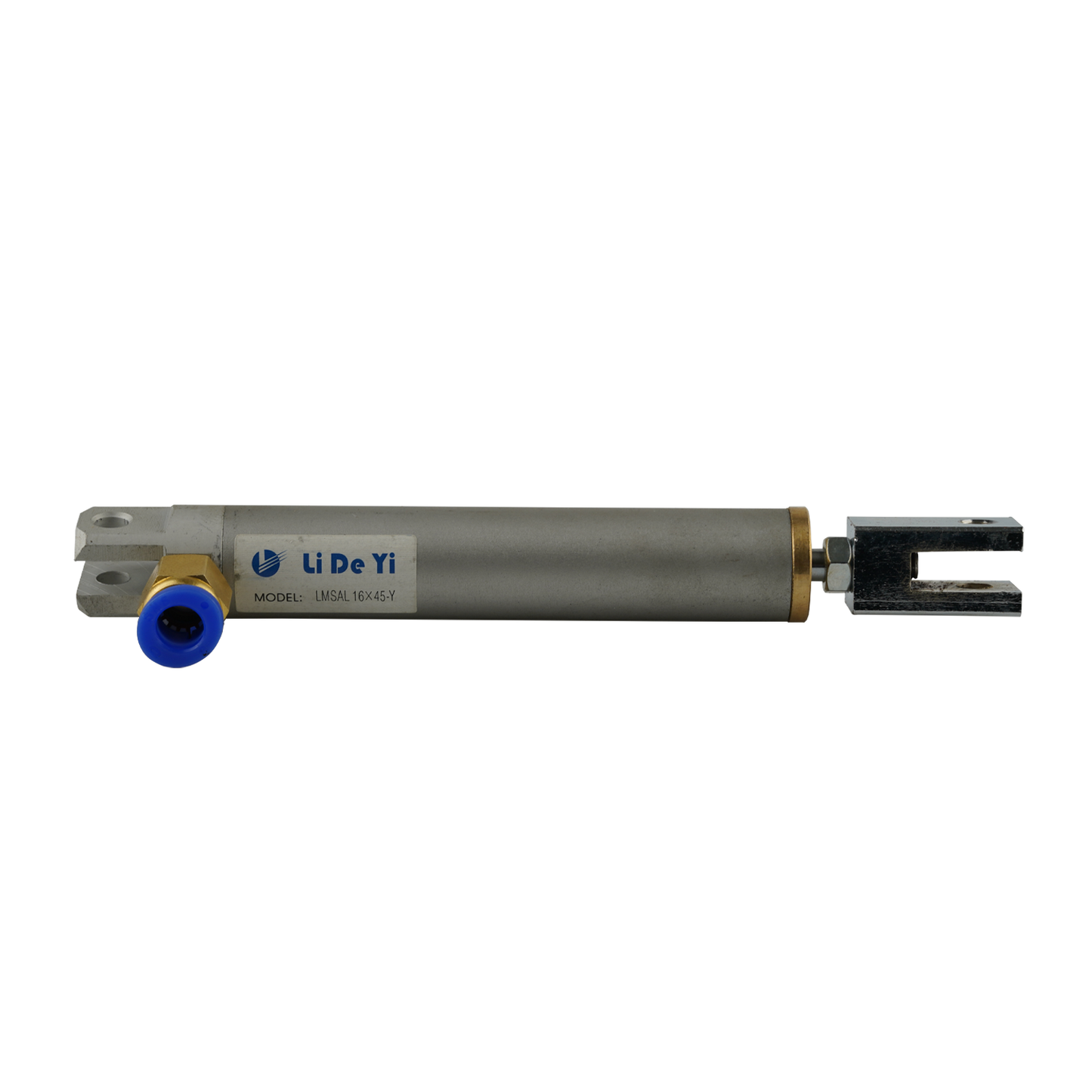

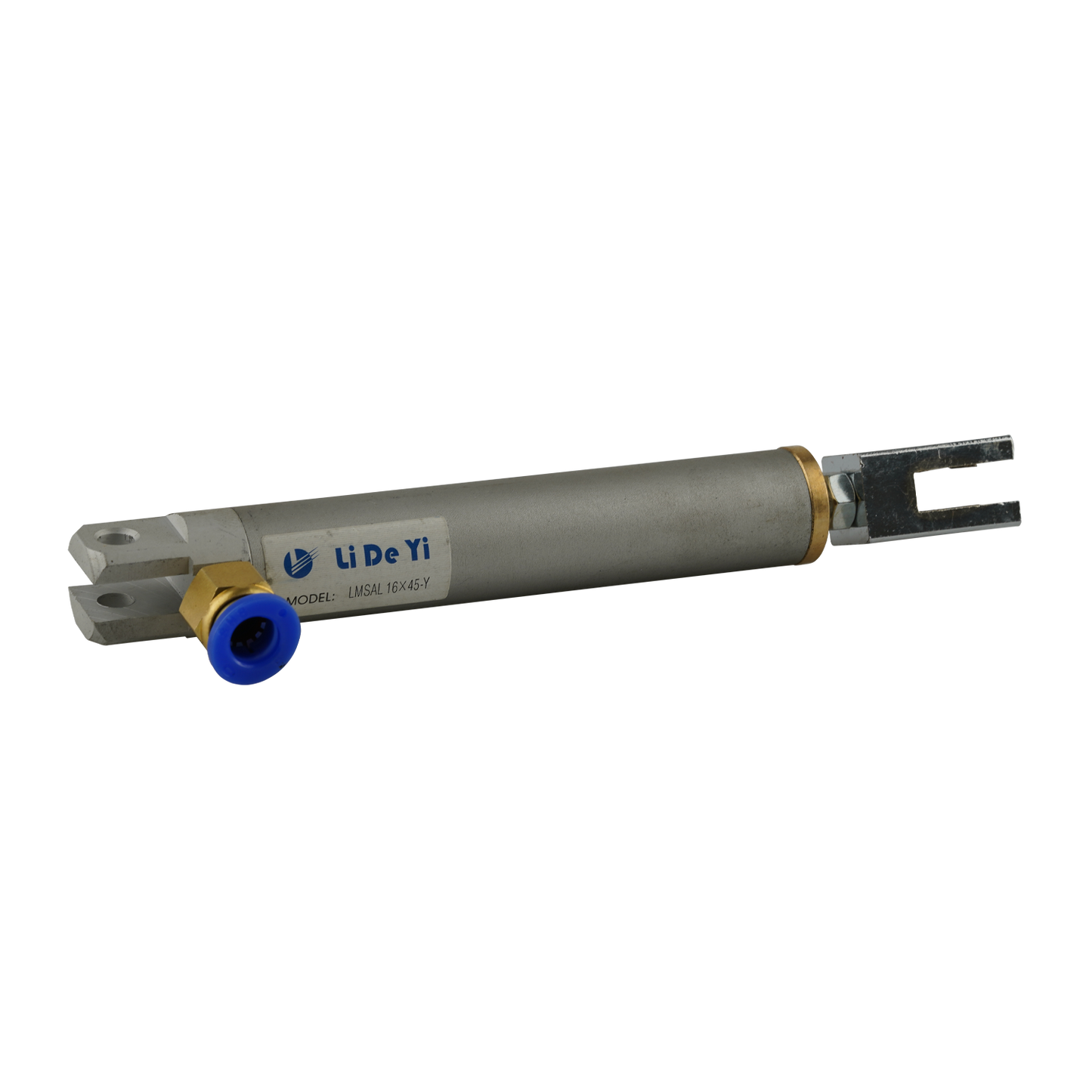

This single-acting pneumatic air actuator is designed to efficiently lock and unlock each corner of a hoist, providing reliable performance for secure lifting operations. With a compact 20mm outer diameter, a 130mm length (excluding piston clevis), and a 50mm stroke, it is specifically crafted to manage hoist stability and safety.

Specifications:

• Operation: Single-acting for controlled locking and unlocking.
• Dimensions: 20mm outer diameter, 130mm length (without clevis).
• Stroke: 50mm for precise movement.

Compatibility: Requires 4 actuators per hoist for complete operation.

Suitable for the following models:

• TL6.0PH
• TL6.0PH-WA
• TLD8.0WH
• TLD8.0TWA
• TL12.0TH7-5
