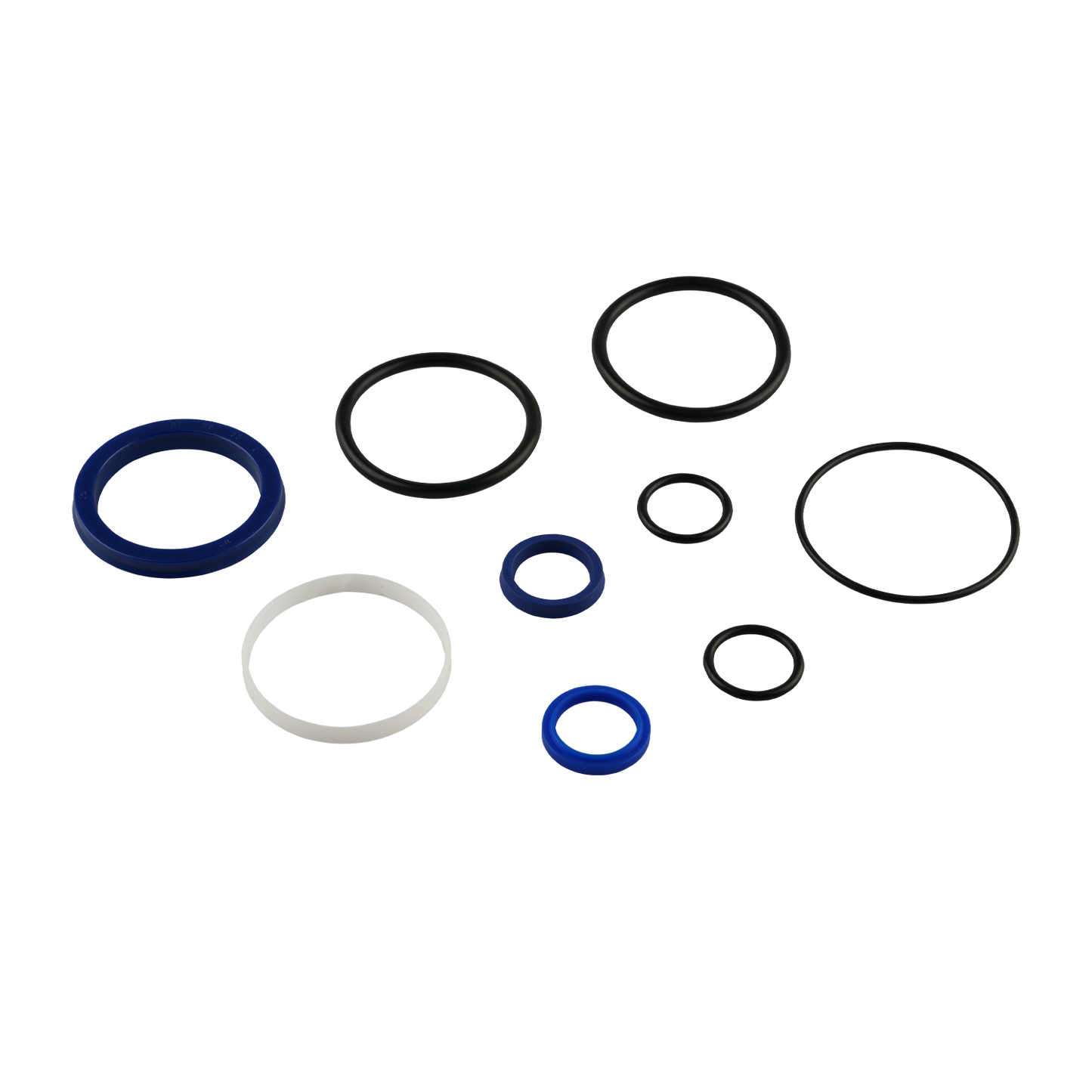

Cylinder Rebuild Kit For TL4.0PH

This complete hydraulic cylinder seal refurbishment kit is designed for the Tufflift TL4.0PH model. It includes all essential seals needed for a full rebuild, ensuring reliable performance and smooth operation.

Specifications:

ID = Inner Diameter / OD = Outer Diameter /  W = Width / H = Height

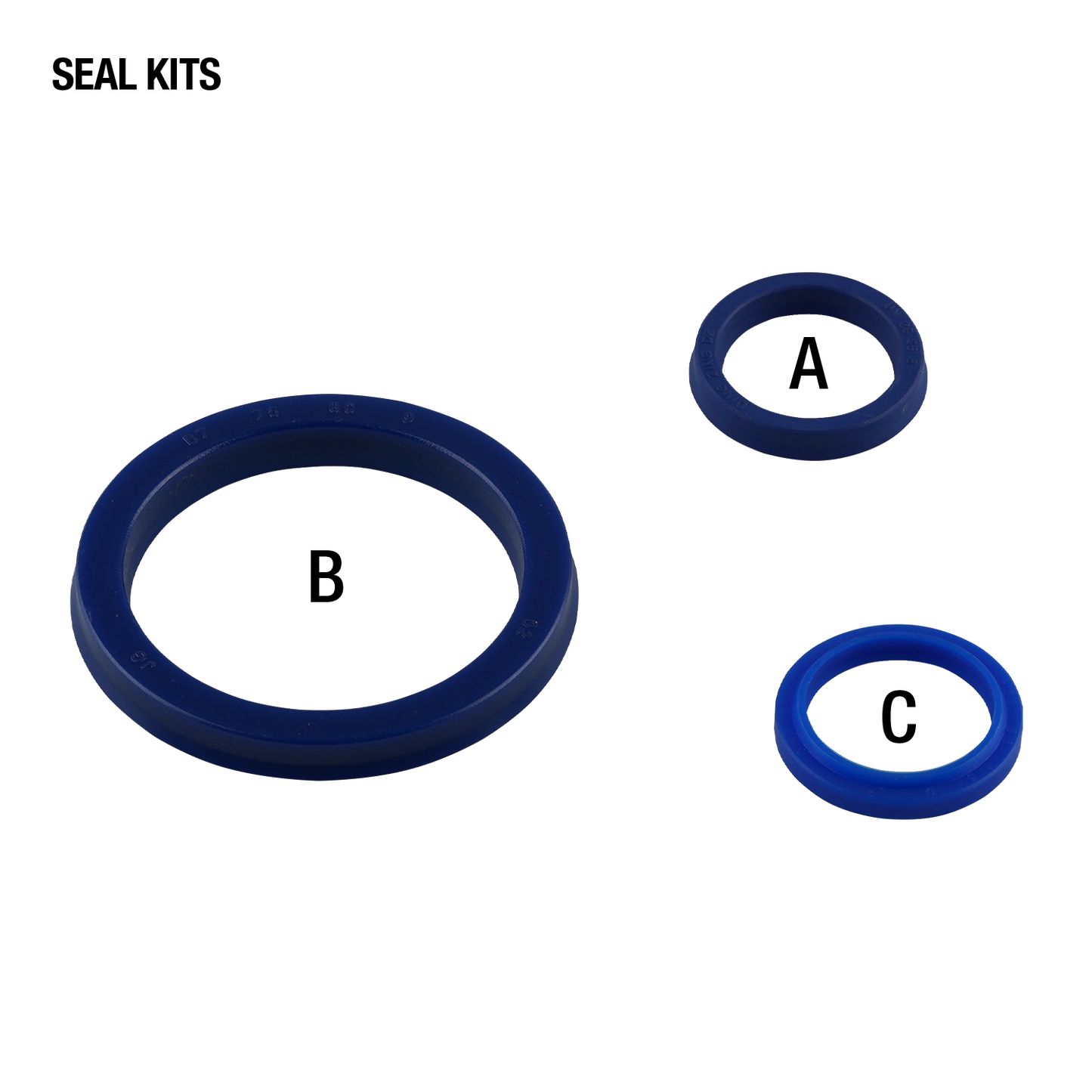

Seal Kit:

• Seal Kit A - UN OD 36 x ID 28 x W 6mm

• Seal Kit B -  B7 OD 75 x ID 60 x W 9mm
• Seal Kit C - DHS OD 36 x ID 28 x H 4.5 x Lip with 6mm

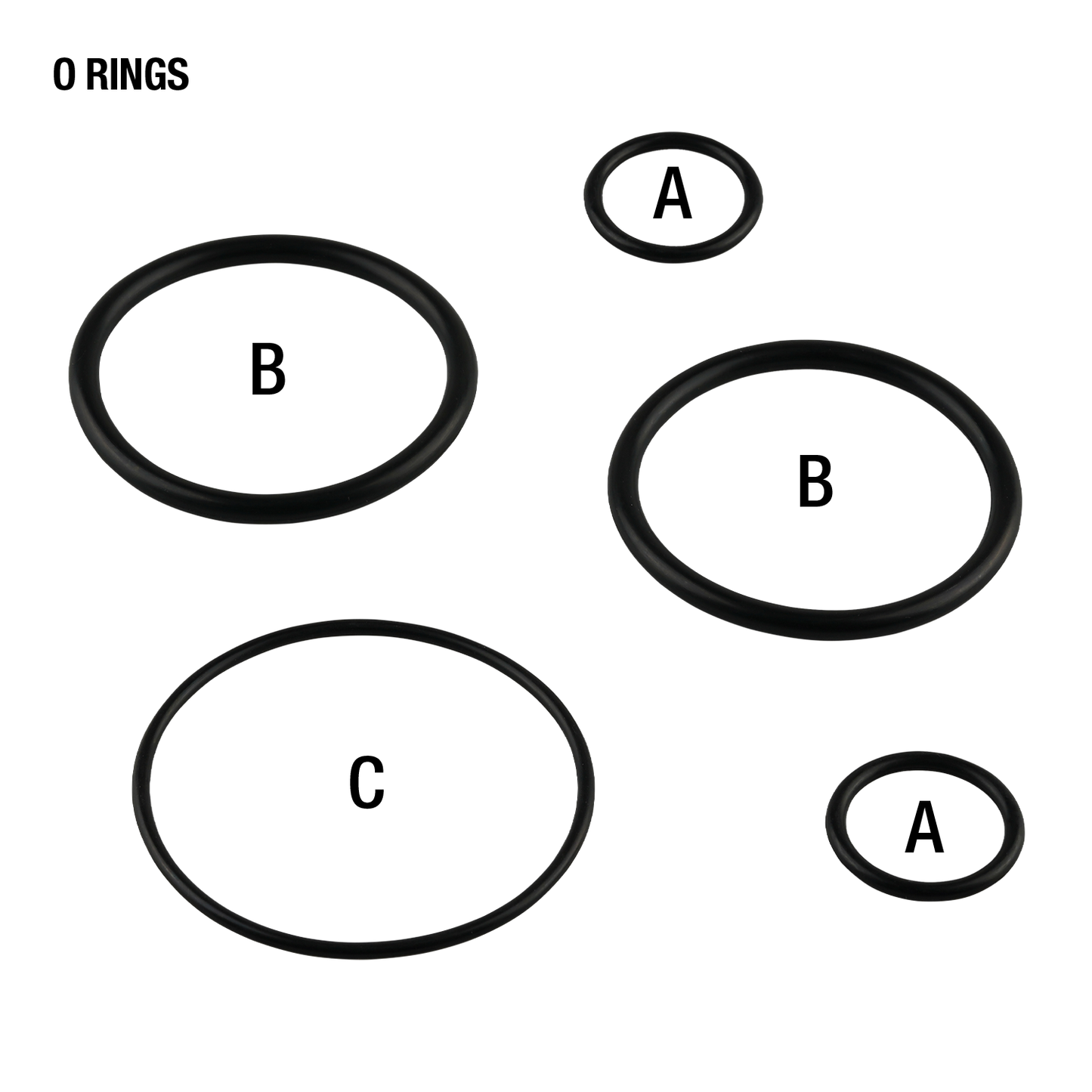

O Ring:

• O Ring A (2) - ID 27 x W 3mm
• O Ring B (2) - ID 92 x W 5mm
• O Ring C - ID 75 x W 2.5mm

Wear Ring:

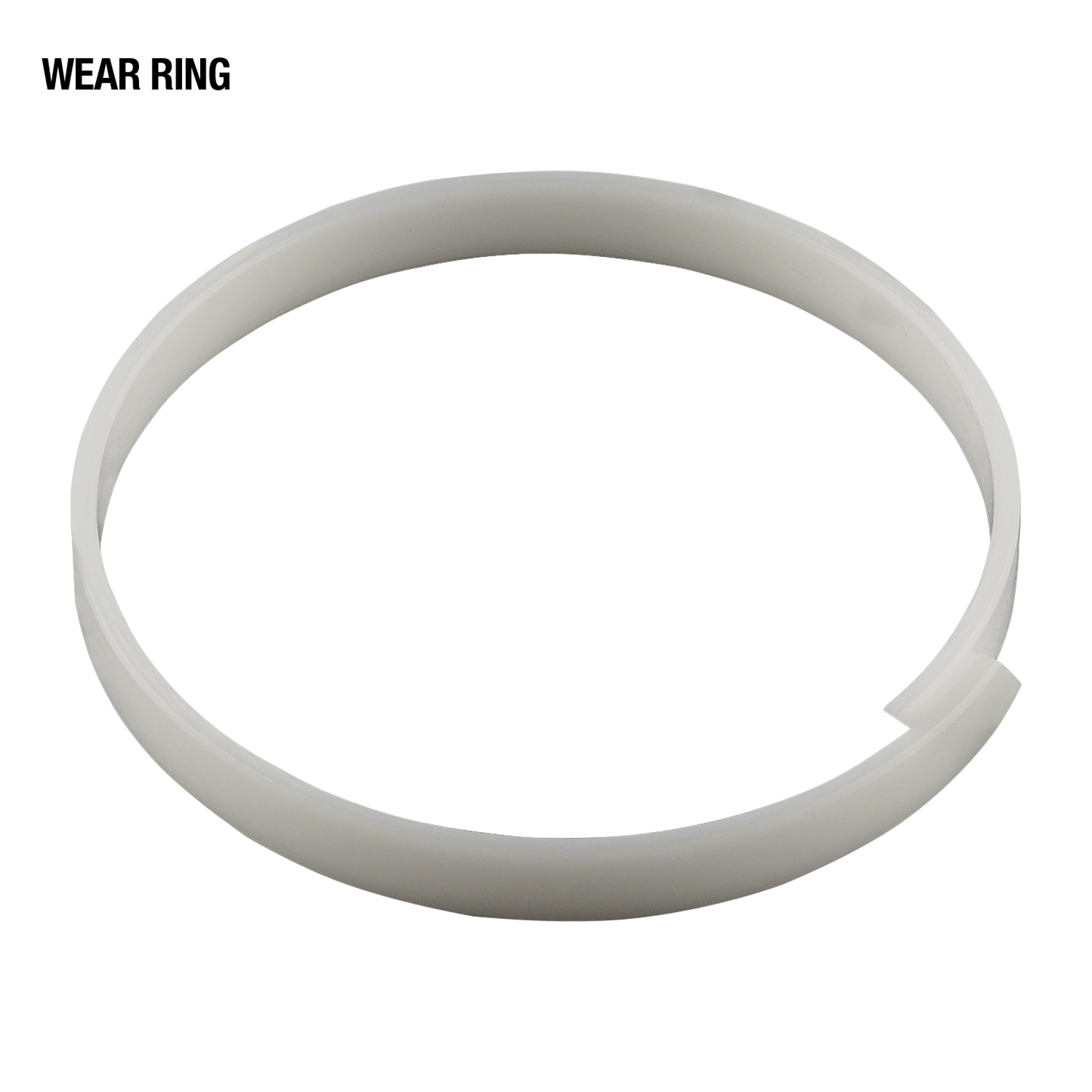

• Wear Ring - OD 75 x H 8mm

Suitable for the following models:

• TL4.0PH
