Tufflift

EAE Hydraulic Mobile Lifting Table 1200kg

Name: EAE Hydraulic Mobile Lifting Table 1200kg
Brand: Tufflift
SKU: EE-MS12M
Price: 6690.00 AUD
Availability: InStock

EAE Hydraulic Mobile Lifting Table 1200kg

SKU:EE-MS12M

$6,690.00 AUD

Sale

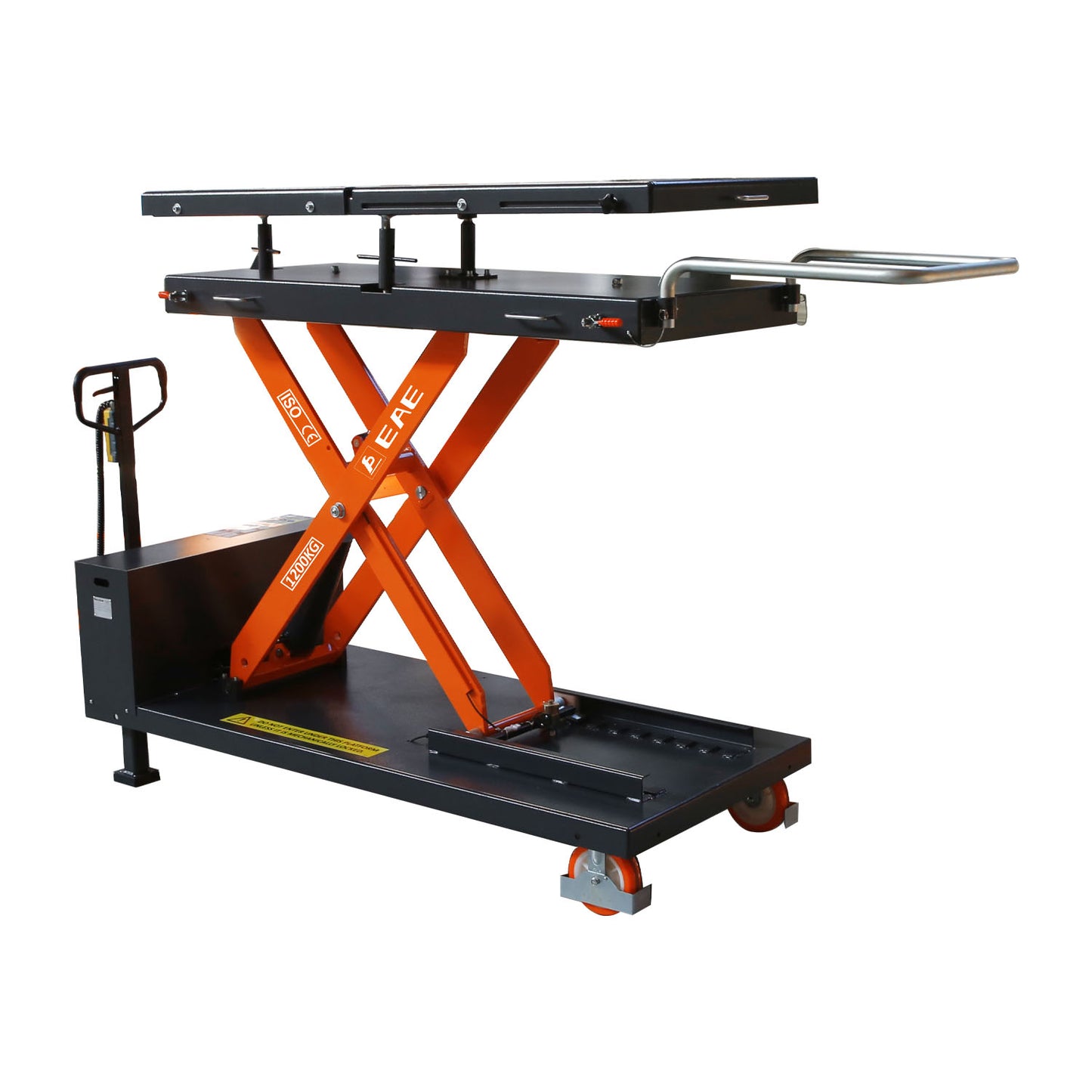

The Hydraulic Mobile Lifting Table by EAE is designed for heavy-duty tasks like handling EV battery packs, engines, and gearboxes. With a 1200kg capacity and dual-speed lifting, it features a 325mm extension, tilting platform, and stable 24V control system for efficient, precise operations. High-pressure oil hoses and an electrically released locking system enhance durability.

Features

Helpful to assemble and disassemble battery packs for electric vehicles and engine, gearbox, drive axle, fuel tank, suspension, bracket, and chassis components for traditional vehicles
Extension of 325mm in length, for fast and efficient orientation.
Suspension platform can tilt with a height of 40mm. The lower platform can move laterally within a distance of 20mm.
Reserved holes (100mmx100mm on the working table for positioning and fixing components with specialised fixtures.
Dual-speed system featured for fast and precise lifting
Maintain ease and stable running, and prolong the service time of shaft bearings
Oil hose with double steel wire fabrications with a passed pressure test under 40MPa and can work under twice the nominal working pressure without breakage
Electrically released mechanical locking system

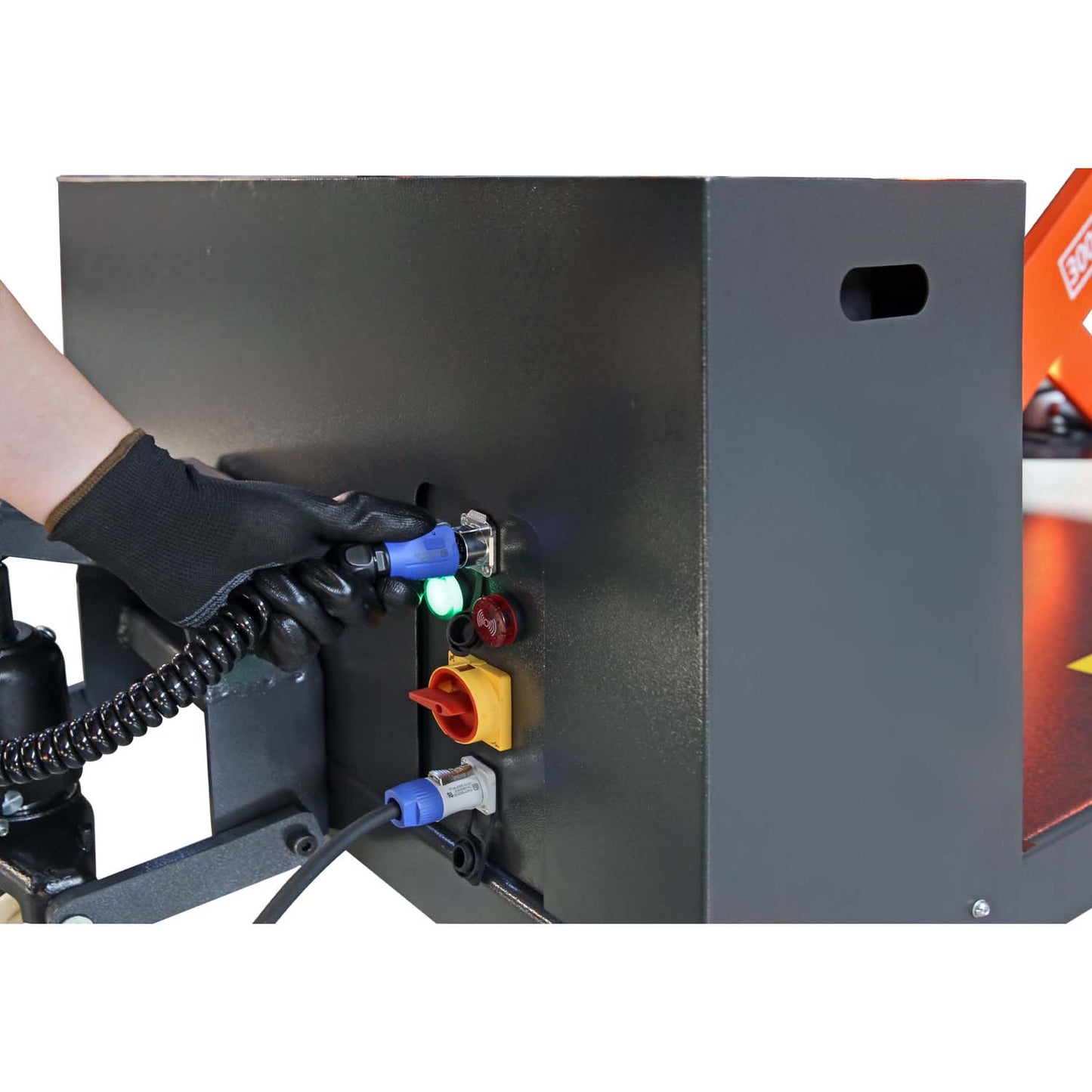

24V Control system. Three-pin plug

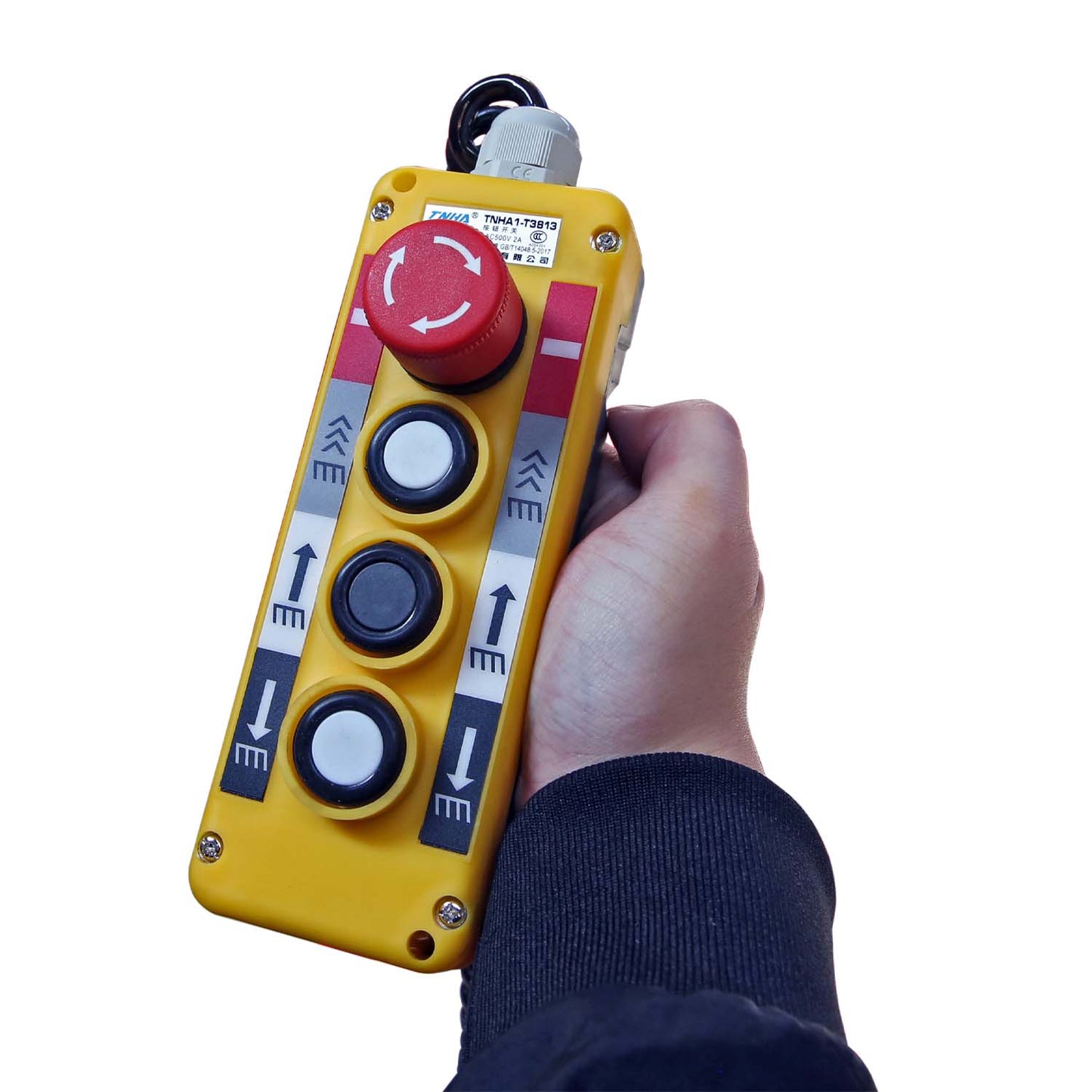

Hand-held button control with stop function

Specifications

Max. Capacity: 1810KG

Max Height: 1810mm

Min Height: 800mm

Total Length: 1756mm

Total Width: 800mm

Base to Floor Clearance: 196mm

Self-weight: 800KG

Frequency: 50Hz

Voltage: 220V

Control Voltage: 24v

Full Stroke Time: 505

Freight Dimensions:
L 1900mm W 1200mm H 700mm W 650KG

Warranty

We offer a comprehensive warranty on the EE-MS12M, covering 12 months. This warranty includes parts only, ensuring that your EAE Hydraulic Mobile Lifting Table remains reliable and fully supported, giving you peace of mind throughout its use.
