Tufflift
Hydraulic Cylinder For RJ35
Hydraulic Cylinder For RJ35
SKU:RJ35-RAM
Regular price
$115.00 AUD
Regular price
Sale price
$115.00 AUD
Unit price
per
Couldn't load pickup availability

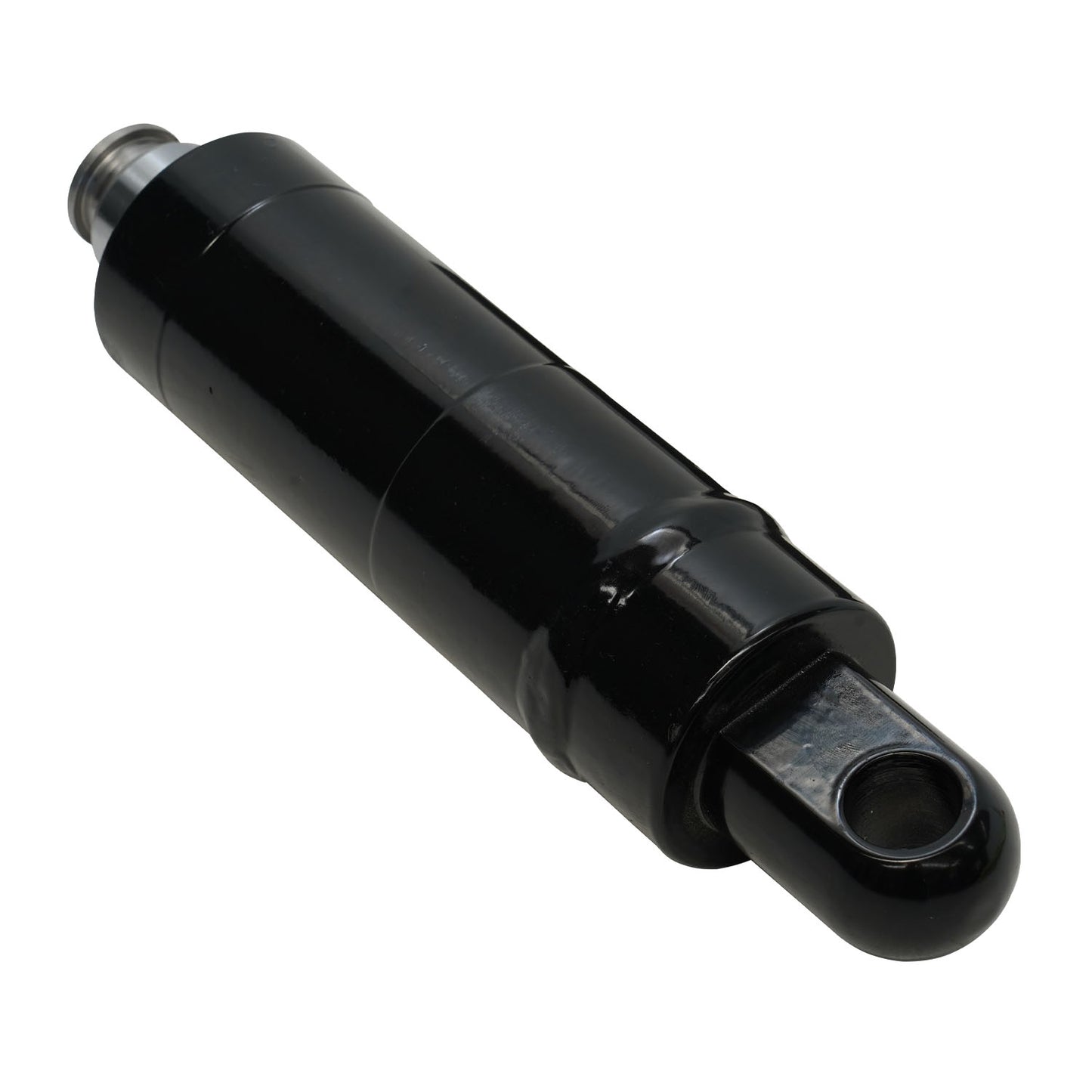

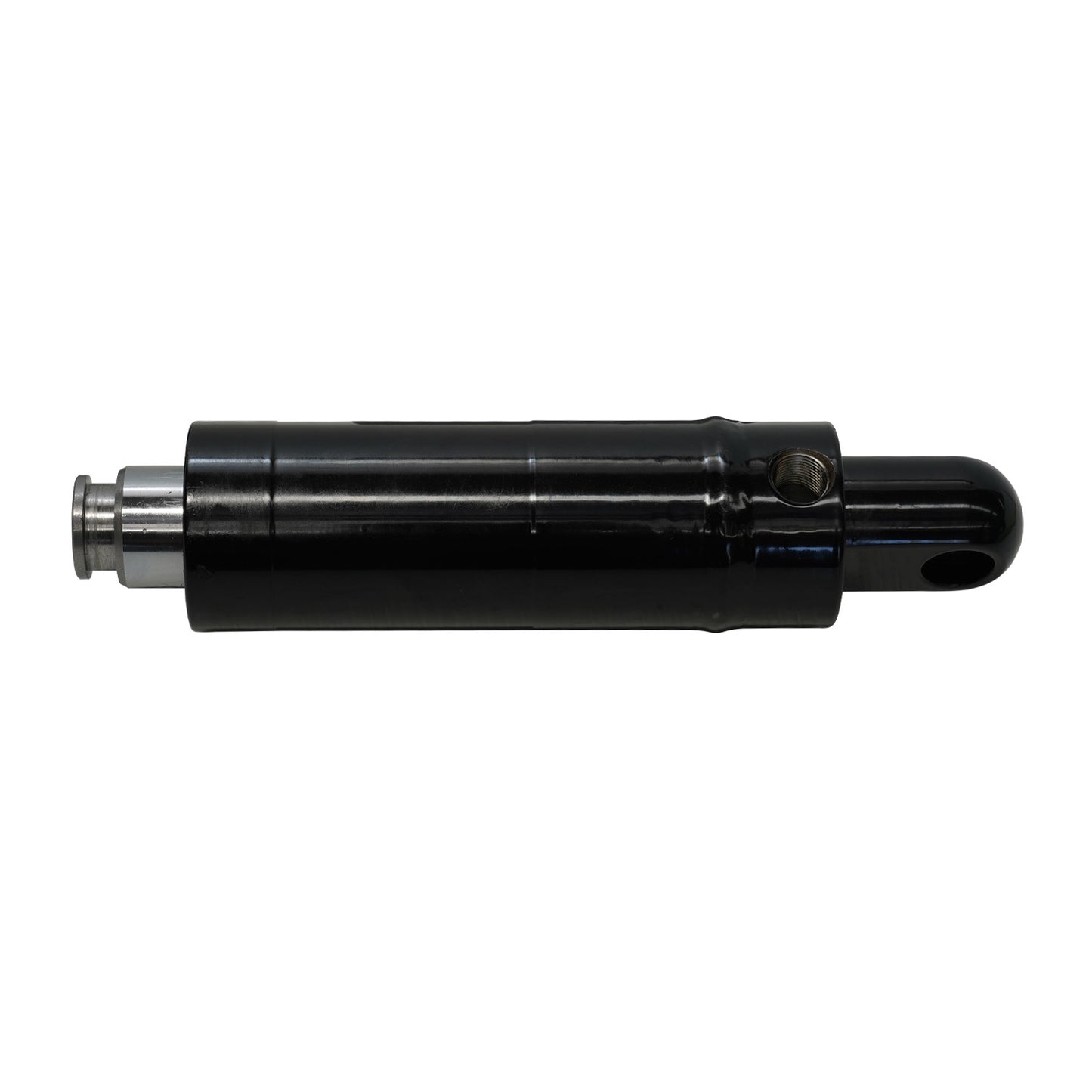

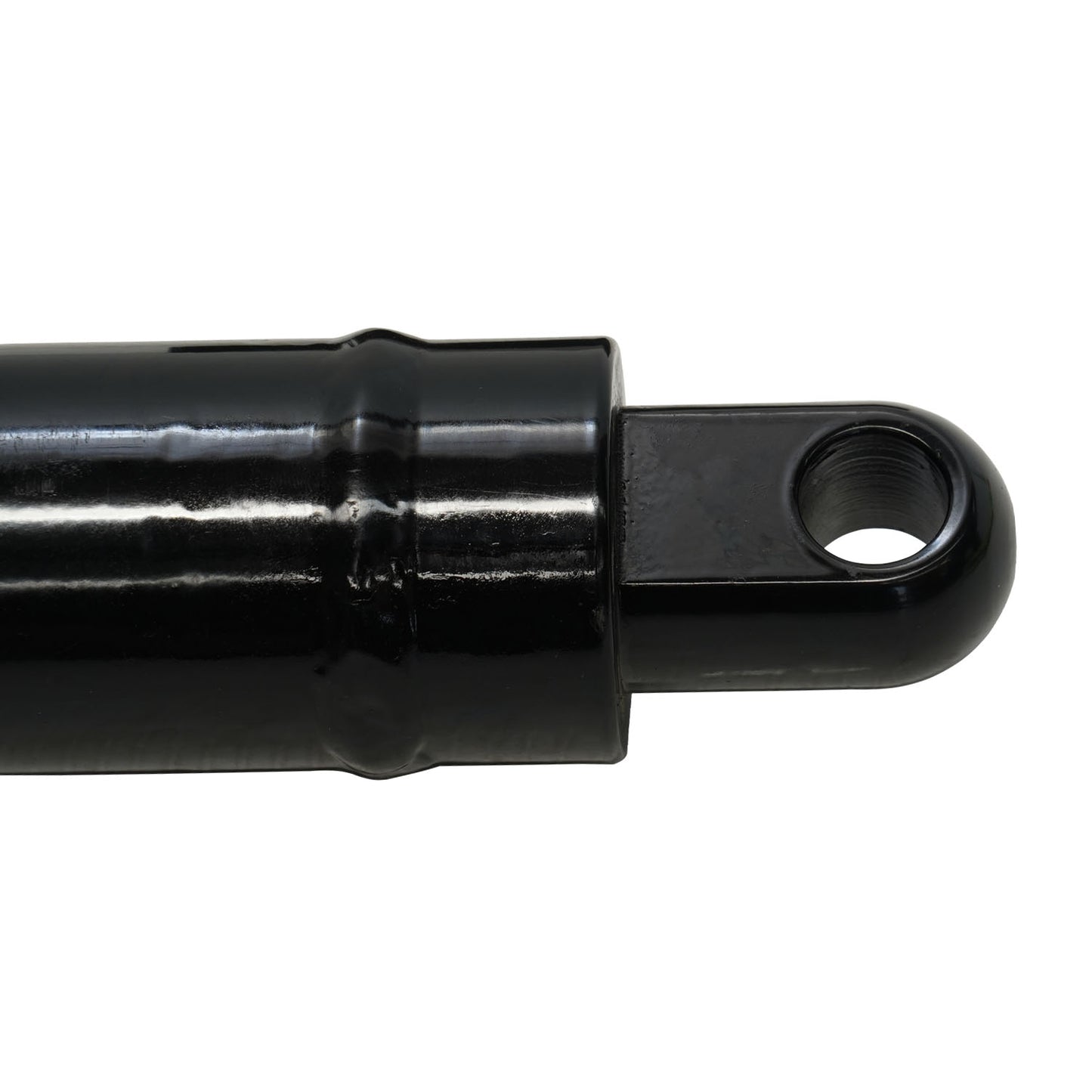

Designed for the Tufflift RJ35 Manual Sliding Jack, this double-acting hydraulic ram provides precise lifting and lowering performance. Compact and durable, it features a Ø50mm bore, Ø25mm rod, and robust construction for heavy-duty applications. Compatible with G1/4 hydraulic ports for seamless integration.
Suitable for the following models:
- RJ35
Features
- Delivers reliable and precise lifting and lowering performance.
- Engineered for seamless operation in manual sliding jack applications.
- Compact and durable design ensures long-lasting performance under heavy-duty use.
- Double-acting mechanism provides controlled lifting and retraction for added versatility and efficiency.
- Ideal for workshop and garage environments where stability and reliability are essential.

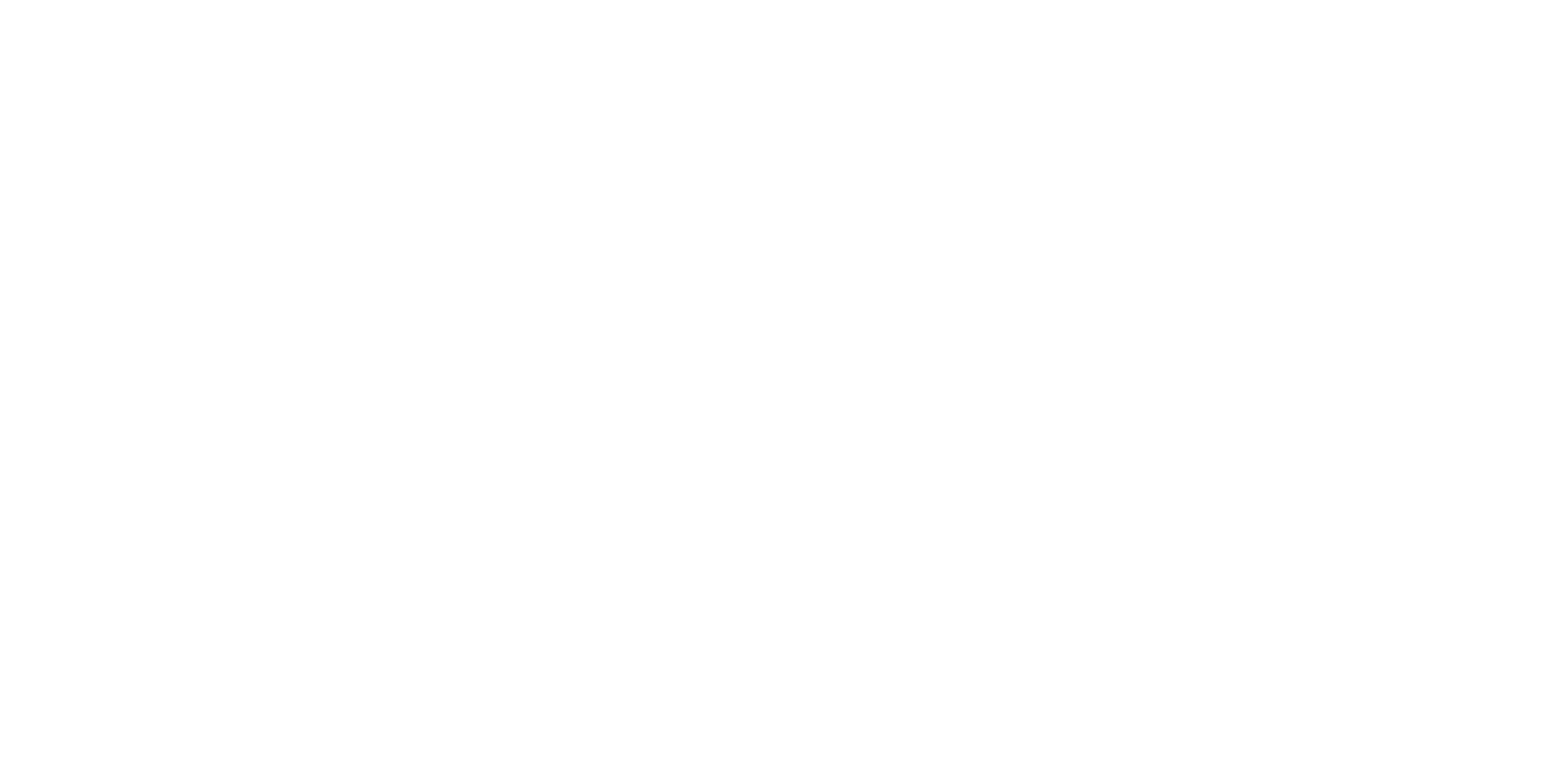

Specifications
- Single/double acting: Double acting
- Oil Capacity: 393mL
- Stroke: 200mm
- Bore size: Ø50mm (inner diameter)
- Rod Diameter: Ø25mm
- Ports: G1/4
- Total Length: 600mm
- Main cylinder body length: 400mm
- Pin Hole Diameter: Ø20mm
- Internal Walls: 10mm
- General plate thickness: 10mm
