Hydraulic Cylinder For TL3.6PH-H
Hydraulic Cylinder For TL3.6PH-H
SKU:PP8H-23
Regular price
$590.00 AUD
Regular price
Sale price
$590.00 AUD
Unit price
per
Couldn't load pickup availability

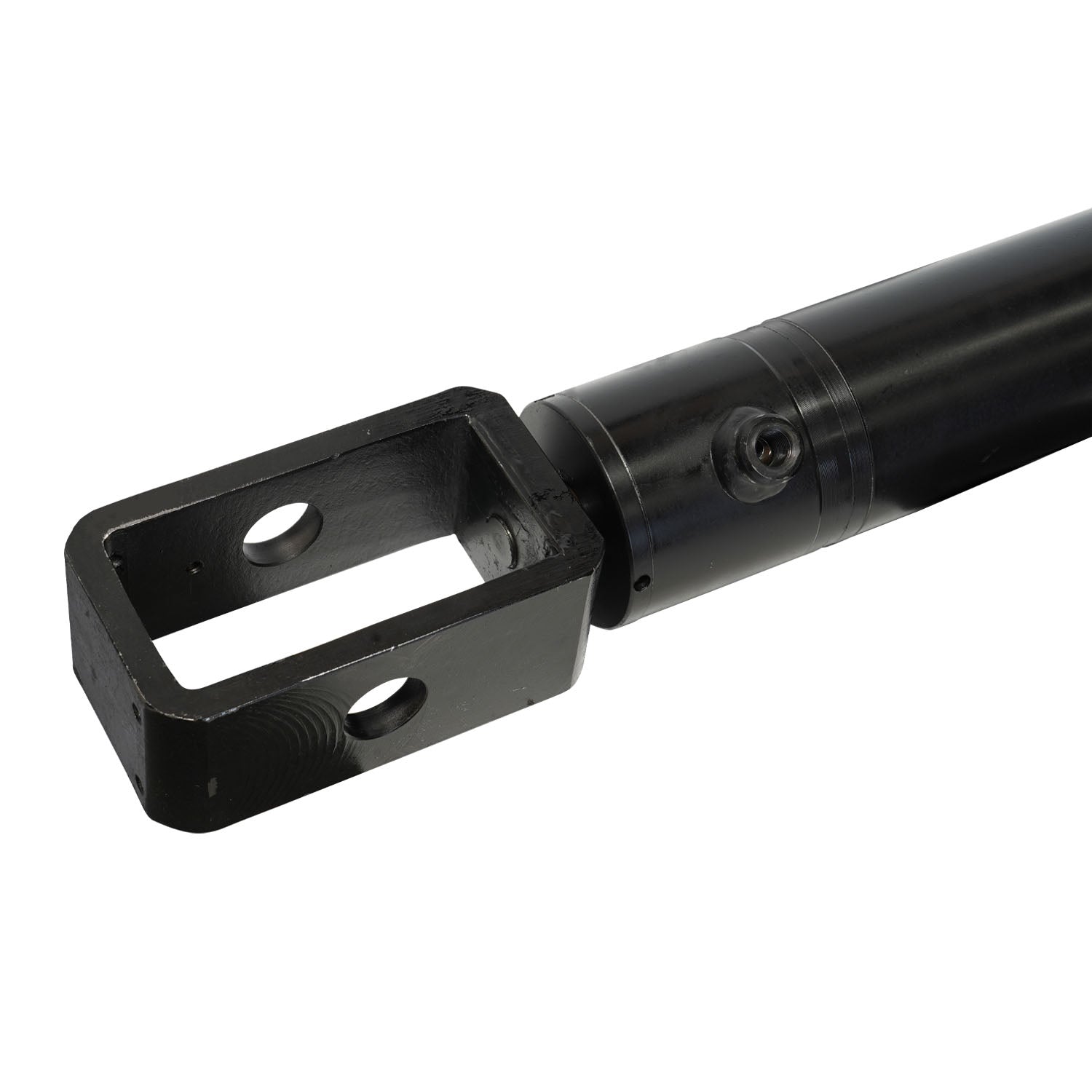

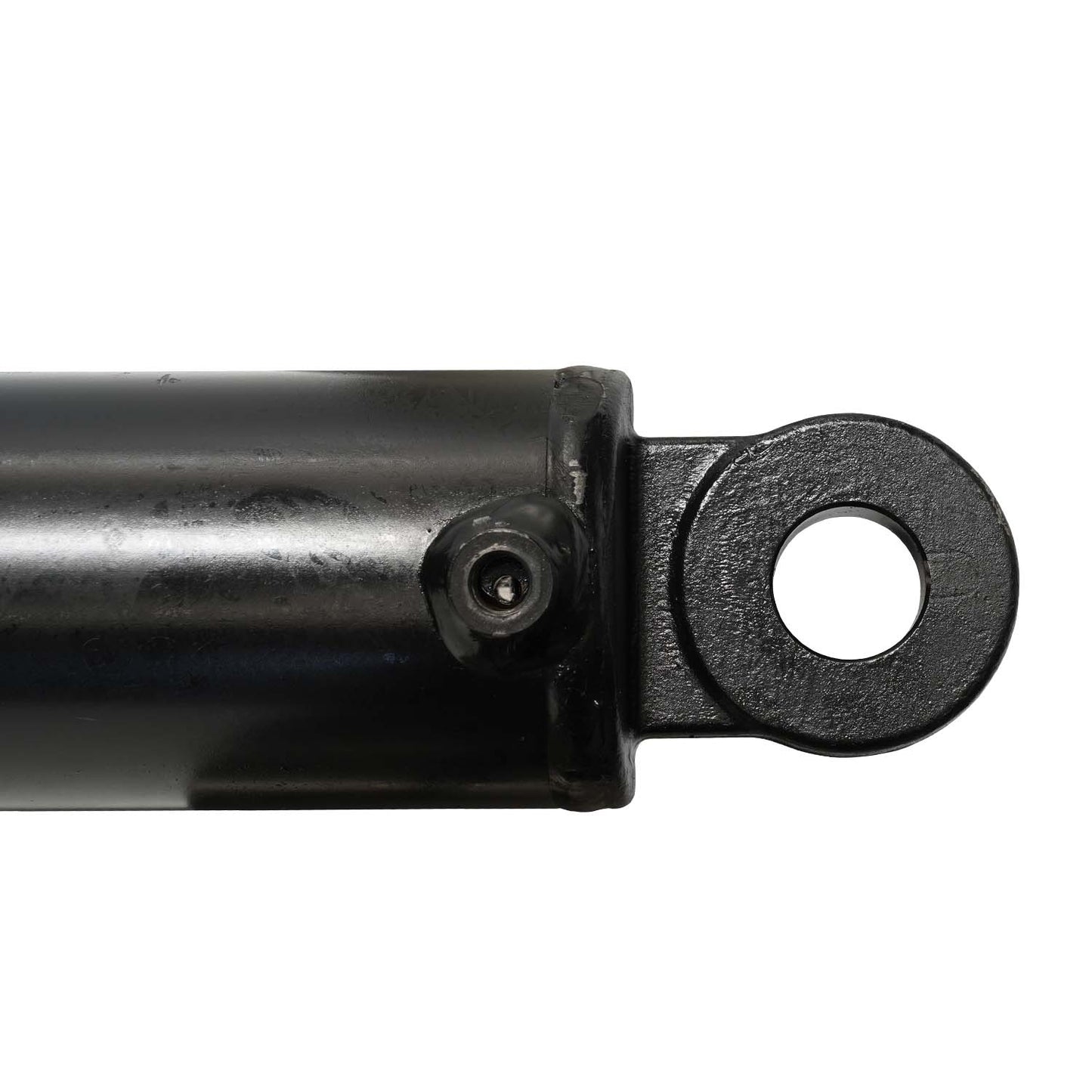

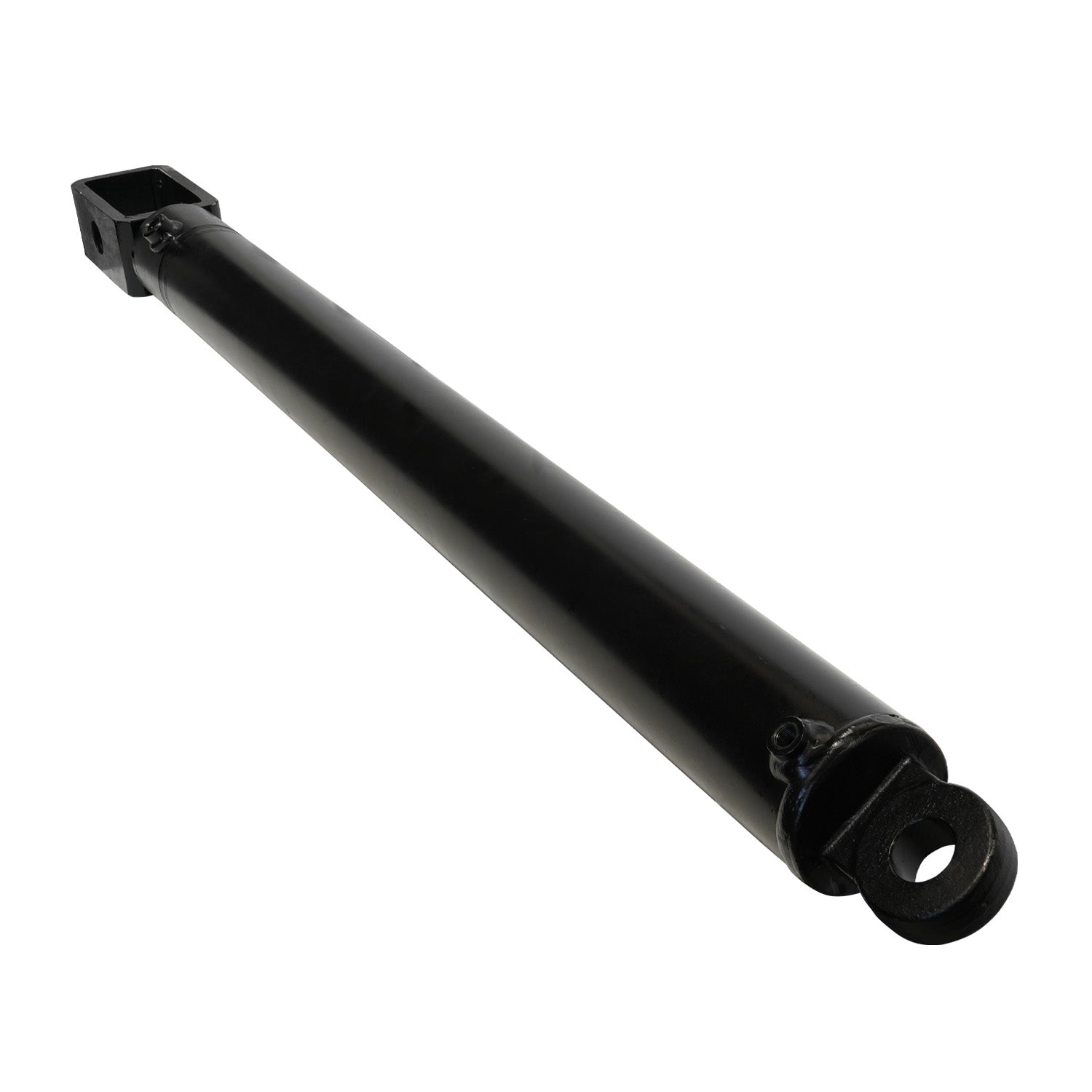

Designed for the Tufflift TL3.6PH-H 4 Post Car Hoist, this hydraulic cylinder ensures reliable lifting and stability. Engineered with precision, it delivers smooth performance and durability under heavy duty conditions.
Suitable for the following models:
- TL3.6PH-H
Features
- Delivers reliable and smooth lifting performance.
- Designed for heavy-duty workshop use.
- Precision-engineered for durability and stability.
- Seamless integration with 1/4” NPT and ZG3/8 hydraulic fittings.
- Built to withstand rigorous lifting demands.

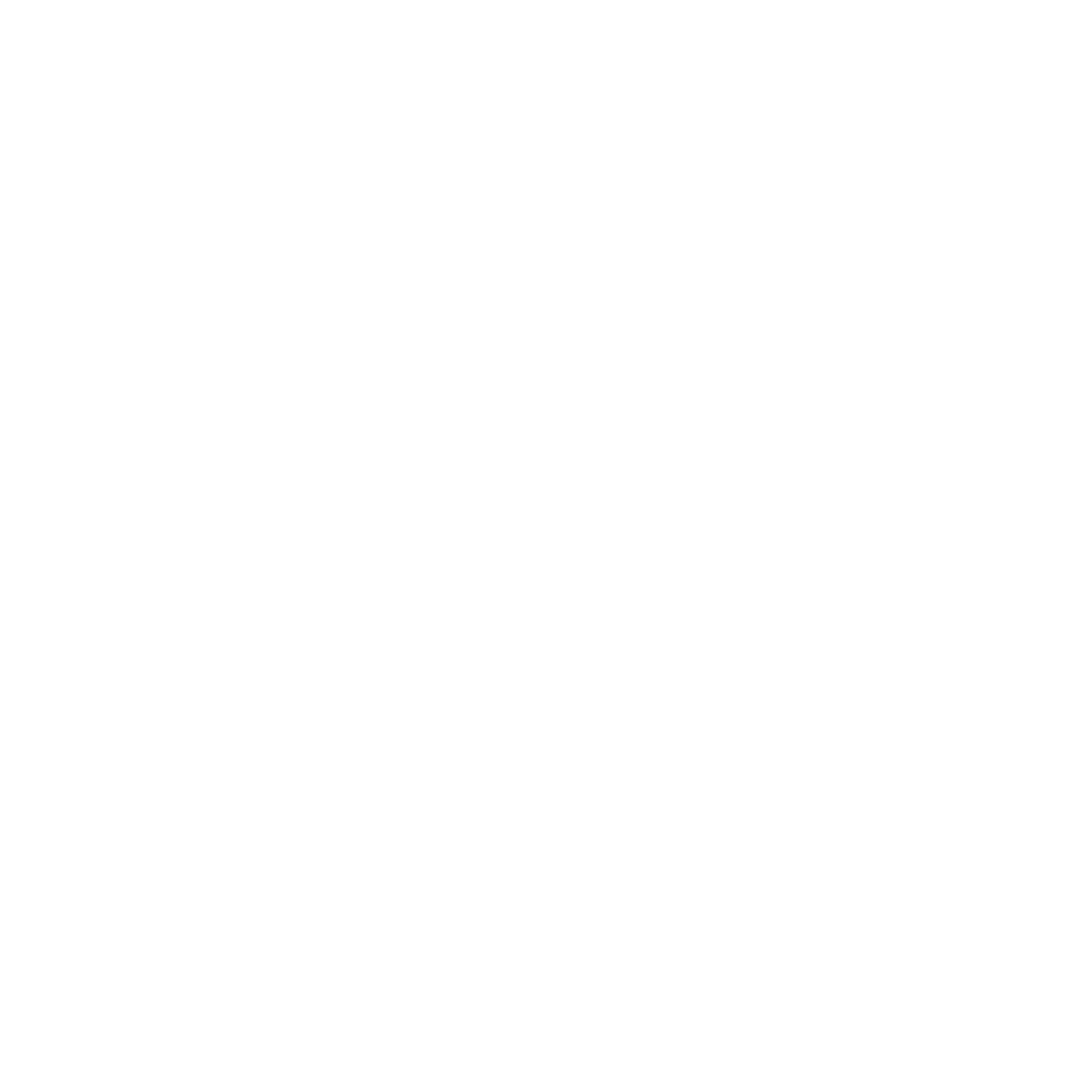

Specifications
- Single/double acting: single acting
- Oil Capacity: 5.93L
- Stroke: 1050mm
- Bore size: Ø102 mm (inner diameter)
- Rod Diameter: Ø35 mm ± 0.15 tolerance
- Ports: 1/4” NPT and ZG3/8 hydraulic ports
- Total Length: 1448mm
- Main cylinder body length: 1190mm
- M24 threads
- 3-M8 threaded holes for secure mounting
- Internal Walls: 4.1mm
- General plate thickness: 10mm
