Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

Hydraulic Cylinder For TL3.6PH-S

Hydraulic Cylinder For TL3.6PH-S

SKU:PP8S-09

Regular price $590.00 AUD inc. GST
Regular price Sale price $590.00 AUD inc. GST
Sale
Taxes included. Shipping calculated at checkout.

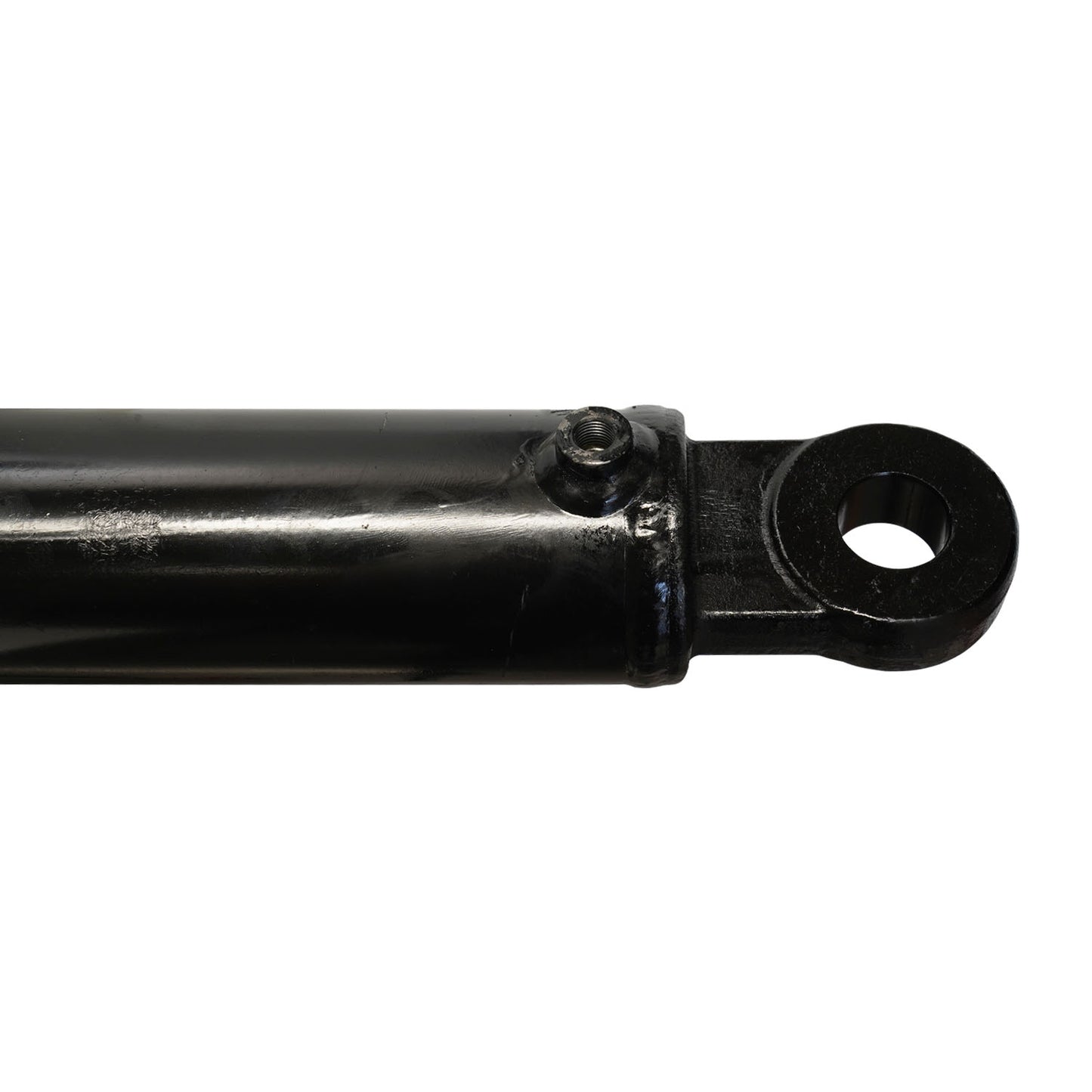

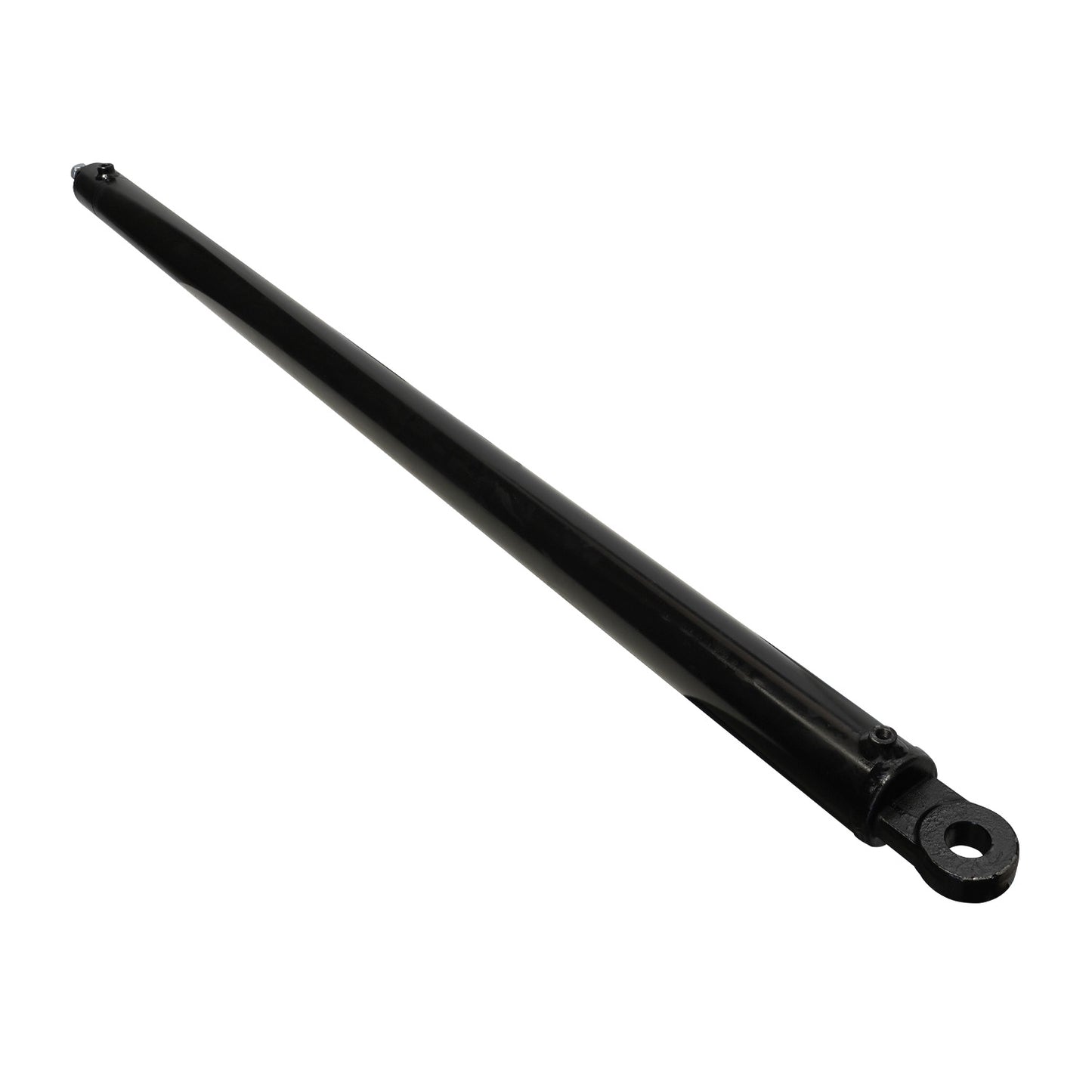

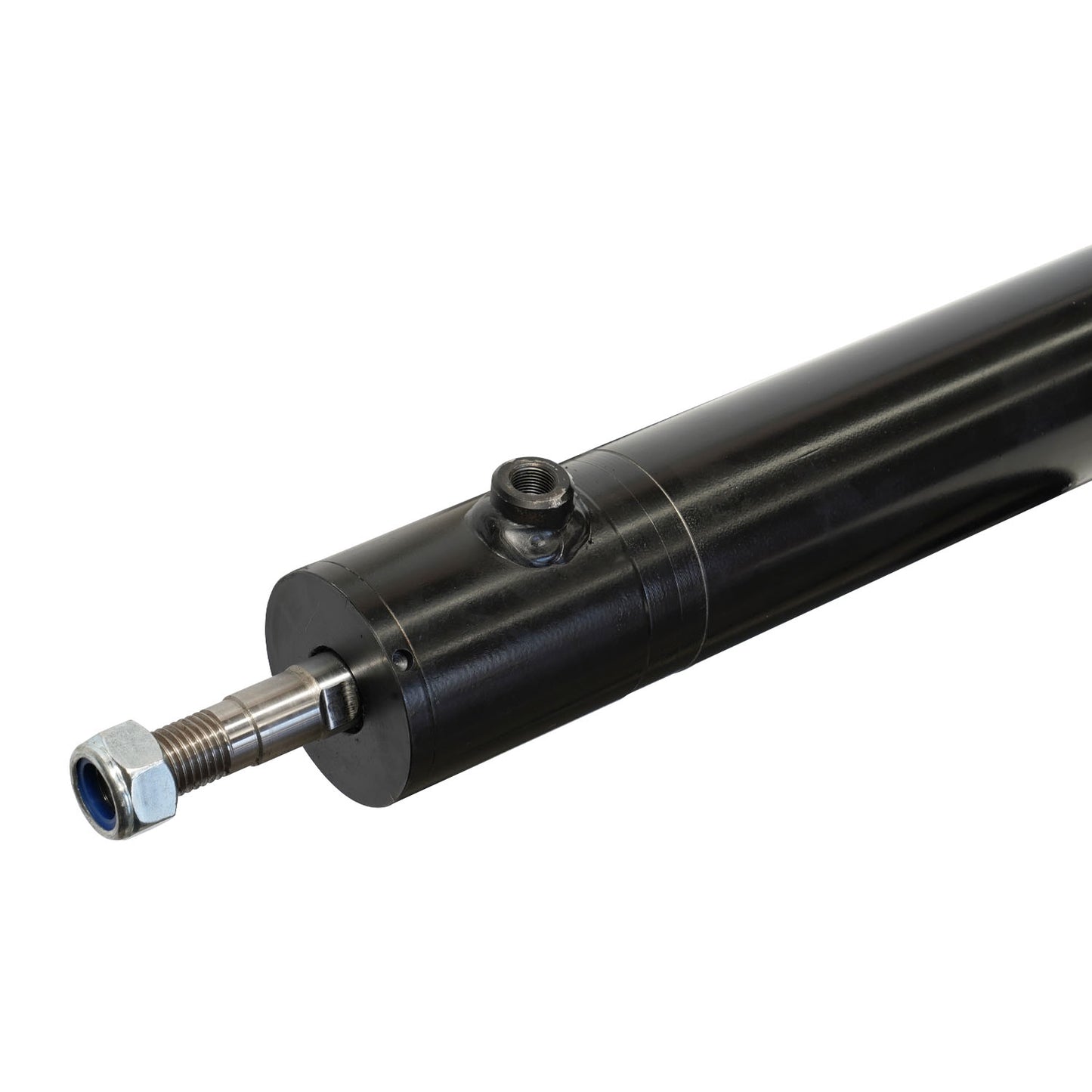

This single-acting hydraulic cylinder has a 75mm bore, 28mm rod, 1750mm stroke, and ZG3/8 ports, delivering reliable performance for heavy-duty lifting.

Suitable for the following models:

  • TL3.6PH-S
Features
  • Delivers reliable and smooth lifting performance.
  • Designed for heavy-duty workshop use.
  • Precision-engineered for durability and stability.
  • Equipped with ZG3/8 hydraulic ports for seamless integration with hydraulic systems.
  • Built to withstand rigorous lifting demands.
Specifications
  • Single/double acting: single acting
  • Stroke: 1750mm
  • Bore size: Ø75mm (inner diameter)
  • Rod Diameter: Ø28mm
  • Ports:ZG3/8 hydraulic ports
Outer Dimensions
  • Total Length: 2100mm
View full details

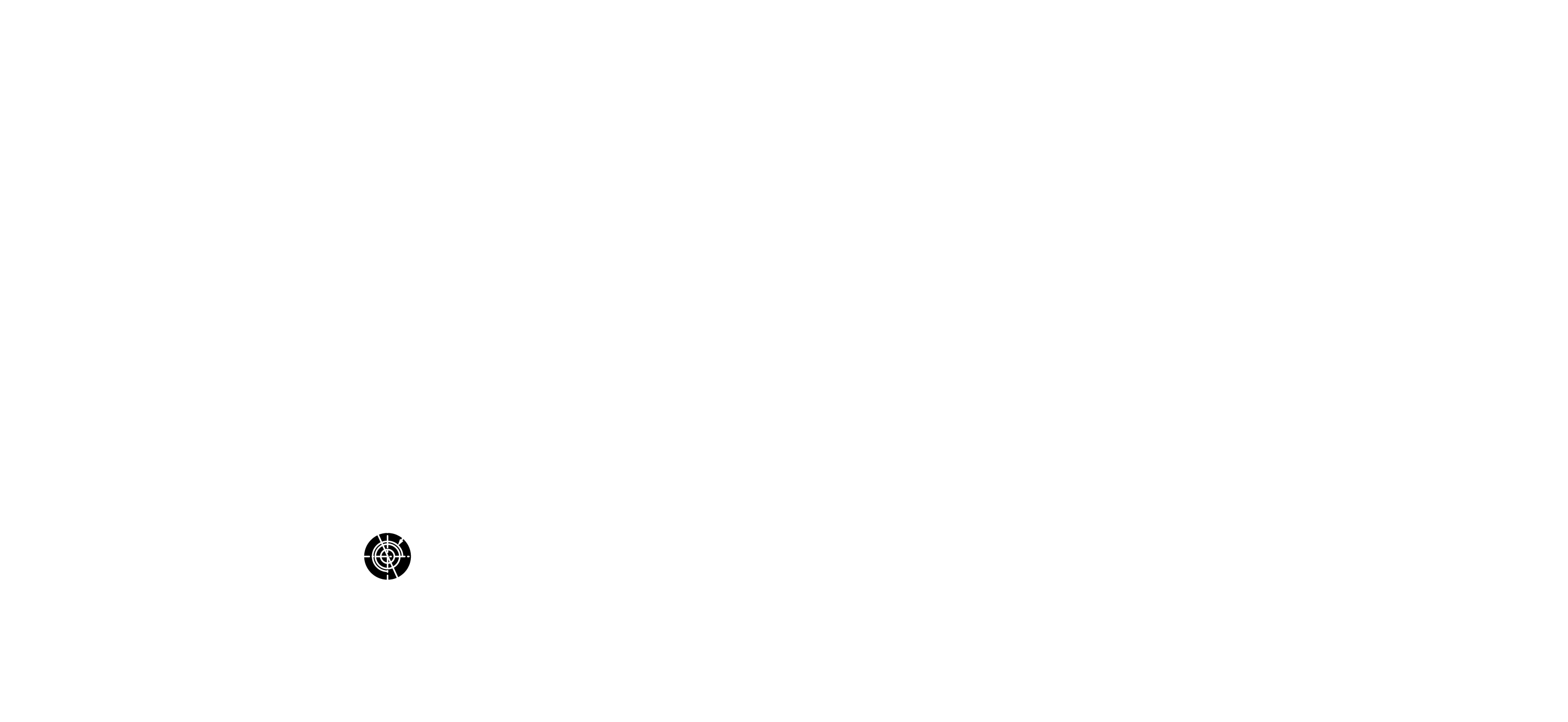

Product Specifications Image
