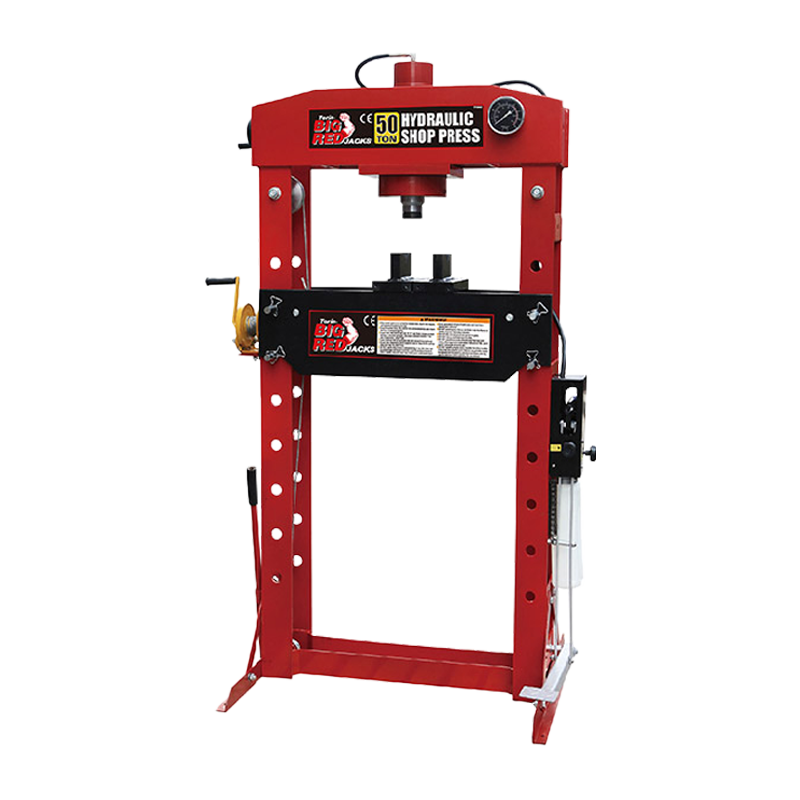

Hydraulic Shop Press - 50 Ton

Name: Hydraulic Shop Press - 50 Ton
Brand: Tufflift
SKU: TY50030
Price: 2850.00 AUD
Availability: InStock

Hydraulic Shop Press - 50 Ton

SKU:TY50030

$2,850.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

The 50 Ton Hydraulic Shop Press is engineered for heavy-duty industrial performance, featuring a robust, high-grade steel H-frame and rust-resistant finish. Equipped with a large-diameter hydraulic cylinder and Y-Style sealing for extended life, it minimises wear while maintaining smooth, efficient operation. The press offers a generous work range and includes an extra-long handle for enhanced leverage.

Features

Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup

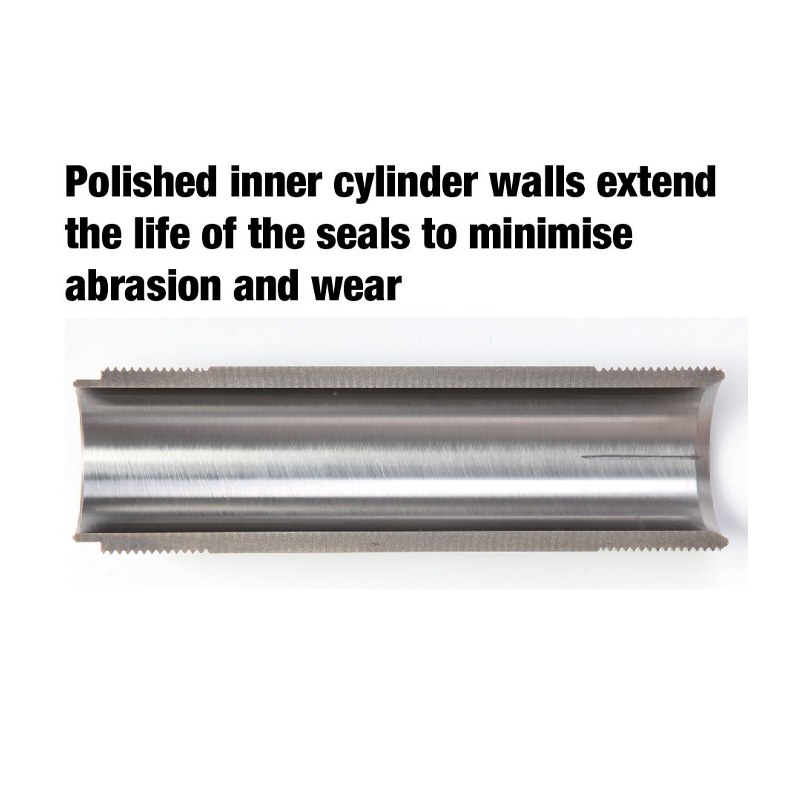

High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life

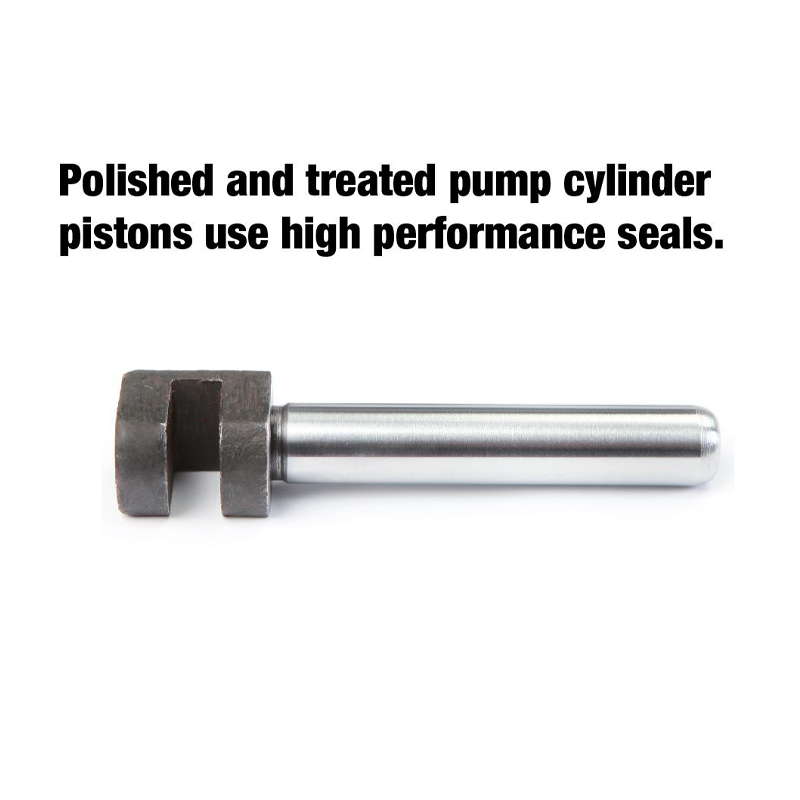

Piston-ram is treated and polished to resist skiving

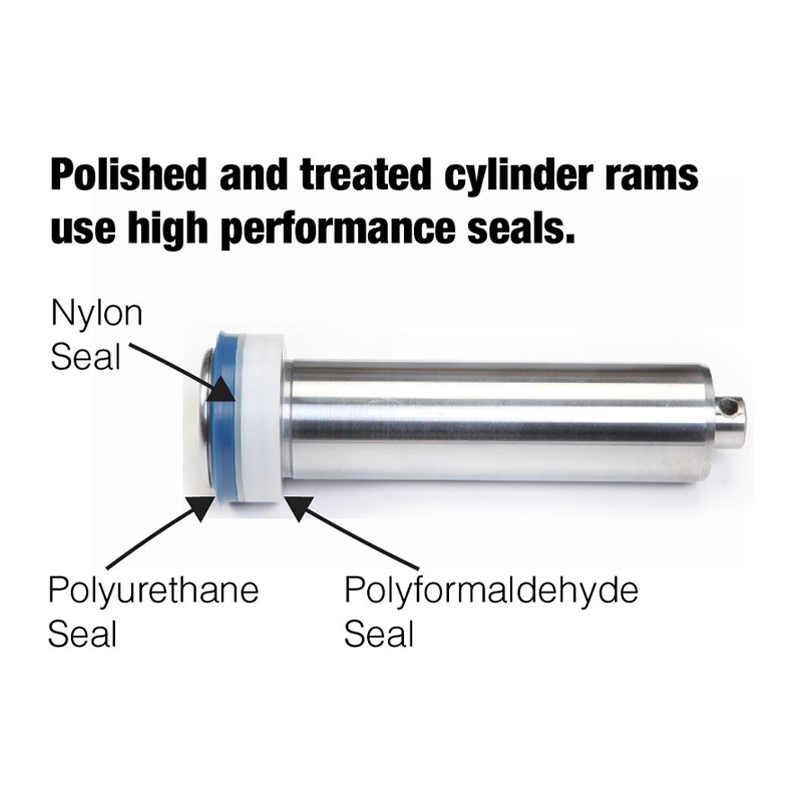

Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Extra-long handle included for easy pumping force

Options:

Push Pin Kit

Specifications

Capacity: 5000KG

Stroke: 200mm

Work range: 0-920mm

Net weight: 302KG

Gross weight: 348KG

Freight dimensions:

L 1860mm W 910mm H 380mm W 216KG

Warranty

We offer a comprehensive warranty on the TY50030, covering 12 months. This warranty includes parts only, ensuring that your Shop Press remains reliable and fully supported, giving you peace of mind throughout its use.
