Main Cylinder Rebuild Kit For PX09A

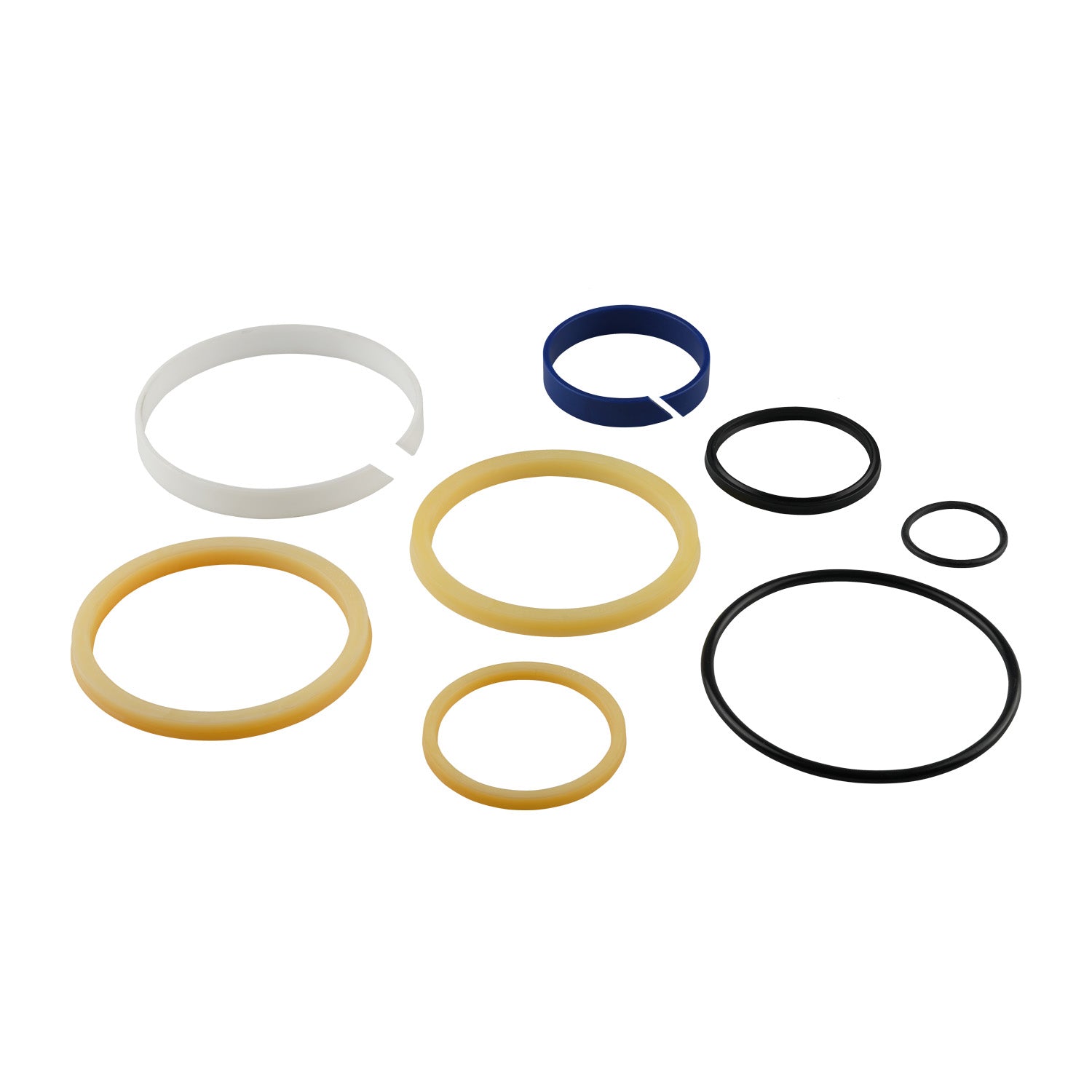

This complete hydraulic cylinder seal refurbishment kit is designed for the main cylinder, ensuring a reliable seal replacement for smooth operation. It helps restore performance and prevent leaks, extending the lifespan of your hydraulic system.

Specifications:

ID = Inner Diameter / OD = Outer Diameter /  W = Width

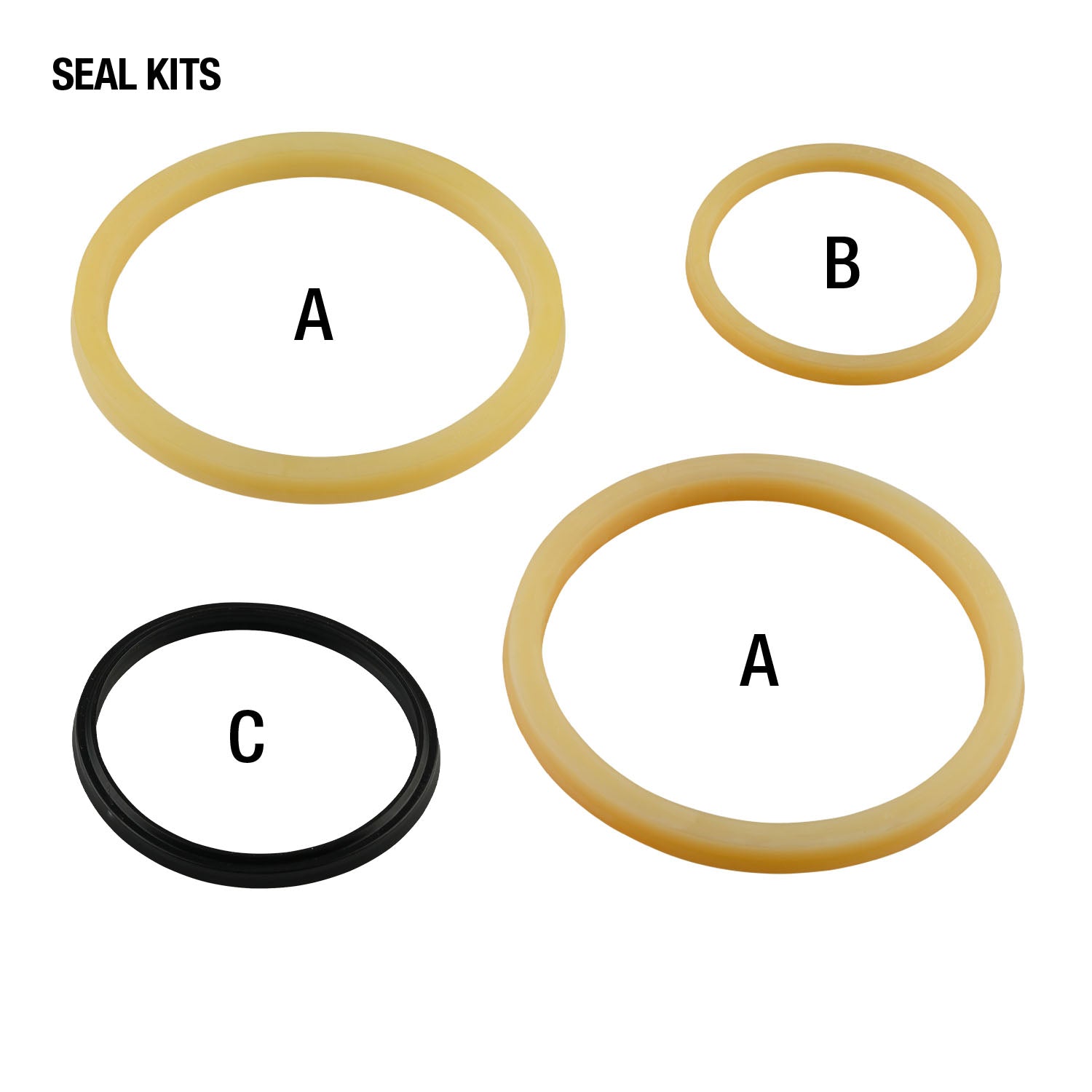

Seal Kit:

• Seal Kit A (2) - OSI 120 x 105 x 9
• Seal Kit B - ISI 67 x 77 x 6
• Seal Kit C - LBH 67

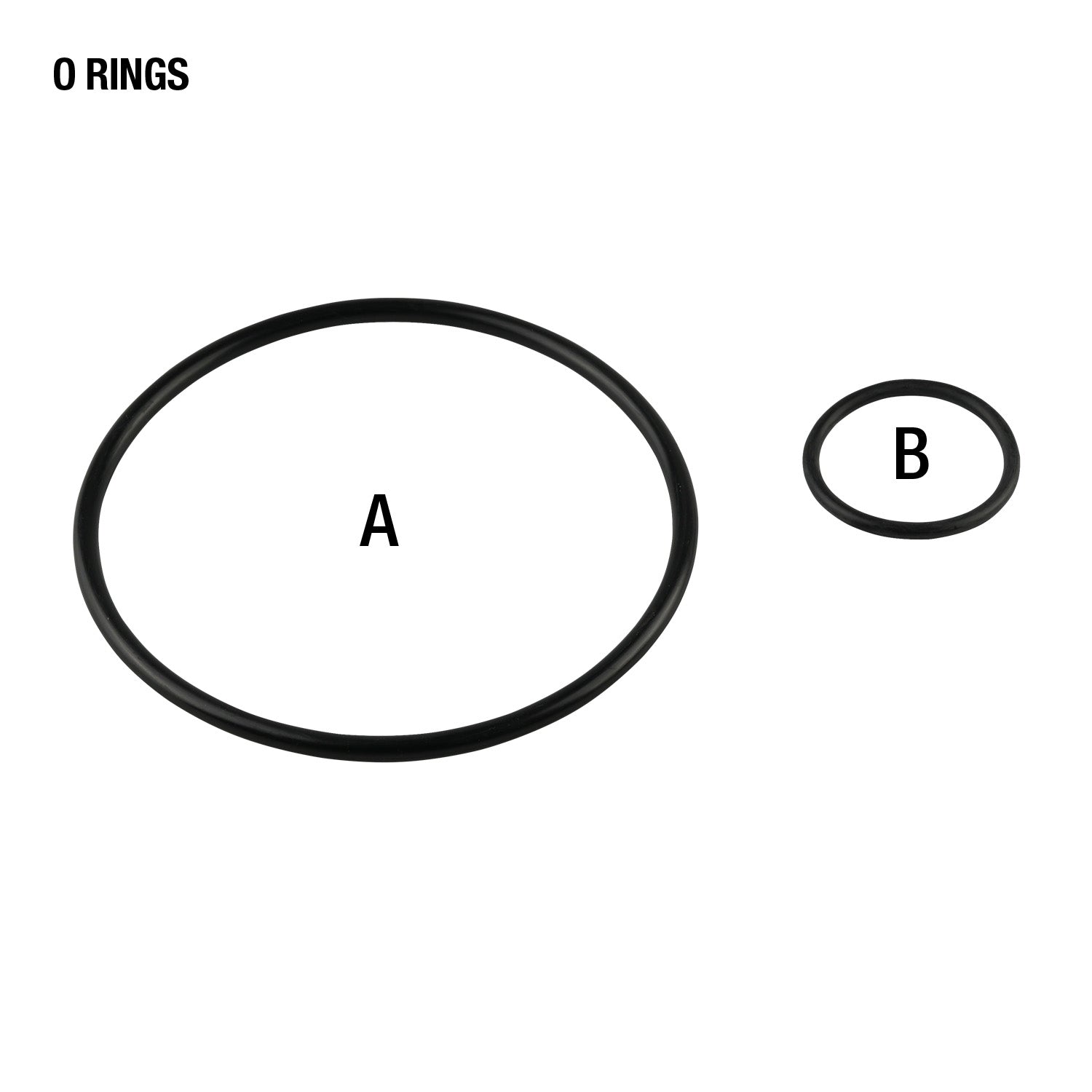

O Ring:

• O Ring A - ID 113 x W 5mm
• O Ring B - ID 37 x W 3mm

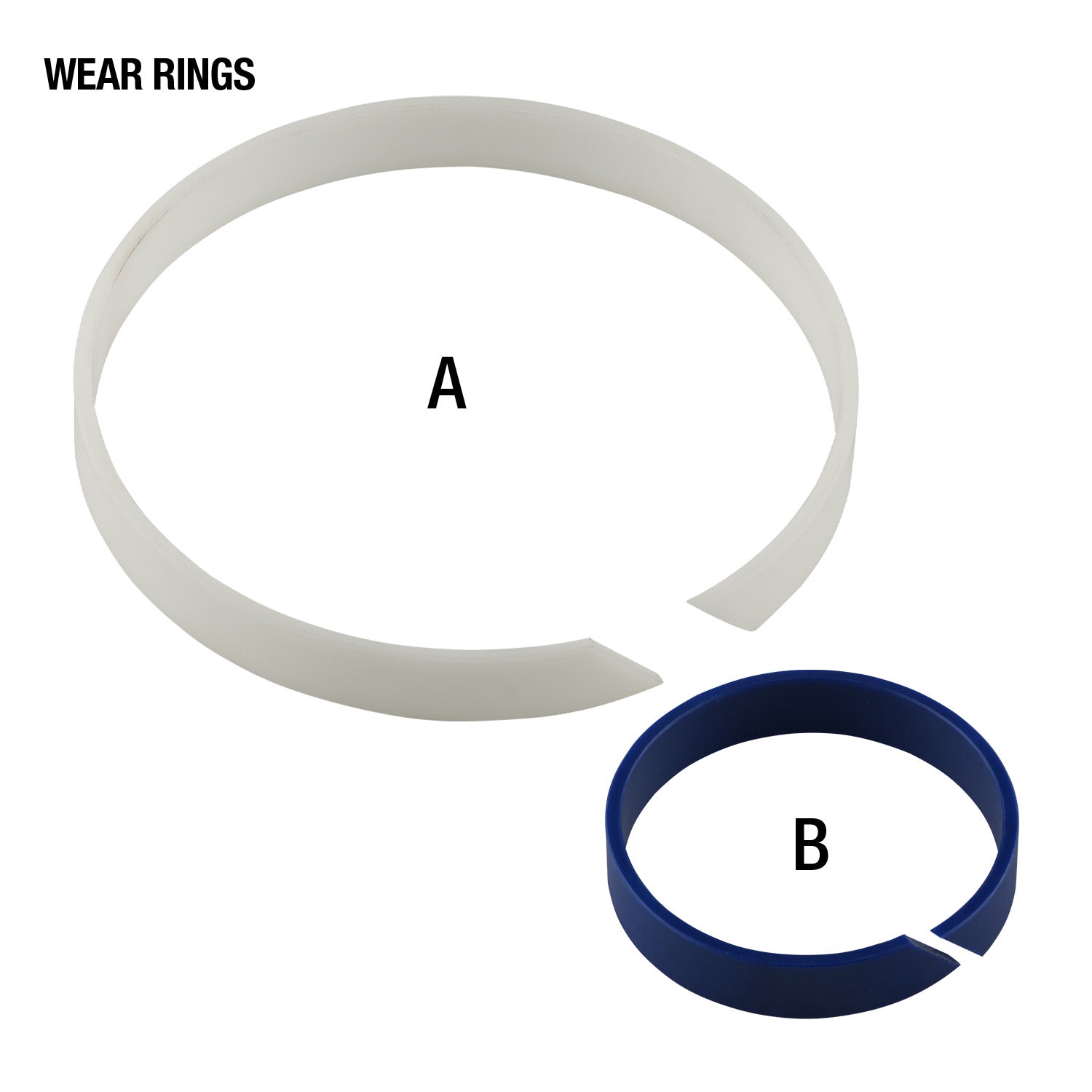

Wear Ring:

• Wear Ring A - ID 120 x W 15mm
• Wear Ring B - ID 72 x W 15mm

Suitable for the following models:

• AM4.0SC (PX09A)
• AM3.5SC (SX08F)
