Manual Sliding Jack - 1.75 Ton
Manual Sliding Jack - 1.75 Ton
SKU:RJ35
Couldn't load pickup availability

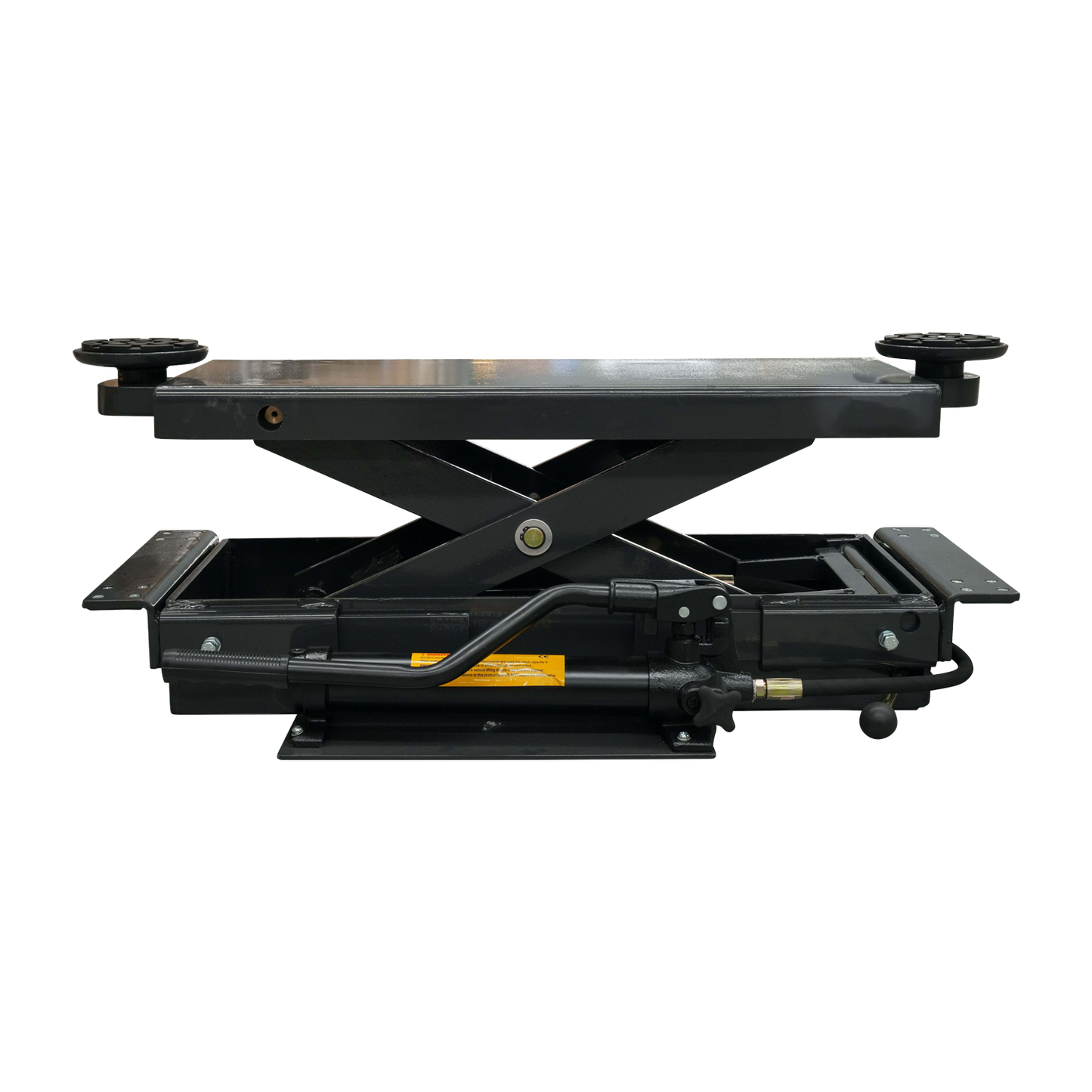

The Manual Sliding Jack - RJ35 provides a 1.75-ton lifting capacity with a compact, low-profile design and scissor mechanism for stable, level lifts. Featuring adjustable width, multiple safety lock positions, and included adapters for versatile height adjustments, it’s ideal for various applications.
- Manually operated
- Scissor mechanism allows for level lifting
- Compact size with a low profile
- Adjustable width
- Safety lock positions
- Adapters included
- Powder coated finish
- Adapter storage
- Long handle
Suitable for the following models:
- TL3.6PH-H
- TLV3.6PH-S
Capacity: 1580KG
Minimum width: 749mm
Minimum width with arms in: 1003mm
Minimum width with arms out: 1644mm
Minimum height with lift pad: 88mm
Lifting pad: 34mm
Short adapter: 31mm
Tall adapter: 127mm
Raised height without adapter: 279mm
Raised height with small adapter: 311mm
Raised height with large adapter: 406mm
Raised height with small and large adapter: 438mm
Freight dimensions:
L 950mm W 610mm H 260mm W 136KG
We offer a comprehensive warranty on the RJ35, covering 12 months. This warranty includes both parts and labour, ensuring that your manual sliding jack remains reliable and fully supported, giving you peace of mind throughout its use.
SPECIFICATIONS
-
101 x 59 x 30cm 1369kg
