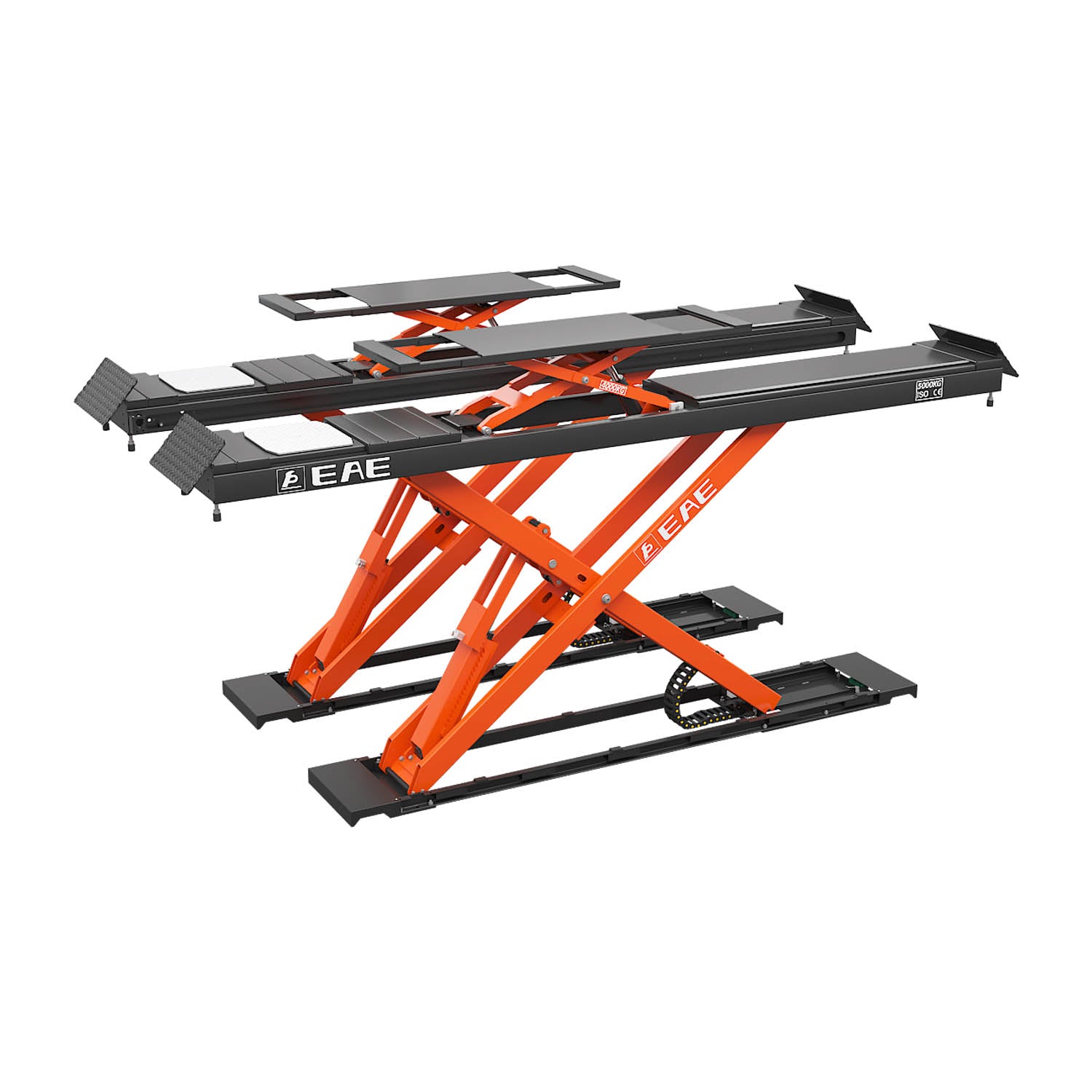

Scissor Lift - Alignment - 5 Ton
Scissor Lift - Alignment - 5 Ton
SKU:EE-HX50BWF.PD8
Couldn't load pickup availability

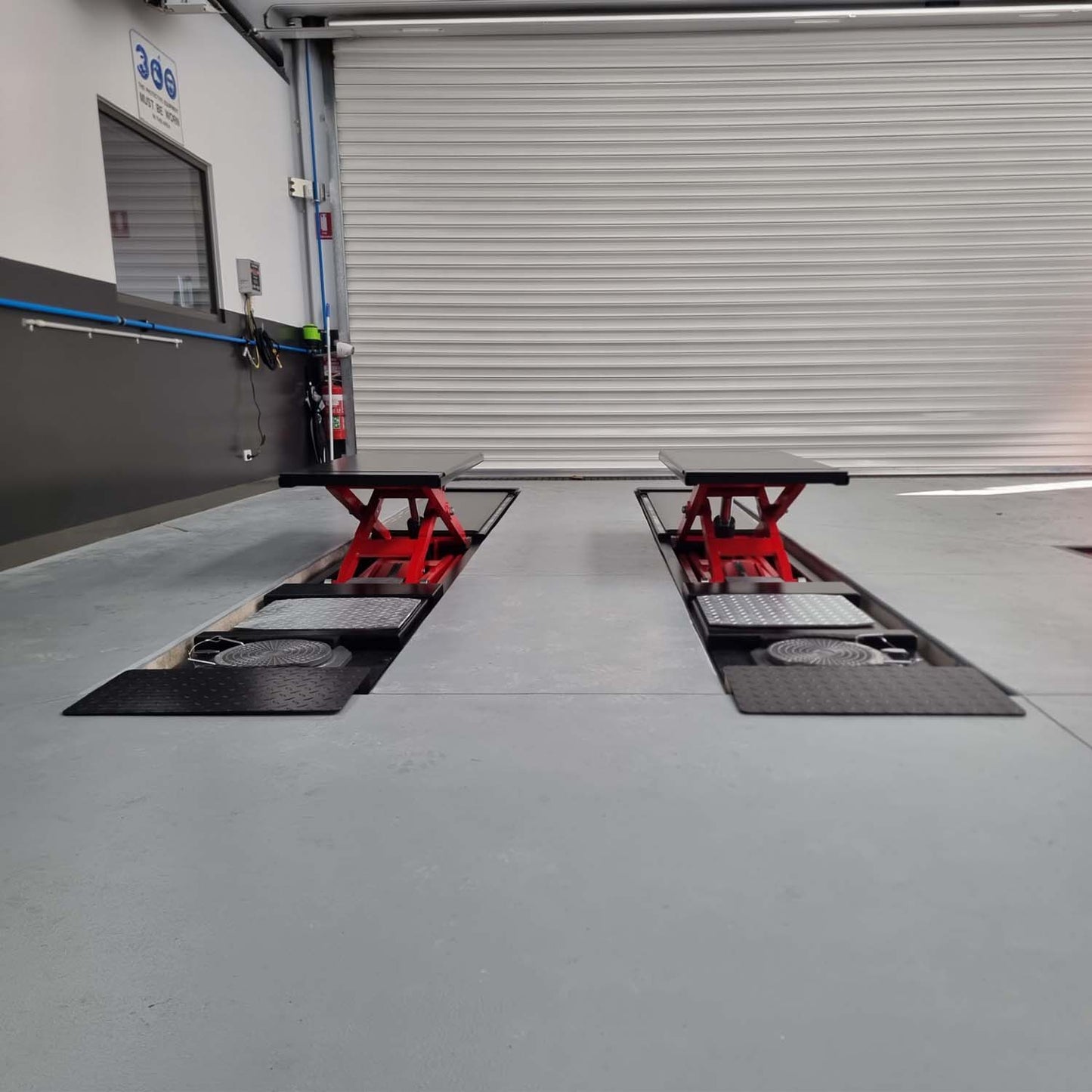

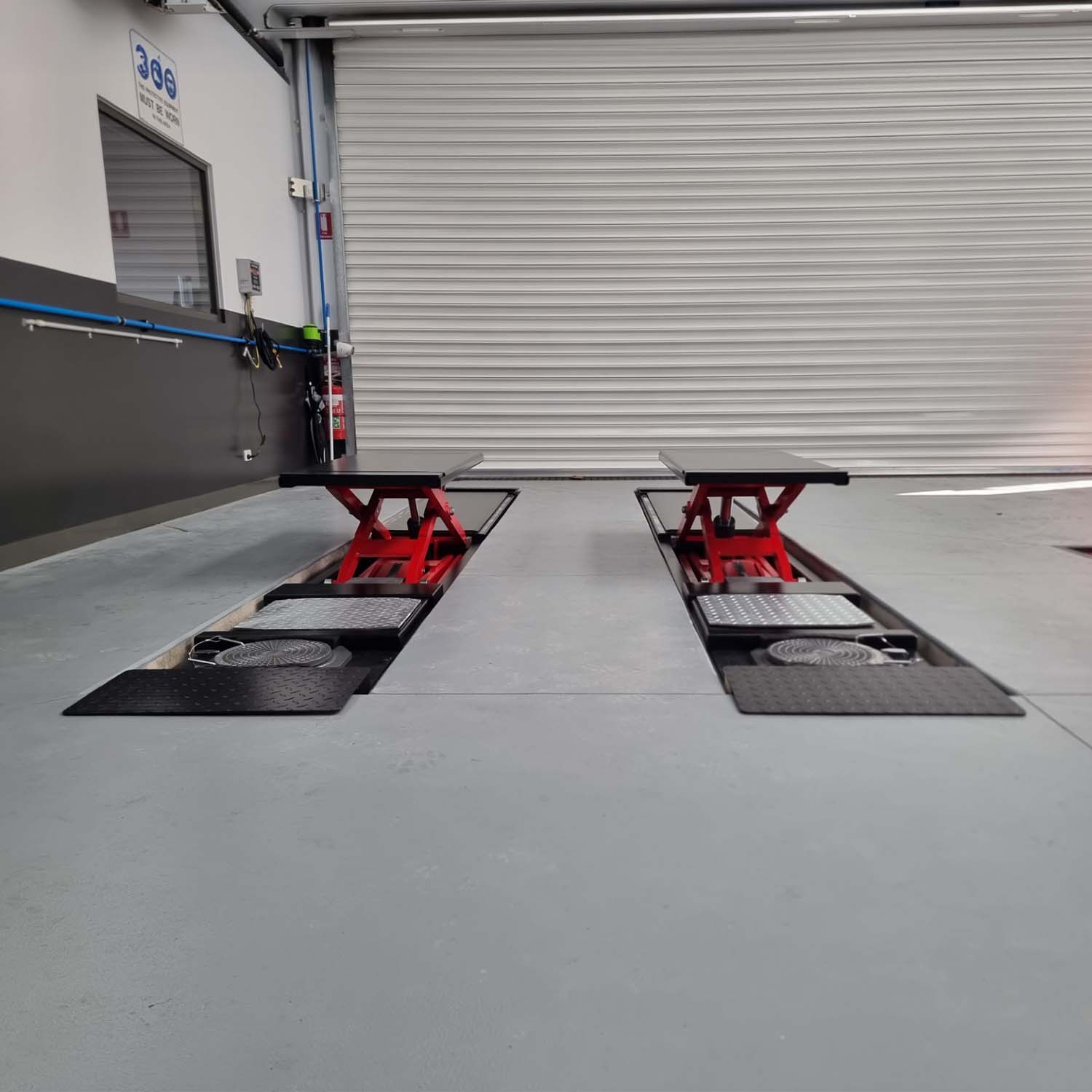

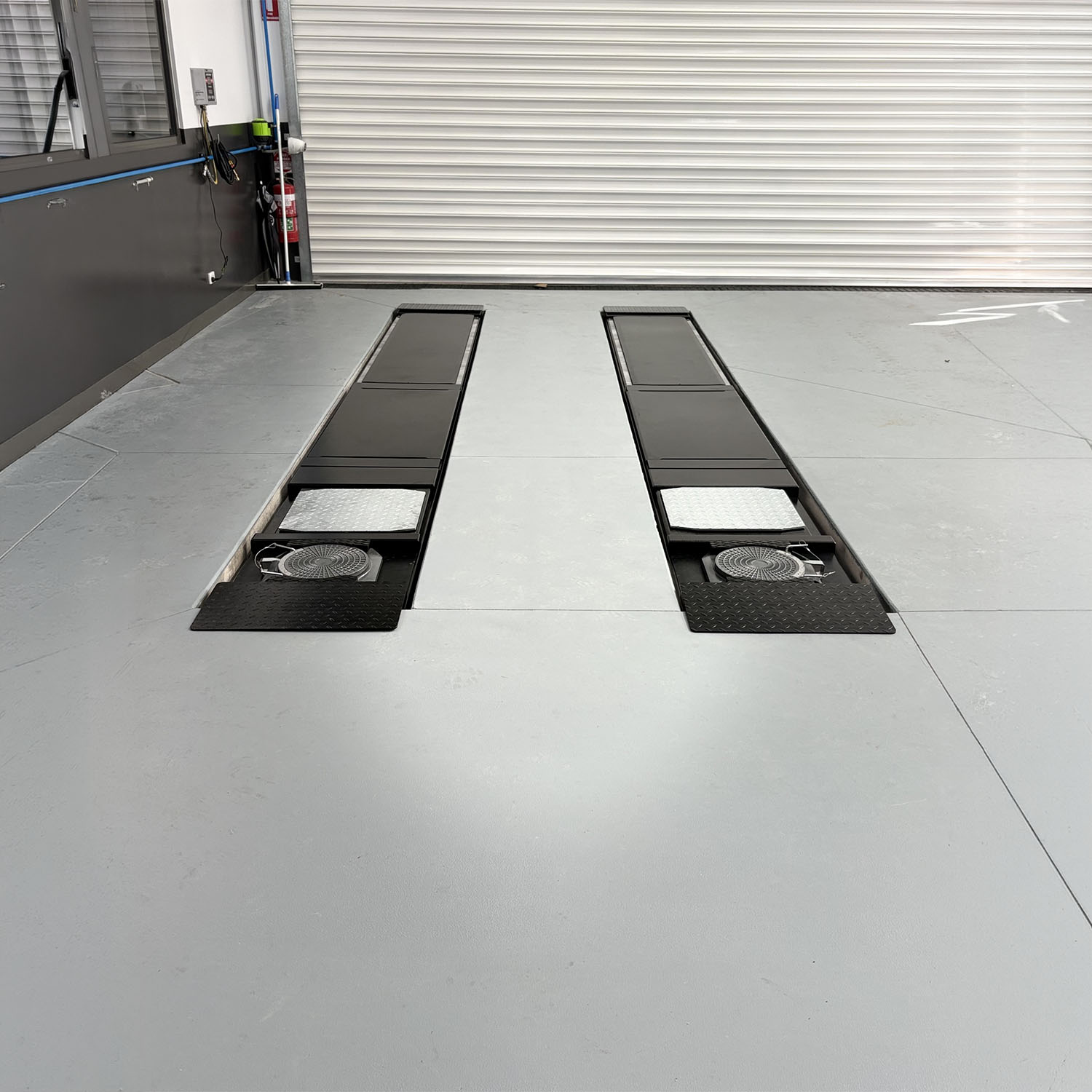

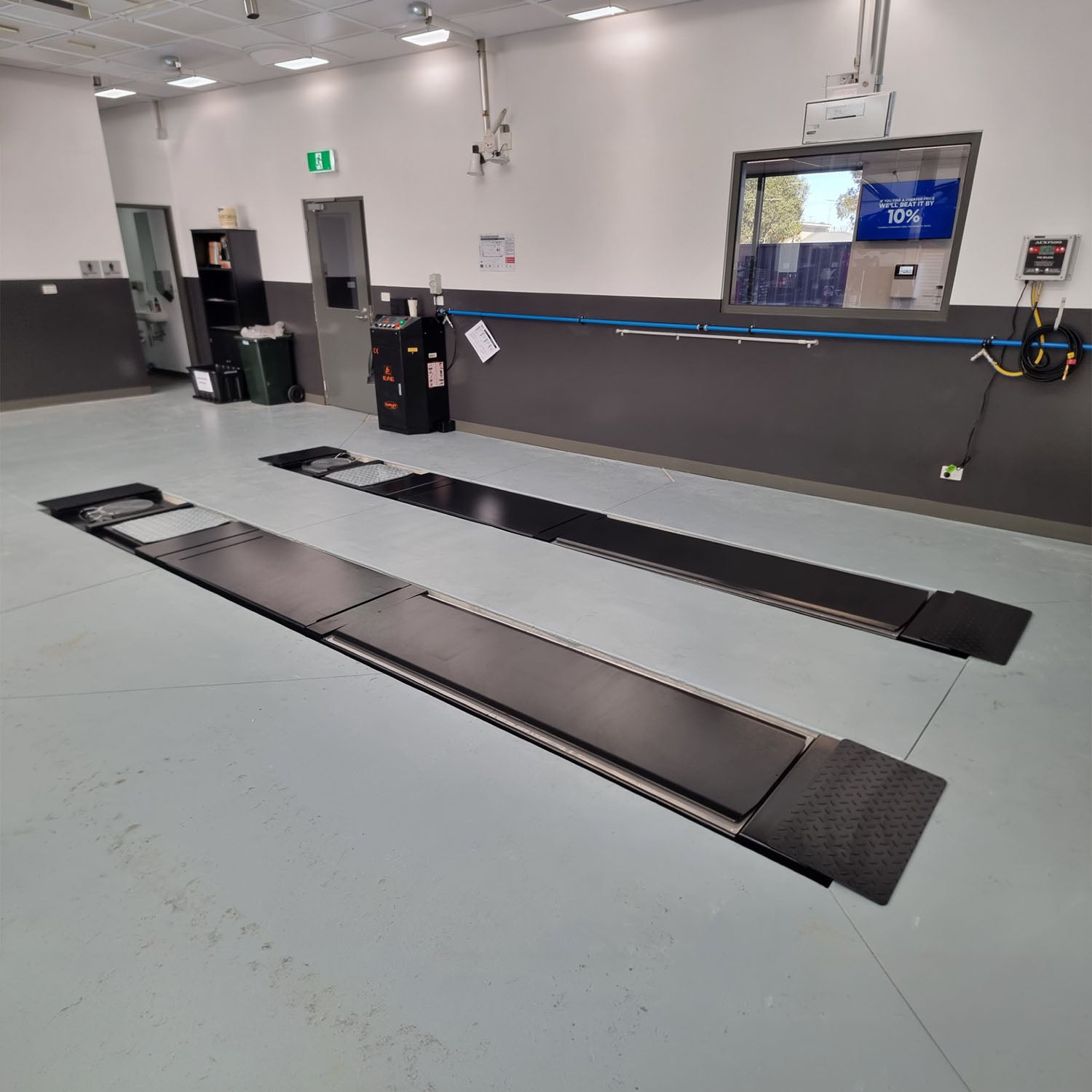

The EAE 5 ton 5M Alignment Scissor Lift offers precise wheel alignment with a 5000KG capacity, full electronic controls, and a durable, column-free design. Enjoy smooth operation with adjustable turntables and long slip plates for maximum efficiency.
* This Scissor lift is 3 phase power only *
- 5000KG capacity
- Aluminium power unit
- Full electronic controls

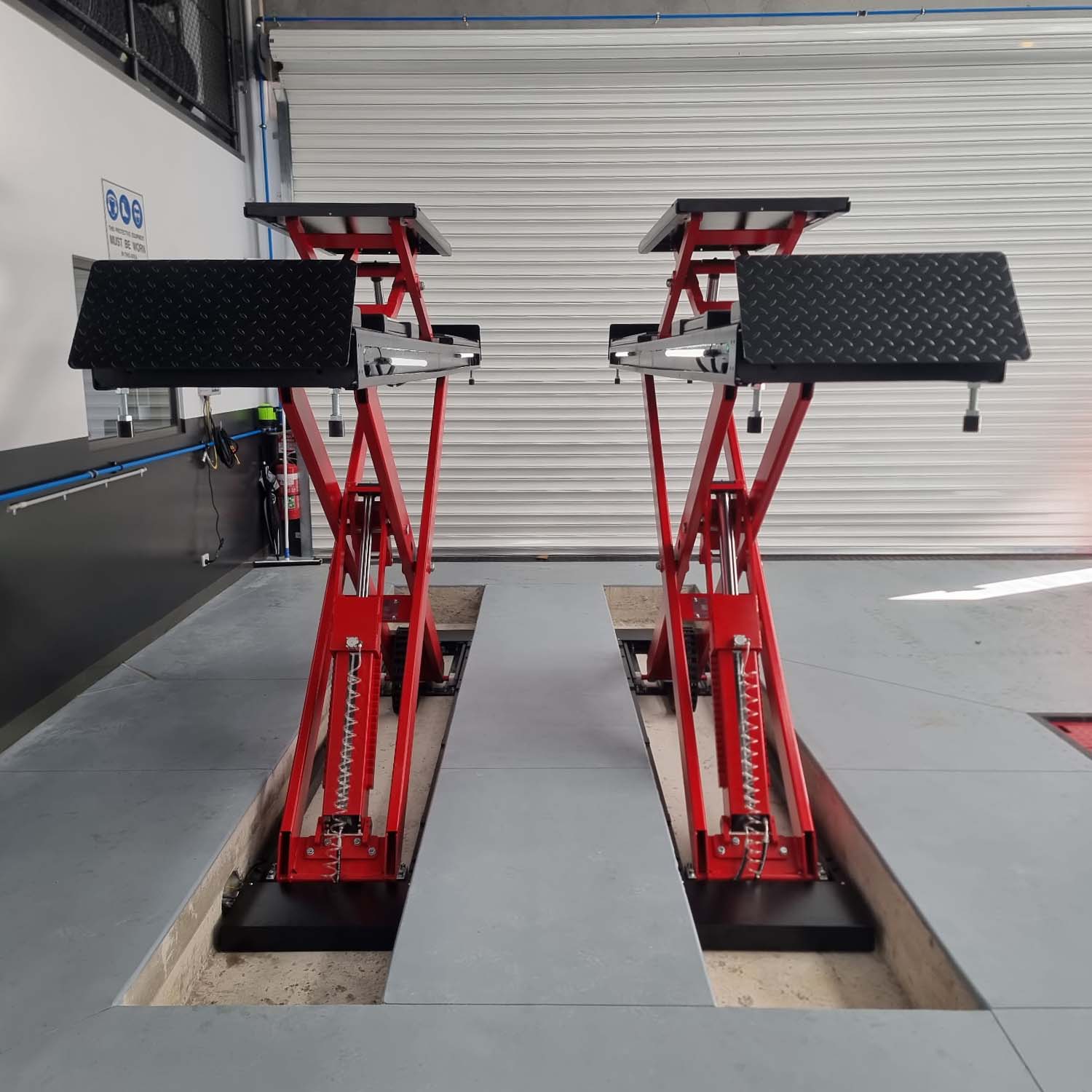

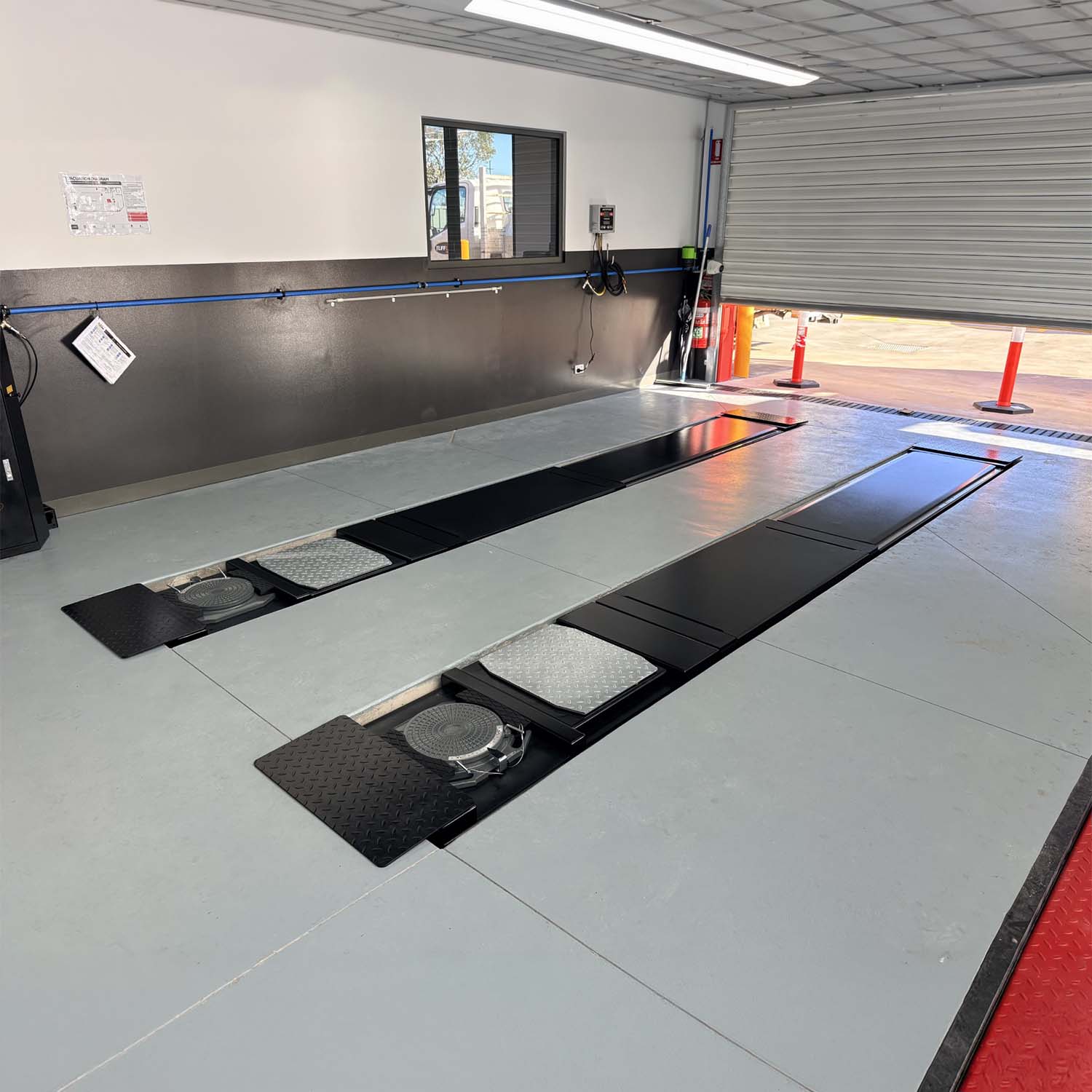

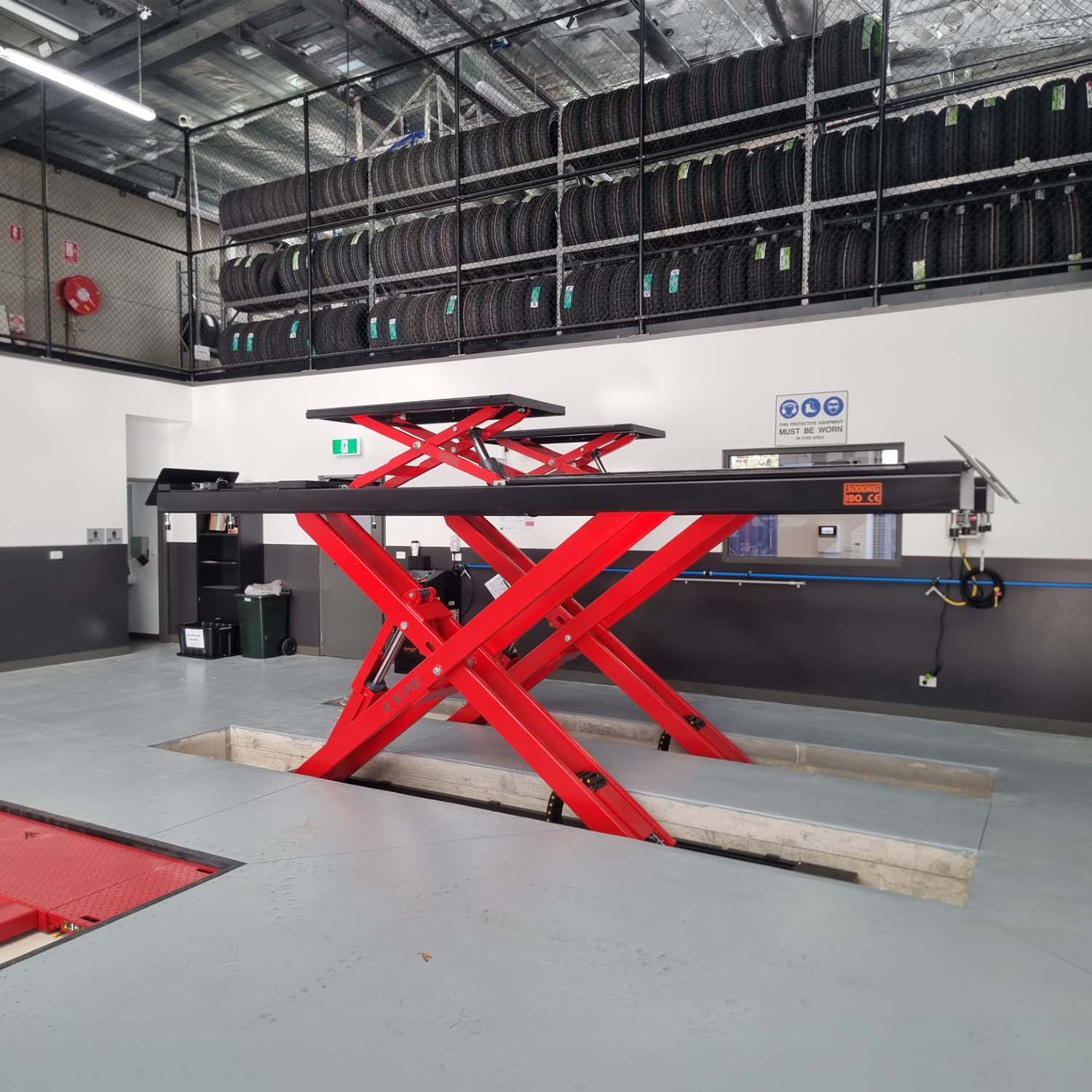

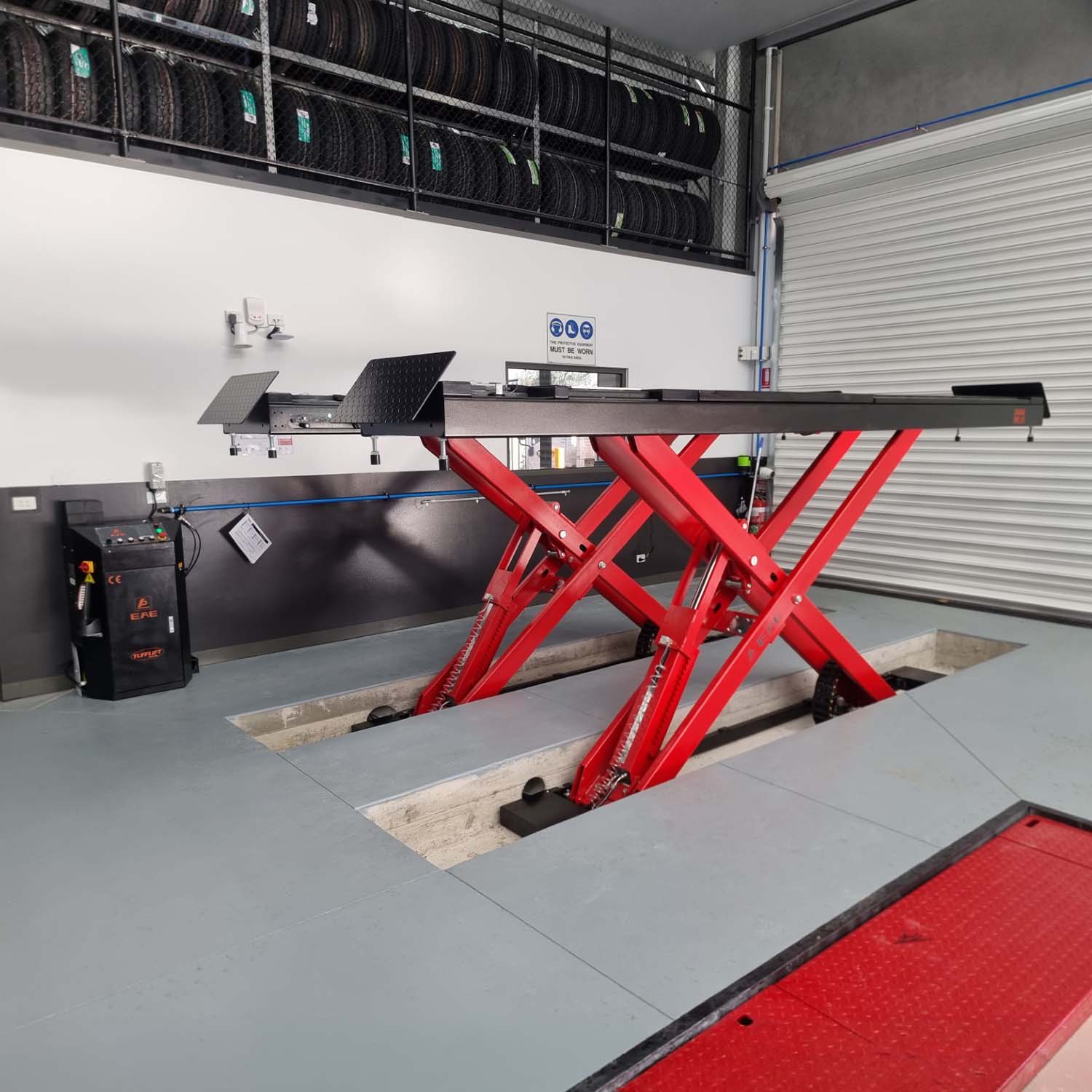

- Above ground installation
- No columns
- Long slip plates and adjustable turntable positions
- Electrical levelling
- Self-lubricating bushes and bearings
- Durable powder coating
- In platform jacking beams
Includes
- PD8
- Hydraulic Oil
- Approach Ramps
- Engineer Certified
- Design Registered with Worksafe
Safety
- 24V controls with isolation switch
- Anti-surge valve
- Mechanical safety lock
- Pneumatic safety locking system
- Alarm sounds when lowered to 400mm
Capacity: 5000KG
Lock Release: Electronic
Minimum Concrete Requirement: 150mm
Power: 3 Phase 280v - 3.5kw 7 amps
Lifting Height: 1900mm
Minimum Height: 180mm
Overall Width: 2220mm
Overall Length (excl. ramps): 5000mm
Width between platforms: 900mm
Platform length: 4800mm
Motor Capacity: 2.2KW
Lifting Time: 30 seconds
Weight: 2800KG
Freight Dimensions:
1. L 5450mm W 690mm H 440mm W 1400KG
2. L 5450mm W 690mm H 440mm W 1400KG
3. L 190mm W 120mm H 140mm W 170KG
We offer a comprehensive warranty on the EE-HX50, covering 5 years on the structure and 2 years on electrical, mechanical, and hydraulic components.
This warranty includes both parts and labour, ensuring that your Wheel Alignment Scissor Lift remains reliable and fully supported, giving you peace of mind throughout its use.

Options

SPECIFICATIONS

-
150mm
Minimum Concrete Requirement
-
4200mm
Recommended Ceiling Height
-
380v / 3.5kw
Power Requirements
-
545 x 69 x 44cm 1400kg - Qty 2
19 x 12 x 14cm 170kgFreight Dimensions
