Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

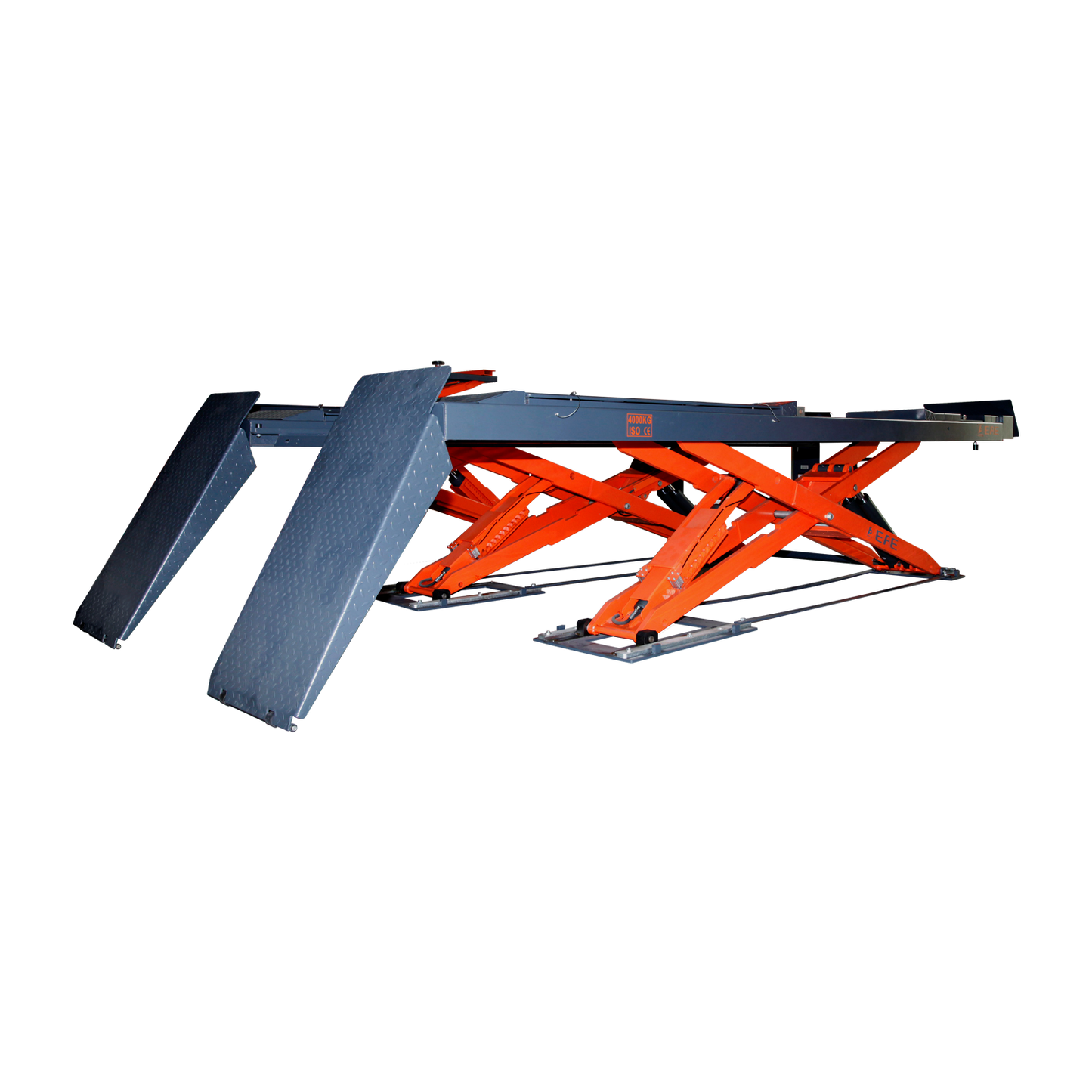

Scissor Lift - Alignment - 5m 4 Ton

Name: Scissor Lift - Alignment - 5m 4 Ton
Brand: Tufflift
SKU: EE-6604V2.B.50L.40T
Price: 21450.00 AUD
Availability: InStock

Scissor Lift - Alignment - 5m 4 Ton

SKU:EE-6604V2.B.50L.40T

$21,450.00 AUD

Sale

Included with your Tufflift: RRP $1,890.00 AUD

The EAE 4 ton 5M Alignment Scissor Lift offers precise wheel alignment with a 4,000KG capacity, full electronic controls, and a durable, column-free design. Enjoy smooth operation with adjustable turntables and long slip plates for maximum efficiency.

* This Scissor lift is 3 phase power only *

Features

4000KG capacity
Aluminium power unit
Full electronic controls
Above ground installation
No columns
Long slip plates and adjustable turntable positions
Electrical levelling
Self-lubricating bushes and bearings
Durable powder coating
In platform jacking beams

Includes

Hydraulic Oil

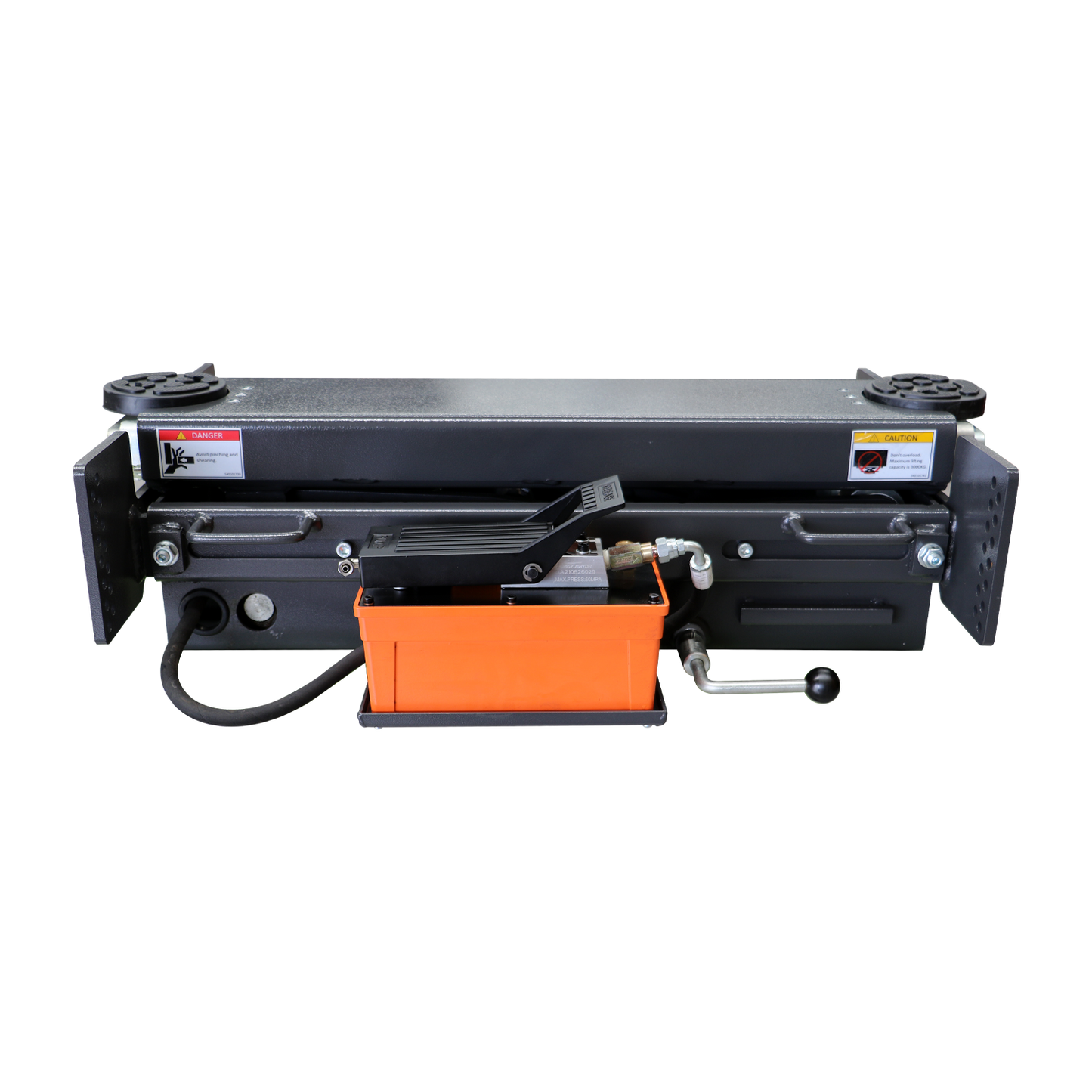

Jacking Beam – RJ6
Engineer Certified
Design Registered with Worksafe

Safety

24V controls with isolation switch
Anti-surge valve
Mechanical safety lock
Pneumatic safety locking system
Alarm sounds when lowered to 400mm

Specifications

Capacity: 4000KG

Lock Release: Electronic

Minimum Concrete Requirement: 150mm

Power: 3 Phase 3.5kw 9 amps

Lifting Height: 1900mm

Minimum Height: 180mm

Overall Width: 2220mm

Overall Length (excl. ramps): 5000mm

Width between platforms: 900mm

Platform length: 4800mm

Motor Capacity: 2.2KW

Lifting Time: 55 seconds

Weight: 2400KG

Freight Dimensions:
1. L 5140mm W 820mm H 390mm W 1297KG
2. L 5140mm W 820mm H 390mm W 1337KG
3. L 1400mm W 1170mm H 470mm W 2200KG

Warranty

We offer a comprehensive warranty on the EE-6604V2.B.50L.40T, covering 5 years on the structure and 2 years on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your Wheel Alignment Scissor Lift remains reliable and fully supported, giving you peace of mind throughout its use.
