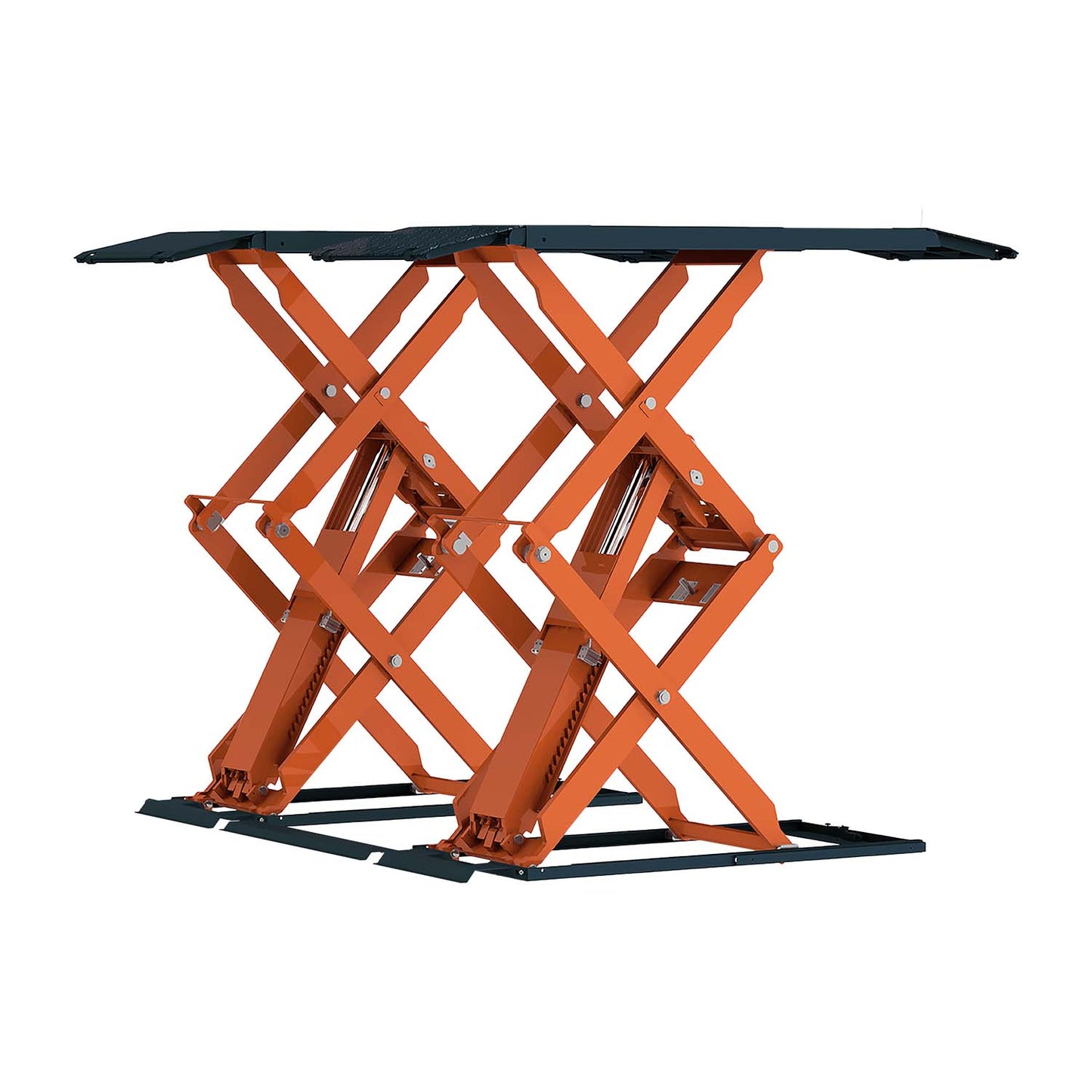

• An orange EAE heavy-duty hydraulic scissor lift in a fully extended position. The lift features a double scissor mechanism for increased height and stability, designed for lifting large vehicles or equipment.

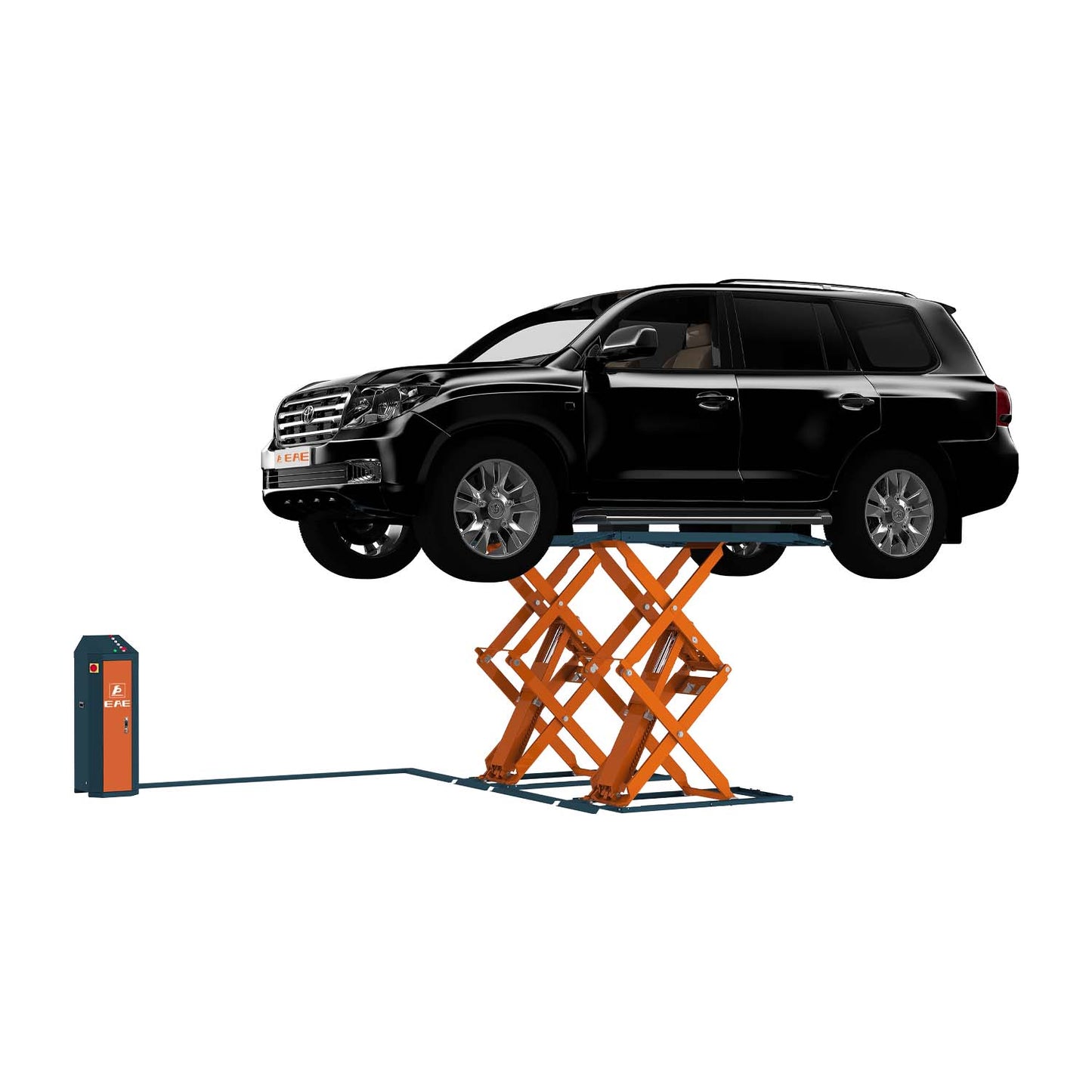

  • Black SUV elevated on an orange scissor lift, demonstrating the lift's capacity to handle large vehicles for maintenance and repairs.

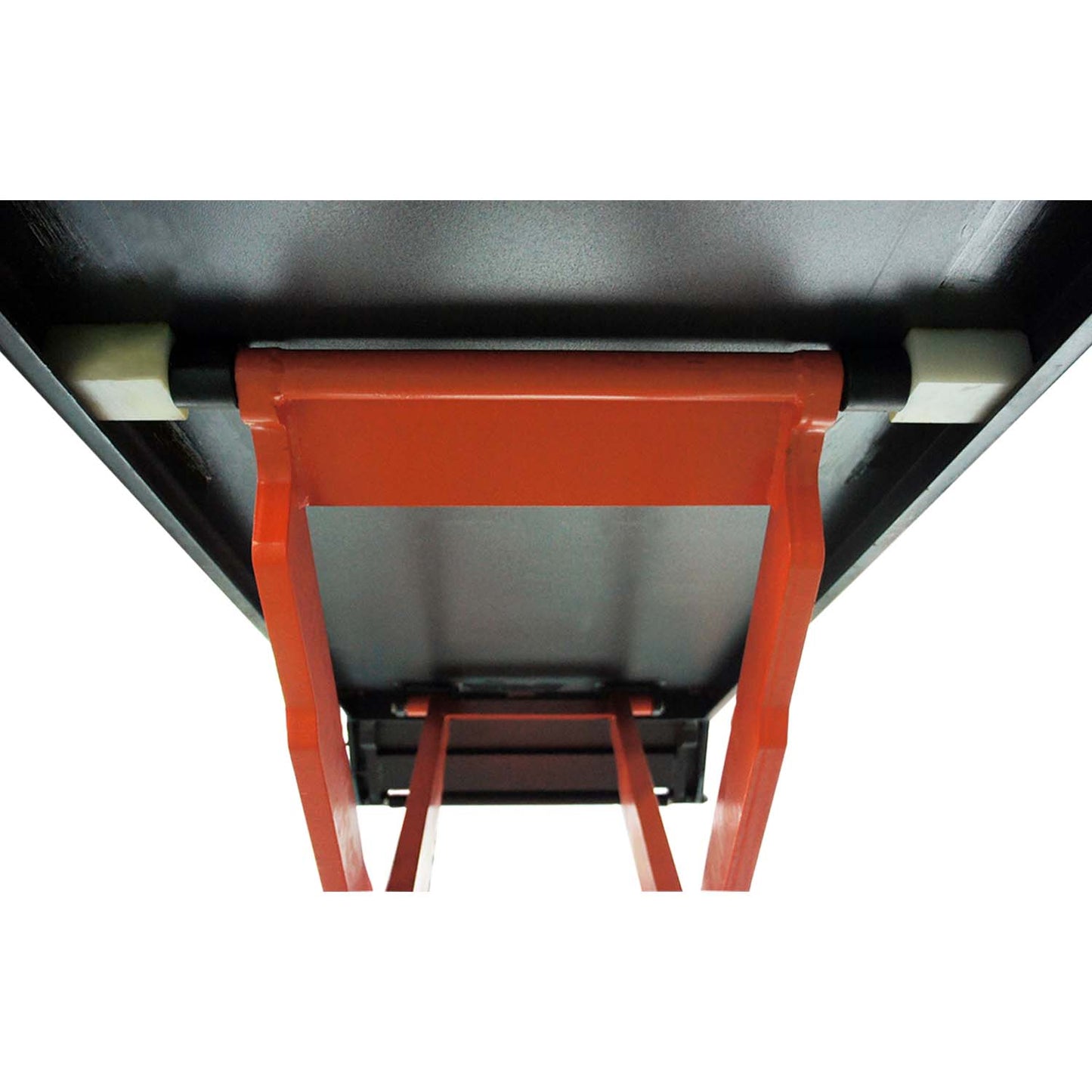

  • Close-up view of the underside of a scissor lift platform, showing the sturdy orange frame and support structure

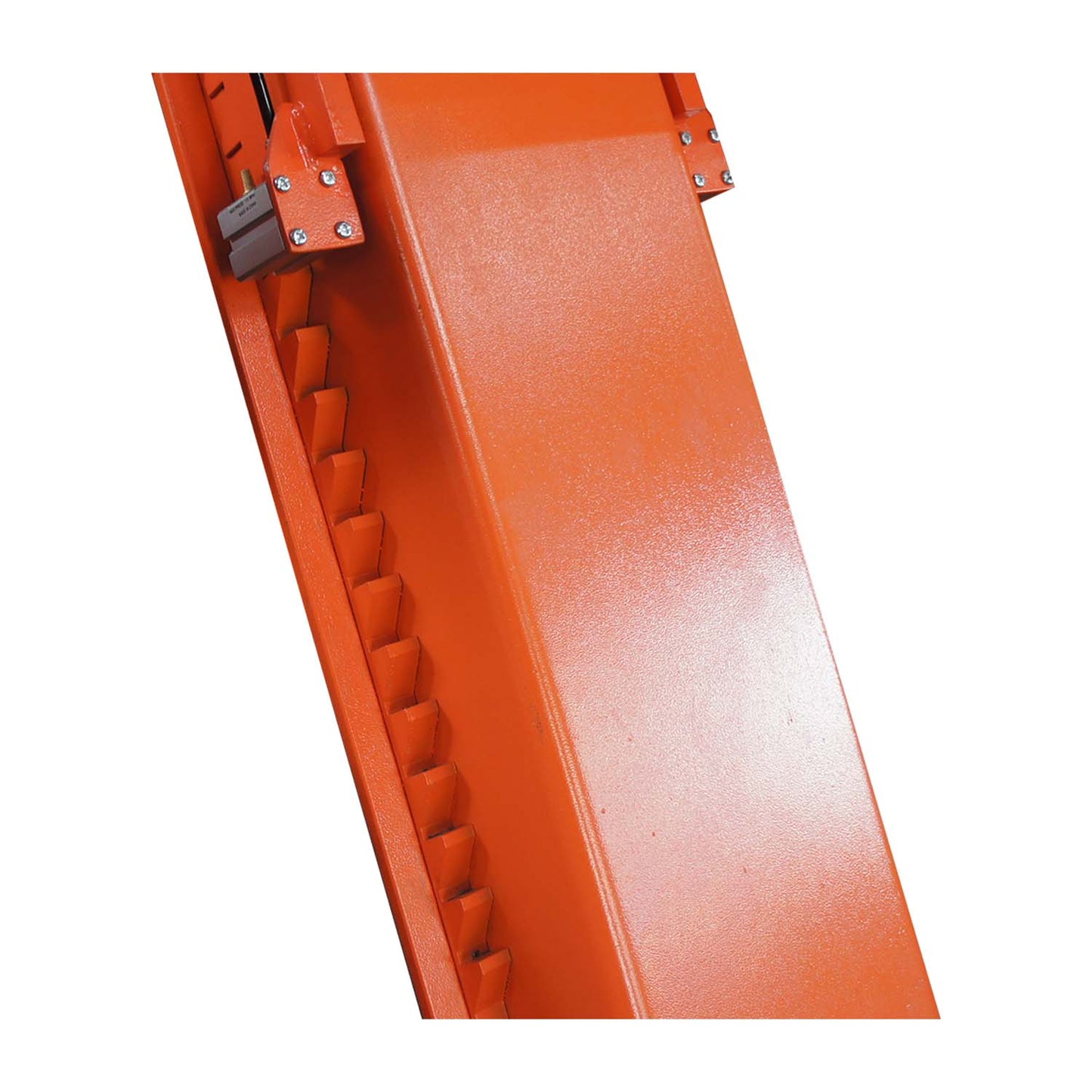

  • Close-up of the orange locking mechanism on a scissor lift, featuring a notched design for securing the lift at various heights.

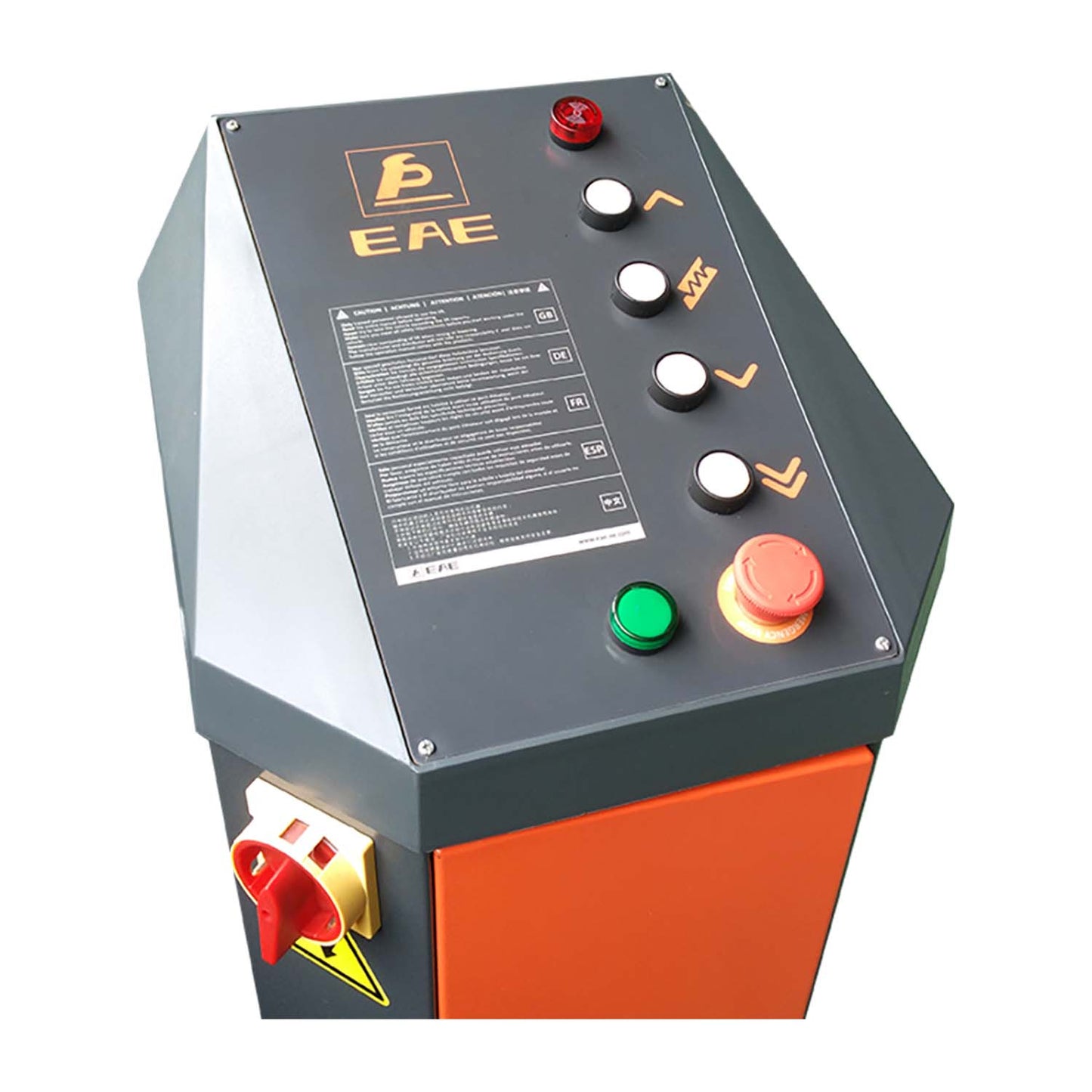

  • Control panel for a scissor lift, featuring buttons for raising and lowering the platform, along with emergency stop and power switches.

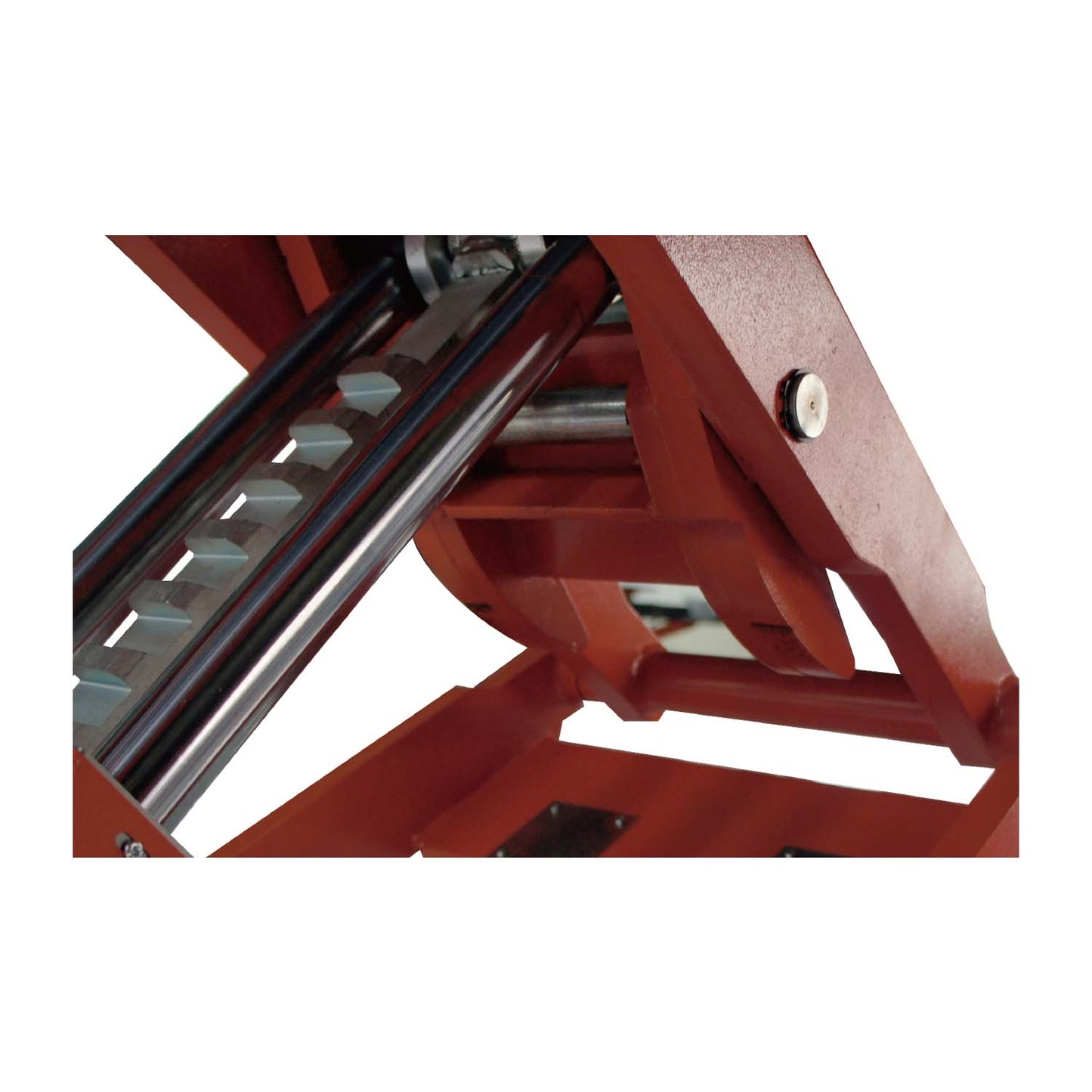

  • Close-up of the internal lifting mechanism of a scissor lift, featuring sturdy metal components and a notched rail for adjusting height.

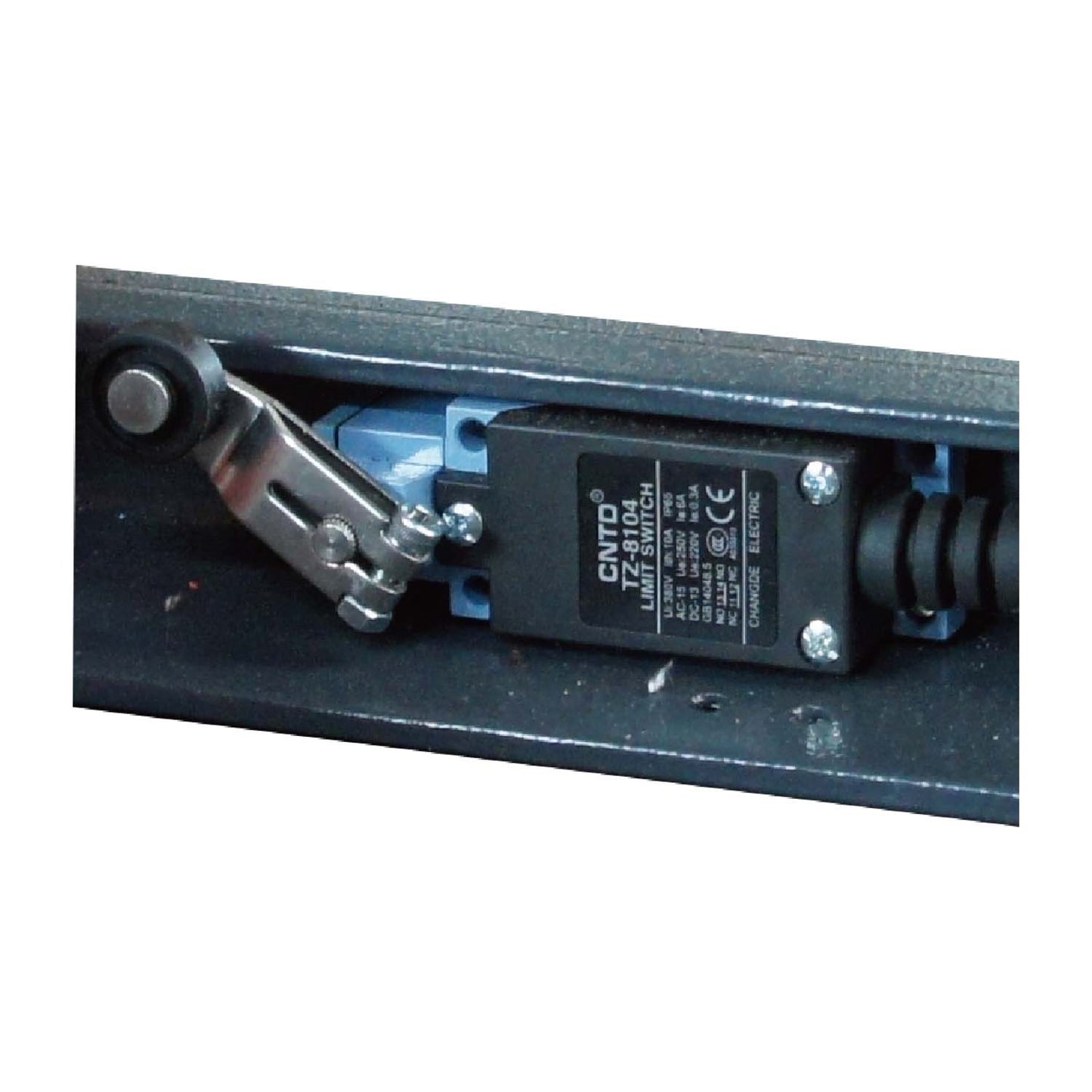

  • Close-up of a limit switch on a scissor lift, designed to control the maximum height and ensure safe operation.
1 7

Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

Scissor Lift - Full Rise - 4 Ton

Scissor Lift - Full Rise - 4 Ton

EE-65A

$9,790.00 AUD inc. GST
$9,790.00 AUD inc. GST
Sale
Taxes included. Shipping calculated at checkout.
Choose a Power Supply
Included with your Tufflift: RRP $199.00 AUD
Hydraulic 46 Oil 4 Litre Container
EAE Rubber Pad

The Full Rise Scissor Lift 4 Ton offers a 4000KG capacity, making it perfect for workshops with limited space. Its four-cylinder design and aluminum power unit ensure strong, consistent performance. Surface-mounted with drive-on ramps that lock as the platform extends, it features full electronic controls, a height limit switch, self-lubricating bearings, and a durable powder-coated finish.

Features
  • 4000KG capacity
  • Ideal for workshops where space is a premium
  • Four cylinder design
  • Aluminium power unit
  • Full electronic controls
  • Surface mount
  • Drive-on ramps lock into position as platform extends
  • Height limit switch
  • Self-lubricating bushes and bearings
  • Minimum height 130mm
  • Durable powder coating
  • See list of features and benefits

Includes

  • Hydraulic Oil
  • Engineer Certified
  • Design Registered with Worksafe

Safety

  • 24V controls with isolation switch
  • Anti-surge valve
  • Mechanical safety lock
  • Pneumatic safety locking system

Options

  • Approach ramp kit
  • SUV kit
Specifications

Capacity: 4000KG

Lock Release: Electronic

Minimum Concrete Requirement: 150mm

Power: 240v 2.2kw 16 amps | 3 Phase 2.2kw 5 amps

Lifting Height: 1930mm

Minimum Height: 130mm

Overall Width: 2120mm

Overall Length: 2100mm

Width between platforms: 800mm

Platform length: 1475mm

Motor Capacity: 2.2KW

Lifting Time: 60 seconds

Weight: 1000KG

Freight Dimensions:
L 2250mm W 700mm H 960mm W 1100KG

Warranty

We offer a comprehensive warranty on the EE-65A, covering 5 years on the structure and 2 years on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your Full Rise Scissor Lift remains reliable and fully supported, giving you peace of mind throughout its use.

Download Brochure Icon Download Product Brochure Financing Icon Explore Our Financing Options Enquire Icon Enquire About This Product
View full details

Options

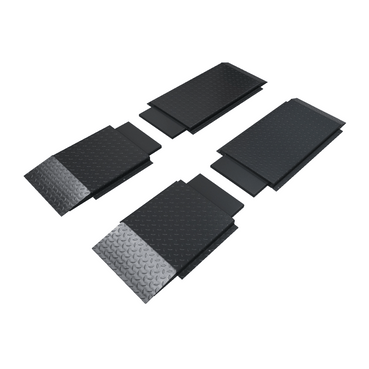

Approach Ramps for EE-65A
Approach Ramps for EE-65A $990.00 AUD 792271002

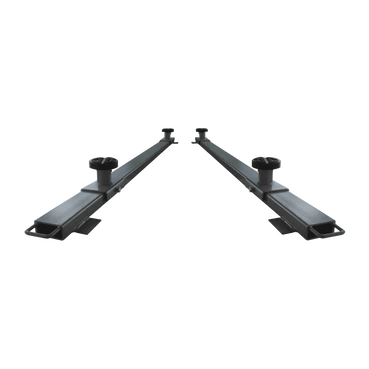

SUV/4WD Adapter for EAE Scissor Lifts
