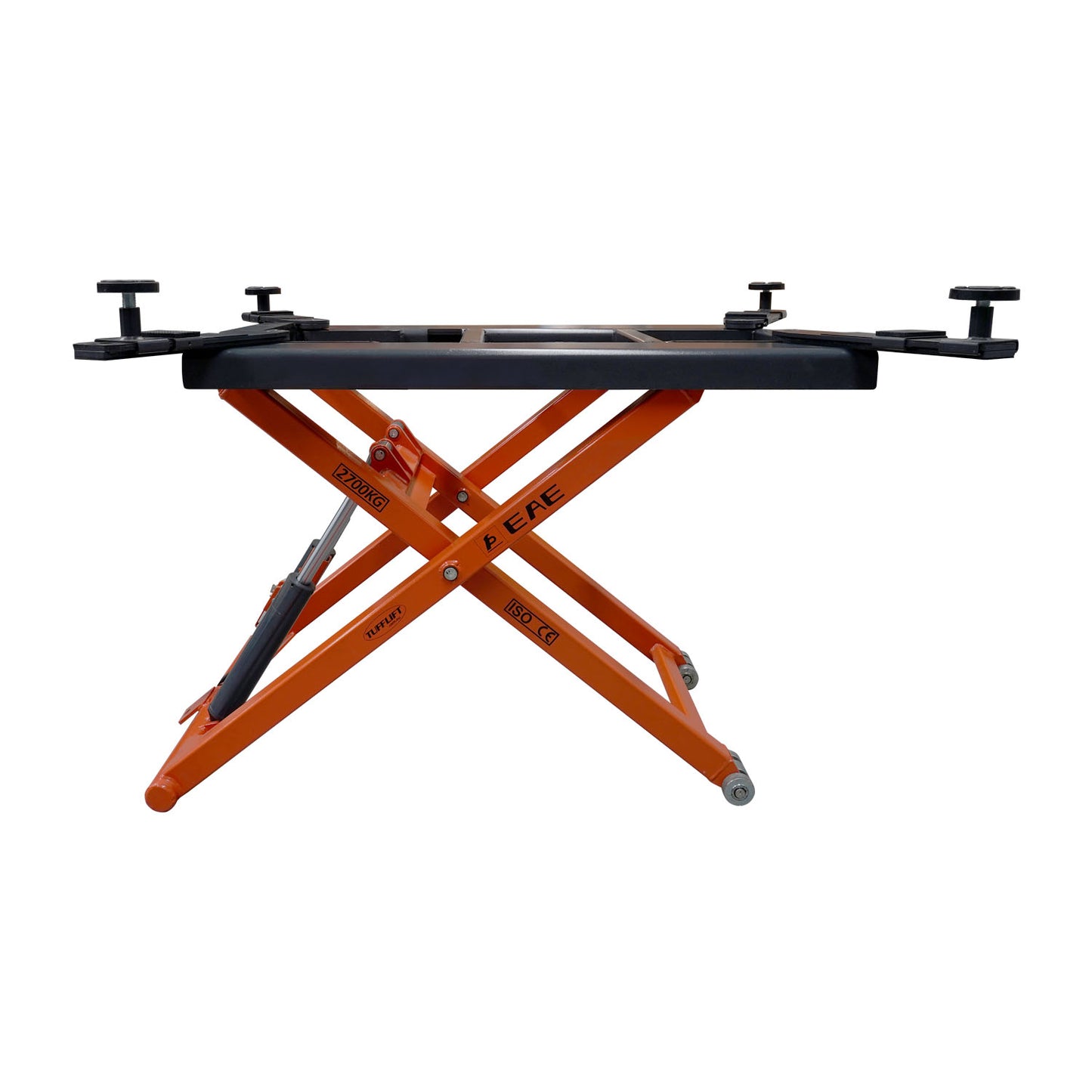

• Side view of an orange hydraulic scissor lift platform by EAE. The 2700kg weight capacity, ISO and CE certifications visible on the frame

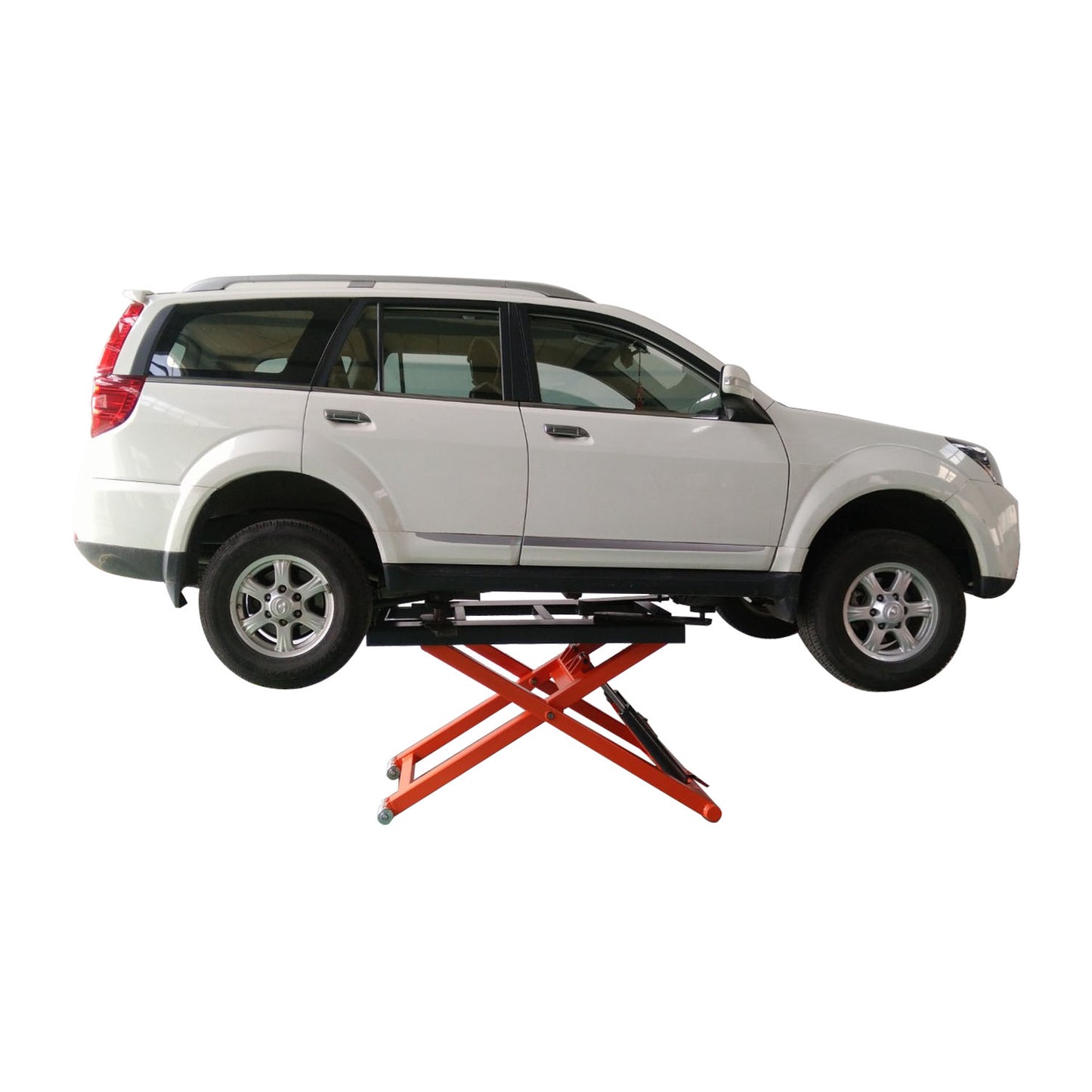

  • A white SUV elevated on an orange EAE hydraulic scissor lift platform. The platform is positioned under the vehicle, with all four wheels off the ground

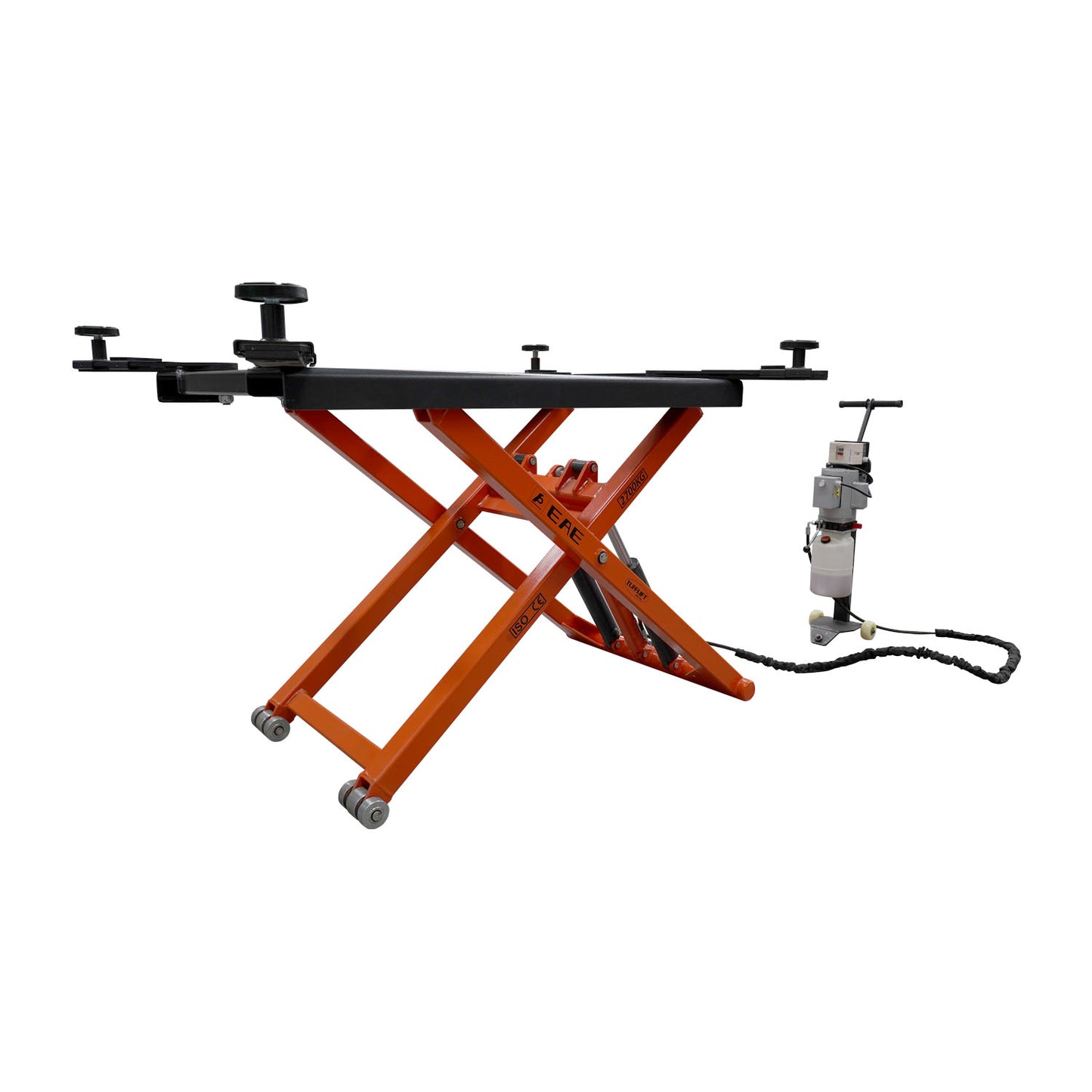

  • An orange EAE hydraulic scissor lift elevated at full height. The control unit and wiring are visible nearby, showcasing its compact design for vehicle maintenance.

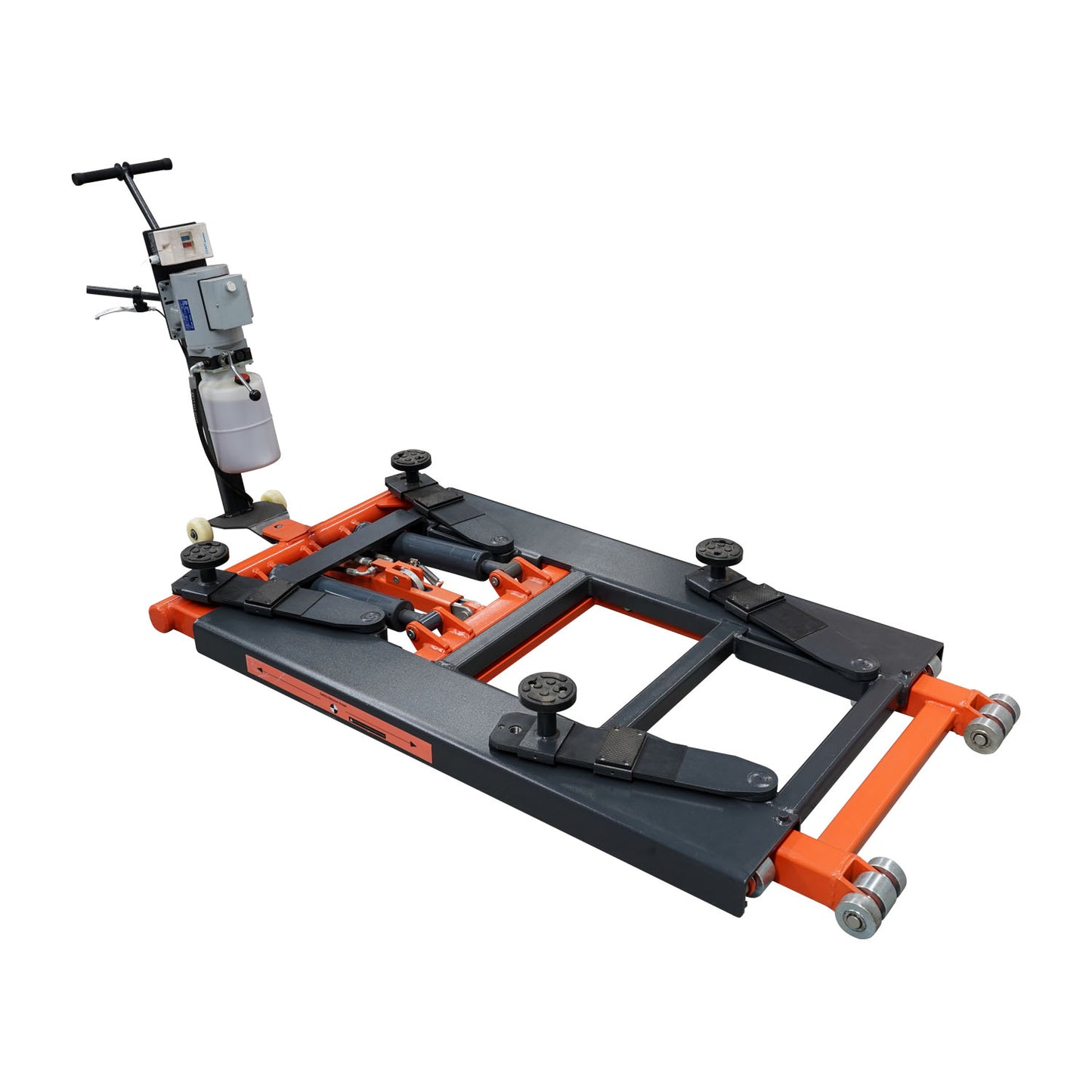

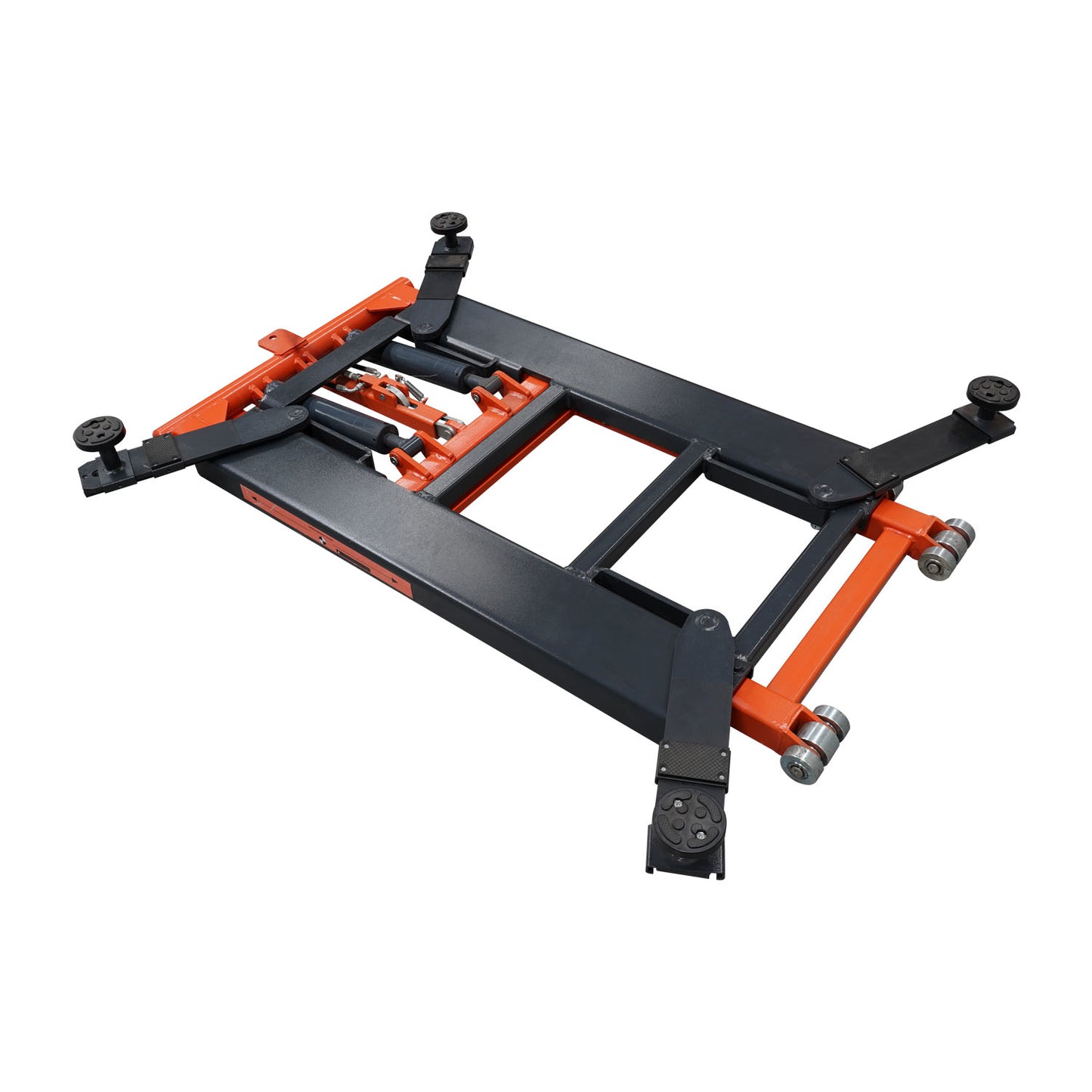

  • A top-down angle view of an orange and black EAE hydraulic scissor lift, model TS6600, in its fully lowered position. The structural framework and lifting mechanisms are clearly visible.
  • An orange and black EAE hydraulic scissor lift, model TS6600, in a fully lowered position on a workshop floor. The control unit with wiring is connected to the lift, showcasing its compact design.

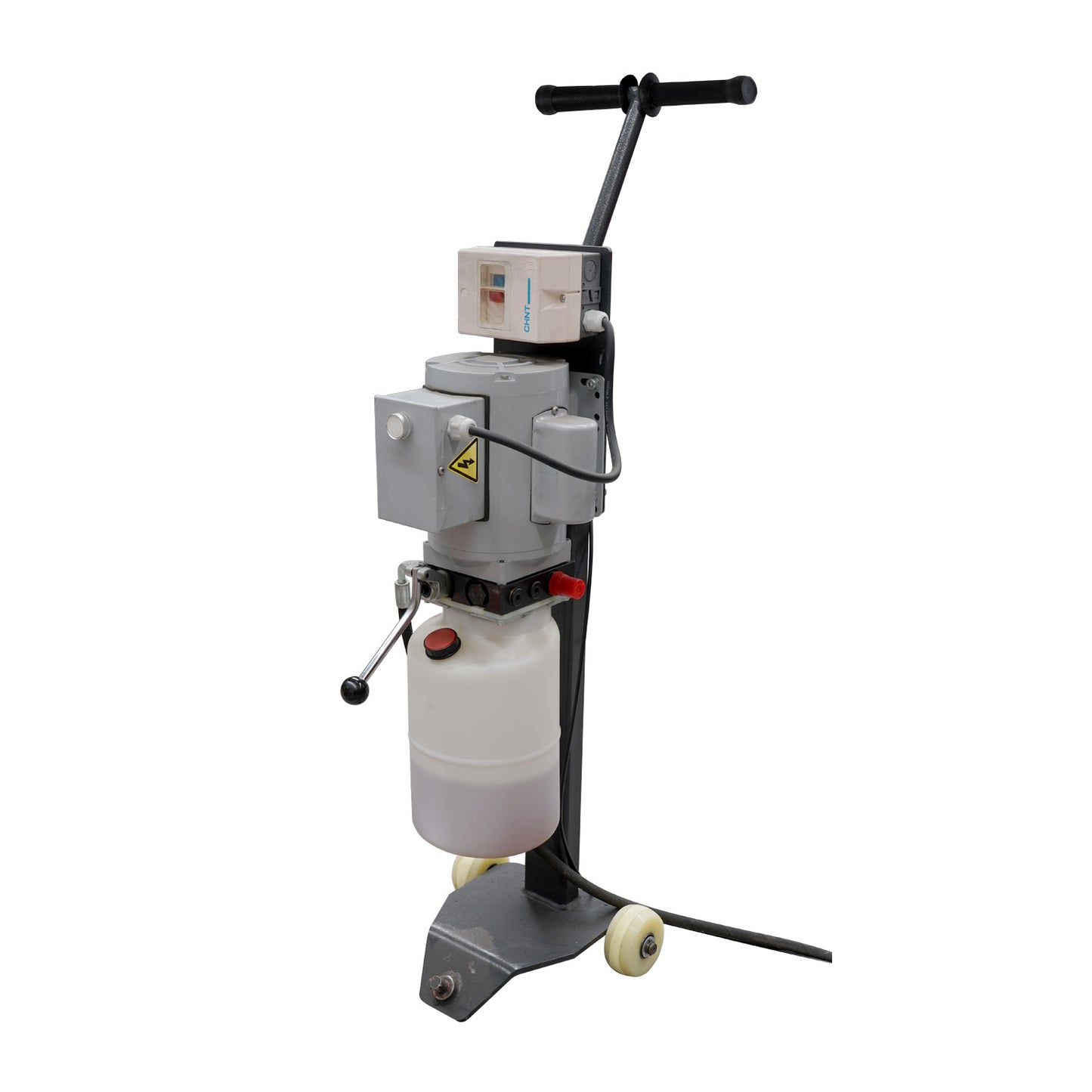

  • A close-up view of the control unit for an EAE hydraulic scissor lift. The unit features a handlebar and wheels for mobility, an attached power cord, control levers, and a fluid reservoir, showcasing the operational components used for managing the lift.

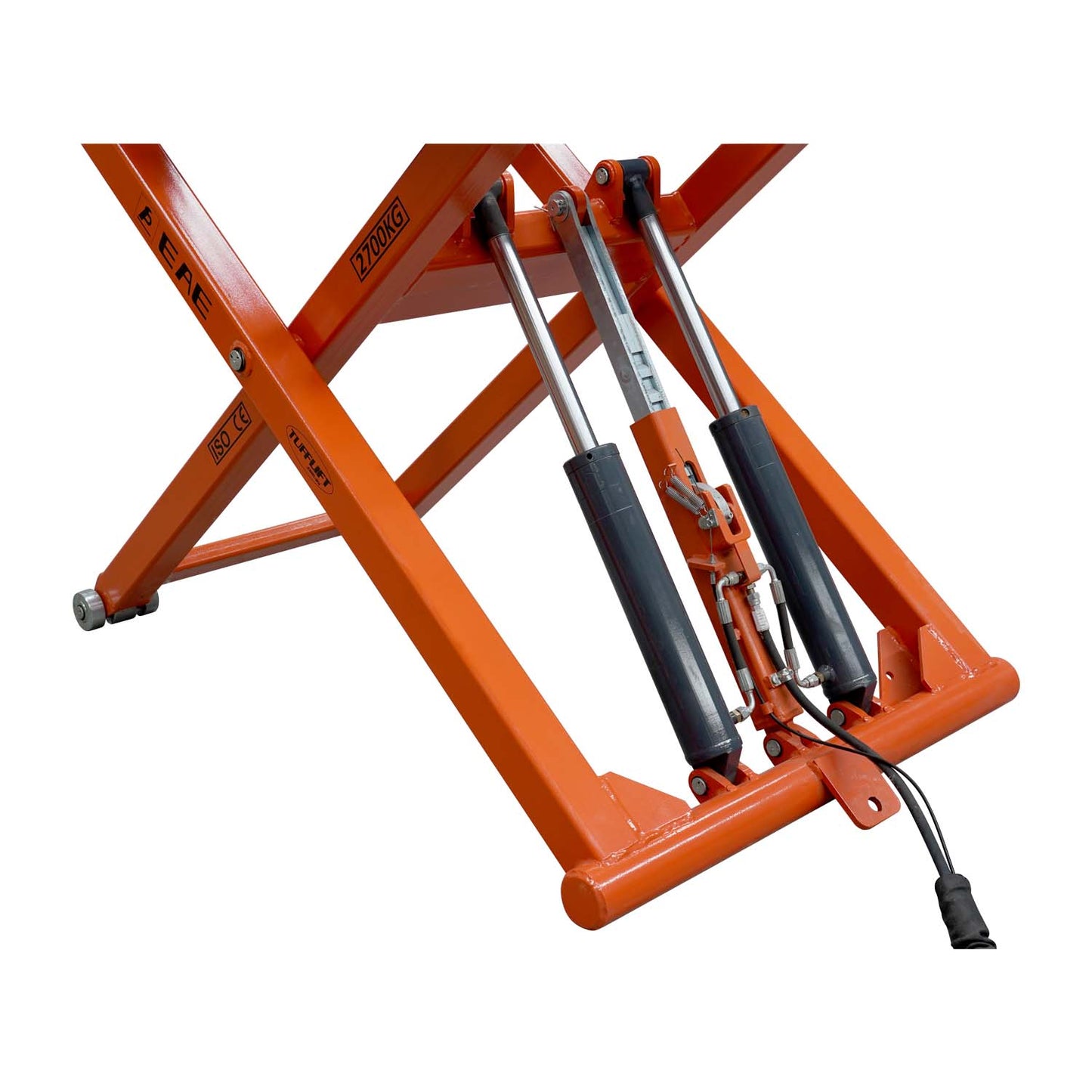

  • A close-up view of the hydraulic cylinders and mechanisms of an orange EAE scissor lift, model TS6600. The lift's support structure, labeled with a 2700kg capacity, is visible along with connected hydraulic lines and pistons.

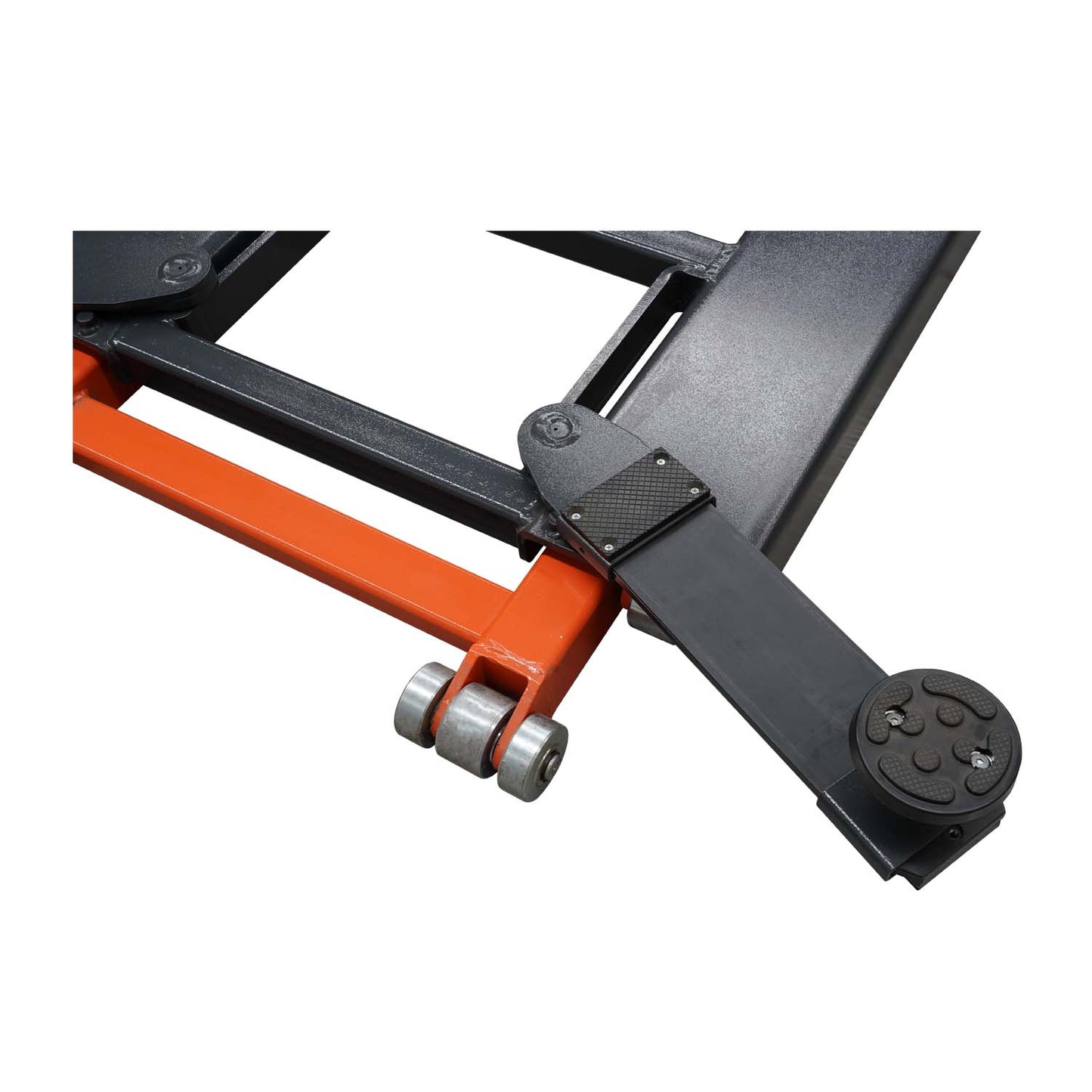

  • A close-up of the corner section of an orange and black EAE hydraulic scissor lift, focusing on the roller wheels and one of the adjustable lifting arms with a circular pad.
1 8

Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

Scissor Lift - Mid Rise Compact Mobile - 2.7 Ton

Scissor Lift - Mid Rise Compact Mobile - 2.7 Ton

EE-TS6600

$3,390.00 AUD inc. GST
$3,390.00 AUD inc. GST
Sale
Taxes included. Shipping calculated at checkout.
Choose a Power Supply
Included with your Tufflift: RRP $66.00 AUD
Hydraulic 46 Oil 4 Litre Container

The Compact Mid Rise Mobile Scissor Lift, with a 2700KG capacity, is a versatile solution ideal for tyre services, detailing, and small spaces. It offers both fixed and mobile mounting options, a durable dual-cylinder structure, and a low-profile design with multiple pickup adapters.

Features
  • 2700KG capacity
  • Minimum height 135mm
  • Manual safety lock release
  • Versatility of fixed or mobile design
  • Multiple pick up adapters
  • Surface mount
  • Durable powder coating
  • The dual cylinder structure
  • Ideal for tyre services, detailing, sign writers and limited work spaces
  • Mobile or fixed mount design
  • Low voltage and movable control unit
  • See list of features and benefits

Includes

  • Hydraulic Oil
  • Engineer Certified
  • Design Registered with Worksafe

Safety

  • Anti-surge valve
  • Mechanical safety lock
  • Manual safety lock release
Specifications

Capacity: 2700KG

Lock Release: Mechanical

Minimum Concrete Requirement: 100mm

Power: 240v 2.2kw 20 amps

Lifting Height: 1200mm

Minimum Height: 135mm

Overall Width: 1660mm

Overall Length: 2100mm

Width (platform to platform): 1004mm

Platform length: 1550mm

Motor Capacity: 2.2KW

Lifting Time: 45 seconds

Weight: 450KG

Freight Dimensions:
L 2060mm W 1020mm H 670mm W 473KG

Warranty

We offer a comprehensive warranty on the EE-TS6600, covering 5 years on the structure and 2 years on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your Compact Mid Rise Scissor Lift remains reliable and fully supported, giving you peace of mind throughout its use.

Download Brochure Icon Download Product Brochure Financing Icon Explore Our Financing Options Enquire Icon Enquire About This Product
View full details

SPECIFICATIONS

Product Specifications Image

  • 100mm

    Minimum Concrete Requirement

  • 240v / 2.2kw 20amps

    Power Requirements

  • 206 x 102 x 67cm 473kg

    Freight Dimensions
