Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

Transmission Jack - Single Stage Cradle - 0.5 Ton

Name: Transmission Jack - Single Stage Cradle - 0.5 Ton
Brand: Tufflift
SKU: TEL05001
Price: 195.00 AUD
Availability: OutOfStock

Transmission Jack - Single Stage Cradle - 0.5 Ton

SKU:TEL05001

$195.00 AUD inc. GST

Sale Sold out

Taxes included. Shipping calculated at checkout.

The Transmission Jack - 0.5 Ton offers durability and precision with its high-grade steel frame and corrosion-resistant finish. The stable, wide base and adjustable saddle tilt provide versatile support, while the efficient hydraulic system ensures smooth, easy lifting.

Features

Durable frame constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup

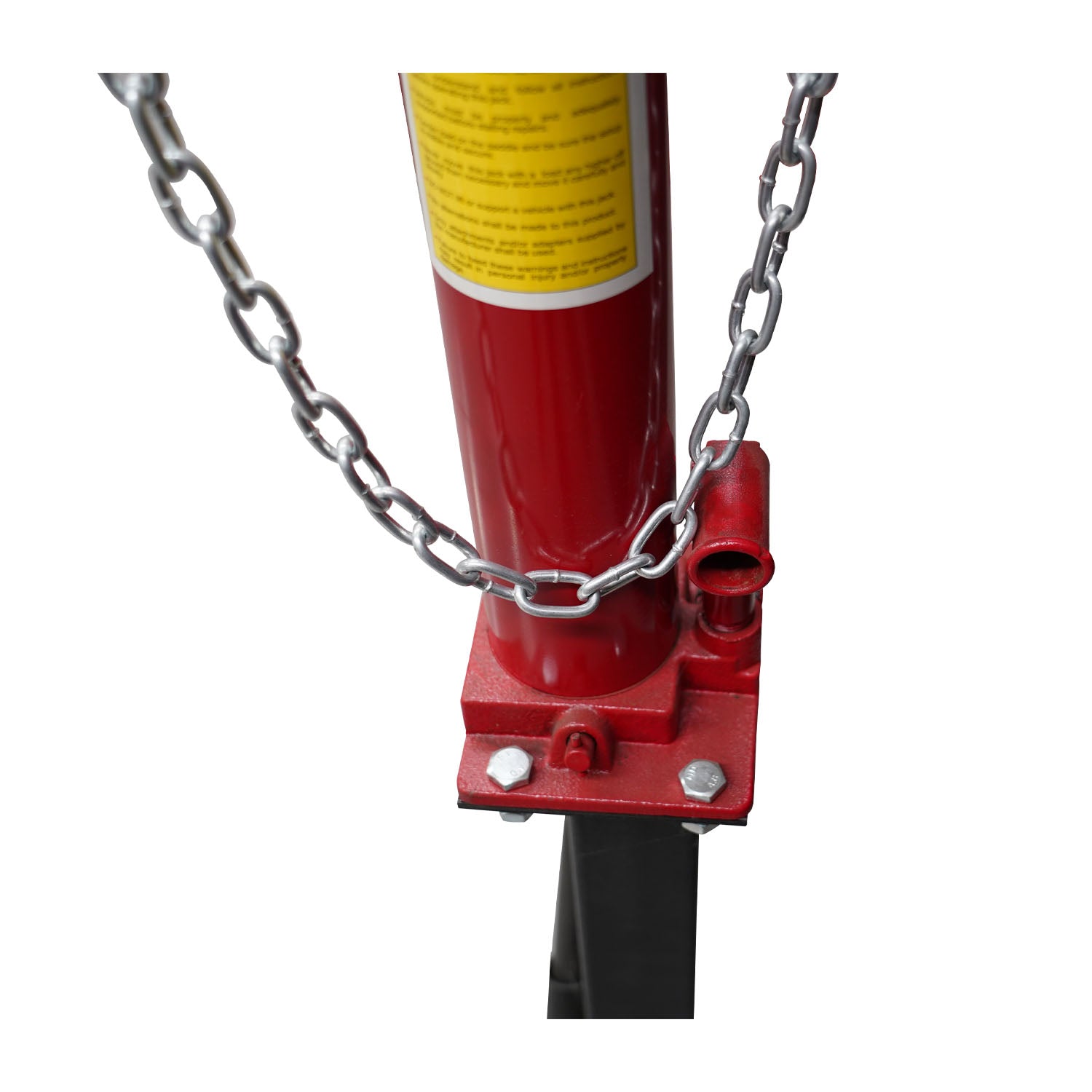

High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility

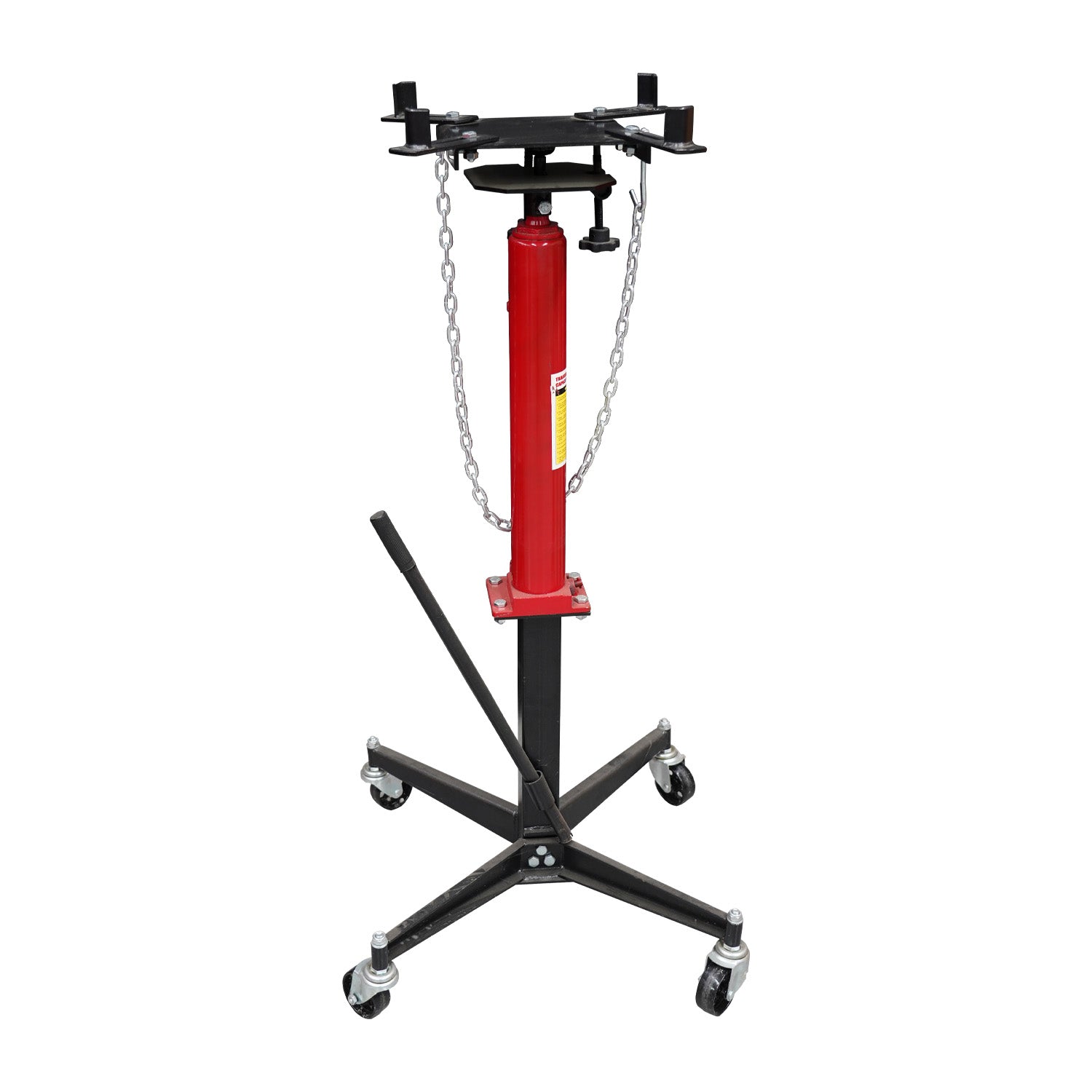

Wide base provides exceptional stability

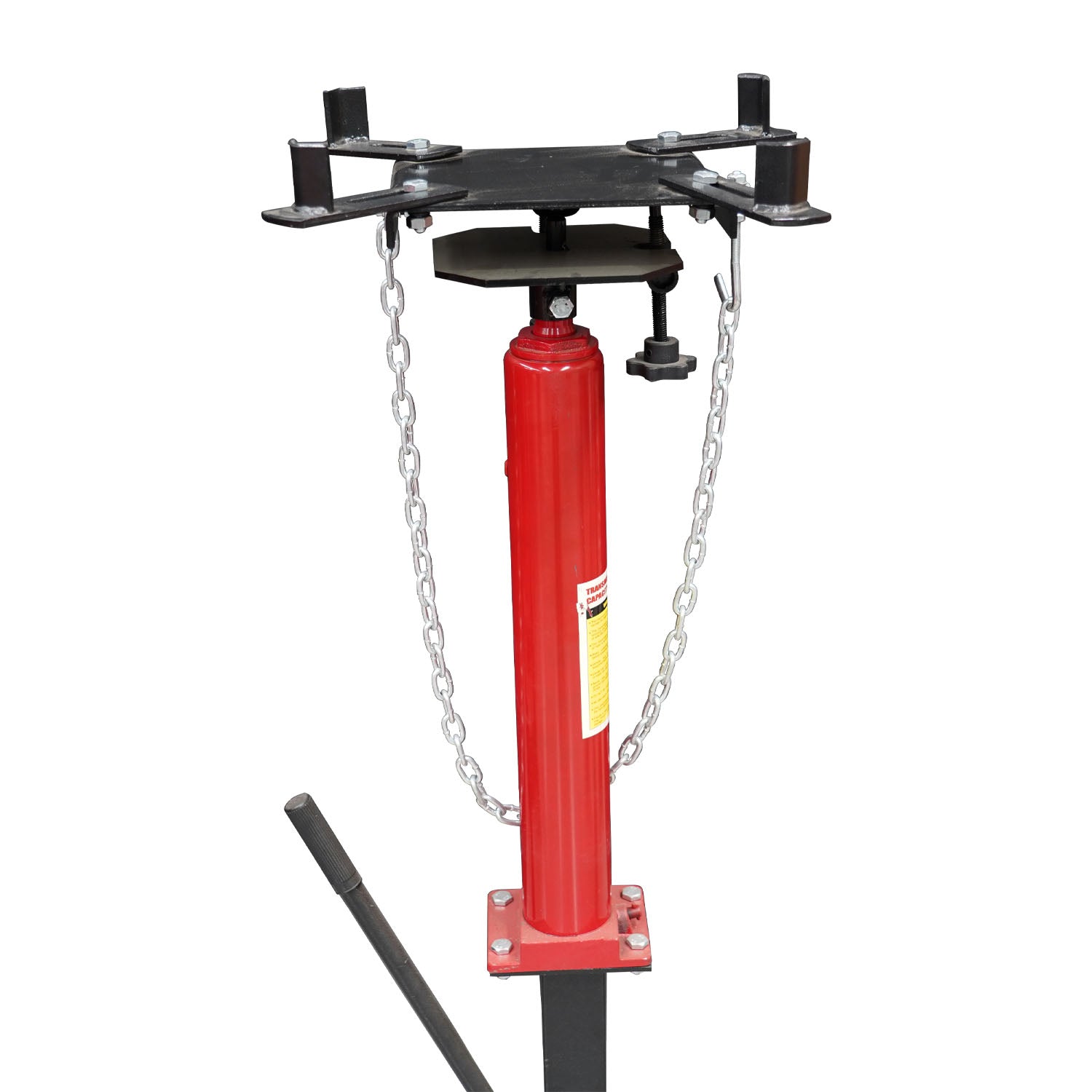

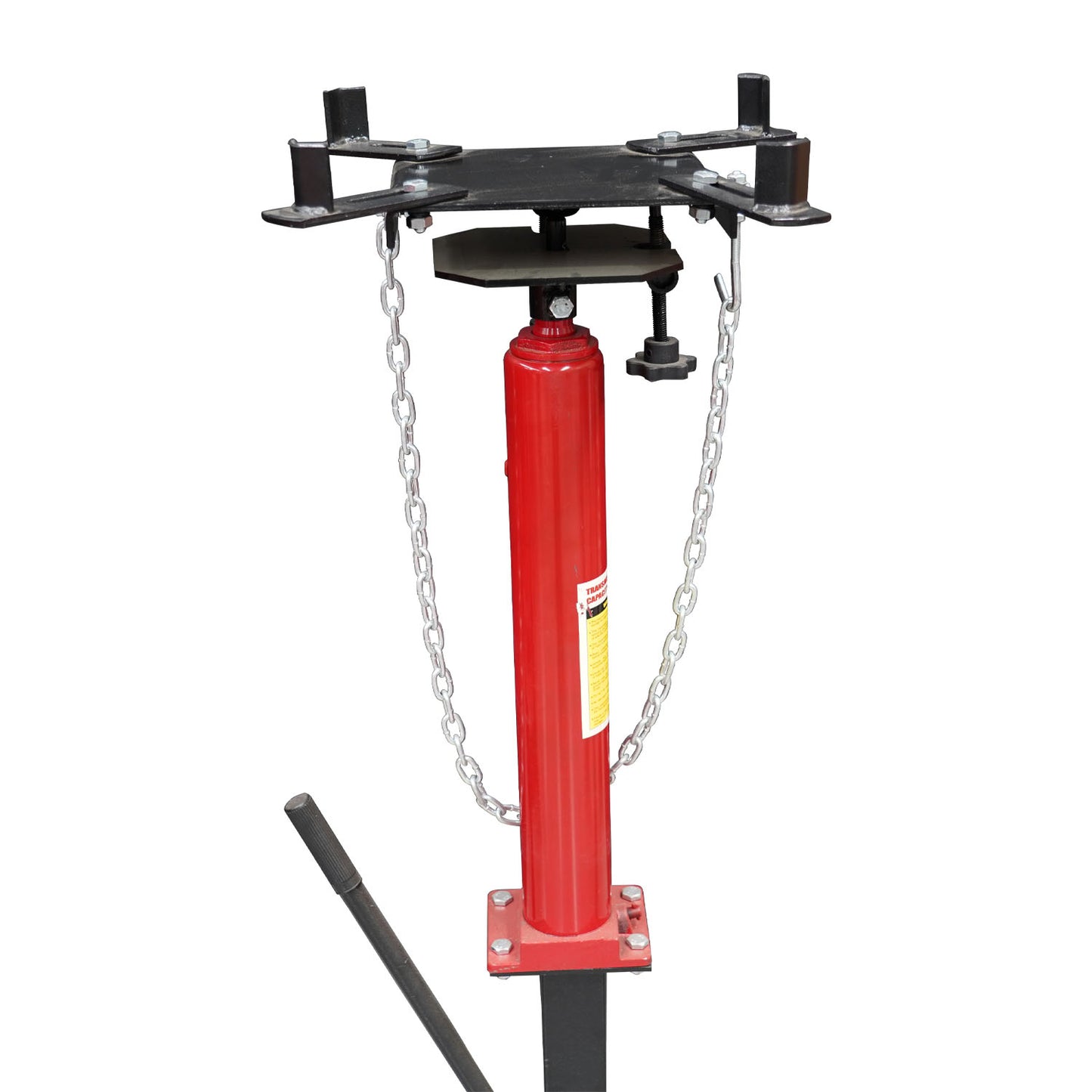

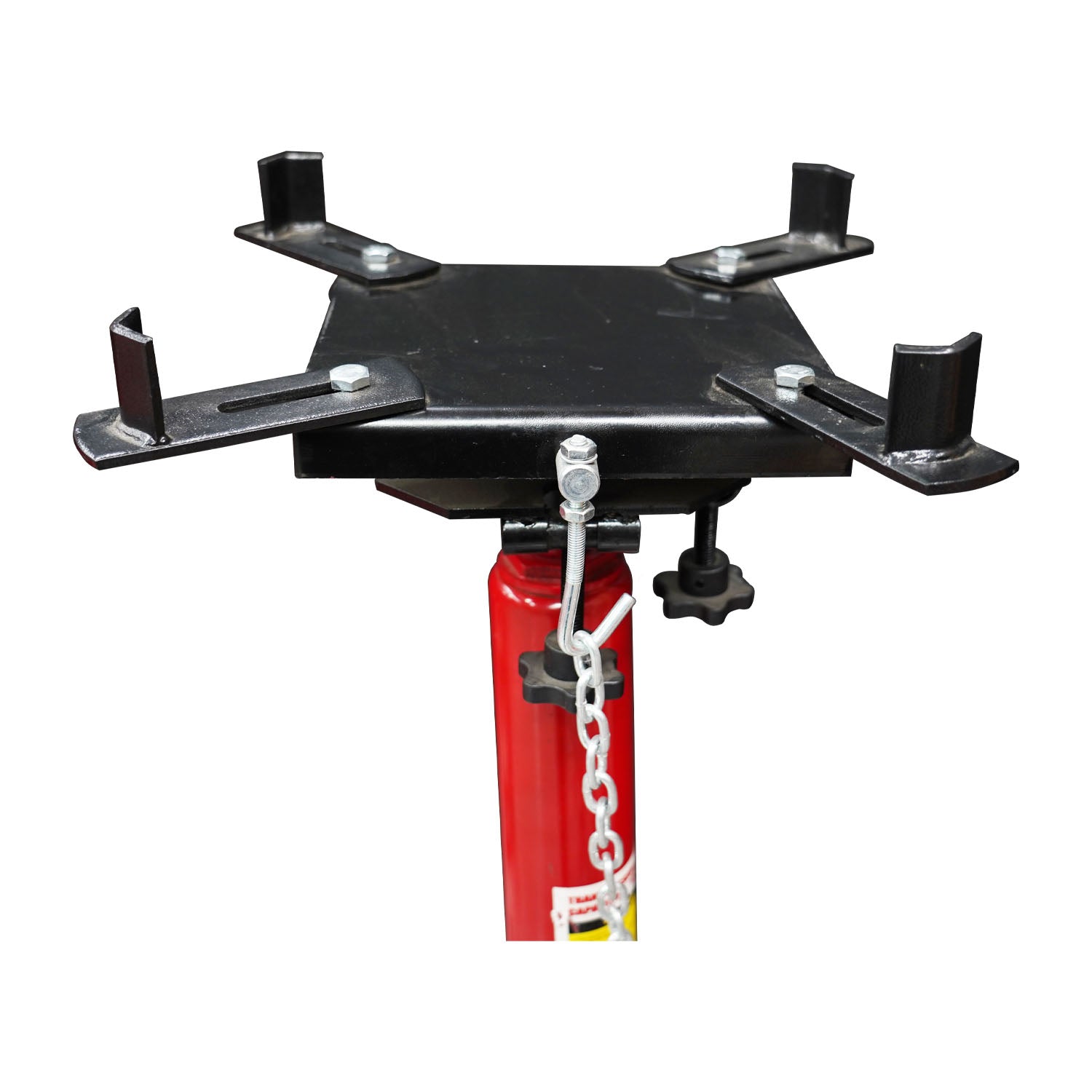

Saddle has forward tilt of 14°, aft tilt of 72°, right 31° and left 45°, and features adjustment knobs for controlling tilt
Raises and lowers easily using pump handle with comfortable rubberized grip

Specifications

Capacity: 0.5Ton

Min Height: 1260mm

Max Height: 1735mm

Net Weight: 33Kg

Gross Weight: 35.5Kg

Freight Dimensions:
L 670mm W 420mm H 270mm W 40KG

Warranty

We offer a comprehensive warranty on the TEL05001, covering 12 months. This warranty includes parts only, ensuring that your Transmission Jack remains reliable and fully supported, giving you peace of mind throughout its use.
