Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

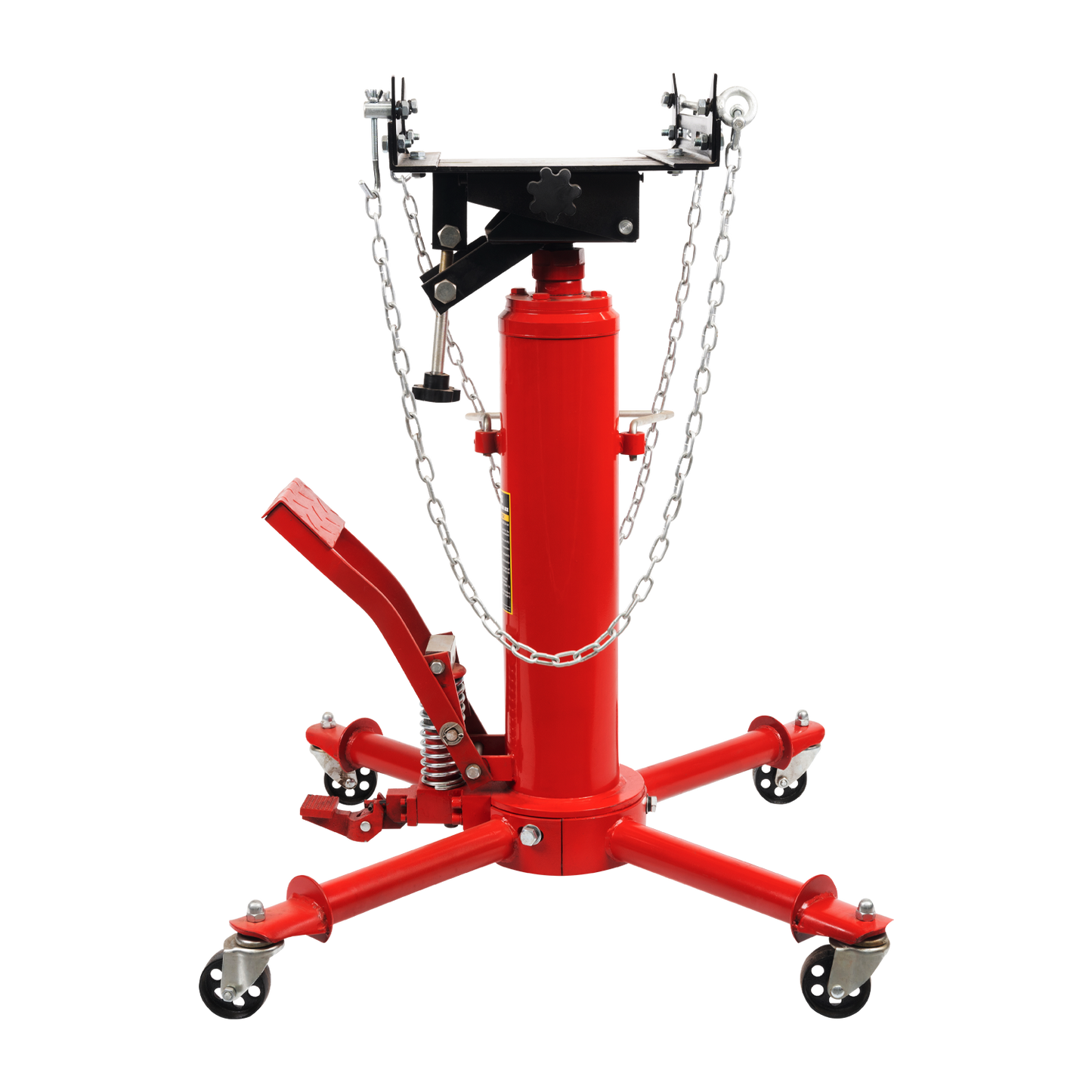

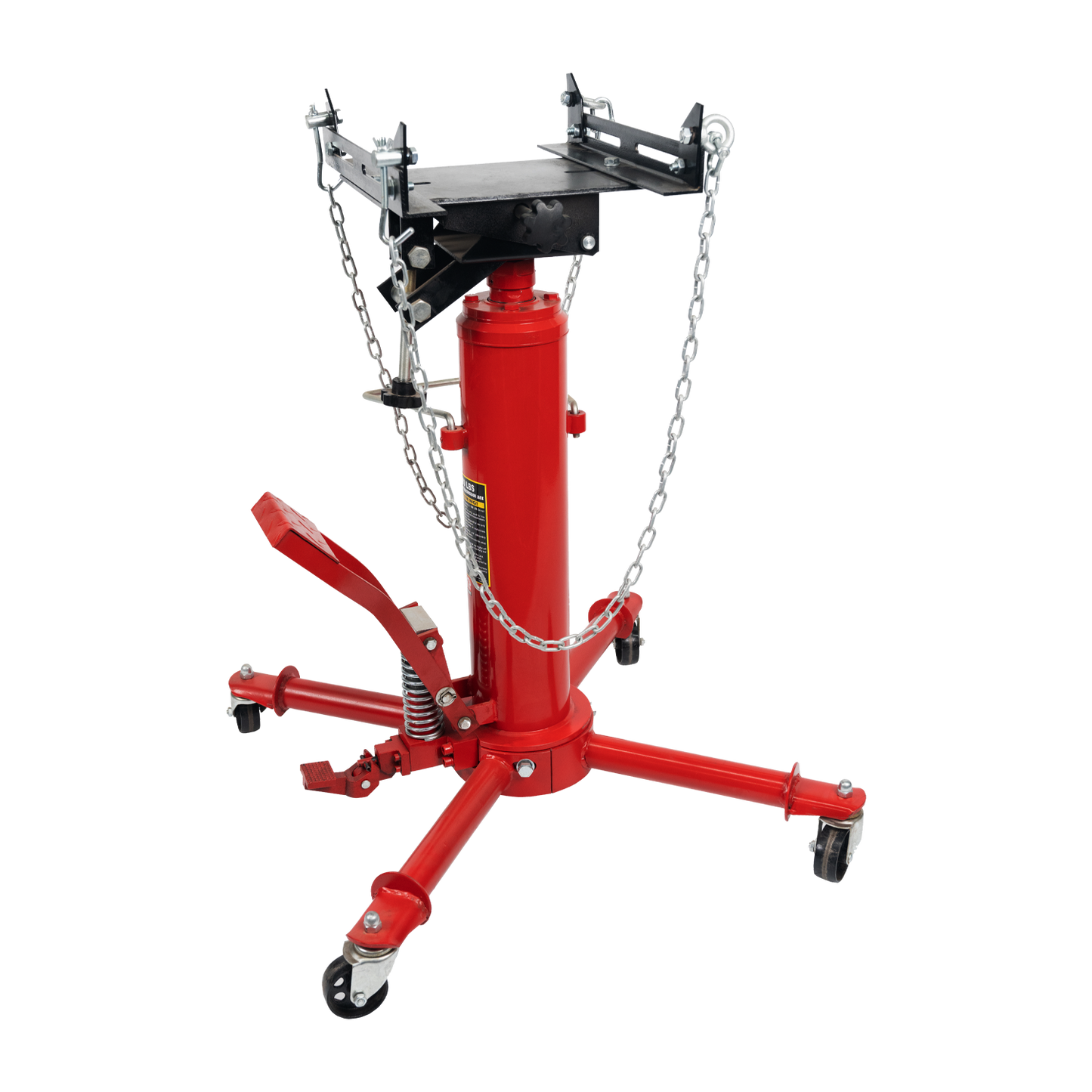

Transmission Jack with Upgraded Seal Kit - Two Stage - 0.5 Ton

Name: Transmission Jack with Upgraded Seal Kit - Two Stage - 0.5 Ton
Brand: Tufflift
SKU: TEL05006
Price: 725.00 AUD
Availability: InStock

Transmission Jack with Upgraded Seal Kit - Two Stage - 0.5 Ton

SKU:TEL05006

$725.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Quantity

The Transmission Jack with Upgraded Seal Kit - Two Stage (0.5 Ton) is built from high-grade steel for durability and reliability. Designed with a corrosion-resistant finish, it resists oil, grease, and dirt, ensuring easy maintenance. The high-quality hydraulic cylinder and upgraded seal kit deliver smoother operation, while the wide base and adjustable saddle provide exceptional stability and tilt control.

Features

Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Wide base provides exceptional stability
Saddle has forward tilt of 14°, aft tilt of 72°, right 31° and left 45°, and features adjustment knobs for controlling tilt

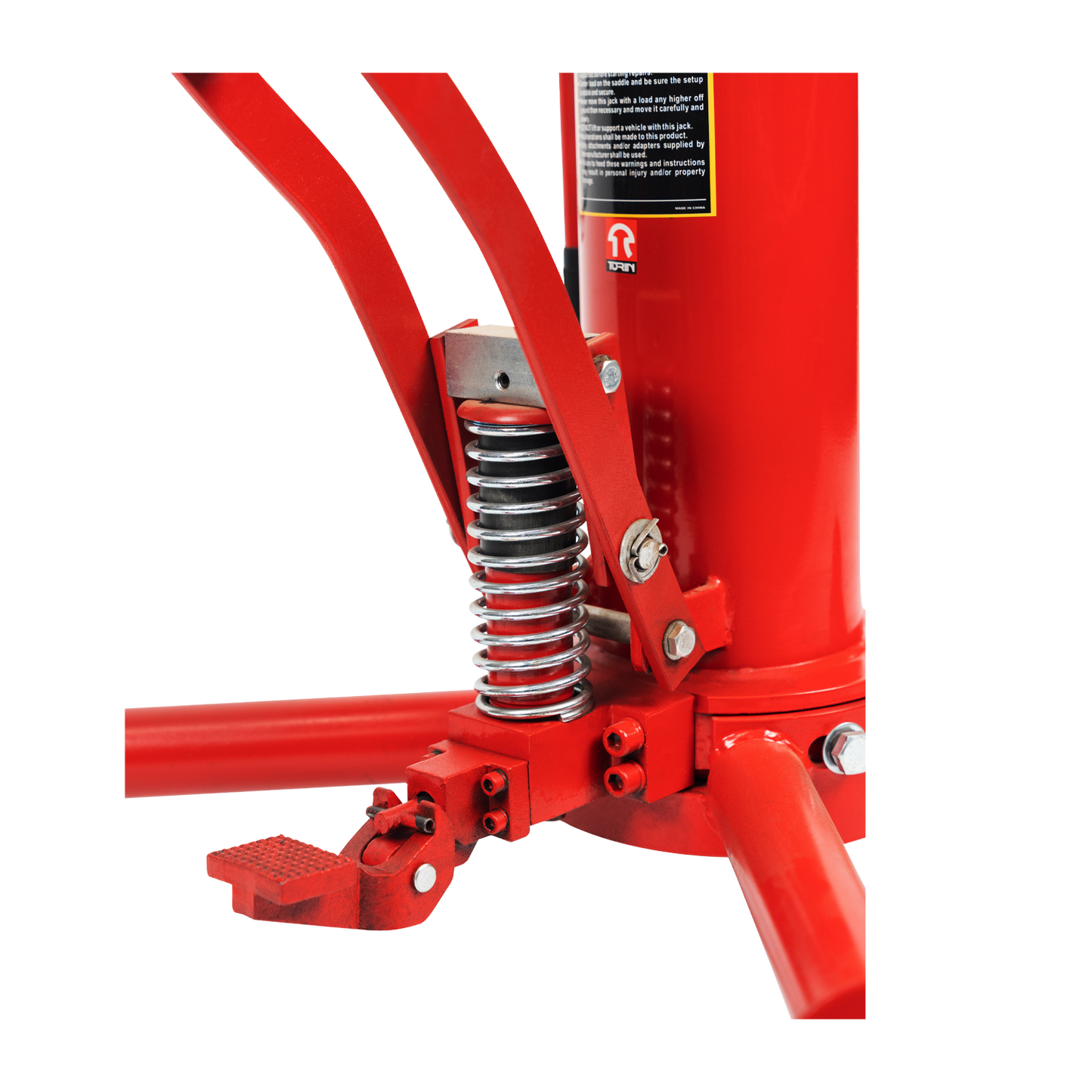

Raises and lowers easily using pump handle with comfortable rubberized grip

Waranty

12 months

Specifications

Capacity: 500KG

Minimum height: 875mm

Maximum height: 1855mm

Net weight: 76KG

Gross weight: 85KG

Freight dimensions:
L 590mm W 360mm H 860mm W 88KG

Warranty

We offer a comprehensive warranty on the TEL05006, covering 12 months. This warranty includes parts only, ensuring that your Transmission Jack remains reliable and fully supported, giving you peace of mind throughout its use.
