Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.
Tufflift
Truck Tyre Changer
Truck Tyre Changer
SKU:CD830A
Couldn't load pickup availability

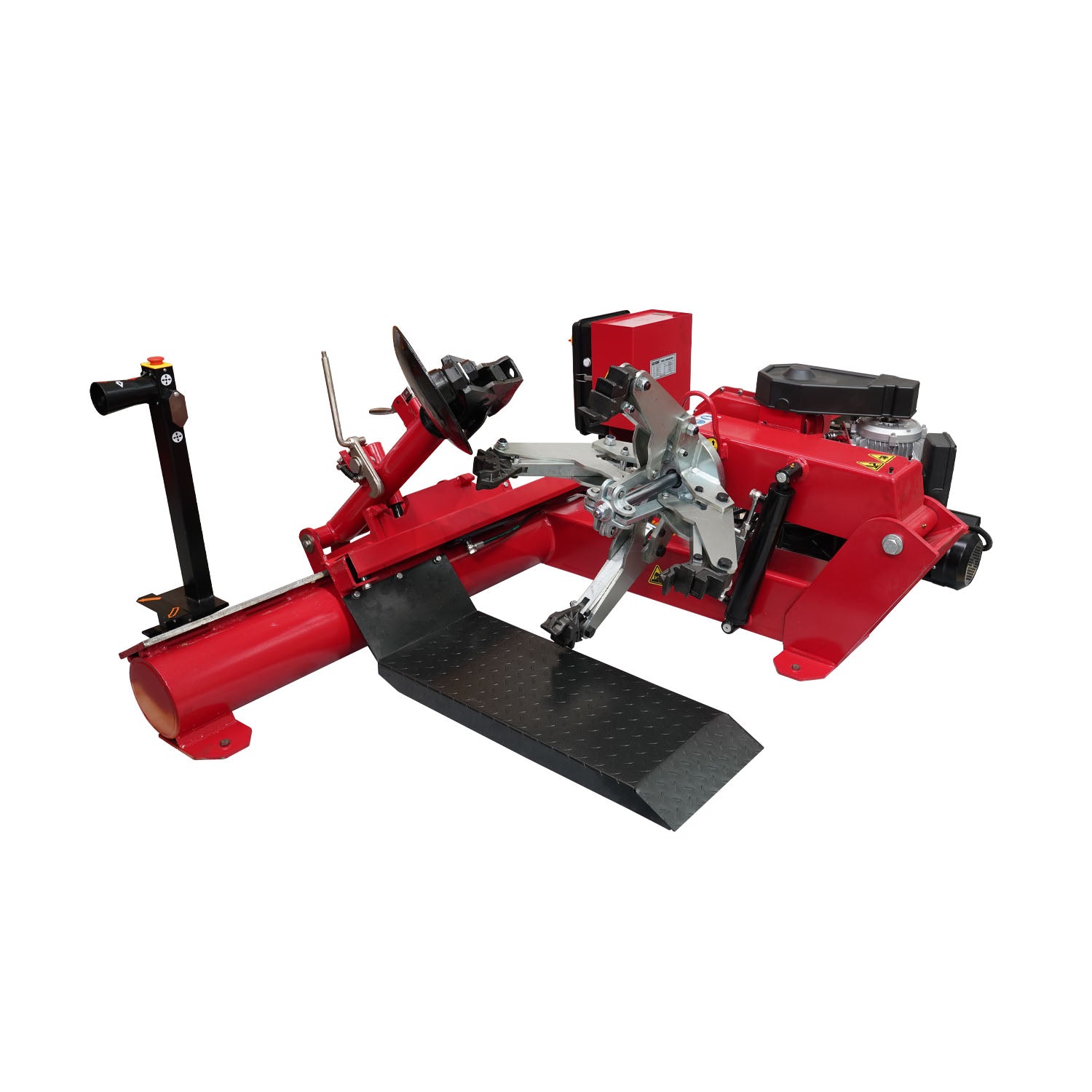

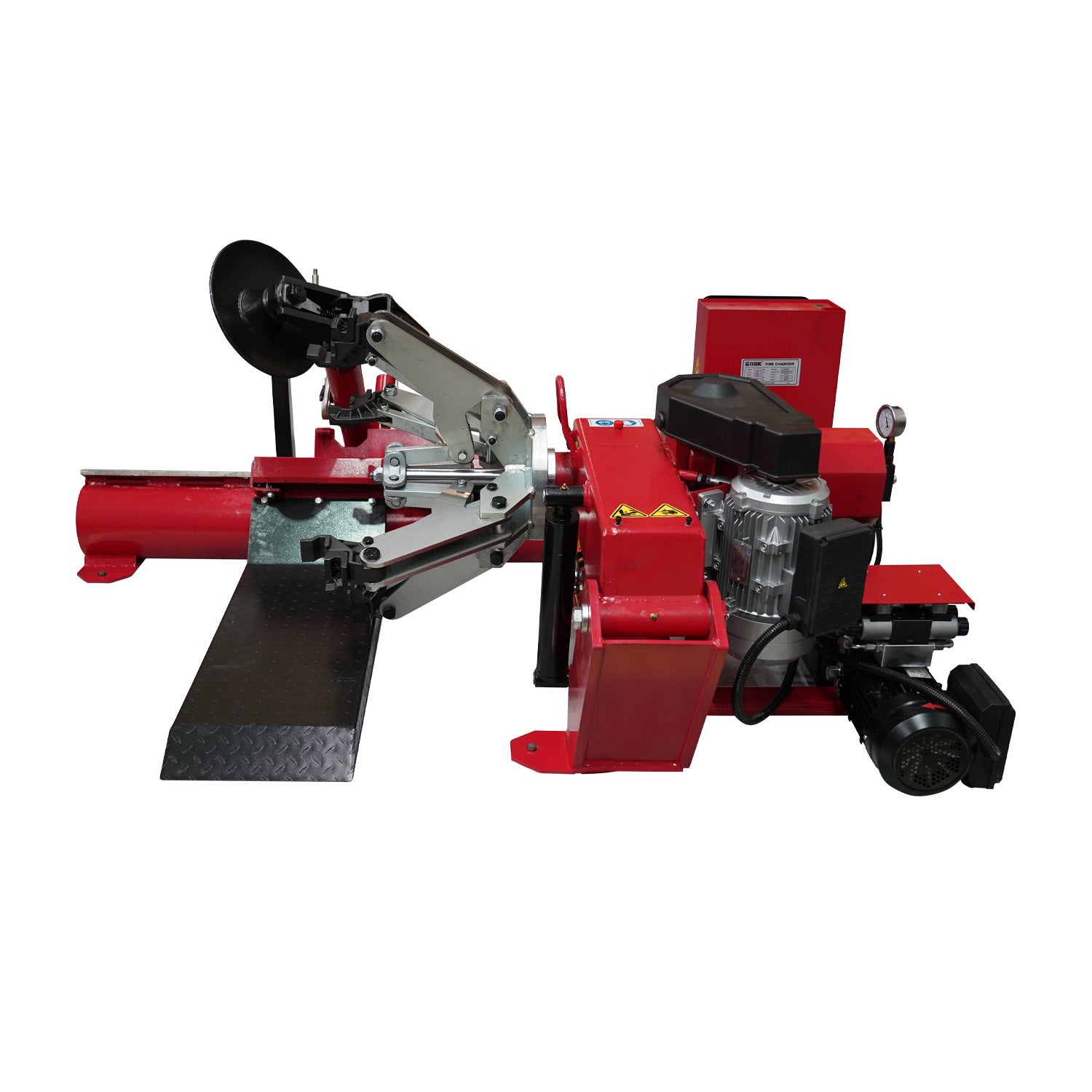

The truck tyre changer is a heavy-duty electro-hydraulic machine built for mounting and demounting truck, bus, tractor and industrial tyres, in both tube and tubeless configurations. It handles rims from 14” to 26”, wheels up to 63” in diameter and wheel weights up to 500kg. A powerful spindle grip clamps virtually any rim type without slipping, while the hydraulic bead breaker delivers up to 2500kg of force. Suited to truck and bus workshops, tyre service centres and heavy vehicle fleet operations.
- Electro-hydraulic operation for heavy-duty truck and bus tyre servicing
- Mounts and demounts tube and tubeless truck, bus, tractor and industrial tyres

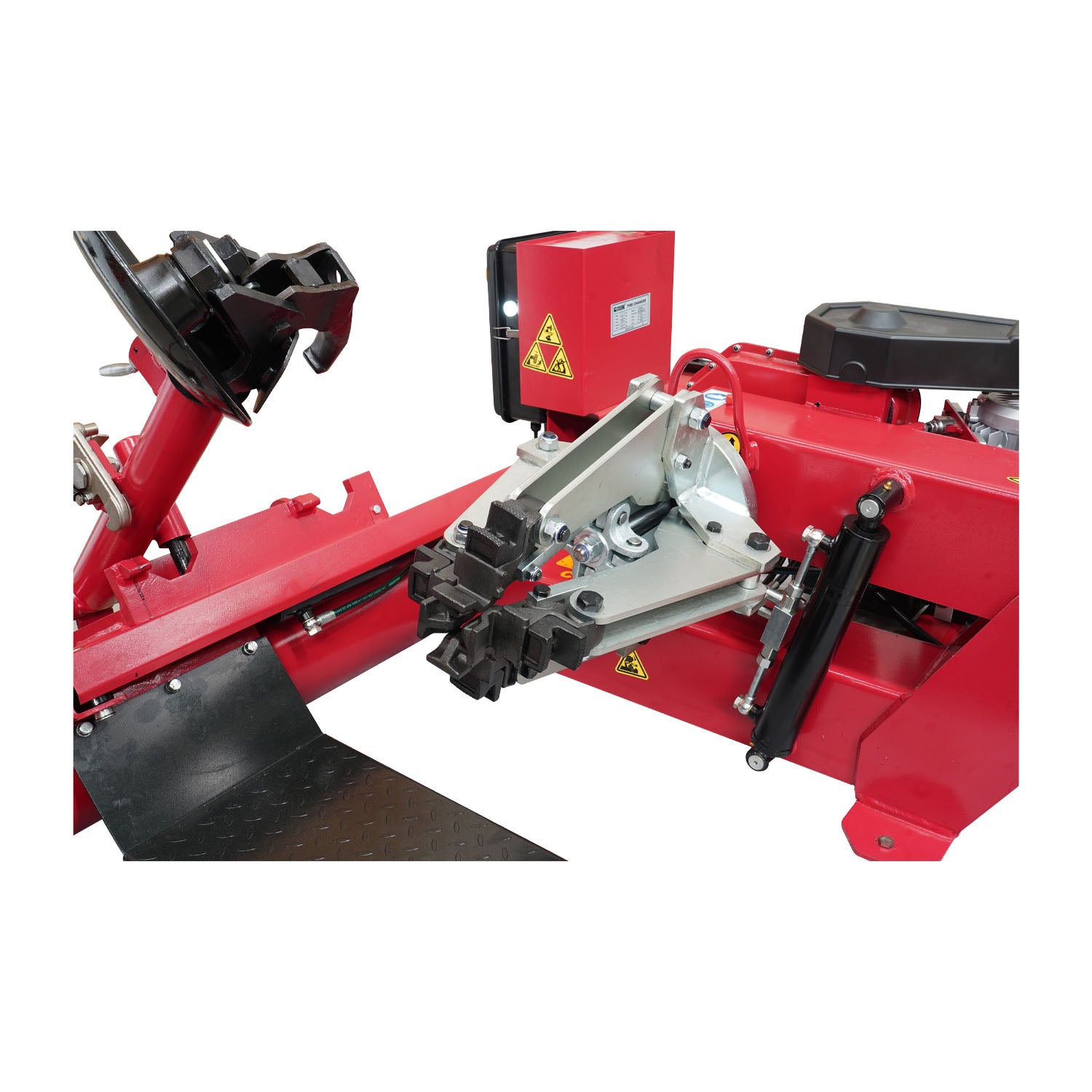

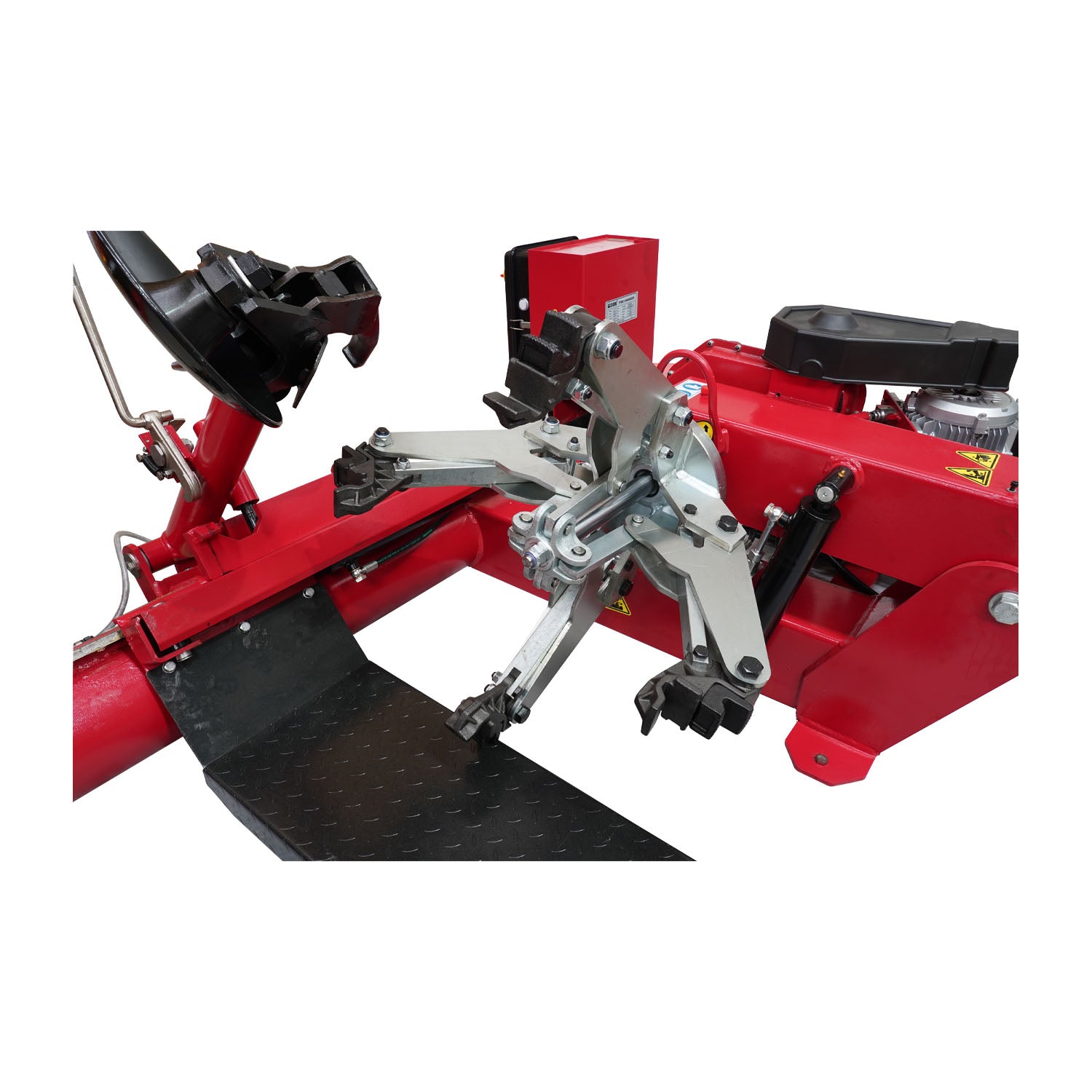

- Powerful spindle grip clamps virtually any rim type without slipping
- Hydraulic bead breaker rated to 2500kg
- Handles wheels up to 63” in diameter and 500kg in weight
- Supplied with mounting tools, grease gun, lubrication kit and operator manual
- Aluminium alloy rim protection set available as an optional upgrade
- Rim size range: 14”–26”
- Maximum wheel width: 31”
- Maximum wheel diameter: 63”
- Maximum bead breaker force: 2500kg
- Maximum wheel weight: 500kg
- Hydraulic power: 1.5kW
- Motor power: 1.8kW
- Voltage options: 220V / 380V, 50/60Hz, single or three phase
Freight Dimensions:
- L 2060mm × W 1620mm × H 960mm W 700kg
We offer a 12-month warranty on the CD830A. This includes both parts and labour, ensuring that your Truck Tyre Changer stays reliable and fully supported, providing you peace of mind throughout its use.
SPECIFICATIONS
-
380V 3-phase (220V available)
Power Requirements
-
206 x 162 x 96cm 700kg
Freight Dimensions
