Tufflift

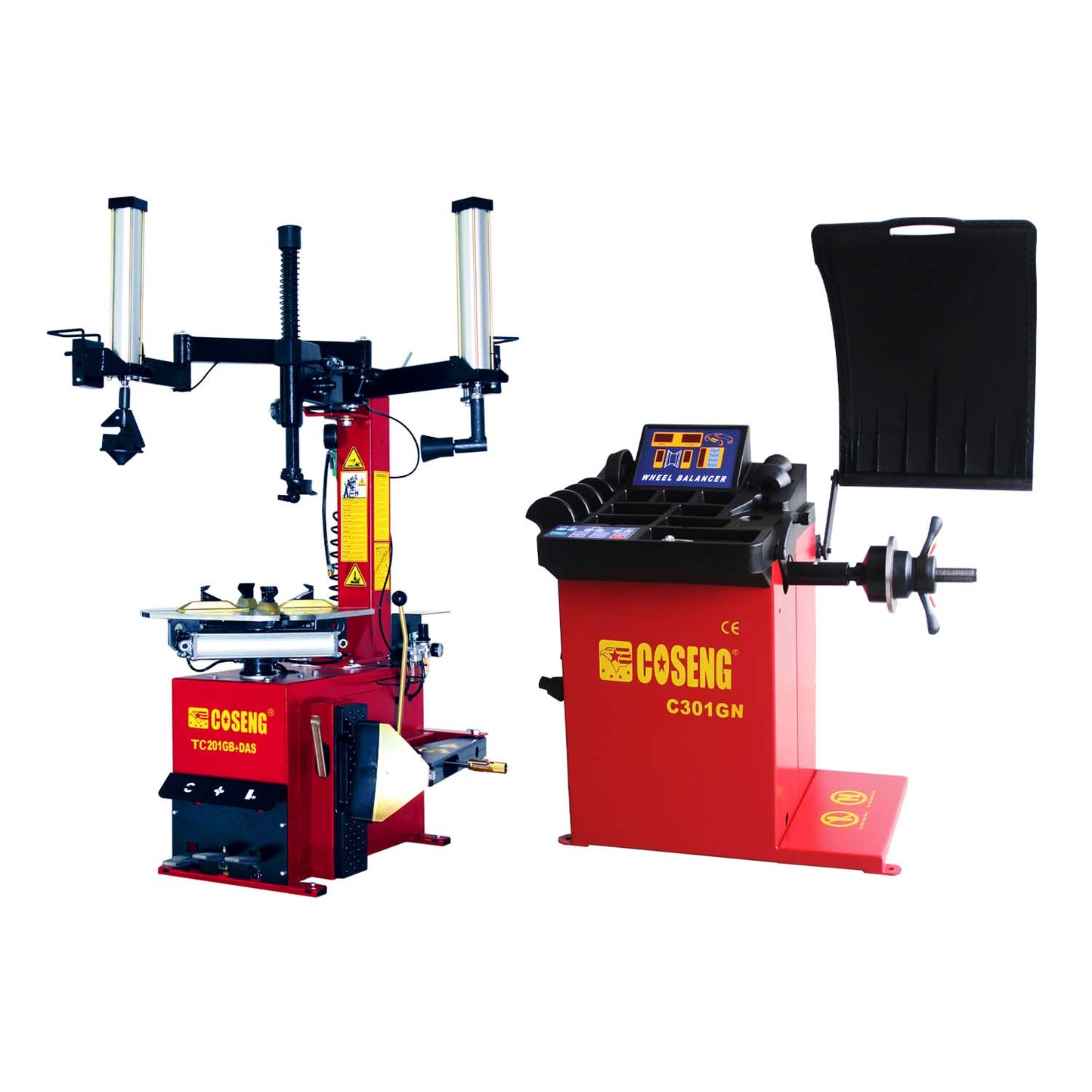

Tyre Changer with Swing Arm & Wheel Balancer
Tyre Changer with Swing Arm & Wheel Balancer
SKU:COMBO 6 – C201GB-DAS + C301GN
Pickup currently unavailable at NSW
The C201GB-DAS Tyre Changer includes a high-grade steel mounting head, Teflon insert guides, and heat-treated clamping jaw. The swing arm design with DAS assist arm and twin clamping cylinders make it ideal for low-profile and run-flat tyres.
The C301GN Wheel Balancer is user-friendly, with quick manual input, built-in self-calibration, and 6 balancing modes, ensuring accurate and efficient wheel balancing for various applications.

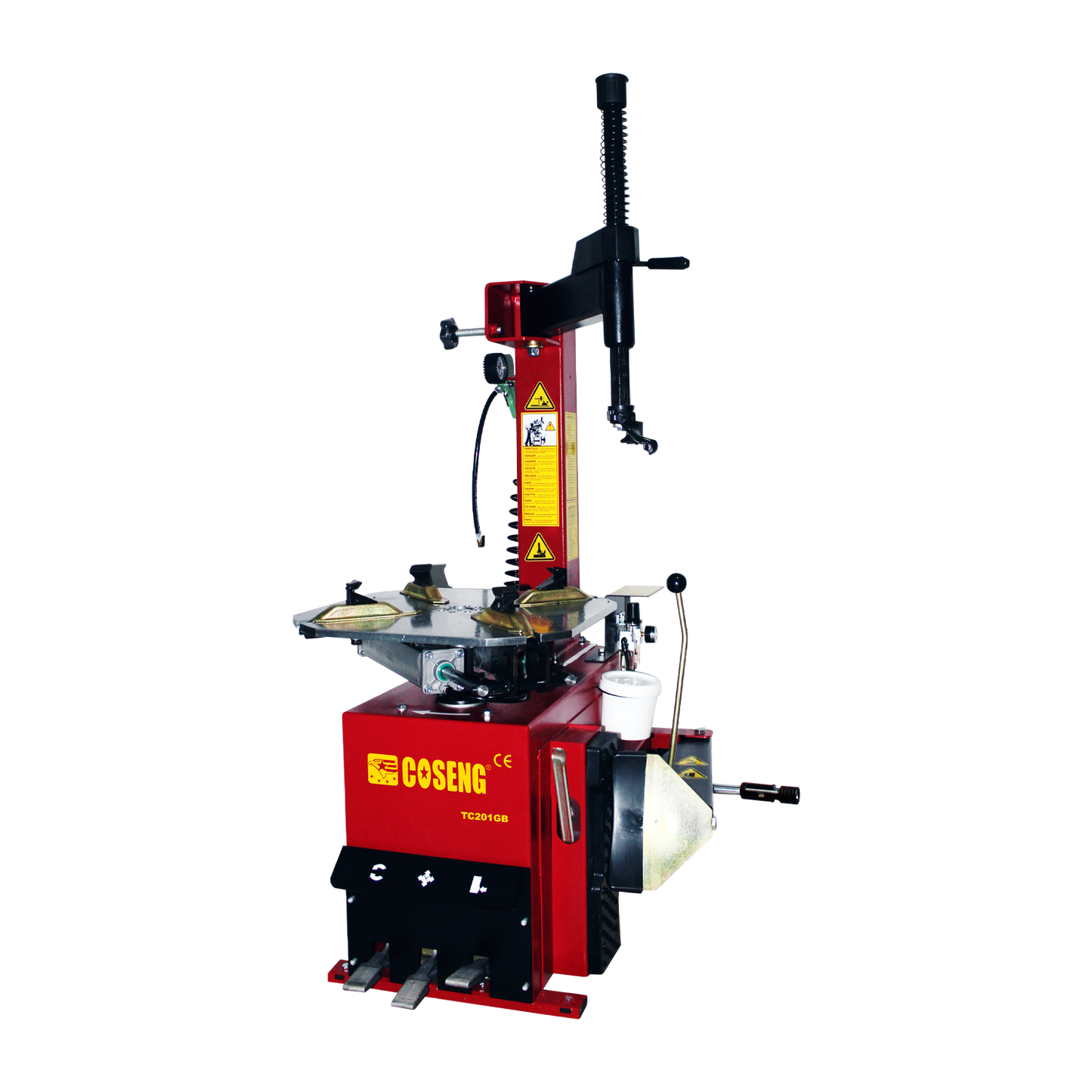

Tyre Changer with Swing Arm - C201GB- DAS
- High grade tempered steel mounting head with teflon insert guides
- Octagonal precision turntable
- Heat treated clamping jaw
- Efficient clamping cylinders
- Standard set of accessories included
- Swing arm design with DAS assist arm
- Twin clamping cylinders design
DAS – Pneumatic Controlled Assist Arm Features:
- Easy installation, quick and easy to use assist arm
- Recommended option for low profile and run flat tyres or custom rim applications
How To Use:

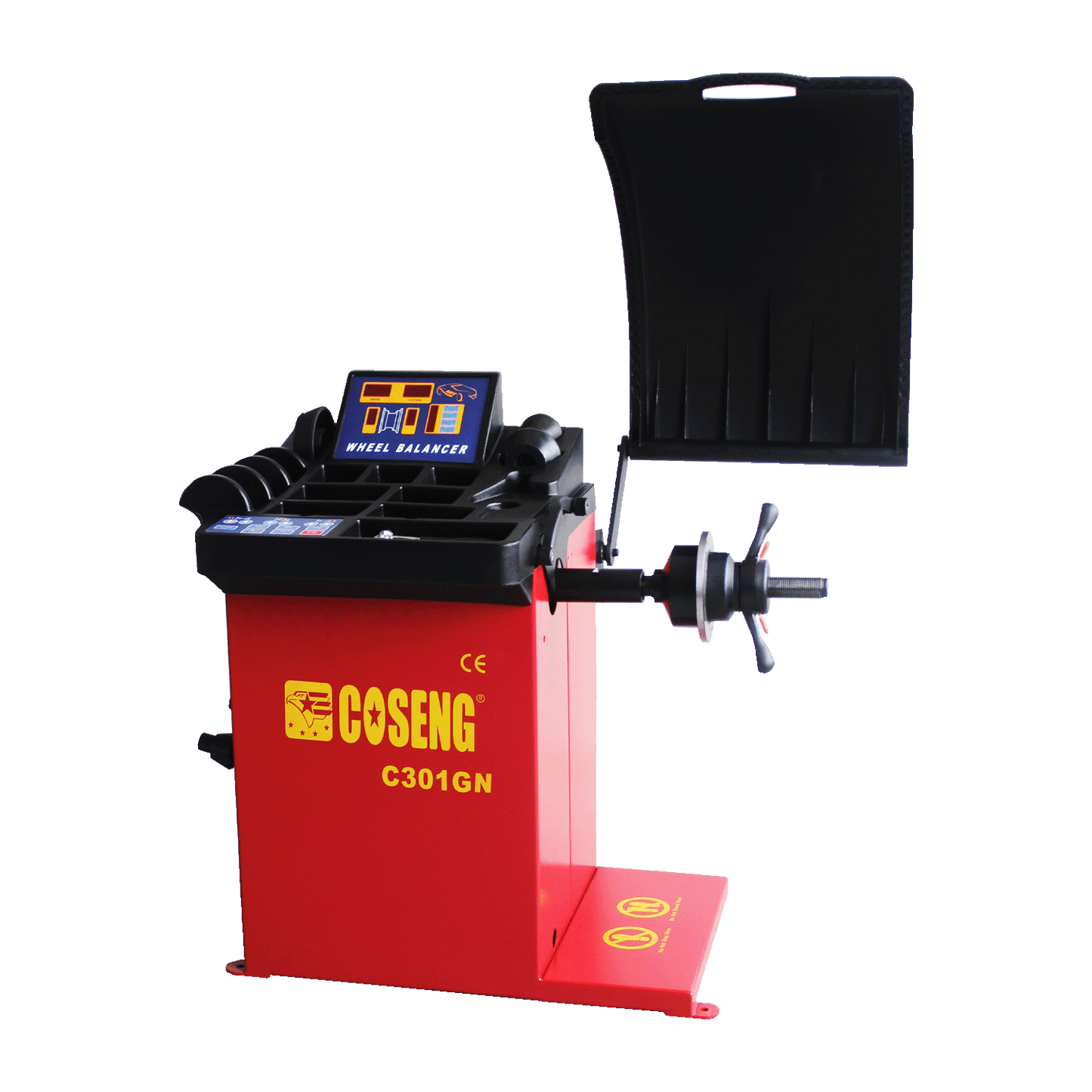

Commercial Grade Wheel Balancer - C301GN
- Easy to use
- Quick manual data input
- Built in self calibration function
- 6 Balancing modes including dynamic, static (motorcycle), ALU1, ALU2, ALU3, ALU4, ALUS
- Standard set of accessories included
- Brake type resistor operated with manual foot brake
- User defined weight selections – ounce or gram
- Semi automatic calibration
How To Use:
Tyre Changer with Swing Arm - C201GB- DAS
- Outside Clamping: 11” – 21”
- Inside Clamping: 13” – 23”
- Maximum Wheel Width: 260 mm
- Maximum Wheel Diameter: 960 mm
- Working Pressure: 8 bar
- Bead Breaker Force: 2000 Kgf
Freight Dimensions:
- L 970mm W 770mm H 1000mm W 211KG
- L 800mm W 720mm H 300mm W 50KG
Commercial Grade Wheel Balancer - C301GN
- Maximum Wheel Weight: 65 Kg
- Rim Diameter Range: 10” – 30”
- Maximum Wheel Diameter: 1080 mm
- Maximum Wheel Width: 415 mm
- Balancing Speed: 180-220 RPM
- Accuracy: 1 g
Freight Dimensions:
- L 970mm W 770mm H 1150mm W 126KG
We offer a 12-month warranty on the C201GB-DAS & C301GN. This includes both parts and labour, ensuring that your Tyre Changer & Wheel Blancer stays reliable and fully supported, providing you peace of mind throughout its use.
SPECIFICATIONS
-
240v / 10 amps
240v / 3 ampsPower Requirements
-
97 x 77 x 100cm 211kg
80 x 72 x 30cm 50kg
97 x 77 x 115cm 126kgFreight Dimensions
