Wheel Aligner | Power lift with Quick Release Clamps
Wheel Aligner | Power lift with Quick Release Clamps
SKU:PLA-881S-A-QRC
Couldn't load pickup availability

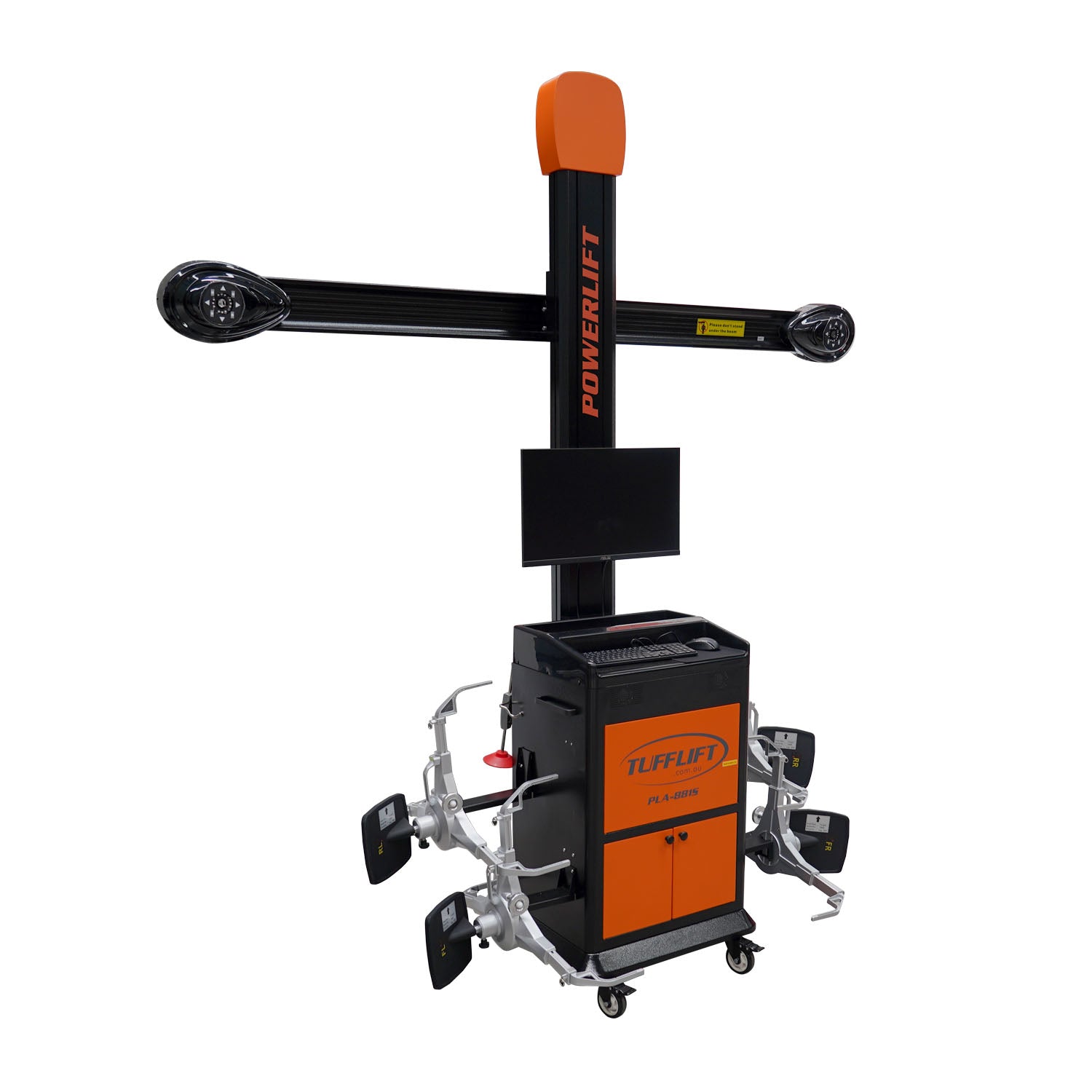

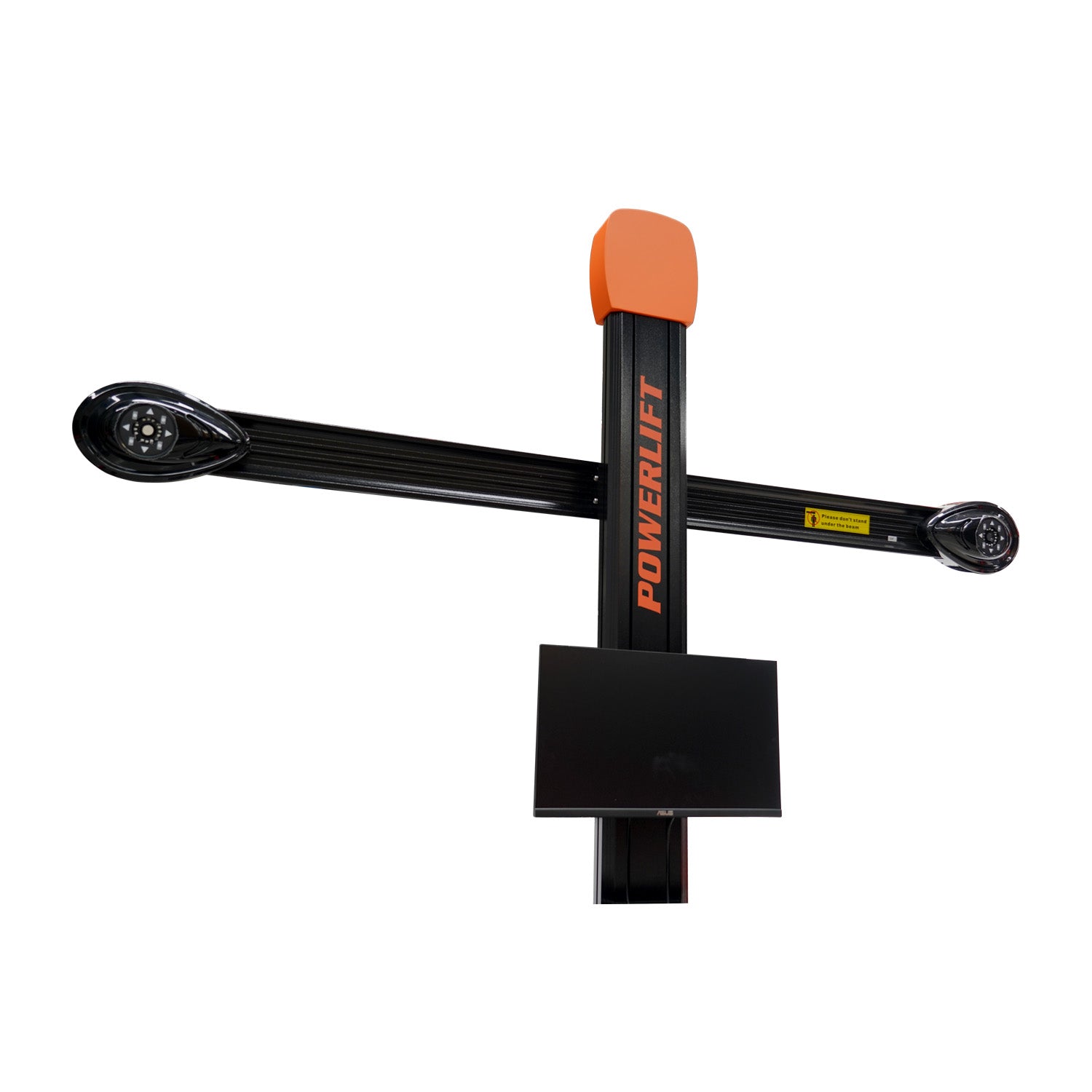

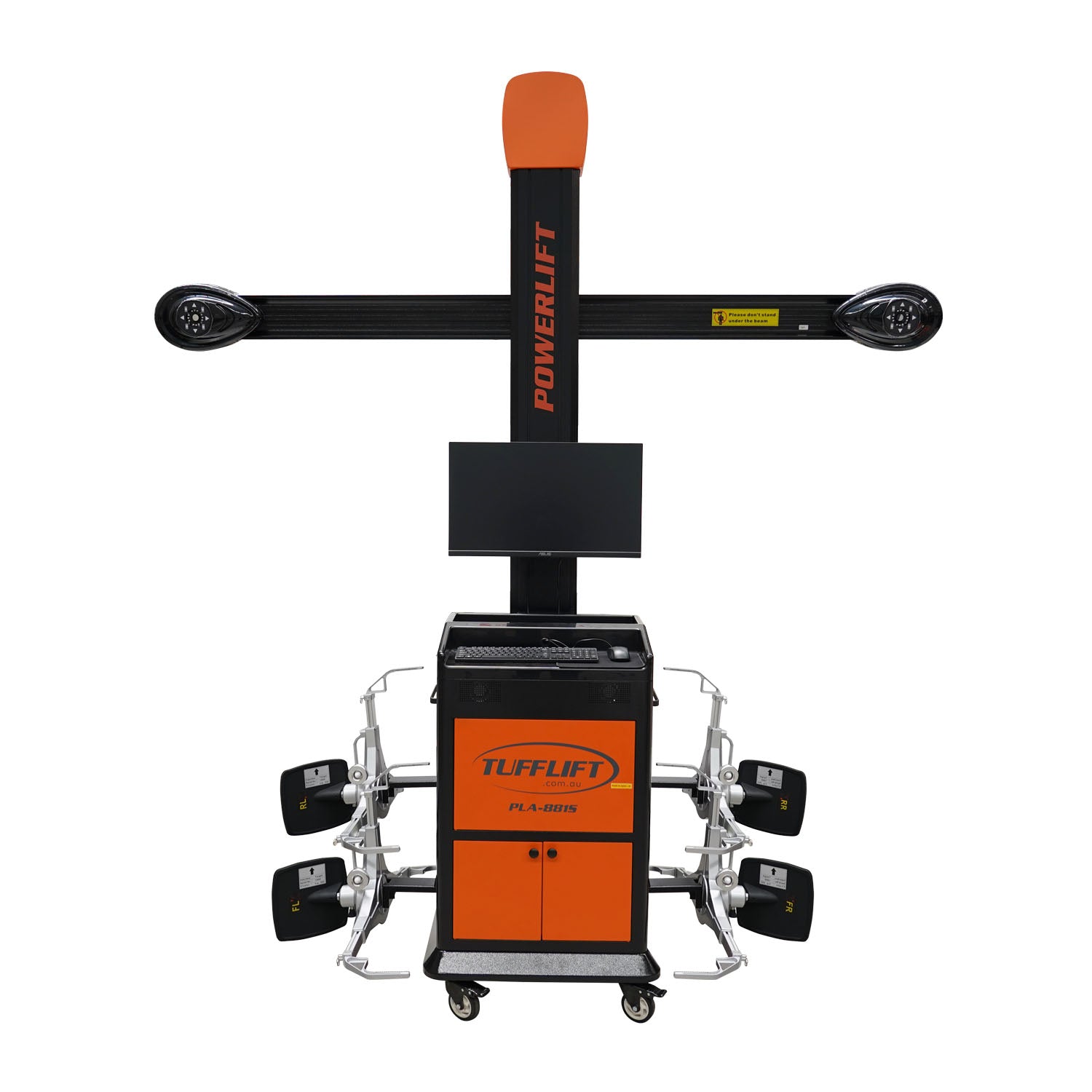

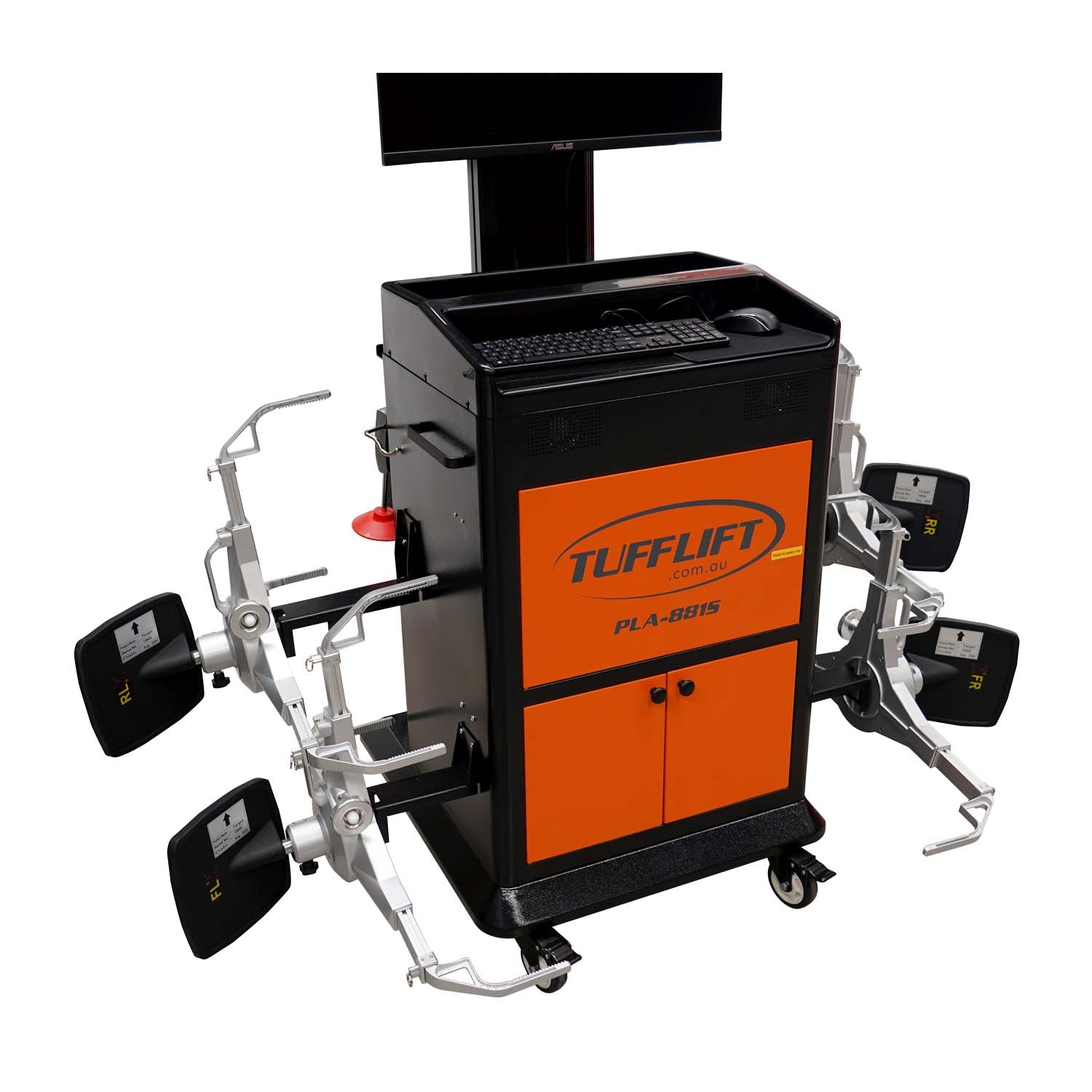

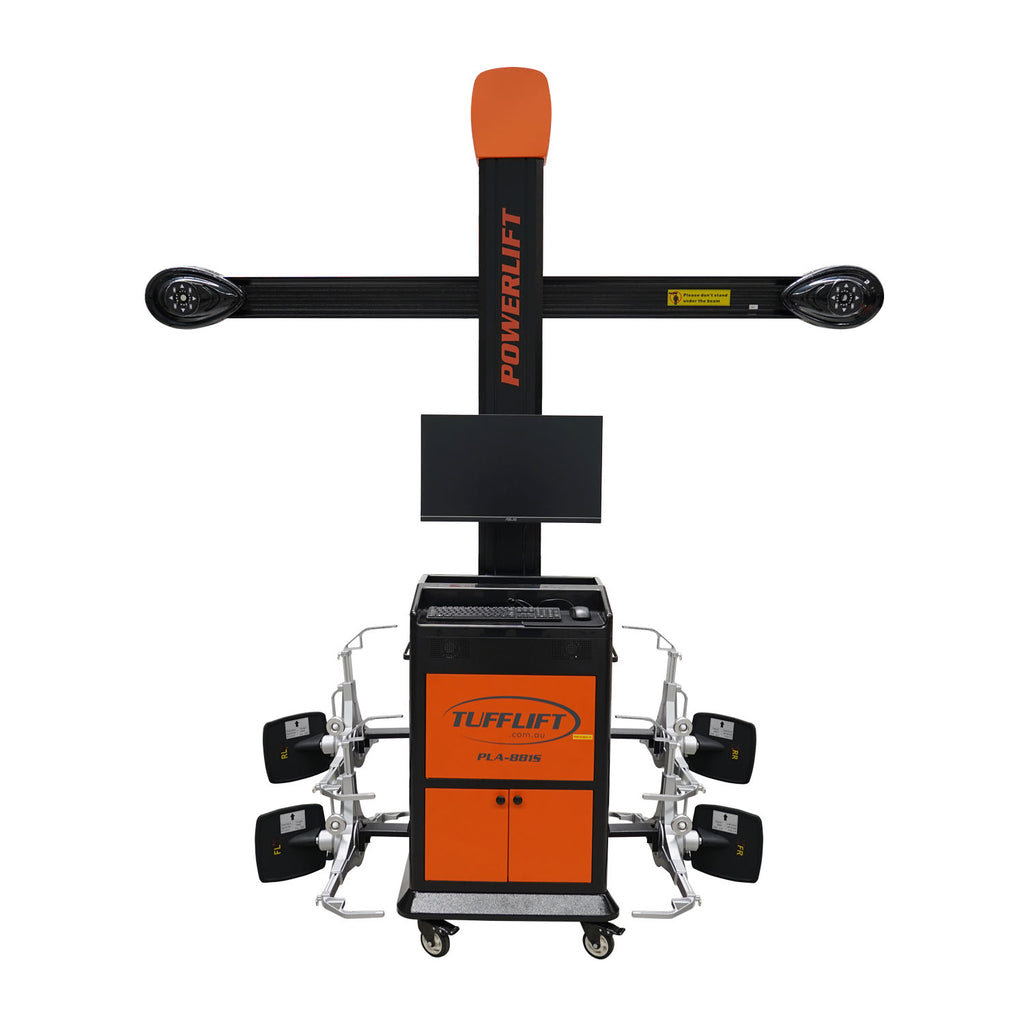

The Power Lift Wheel Aligner is designed for efficiency and precision, making it ideal for use with all types of lifts, including 2 post lifts, scissor lifts, and 4 post hoists. Its advanced technology ensures that the alignment process is fast, accurate, and easy to use.
- 3-point clamp set included
- its all kinds of lifts: 2 post hoist, Scissor lift and 4 post hoist
- Dynamic constitute coordinate, not affected by the inclination of lift
- No need to wait during rolling or caster swing, save test time
- Automatically calculate wheel diameter, no need to input manually

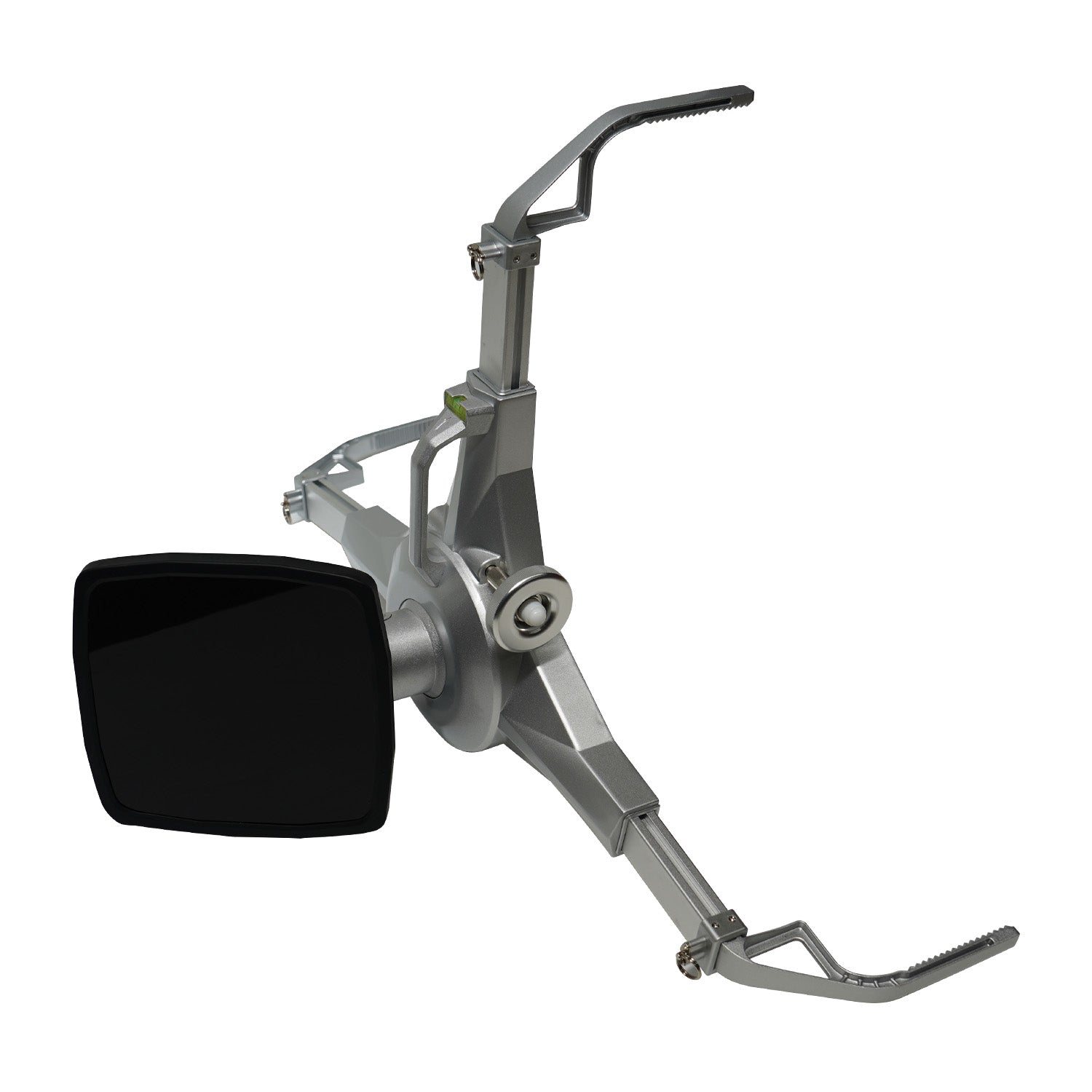

- High precision anti-throwing target, reinforced plastic enclosure

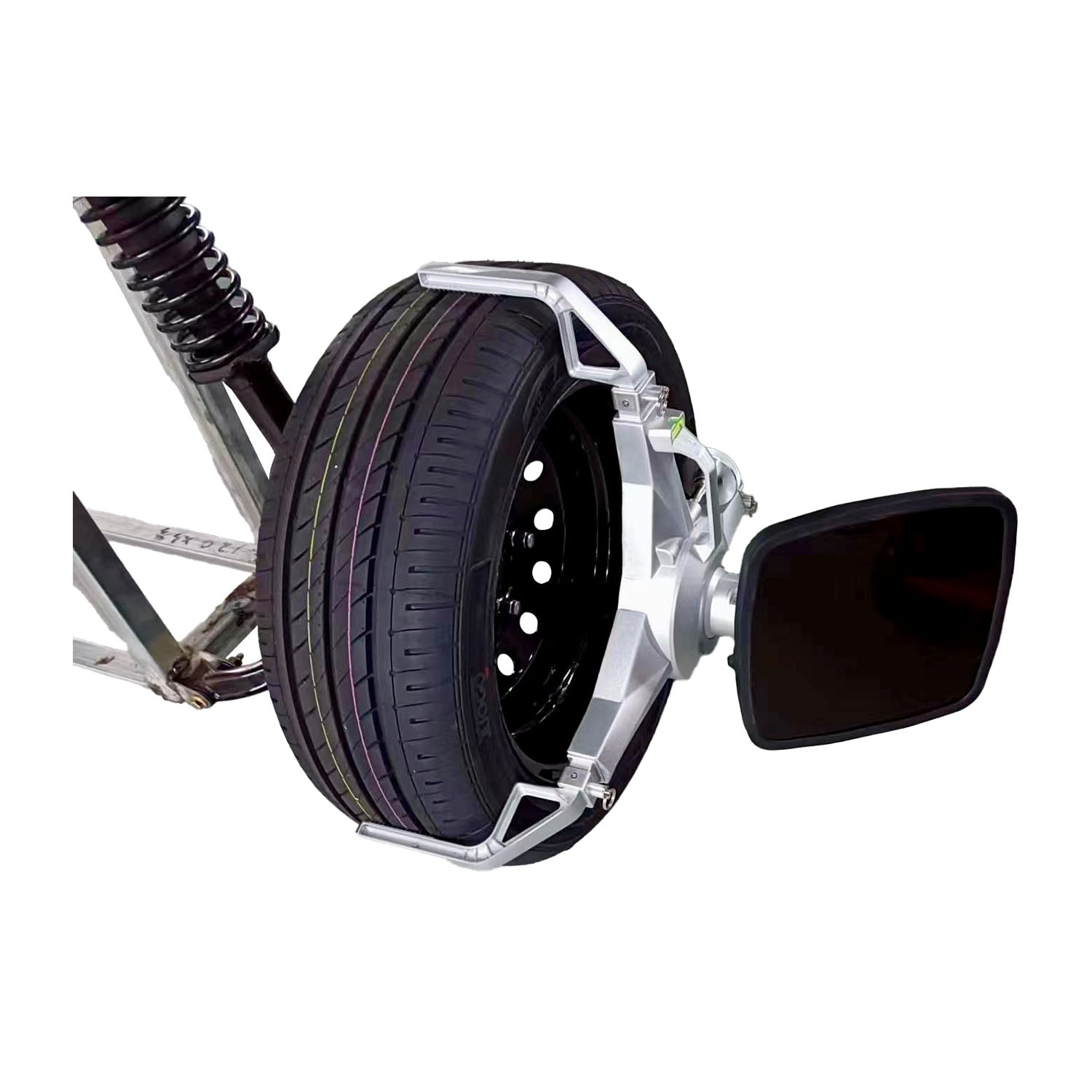

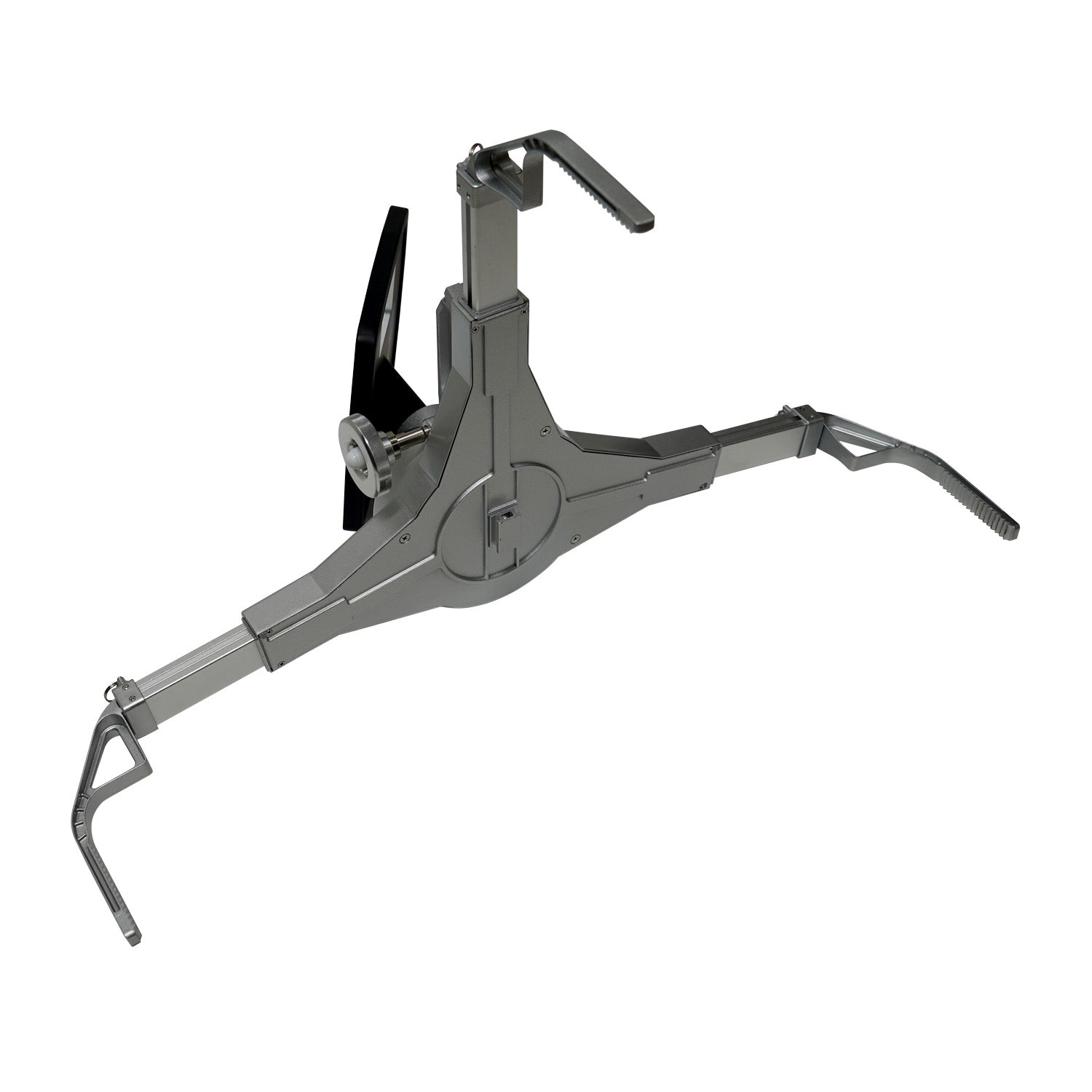

- A wide range of wheel clamp, with 10″-24″ solid & precision clamp
- With unique quick testing mode, saving time and working efficiently
| Item | Precision | Range |
|---|---|---|
| Toe-in | ±2' | ±20° |
| Camber | ±2' | ±20° |
| Caster | ±4' | ±20° |
| SAI/KPI | ±6' | ±20° |
| Setback | ±2' | ±5° |
| Thrust angle | ±2' | ±5° |
| Tread difference | ±2mm | N/A |
| Wheelbase difference | ±2mm | N/A |
We offer a comprehensive warranty on the PLA-881S-A-QRC, covering 12 months. This warranty includes both parts and labour, ensuring that your wheel aligner remains reliable and fully supported, giving you peace of mind throughout its use.
SPECIFICATIONS
-
240v / 10 amps
Power Requirements
-

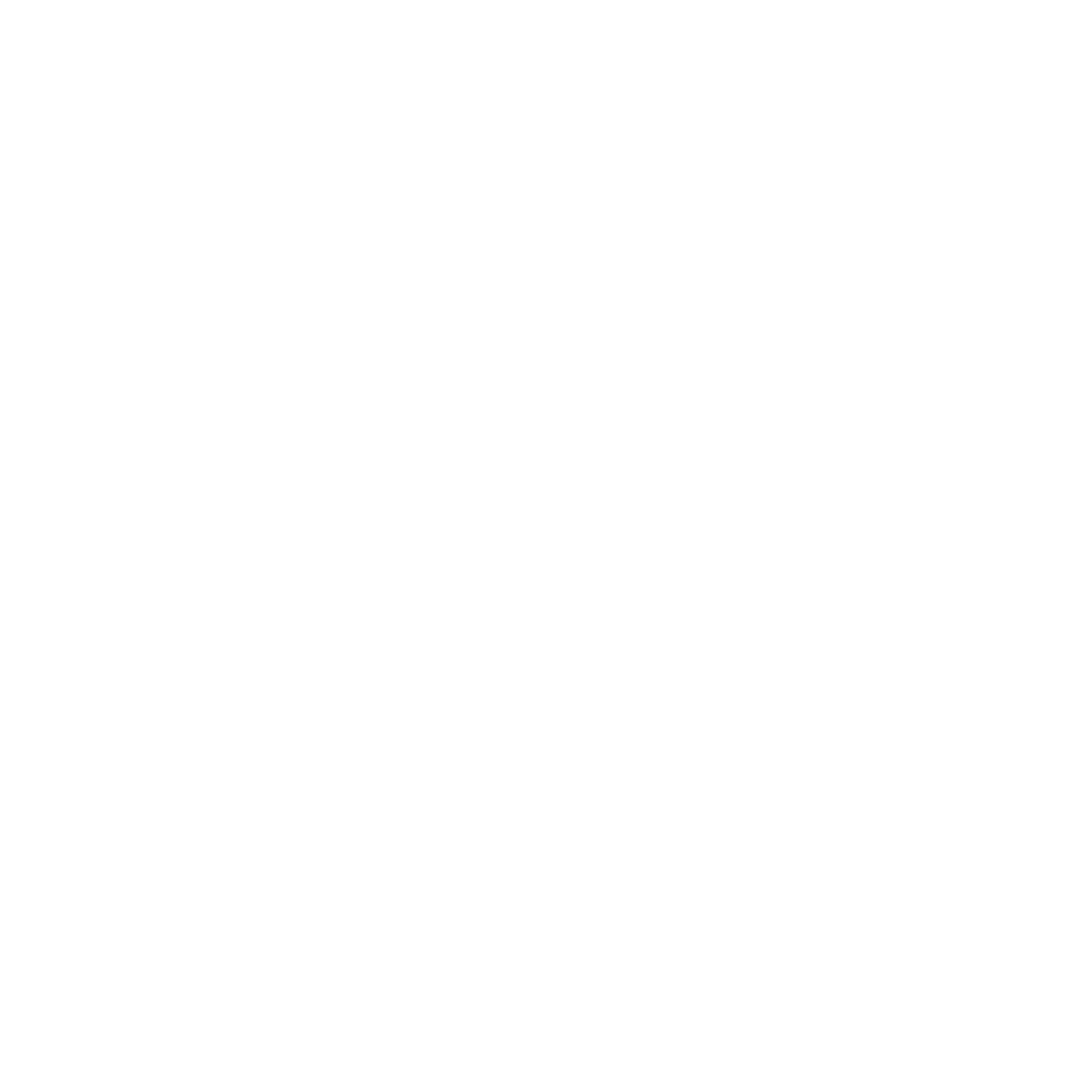

284 x 37 x 41cm 95kg
80 x 74 x 130cm 145kgFreight Dimensions
