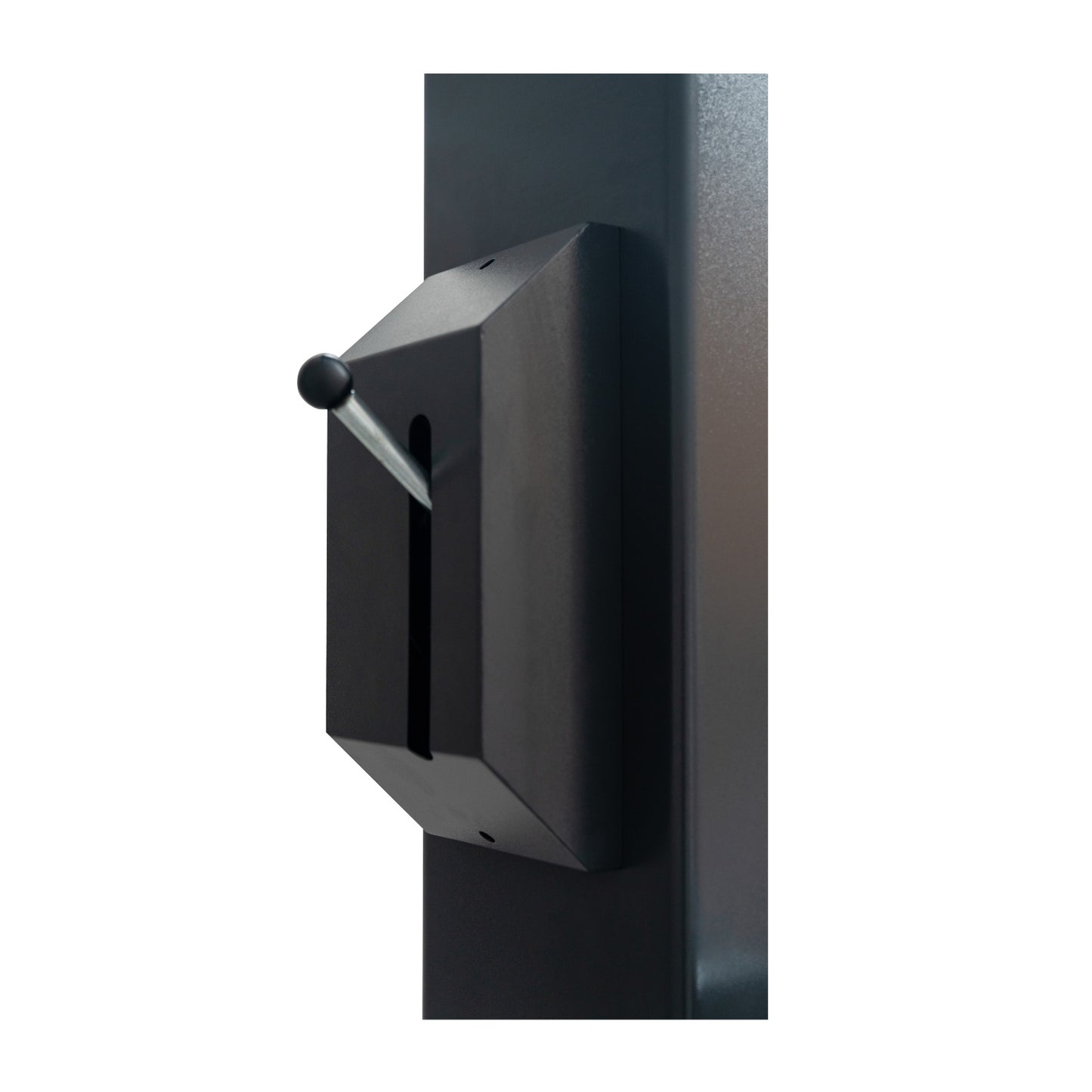

  • Close-up of the control lever on a two-post automotive lift, mounted on a sturdy black frame, used to operate the hoist mechanism for precise vehicle maintenance. - 2 Post Clear Floor Hoist - 4.5 Ton | EE-C10V2
  • Two-post automotive lift in a clean, well-lit workshop with windows, a desk, and office furniture in the background. - 2 Post Clear Floor Hoist - 4.5 Ton | EE-C10V2
  • A two post car hoist with red arms and a black frame by Tufflift Hoists installed in a clean, organized workshop with blue cabinets, a workbench, shelves, and a staircase leading to a loft area. - 2 Post Clear Floor Hoist - 4.5 Ton | EE-C10V2
  • 2 Post Clear Floor Hoist - 4.5 Ton | EE-C10V2
1 8

Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

2 Post Car Hoist | 4.5 Ton Clear Floor

2 Post Car Hoist | 4.5 Ton Clear Floor

EE-C10V2

$4,290.00 AUD inc. GST
$4,290.00 AUD inc. GST
Sale
Taxes included. Shipping calculated at checkout.
Choose a Power Supply
Included with your Tufflift: RRP $629.30 AUD
Hydraulic 46 Oil 4 Litre Container
EAE Tool Tray Kit
EAE Pad Height Adapter - 100mm
EAE Screw Pad - Drop In
EAE Wedge Anchor Bolt - M18 x 160mm

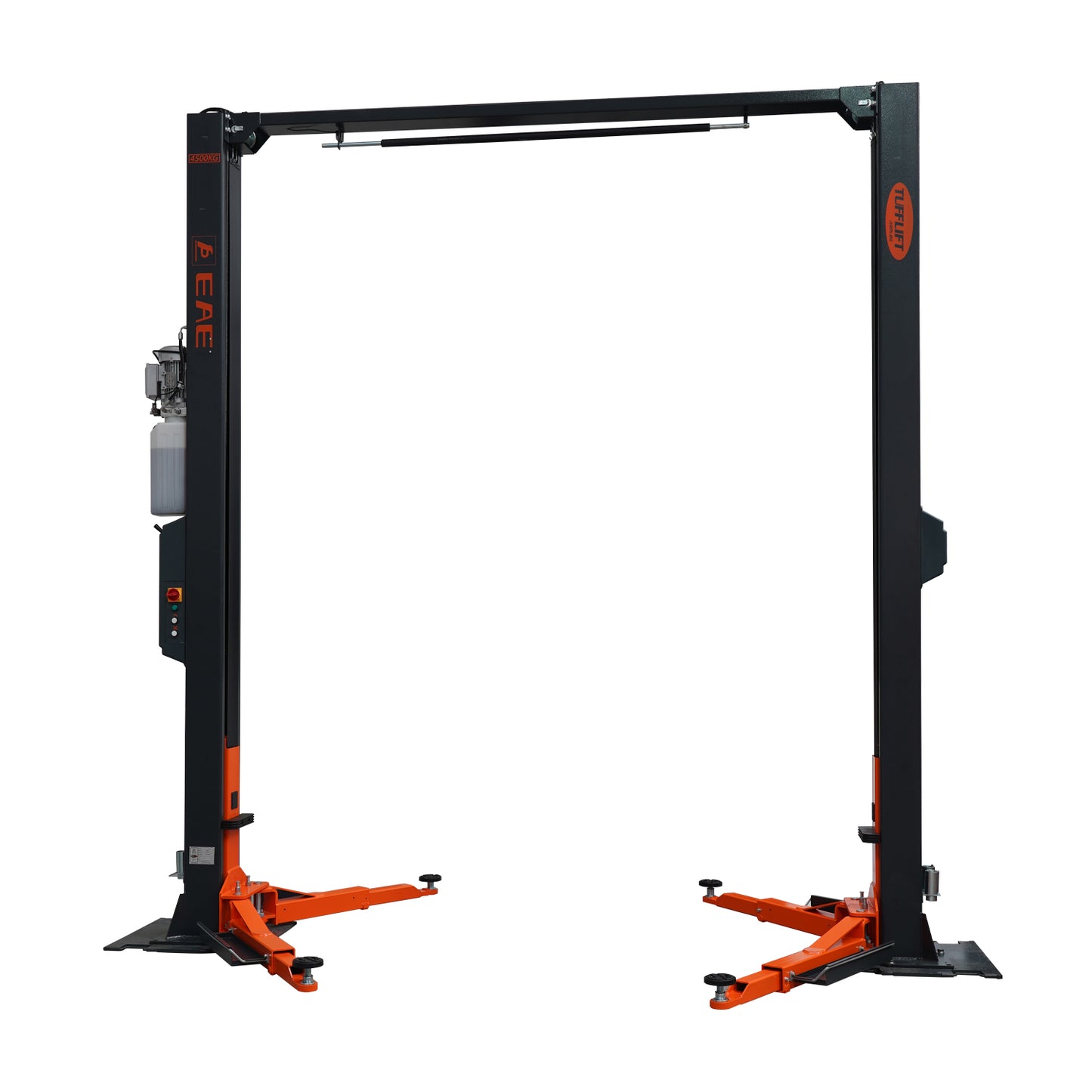

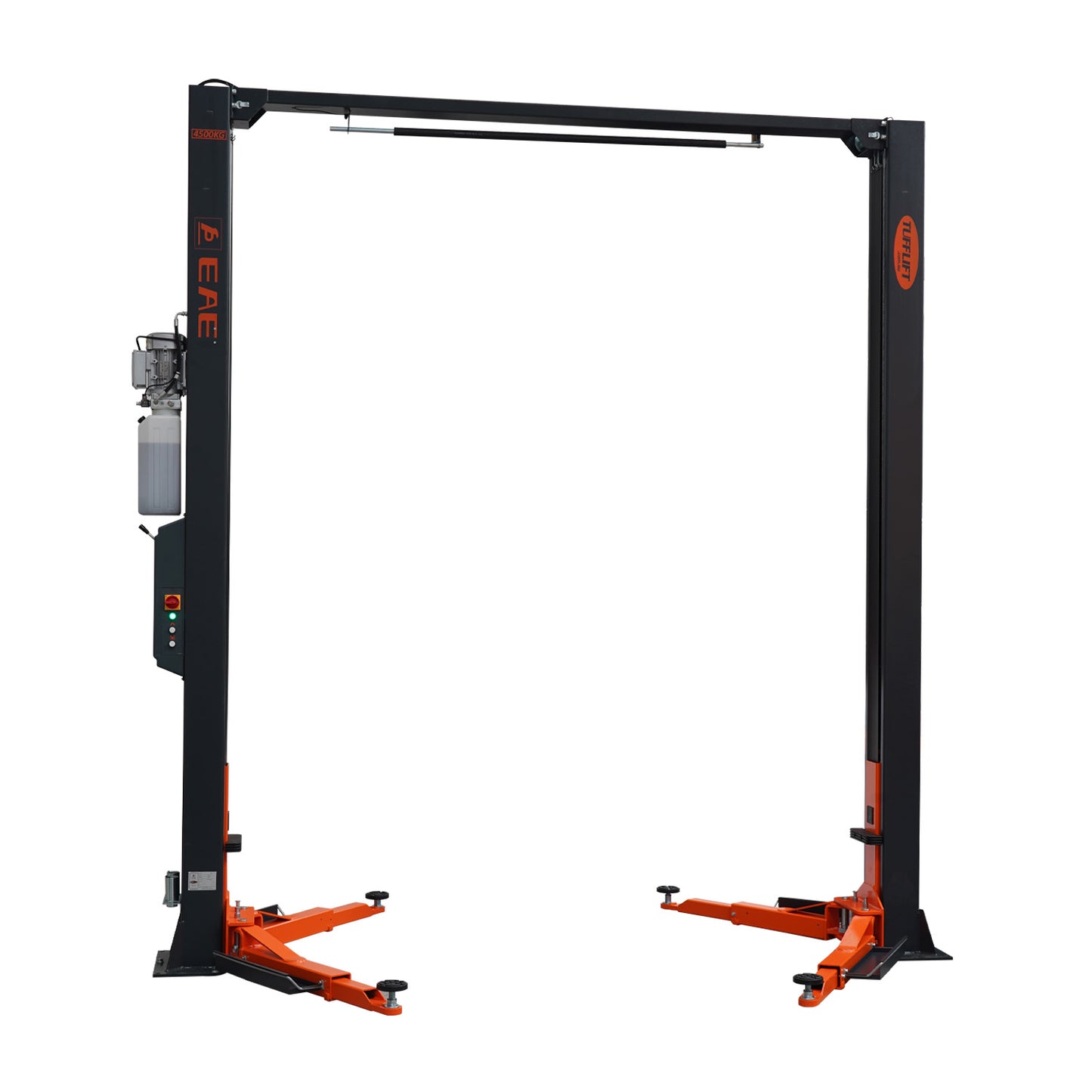

Introducing the Tufflift EE-C10V2, a 4.5 Ton clear floor car hoist with a 4500KG capacity and 1.9m lifting height. Standing 3.9m tall, it features a single-point carriage mechanical lock release, durable powder coating, and ram protection curtain. Available in 240V or 3-phase power. Engineer-certified and Worksafe registered, the EE-C10V2 is designed for safe and efficient lifting in any professional workshop.

Features
  • 4500KG Safe Working Limit
  • Lifting height of 1.9m
  • Overall height of 3.9m tall
  • Clear floor design
  • Single Point carriage mechanical lock release
  • Available in 240V or 3 Phase power
  • Ram Protection Curtain
  • Durable Powder coating
  • Door protection pads

Includes

  • Hydraulic oil
  • 4WD adapters
  • anchor bolts
  • Combination screw pads with a clearance height less than 100mm
  • Engineer Certificate
  • Design Registered with Worksafe - click here

Options

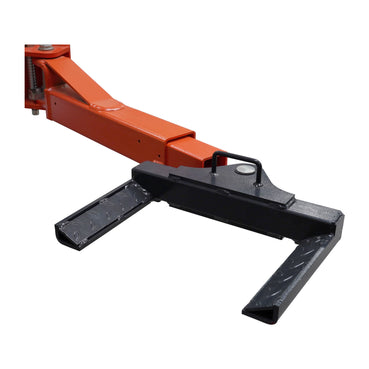

  • Tyre Holder Adapter
  • Zappi 7kw Untethered EV Charge Station

Safety

  • Pre-set hydraulic pressure and ram limit switch
  • Arm locks engage and disengage automatically
  • Anti-surge valve
  • Carriages mechanically locked
Specifications

Capacity: 4500 kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 4.2m

Lock Release: Single

Power: 240v: 2.2kw 16 amps | 3 Phase: 3.5kw 9 amps

Lifting Height: 1900 mm

Lifting Height with Adapters: 2010

Minimum Pad Height: 100mm

Overall Hoist Height: 3900 mm

Overall Hoist Width: 3590

Drive Through Clearance: 2725mm

Width Between Columns: 3000mm

Lifting Time: 240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 3910mm W 570mm H 1050mm W 716KG

Warranty

We offer a comprehensive warranty on the EE-C10V2, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post clear floor hoist remains reliable and fully supported, giving you peace of mind throughout its use.

Download Brochure Icon Download Product Brochure Financing Icon Explore Our Financing Options Enquire Icon Enquire About This Product
View full details

Options

Tyre Holder Adapter
Tyre Holder Adapter $165.00 AUD 791110998
Zappi 7kw Untethered EV Charge Station
Zappi 7kw Untethered EV Charge Station $1,590.00 AUD MYENTUFF7KW
EAE Column Support Kit
EAE Column Support Kit $395.00 AUD 791210029ZA
Pattern Background

SPECIFICATIONS

Product Specifications Image

  • 150mm

    Minimum Concrete Requirement

  • 4.2m

    Recommended Ceiling Height

  • 240v / 2.2kw 16 amps
    3 Phase / 3.5kw 9 amps

    Power Requirements

  • 391 x 57 x 105cm 716kg

    Freight Dimensions
