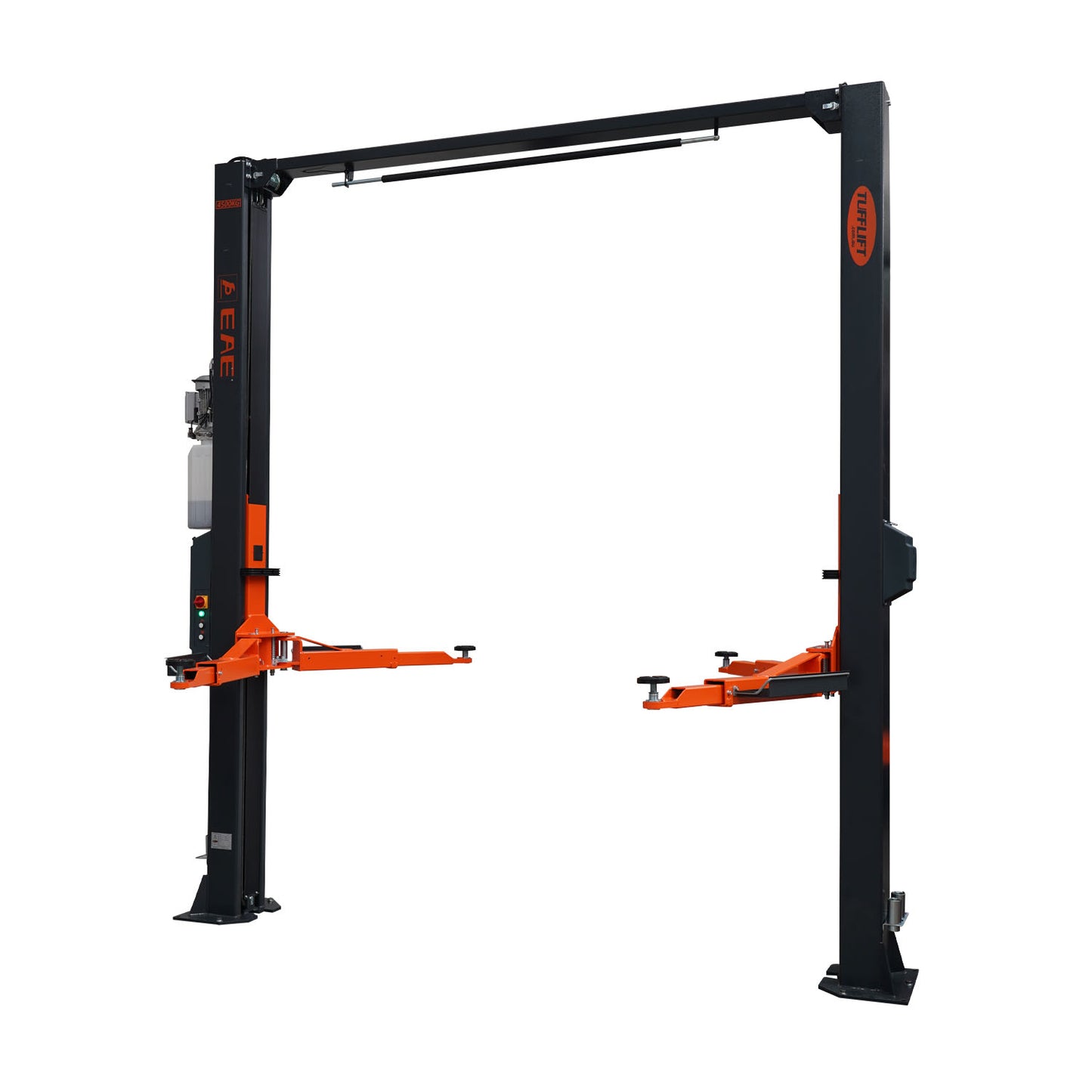

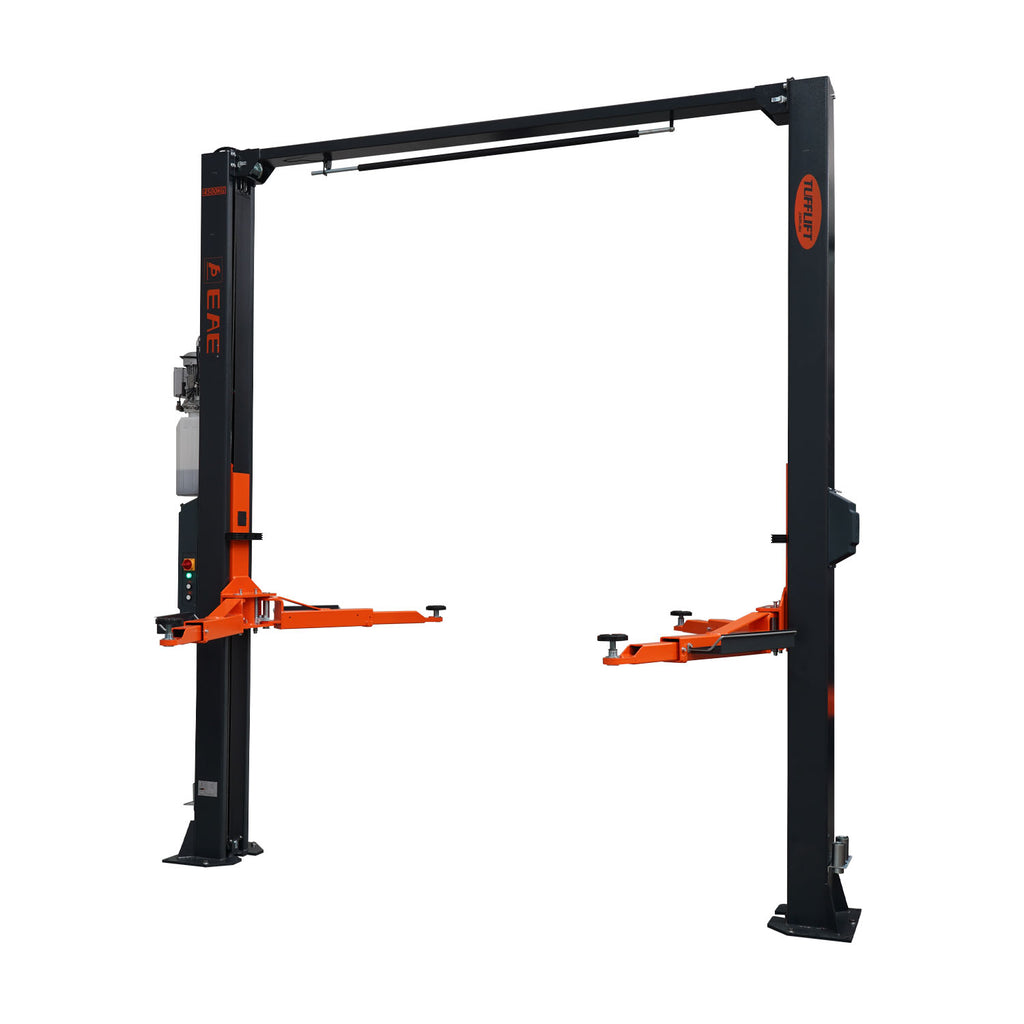

2 Post Car Hoist - 4.5 Ton Extra High Clear Floor

Name: 2 Post Car Hoist - 4.5 Ton Extra High Clear Floor
Brand: Tufflift
SKU: EE-C10-H
Price: 5290.00 AUD
Availability: InStock

2 Post Car Hoist - 4.5 Ton Extra High Clear Floor

SKU:EE-C10-H

$5,290.00 AUD

Sale

Choose a Power Supply

Quantity

Included with your Tufflift: RRP $629.30 AUD

The EE-C10-H car hoist offers 4.5 Ton capacity and 1.80m lifting height. Featuring screw-type lifting pads, single-point lock release, and durable cylinders with anti-burst valves, it ensures smooth, reliable performance.

Features

4500KG Safe Working Limit
Lifting height of 1.80m
Screw type lifting pads with minimum height of 100mm
Single point carriage mechanical lock release
Cylinder straight top device run more smoothly
Clear floor design
Durable cylinders fitted with anti-burst valves
Door protection pads
Ram protection curtain
Durable and striking powder coat finish

Includes

Hydraulic oil
Combination screw pads plus 4WD adapter
Engineer Certificate
Design Registered with Worksafe

Safety

Arm locks engage and disengage automatically
Rubber protected overhead height limit switch bar
Pre-set hydraulic pressure prevents operator overloading

Specifications

Capacity: 4500 kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 4.6m

Lock Release: Single

Power: 240v: 2.2kw 16 amps | 3 Phase: 3.5kw 9 amps

Lifting Height: 1900 mm

Lifting Height with Adapters: 2010 mm

Minimum Pad Height: 100 mm

Overall Hoist Height: 4300 mm

Overall Hoist Width: 3590 mm

Drive Through Clearance: 2725mm

Lifting Time:240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 4300mm W 570mm H 1050mm W 780KG

Warranty

We offer a comprehensive warranty on the EE-C10H, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post clear floor hoist remains reliable and fully supported, giving you peace of mind throughout its use.
