Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

2 Post Car Hoist | 4 Ton Base Plate

Name: 2 Post Car Hoist | 4 Ton Base Plate
Brand: Tufflift
SKU: EE-F9
Price: 3490.00 AUD
Availability: InStock

SKU:EE-F9

$3,490.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Included with your Tufflift: RRP $464.30 AUD

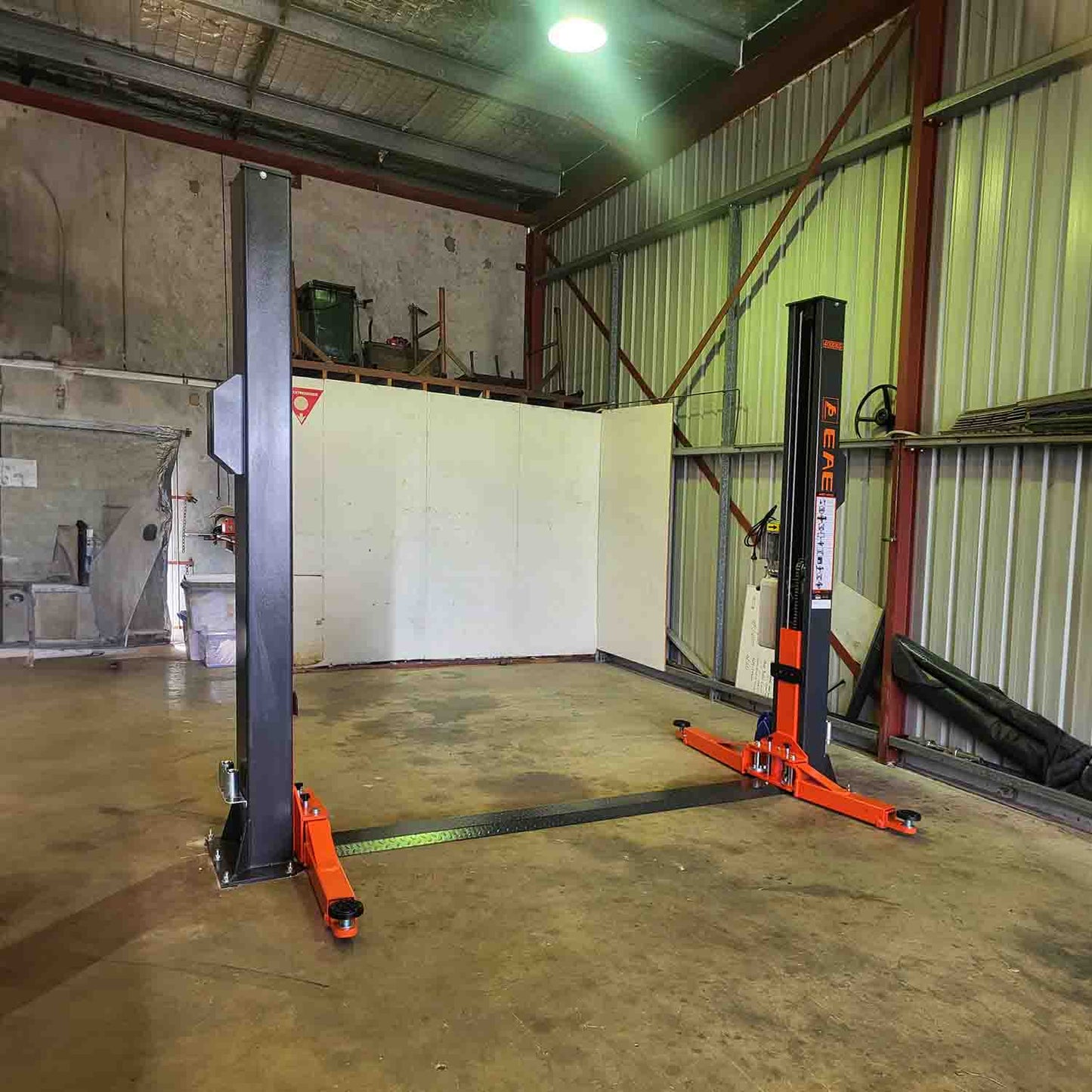

Introducing the Tufflift EE-F9, a 4 Ton base plate car hoist with a 4000KG capacity and 1.80m lifting height (plus adapter and screw pad adjustments). Featuring a single lock release, durable powder coating, and door protection pads, it’s available in 240V or 3-phase power.

Features

4000KG Safe Working Limit
Lifting height of 1.80m (plus adapters and screw pad adjustment)
Base plate design
Single lock release
Available in 240V or 3 Phase power
Durable Powder Coating
Door protection pads

Includes

Hydraulic oil
Combination screw pads
4 x adapters
Anchor bolts
Engineer Certified
Design Registered with Worksafe - click here

Options

Low Profile Arm
Tyre Holder Adapter
Zappi 7kw Untethered EV Charge Station

Safety

Anti-surge valve
Automatic mechanical carriage locks
Automatic mechanical arm locks
Standard column curtain

Specifications

Capacity: 4000KG

Minimum Concrete Requirement: 115mm

Recommended Ceiling Height: 3.25m

Lock Release: Single

Power: 240v: 2.2kw 16 amps | 3 Phase: 3.5kw 9 amps

Lifting Height: 1800mm

Lifting Height with Adapters: 1860mm

Minimum Pad Height: 100mm

Overall Hoist Height: 3067mm

Overall Hoist Width: 3420mm

Drive through clearance: 2558mm

Lifting Time: 240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 2860mm W 570mm H 1000mm W 672KG

Warranty

We offer a comprehensive warranty on the EE-F9, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post base plate hoist remains reliable and fully supported, giving you peace of mind throughout its use.
