Tufflift

2 Post Car Hoist | 4 Ton Base Plate

Name: 2 Post Car Hoist | 4 Ton Base Plate
Brand: Tufflift
SKU: EE-F9
Price: 3490.00 AUD
Availability: InStock

2 Post Car Hoist | 4 Ton Base Plate

SKU:EE-F9

$3,490.00 AUD inc. GST

~~$0.00 AUD~~ $3,490.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Choose a Power Supply

Included with your Tufflift: RRP $464.30 AUD

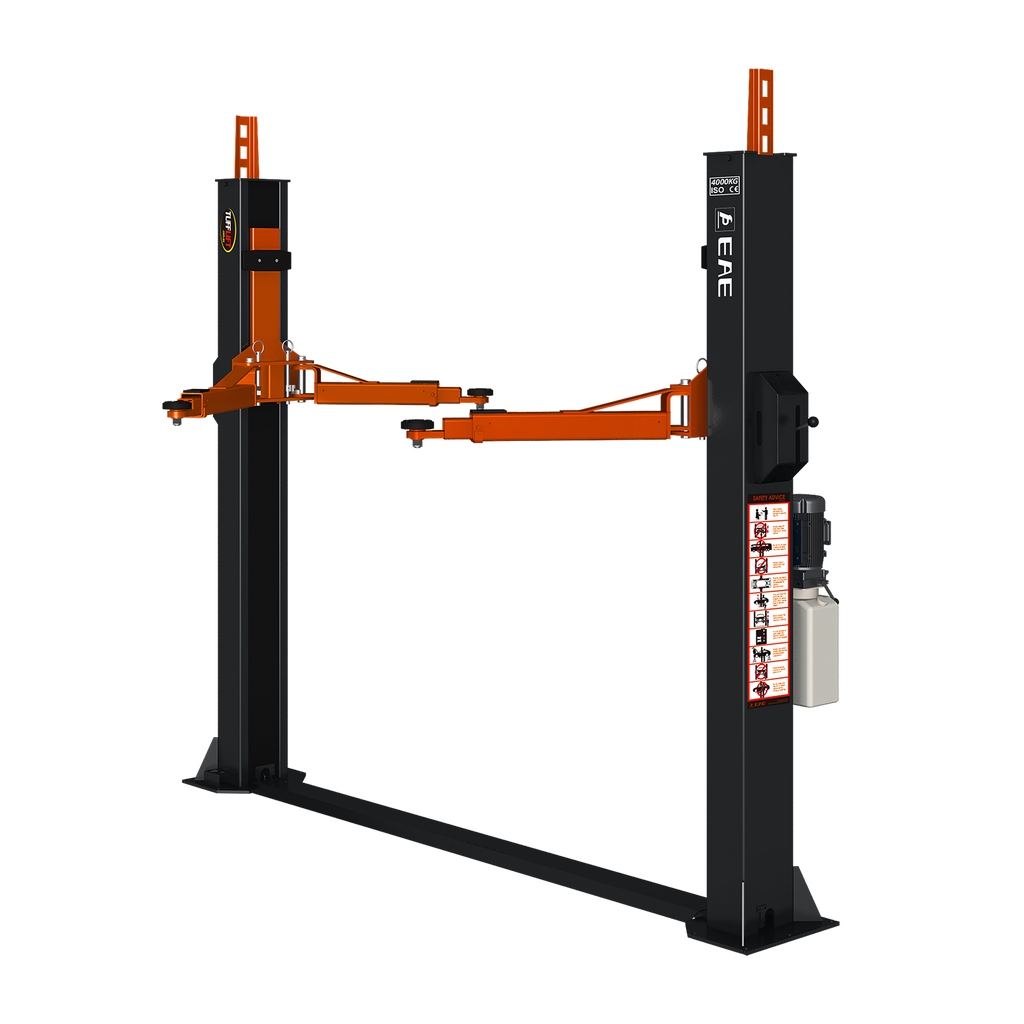

Introducing the Tufflift EE-F9, a 4 Ton base plate car hoist with a 4000KG capacity and 1.80m lifting height (plus adapter and screw pad adjustments). Featuring a single lock release, durable powder coating, and door protection pads, it’s available in 240V or 3-phase power.

Features

4000KG Safe Working Limit
Lifting height of 1.80m (plus adapters and screw pad adjustment)
Base plate design
Single lock release
Available in 240V or 3 Phase power
Durable Powder Coating
Door protection pads

Includes

Hydraulic oil
Combination screw pads
4 x adapters
Anchor bolts
Engineer Certified
Design Registered with Worksafe - click here

Options

Low Profile Arm
Tyre Holder Adapter
Zappi 7kw Untethered EV Charge Station

Safety

Anti-surge valve
Automatic mechanical carriage locks
Automatic mechanical arm locks
Standard column curtain

Specifications

Capacity: 4000KG

Minimum Concrete Requirement: 115mm

Recommended Ceiling Height: 3.25m

Lock Release: Single

Power: 240v: 2.2kw 16 amps | 3 Phase: 3.5kw 9 amps

Lifting Height: 1800mm

Lifting Height with Adapters: 1860mm

Minimum Pad Height: 100mm

Overall Hoist Height: 3067mm

Overall Hoist Width: 3420mm

Drive through clearance: 2558mm

Lifting Time: 240v: 50-55sec | 3 Phase: 35-40sec

Arm Design: Asymmetric

Freight Dimensions:
L 2860mm W 570mm H 1000mm W 672KG

Warranty

We offer a comprehensive warranty on the EE-F9, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your 2 post base plate hoist remains reliable and fully supported, giving you peace of mind throughout its use.
