Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

4 Post Parking Hoist - 3.6 Ton Extra High

Name: 4 Post Parking Hoist - 3.6 Ton Extra High
Brand: Tufflift
SKU: TL3.6PH-H-2500
Price: 5999.00 AUD
Availability: OutOfStock

SKU:TL3.6PH-H-2500

$5,999.00 AUD

Sale Sold out

Choose a Power Supply

Included with your Tufflift: RRP $444.40 AUD

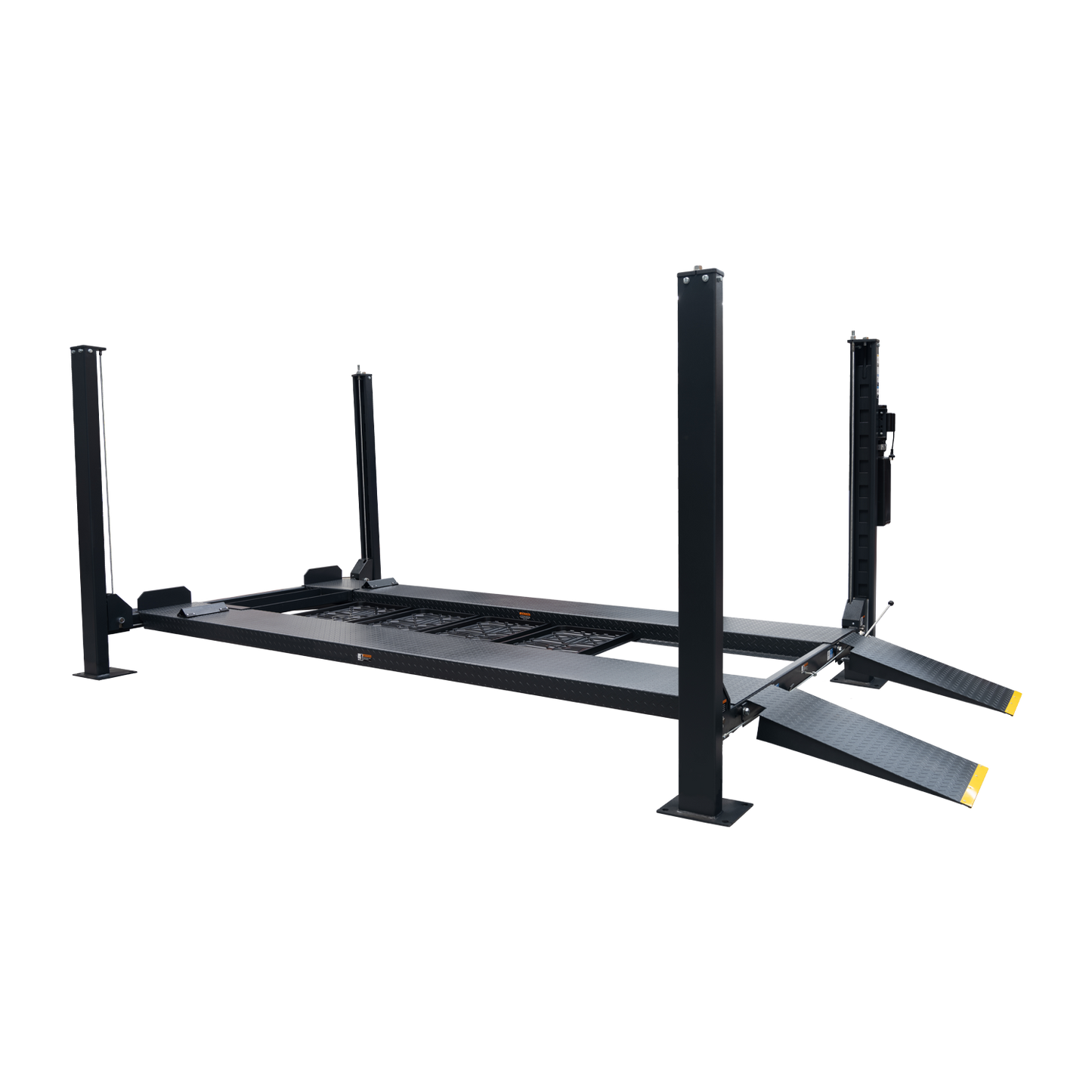

The TL3.6PH-H-2500 is the perfect solution for doubling your parking space while offering extra height for taller vehicles. Designed for both storage and working on most vehicles, this 3.6-ton 4-post parking hoist provides secure and stable lifting with diamond-plated platforms for durability.

Features

Double your parking space
Extra height for storing taller vehicles
Perfect for storing/working on most vehicles
Diamond plated platforms
2375mm Clearance Under Platform
Needs to be bolted down (not mobile)
Powder coated finish

Includes:

Steel approach ramps
Hydraulic oil
4 plastic drip trays
4 wheel stop plates
2 wheel chocks
Steel tool tray
Design Registered with Worksafe
Engineer Certified

Options:

Sliding Jack - RJ35
Additional Drip Trays
Aluminum Approach Ramps
Infill Kit

Safety:

Mechanically locks each (170mm) interval
Anti-surge valve
Cable slack locks

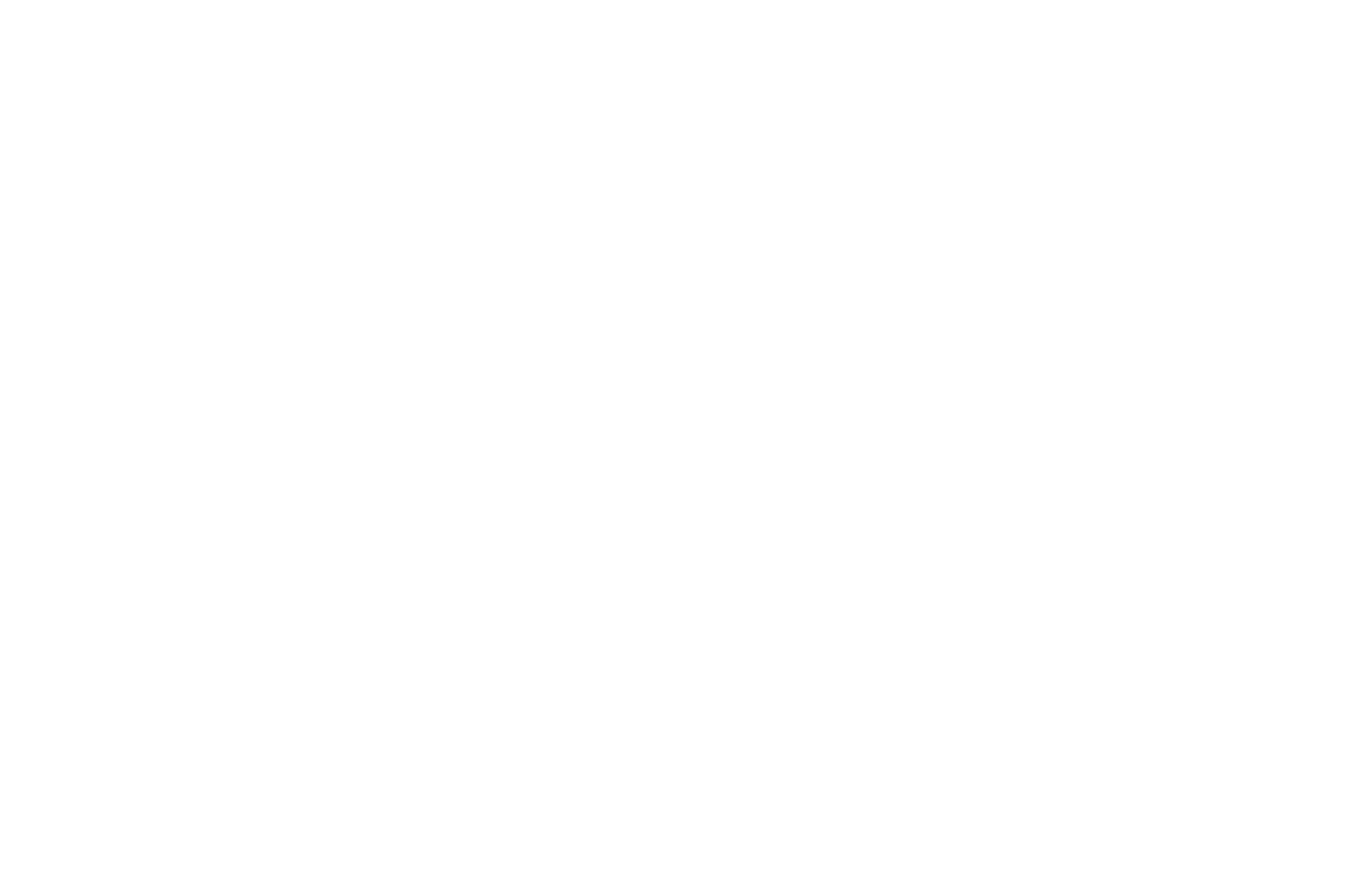

Specifications

Capacity: 3600kg

Minimum Concrete Requirements: 100mm

Recommended Ceiling Height: 4.2m

Lock Release: Single point

Power: 240v 2.2kw

Electrical: 14.5amps | 7amps

Column Height: 2076mm

Lifting Height: 1845mm

Clearance Under Runways: 1735mm

Overall Width (excl. motor): 2617mm

Overall Length (incl. ramps): 5303mm

Overall Length (excl. ramps): 4445mm

Platform Width: 475 mm

Width Between Platforms: 954mm

Platform Length: 4200mm

Drive Through Clearance: 2388mm

Freight Dimensions:

L 4280mm W 570mm H 760mm W 775KG

Warranty

We offer a comprehensive warranty on the TL3.6PH-H-2500, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
