Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.
4 Post Parking Hoist - 3.6 Ton High
4 Post Parking Hoist - 3.6 Ton High
SKU:TL3.6PH-H

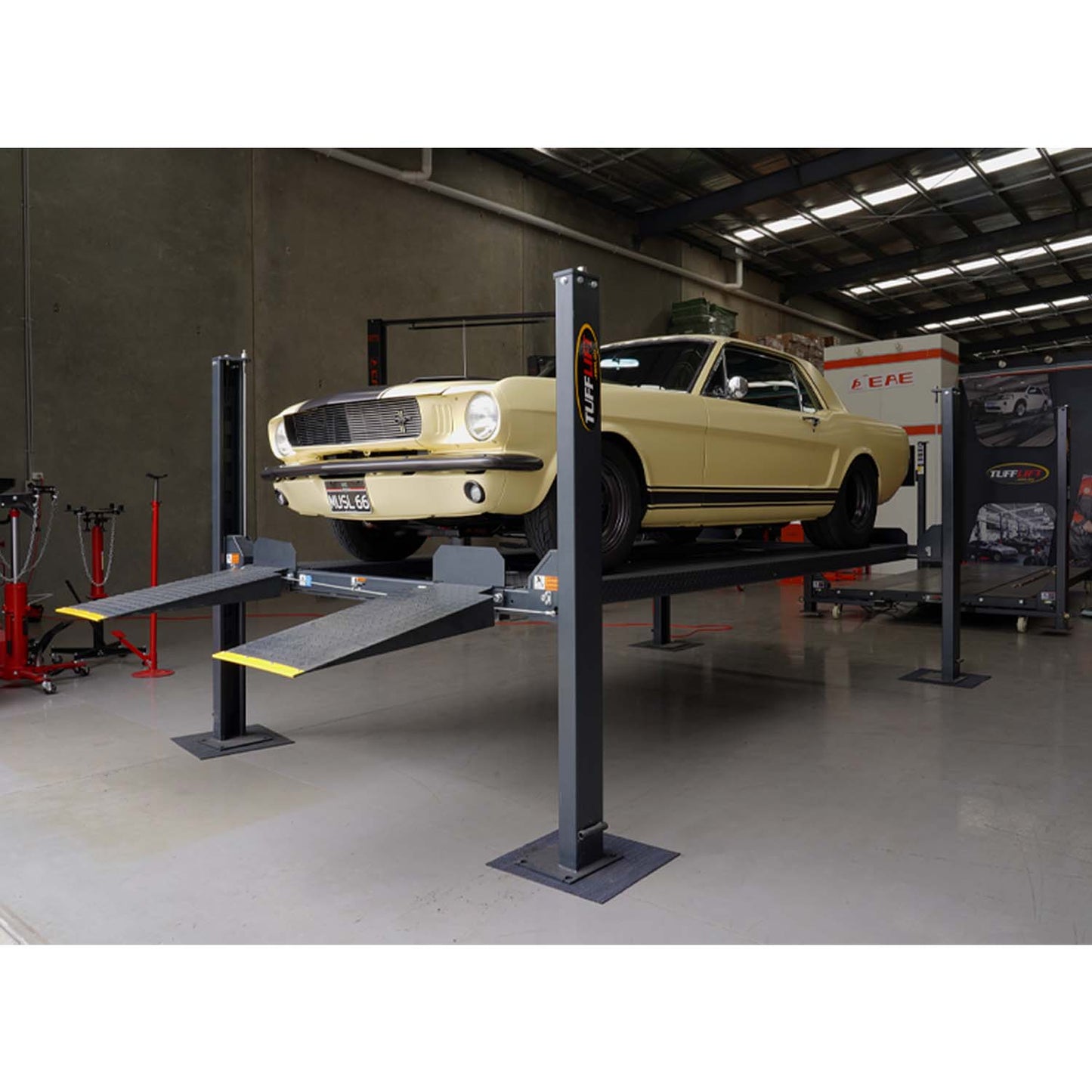

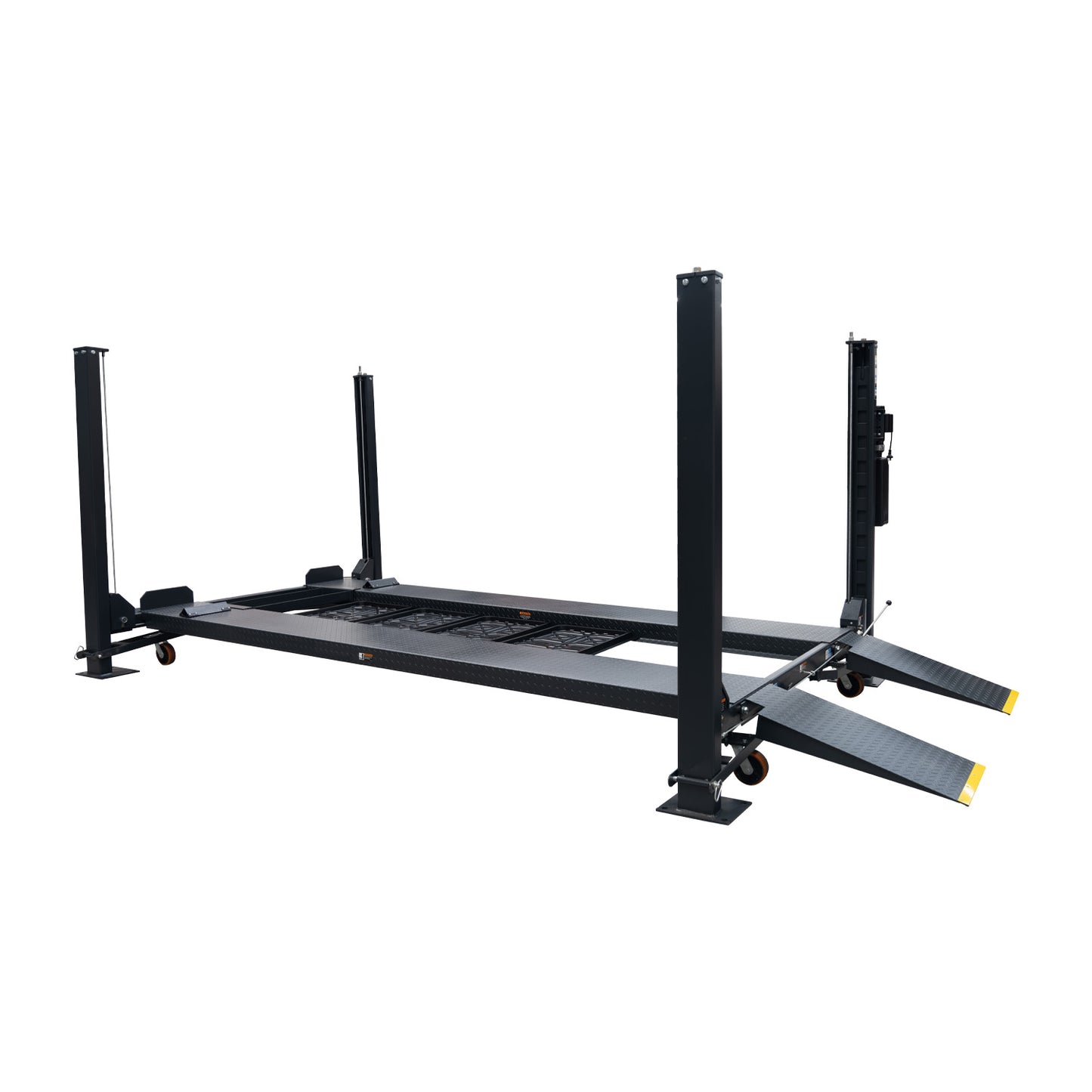

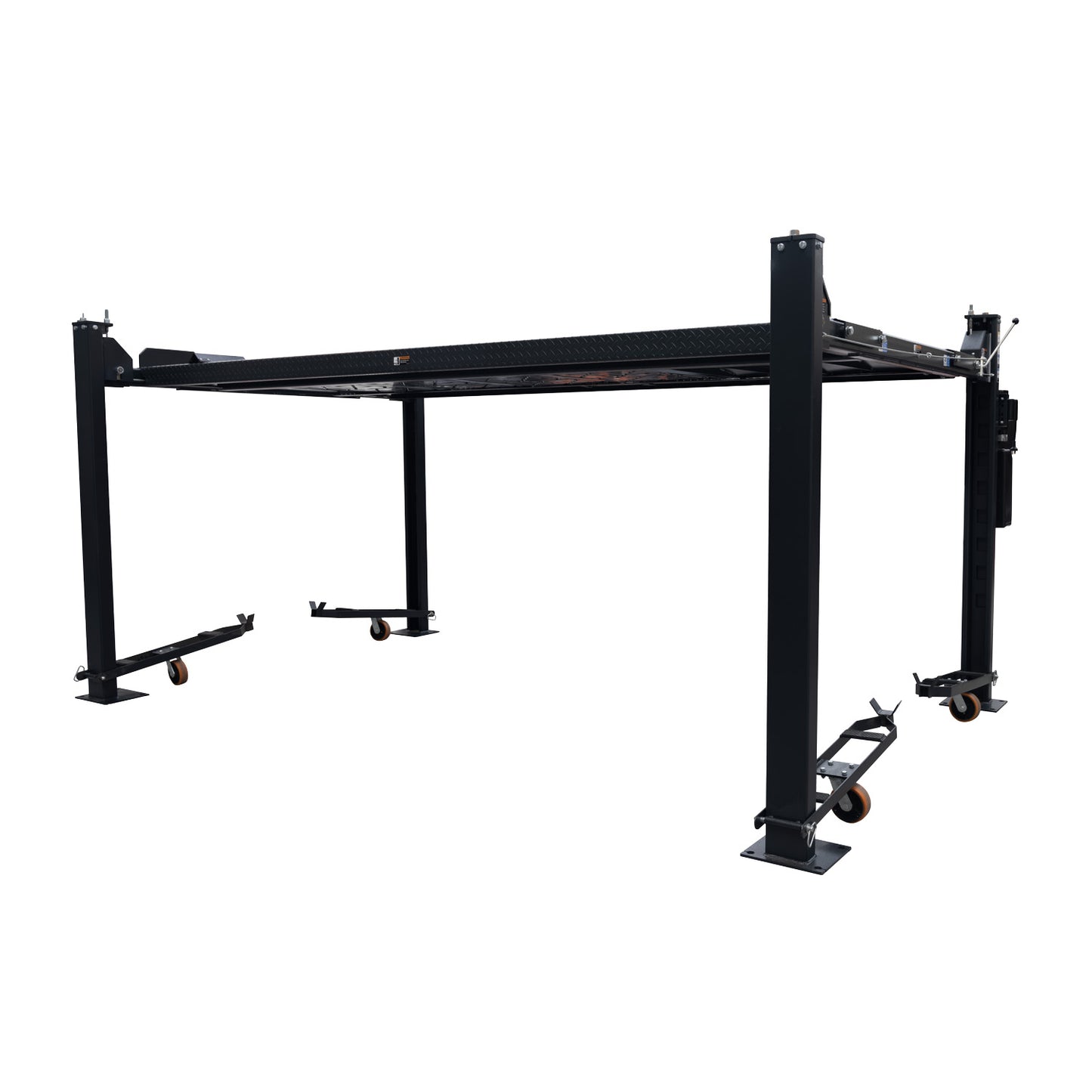

The TL3.6PH-H is a heavy-duty, extra height 4 post parking hoist designed for storing taller vehicles and doubling your parking capacity. With its robust diamond-plated platforms and powder-coated finish, this hoist is perfect for both vehicle storage and maintenance in any workshop or garage. The included caster kit ensures mobility, making it a versatile solution for a wide range of vehicle needs.
- Double your parking space
- Extra height for storing taller vehicles
- Perfect for storing/working on most vehicles

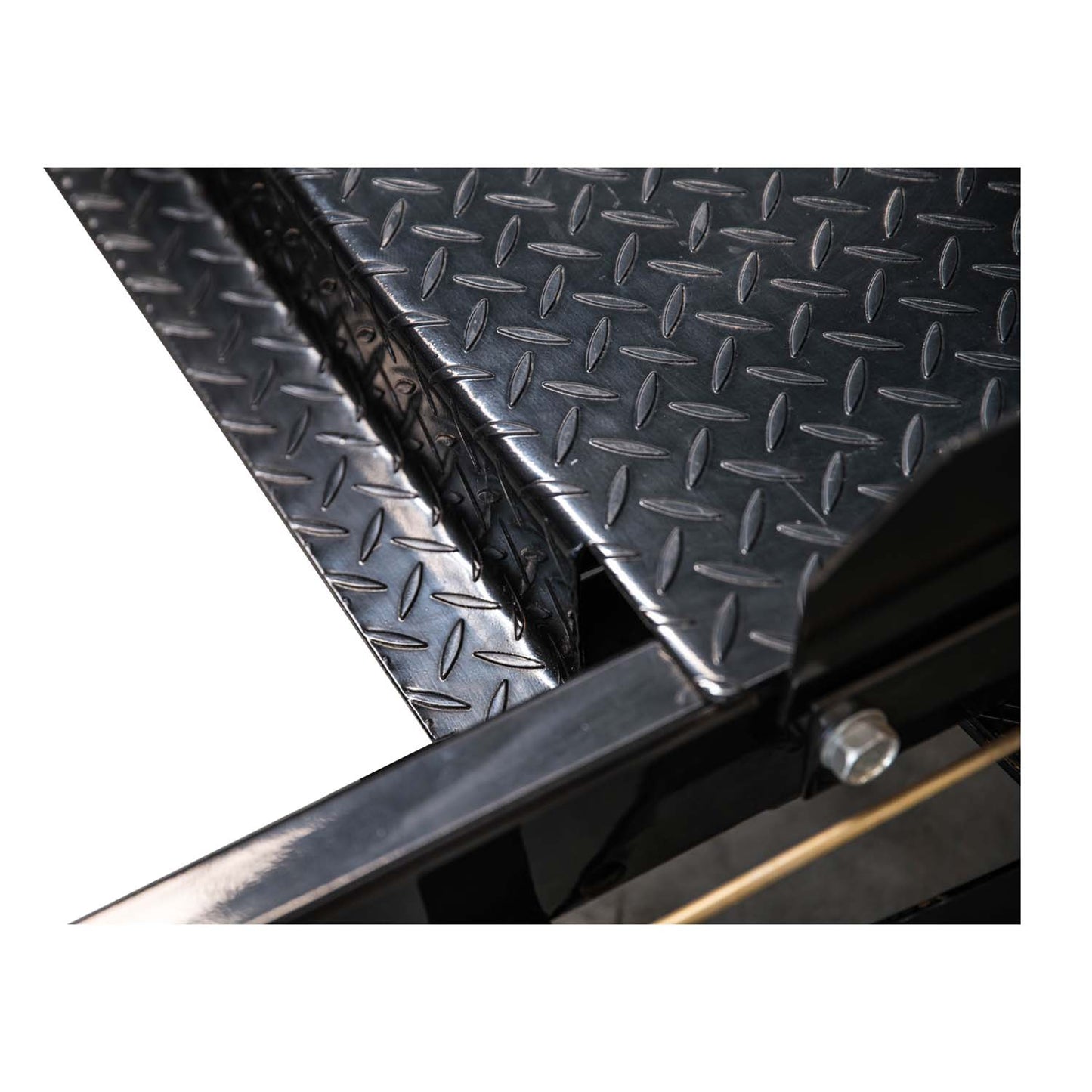

- Diamond plated platforms
- Powder coated finish
Includes:
- Steel approach ramps
- Hydraulic oil
- 4 plastic drip trays
- 4 wheel stops
- 2 wheel chocks

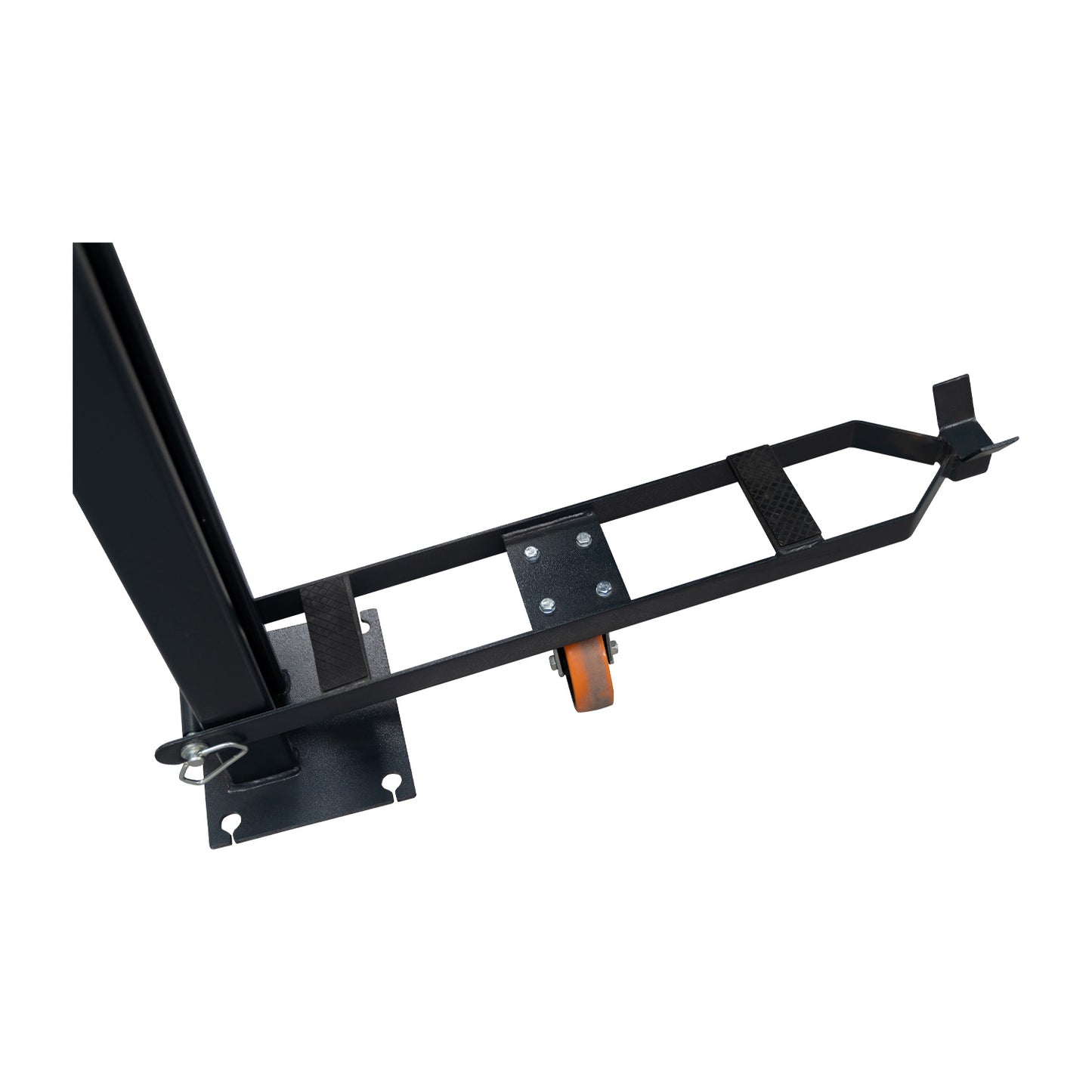

- Caster kit with polyurethane wheels
- Steel tool tray
- Engineer Certified
- Design Registered with Worksafe
Options:

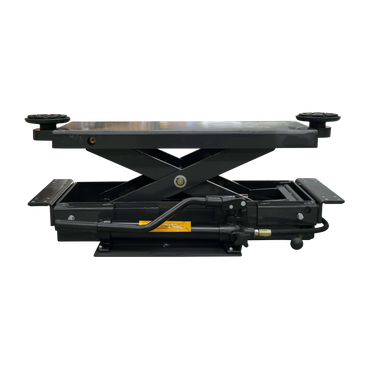

- Sliding Jack - RJ35

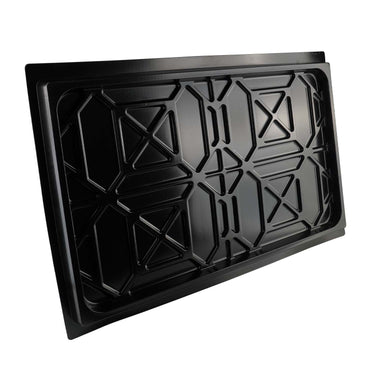

- Additional Drip Trays

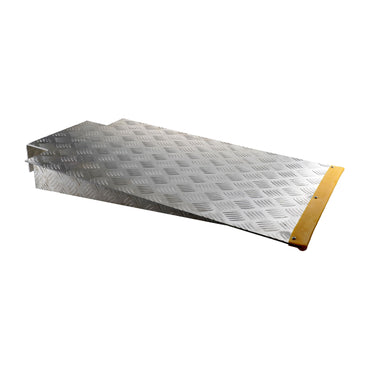

- Aluminum Approach Ramps
- Infill Kit
Safety:
- Mechanically locks each (170mm) interval
- Anti-surge valve
- Cable slack locks
Capacity: 3600kg
Minimum Concrete Thickness: 100mm
Recommended Ceiling Height: 3.7m
Lock Release: Single point
Power: 240v 2.2kw
Electrical: 15amps | 7 amps

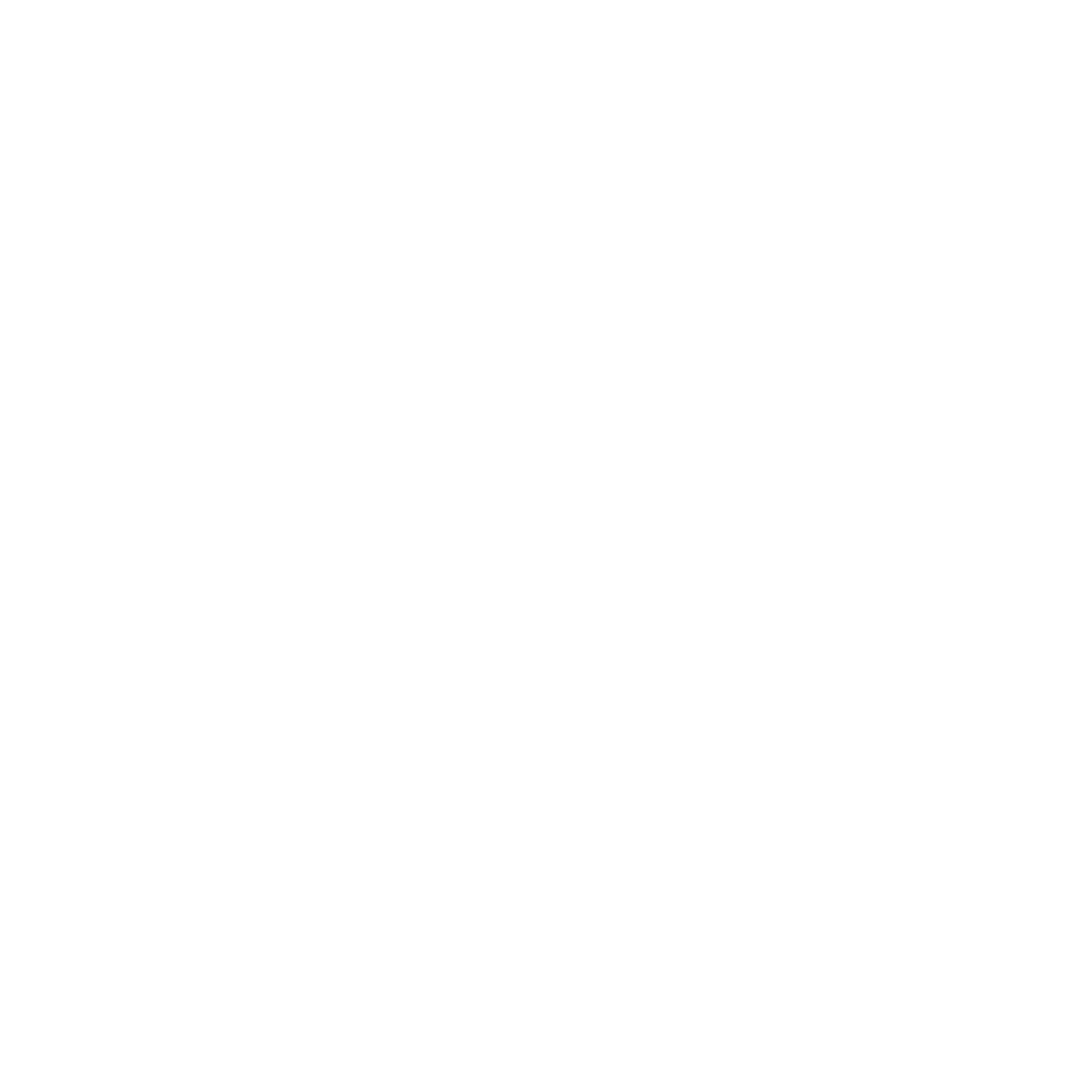

Column Height: 2476mm
Lifting Height: 2165mm
Clearance Under Runways: 2055mm
Overall Width (excl. motor): 2617 mm
Overall Length (incl. ramps): 5303 mm
Overall Length (excl. ramps): 4445 mm
Platform Width: 475 mm
Width Between Platforms: 954 mm
Platform Length: 4200mm
Drive Through Clearance: 2387 mm
Freight Dimensions:
L 4280mm W 570mm H 760mm W 775KG
We offer a comprehensive warranty on the TL3.6PH-H, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.
This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
Options
SPECIFICATIONS
-
100mm
Minimum Concrete Requirement
-
3.7m
Recommended Ceiling Height
-
240v / 2.2kw 14.5 amps
Power Requirements
-
428 x 57 x 76cm 775kg
Freight Dimensions
