4 Post Parking Hoist | 3.6 Ton Standard Height

Name: 4 Post Parking Hoist | 3.6 Ton Standard Height
Brand: Tufflift
SKU: TL3.6PH-S
Price: 4190.00 AUD
Availability: InStock

4 Post Parking Hoist | 3.6 Ton Standard Height

SKU:TL3.6PH-S

$4,190.00 AUD inc. GST

Sale

Taxes included. Shipping calculated at checkout.

Included with your Tufflift: RRP $1,101.60 AUD

4 Post Car Hoist End Plates For TL3.6PH-S/H

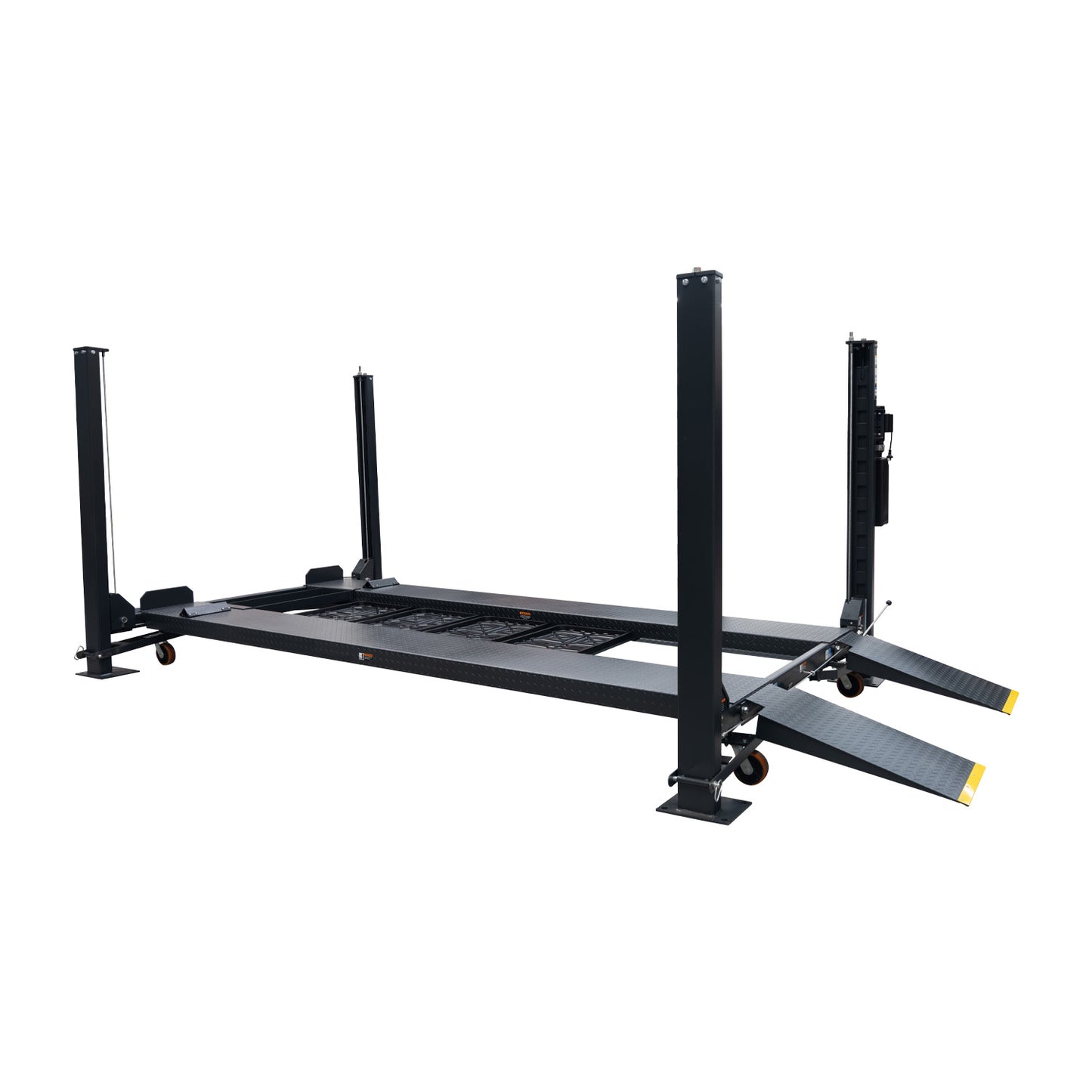

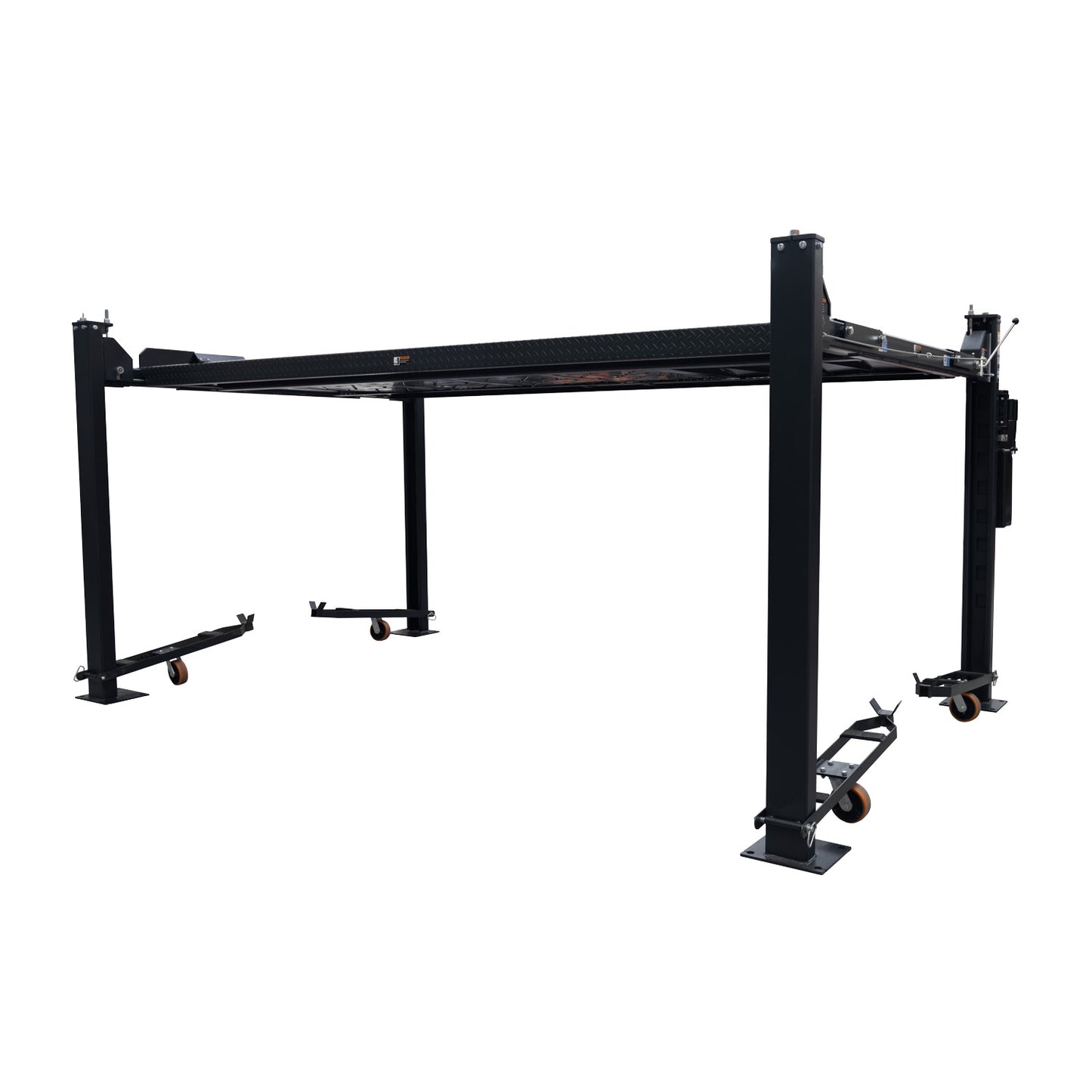

The TL3.6PH-S is a robust and moveable 3.6-ton 4-post parking hoist, perfect for doubling your parking space and working on a wide range of vehicles. With diamond-plated platforms and a durable powder-coated finish, this hoist offers reliable performance in garages and workshops. Thanks to the included caster kit, it’s easily moveable, allowing for flexibility in your workspace.

Features

Double your parking space
Perfect for storing/working on most vehicles

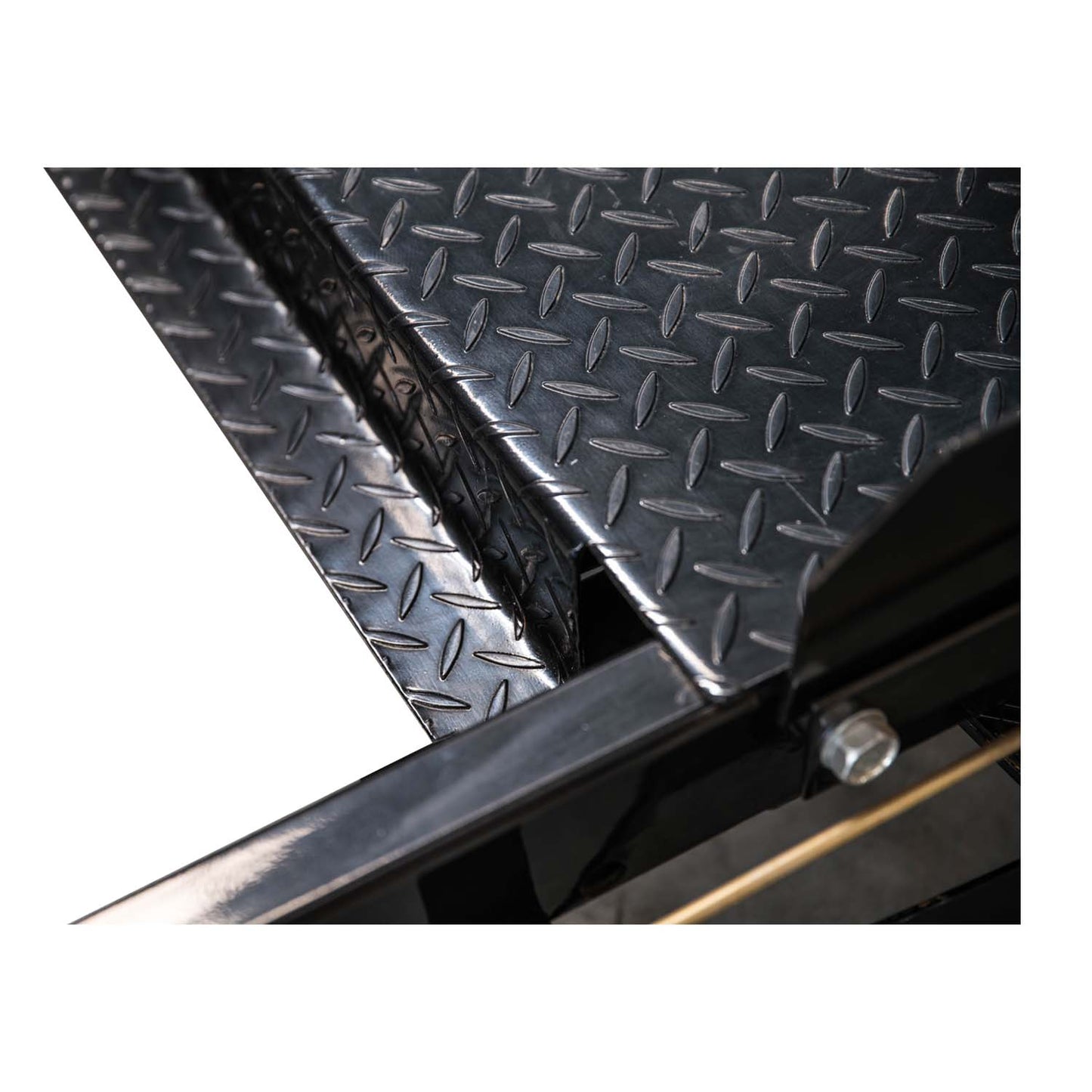

Diamond plated platforms
Powder coated finished

Includes:

Hydraulic oil
4 plastic drip trays
4 wheel stop plates
2 wheel chocks

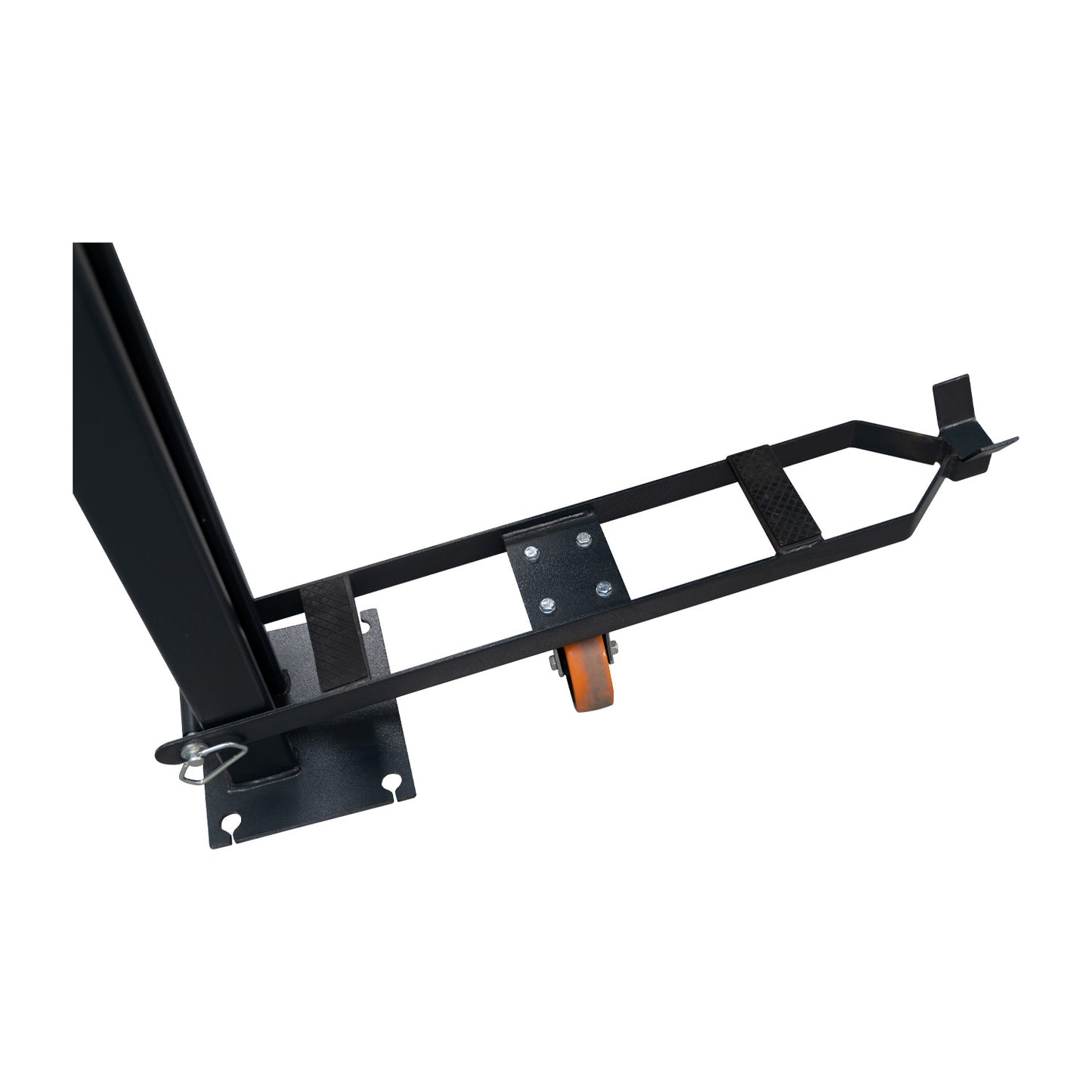

Caster kit with polyurethane wheels
Steel tool tray
Design Registered with Worksafe
Engineer Certified

Options:

Sliding Jack - RJ35
Additional Drip Trays

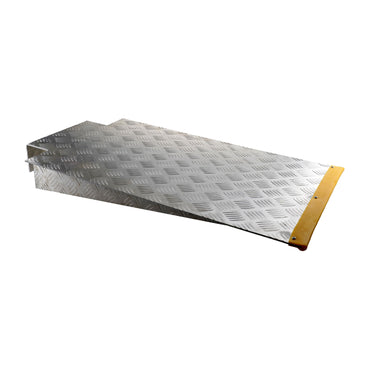

Aluminum Approach Ramps
Infill Kit

Safety:

Mechanically locks each (170mm) interval
Anti-surge valve
Cable slack locks

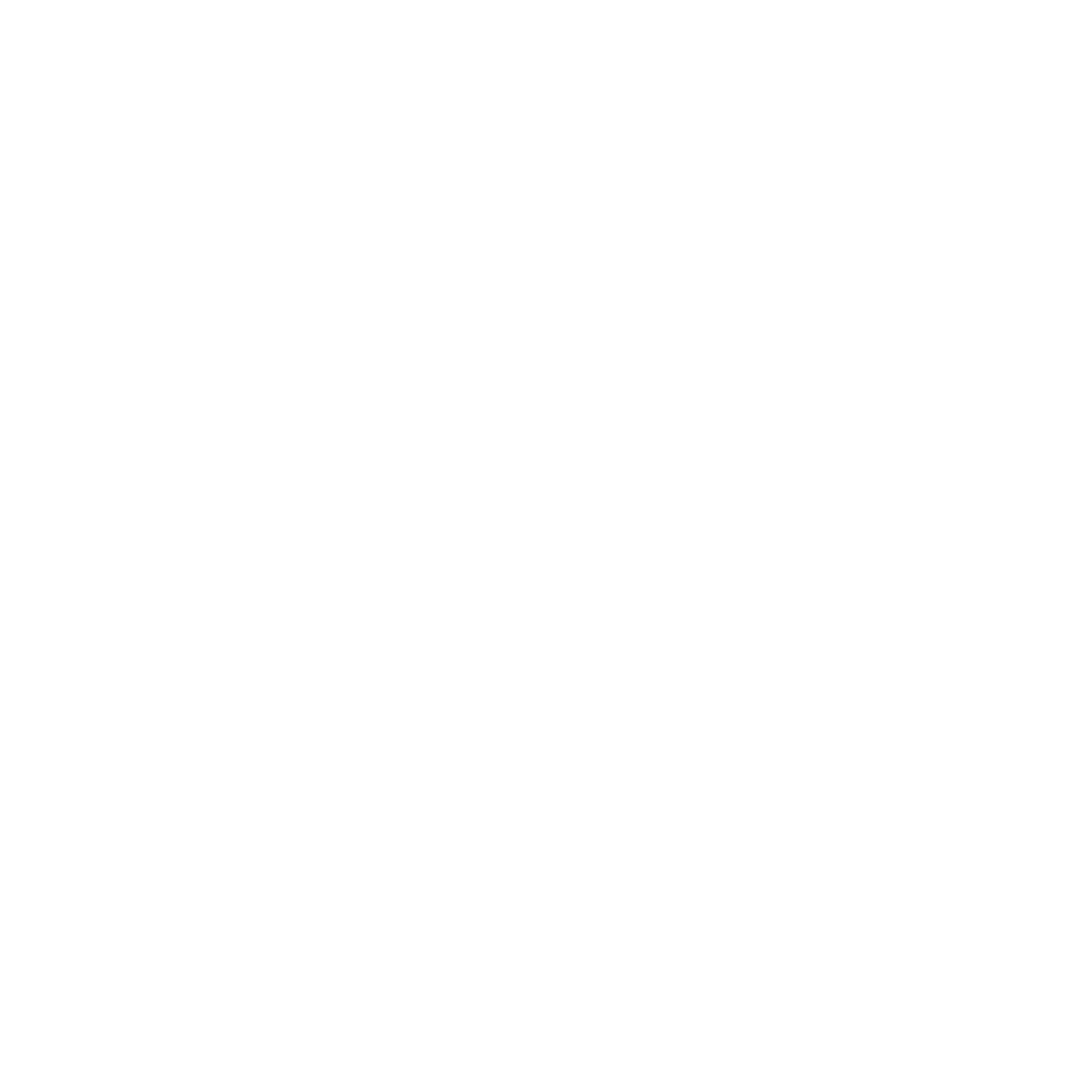

Specifications

Capacity: 3600kg

Minimum Concrete Requirements: 100mm

Recommended Ceiling Height: 3.4m

Lock Release: Single point

Power: 240v 2.2kw (15amp plug)

Column Height: 2076mm

Lifting Height: 1845mm

Clearance Under Runways: 1735mm

Overall Width (excl. motor): 2617mm

Overall Length (incl. ramps): 5303mm

Overall Length (excl. ramps): 4445mm

Platform Width: 475 mm

Width Between Platforms: 954mm

Platform Length: 4200mm

Drive Through Clearance: 2388mm

Freight Dimensions:

L 4280mm W 570mm H 760mm W 760KG

Warranty

We offer a comprehensive warranty on the TL3.6PH-S, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your parking hoist remains reliable and fully supported, giving you peace of mind throughout its use.
