Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

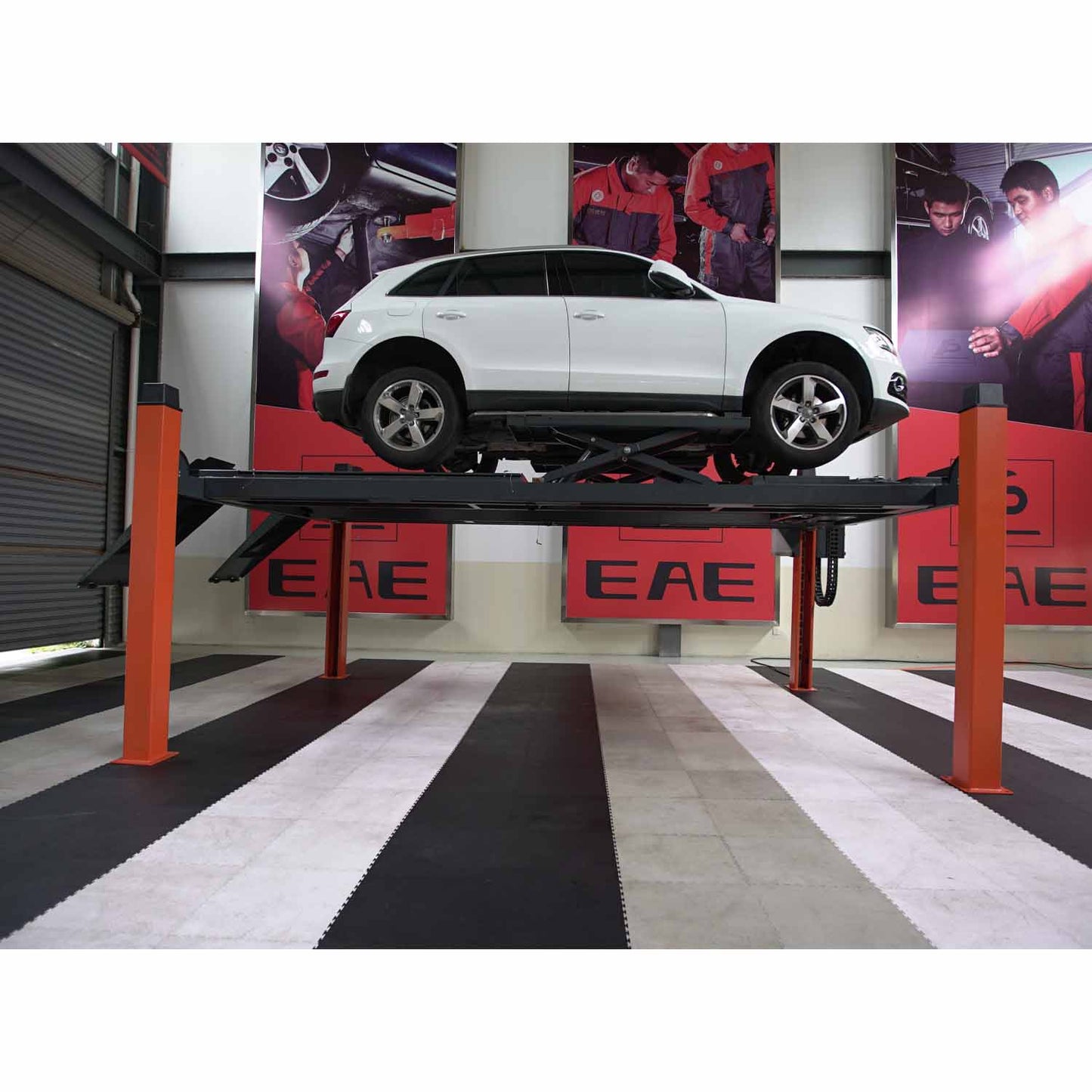

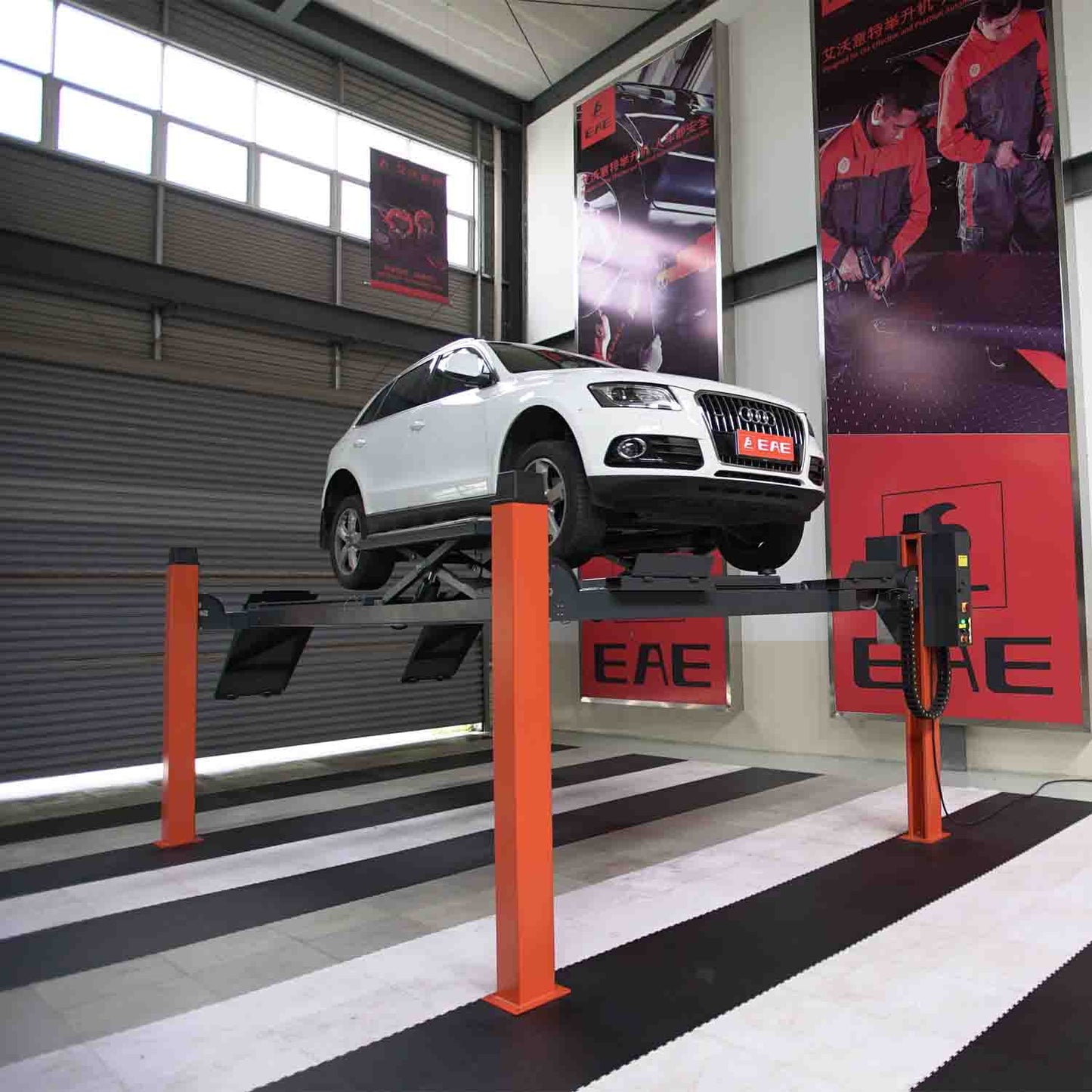

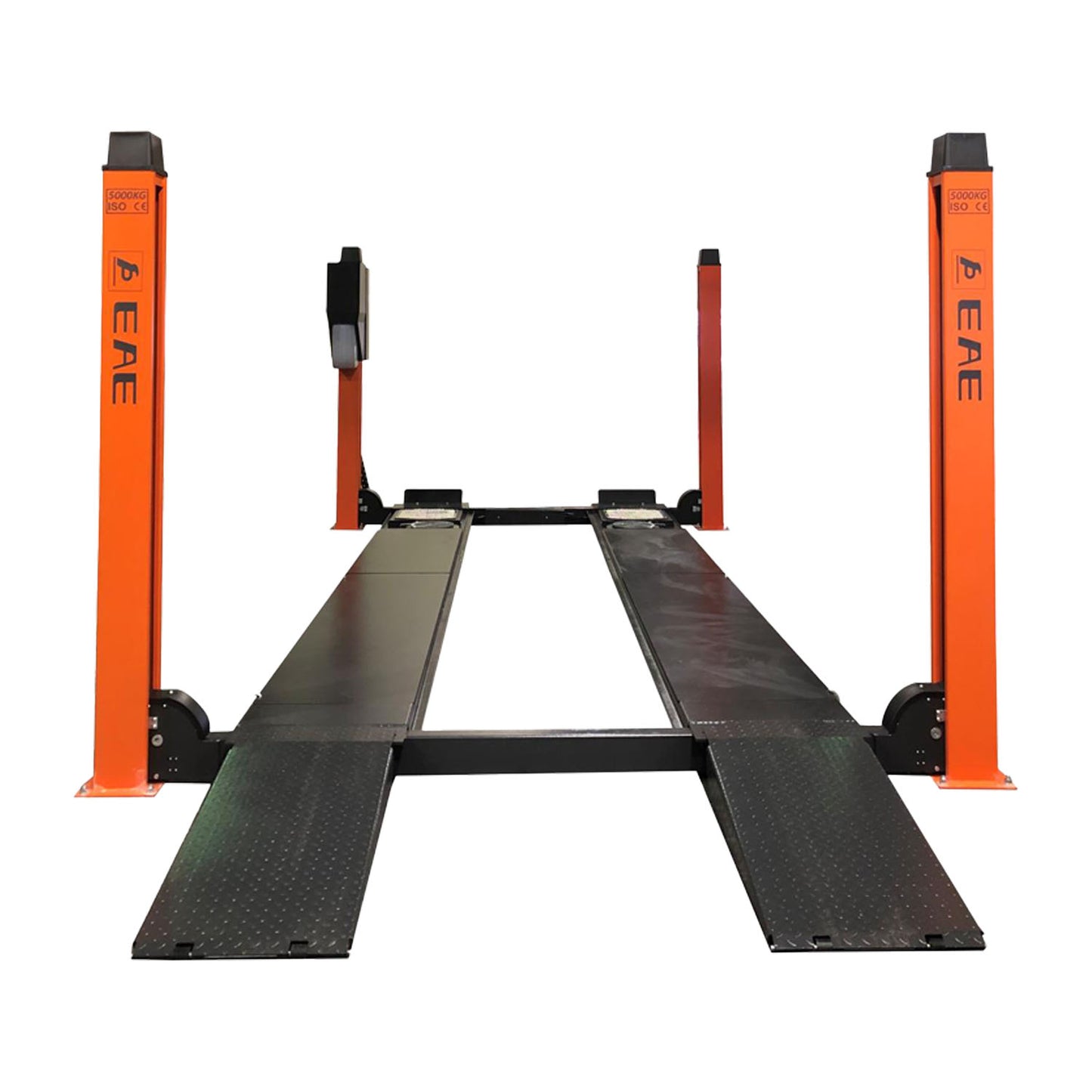

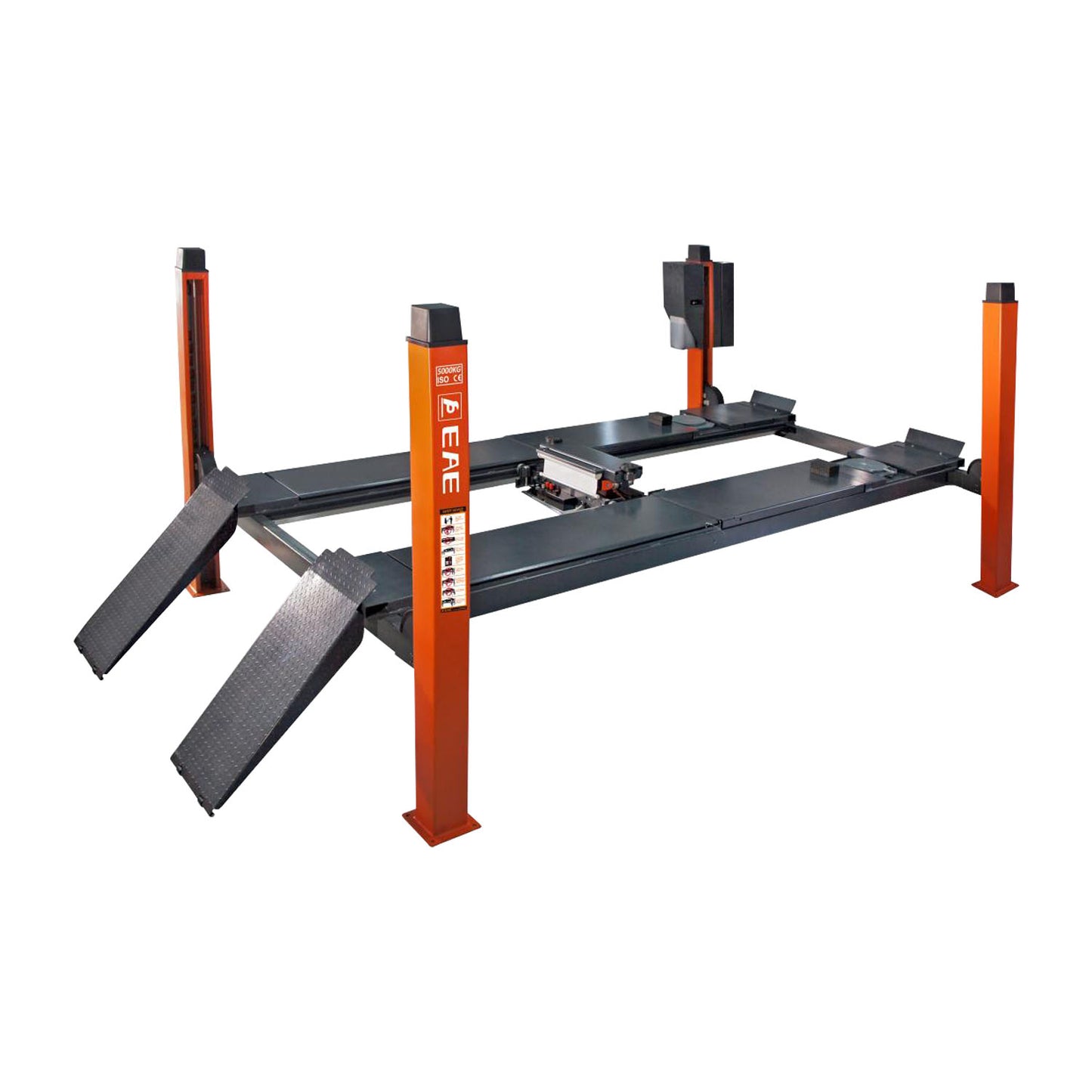

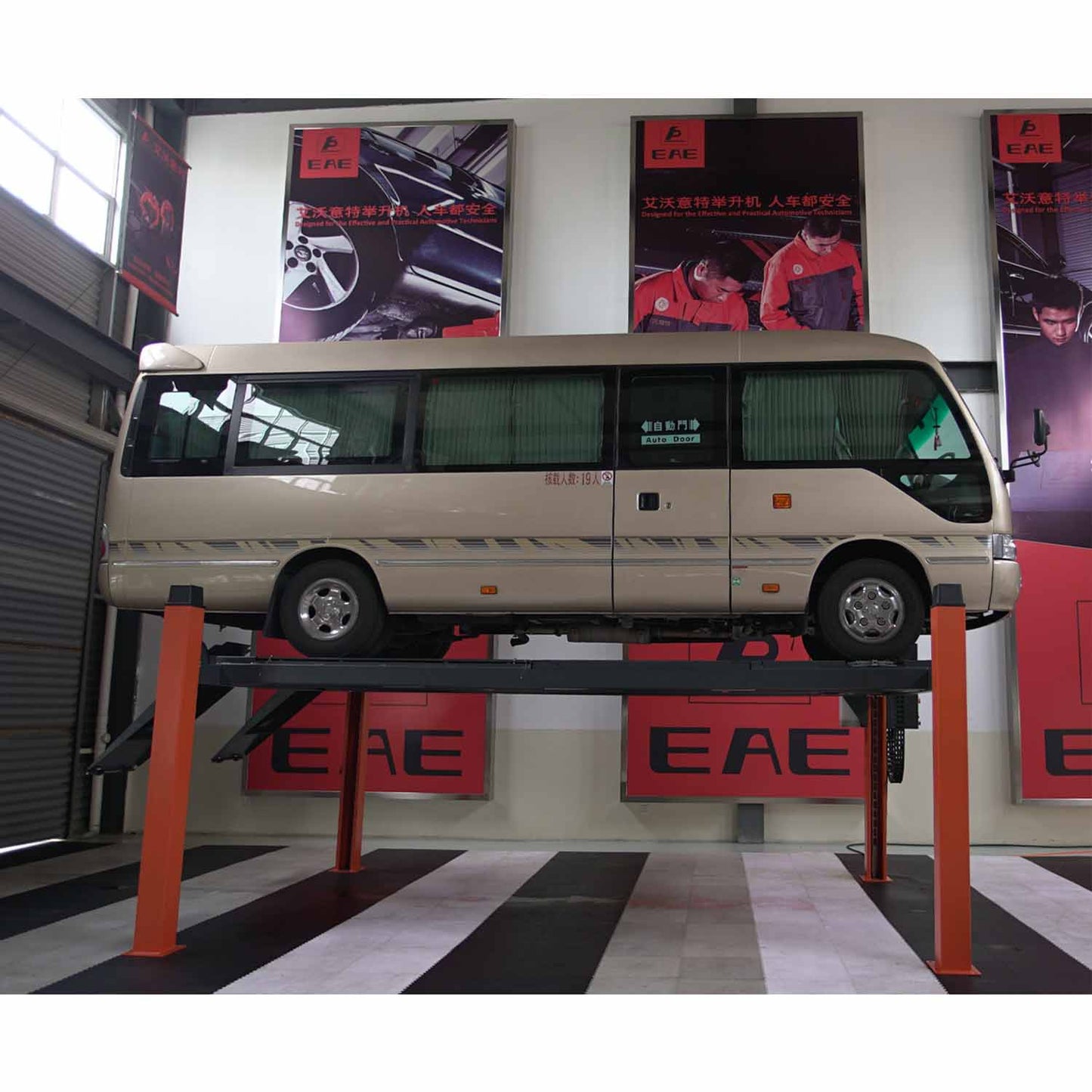

4 Post Wheel Alignment Hoist - 4 Ton

Name: 4 Post Wheel Alignment Hoist - 4 Ton
Brand: Tufflift
SKU: EE-6435V2.B.48L.40T
Price: 13750.00 AUD
Availability: InStock

4 Post Wheel Alignment Hoist - 4 Ton

SKU:EE-6435V2.B.48L.40T

$13,750.00 AUD

Sale

Choose a Power Supply

Included with your Tufflift: RRP $1,989.00 AUD

The 4 Ton 4 Post Wheel Alignment Hoist is designed for precision and versatility, making it ideal for professional workshops that handle a variety of vehicles. With a 4000KG lifting capacity, wide platforms, and advanced features, this hoist ensures accurate wheel alignment and reliable vehicle lifting.

Features

4000KG lifting capacity

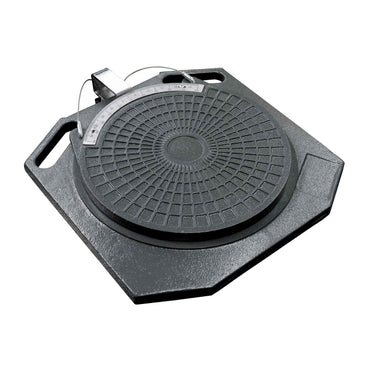

Long slip plates and adjustable turntable positions to suit a variety of wheelbases
Electric release and UP/DOWN button to control the lift
Wide platforms and low profile runways
3000 mm distance between columns for wheel alignment
Drive-on ramps with Polymer rollers
24V control system
Commercial grade cables and pulleys
Self-lubricating bushing and bearings
Aluminium motor with fan to avoid overheating

Specifications

Capacity: 4000kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 3.7m

Lock Release: Single point

Power: 240v 2.2kw 16amps | 3 Phase 2.2kw 5amps

Column Height: 2243mm

Lifting Height: 1850mm

Clearance Under Runways: 1625mm

Overall Width: 3460mm

Overall Length (incl. ramps): 6370mm

Overall Length (excl. ramps): 4888mm

Platform Width: 630mm

Width Between Platforms: 970mm

Platform Length: 4880mm

Drive Through Clearance: 3000mm

Freight Dimensions:

L 5340mm W 750mm H 800mm W 2343KG

Warranty

We offer a comprehensive warranty on the EE-6435V2.B.48L.40T, covering 5 years on the structure and 2 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your wheel alignment hoist remains reliable and fully supported, giving you peace of mind throughout its use.
