Measurements and colour are correct at the time of publishing, however are subject to change. If these are crucial to your facility or vehicle requirements it is essential for you to discuss your particular requirements with your Tufflift advisor prior to purchasing your new hoist.

Tufflift

4 Post Workshop Hoist - 6 Ton

Name: 4 Post Workshop Hoist - 6 Ton
Brand: Tufflift
SKU: TL6.0PH
Price: 7990.00 AUD
Availability: InStock

4 Post Workshop Hoist - 6 Ton

SKU:TL6.0PH

$7,990.00 AUD

Sale

Choose a Power Supply

Included with your Tufflift: RRP $99.00 AUD

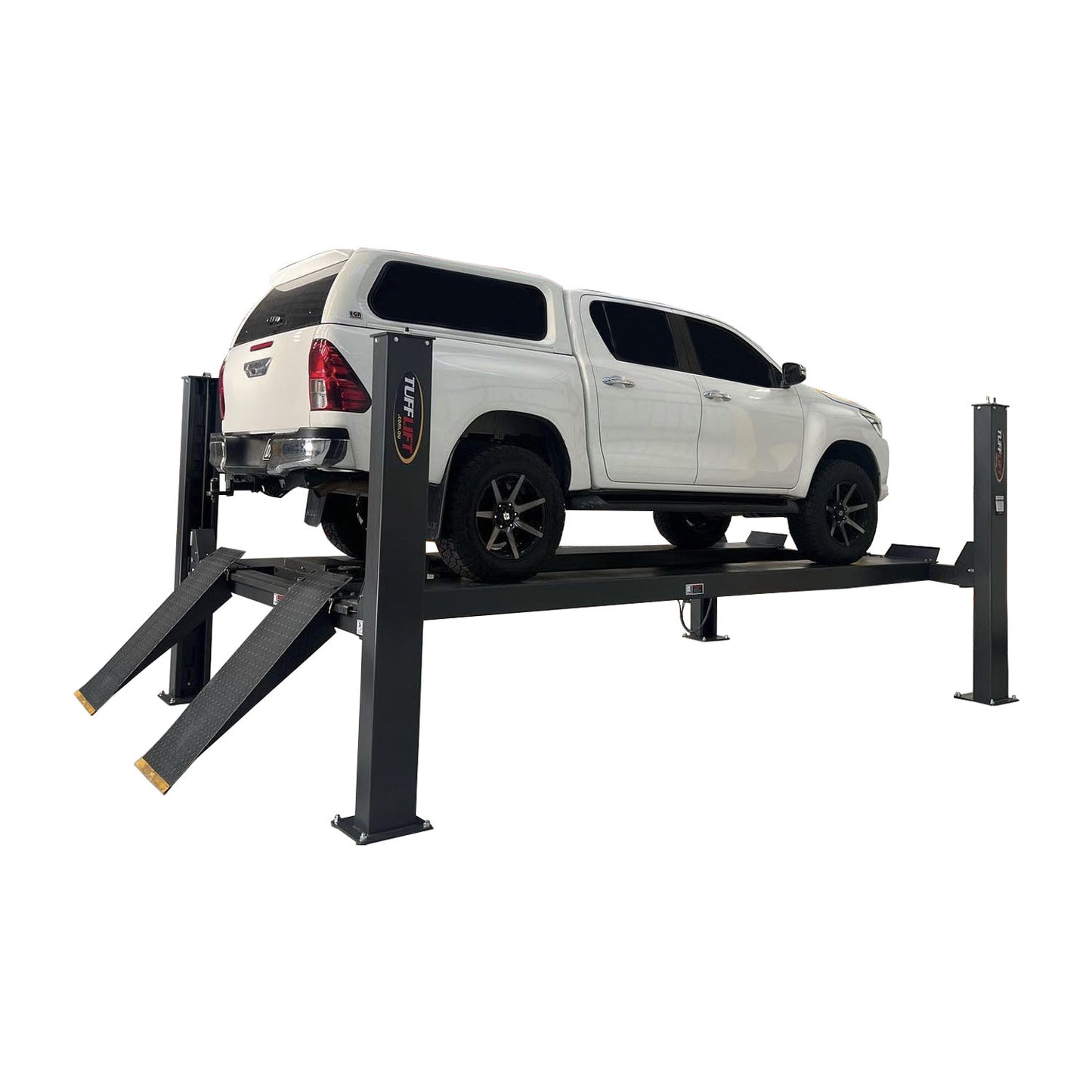

The 6 Ton 4 Post Workshop Hoist is built for heavy-duty use, making it perfect for working on larger vehicles. With a robust construction and a powder-coated finish, this hoist provides the durability and stability needed in any professional workshop. Its multiple safety features ensure secure lifting, while various optional accessories add versatility to the hoist's capabilities.

Features

Perfect for/working on larger vehicles
Powder coated finish

Includes:

Hydraulic oil
Engineer Certified
Design Registered with Worksafe

Options:

Also available as a Wheel Alignment Hoist
Rolling Jack – RJ70

Safety:

Mechanically locks at each interval
Anti-surge valve
Cable slack locks in case of failure

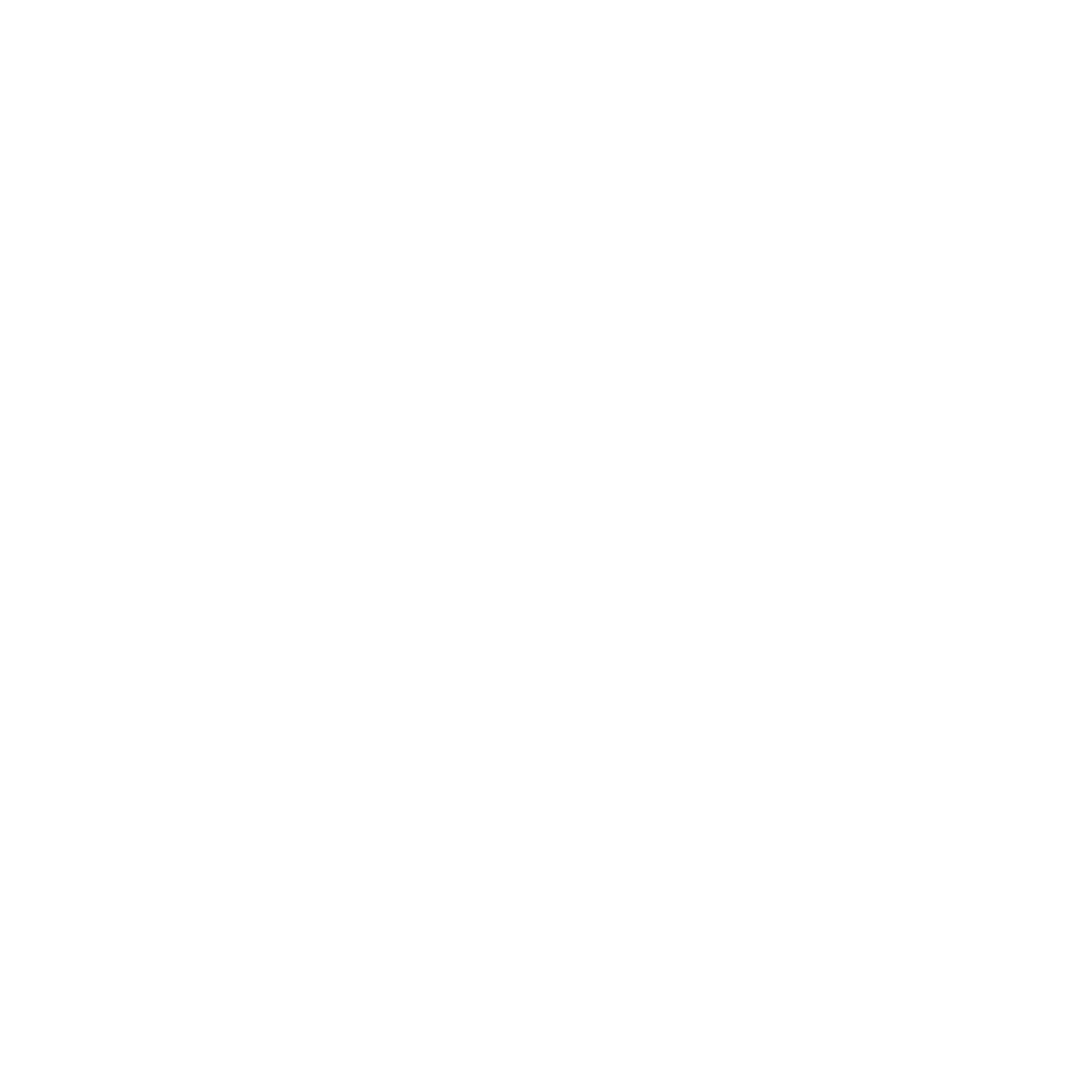

Specifications

Capacity: 6000kg

Minimum Concrete Requirement: 150mm

Recommended Ceiling Height: 3.7m

Lock Release: Single point

Power: 240v 3kw 21.5 amps | 3 Phase 3kw 5 amps

Column Height: 2254mm

Lifting Height: 1891mm

Clearance Under Runways: 1730mm

Overall Width (excl. motor): 3295mm

Overall Width (incl. motor): 3595mm

Overall Length (incl. ramps): 7000mm

Overall Length (excl. ramps): 5420mm

Platform Width: 508mm

Width Between Platforms: 1080mm - 1180mm

Platform Length: 4960mm

Drive Through Clearance: 2895mm

Freight Dimensions:

L 5380mm W 590mm H 1100mm W 1400KG

Warranty

We offer a comprehensive warranty on the TL6.0PH, covering 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components.

This warranty includes both parts and labour, ensuring that your workshop hoist remains reliable and fully supported, giving you peace of mind throughout its use.
